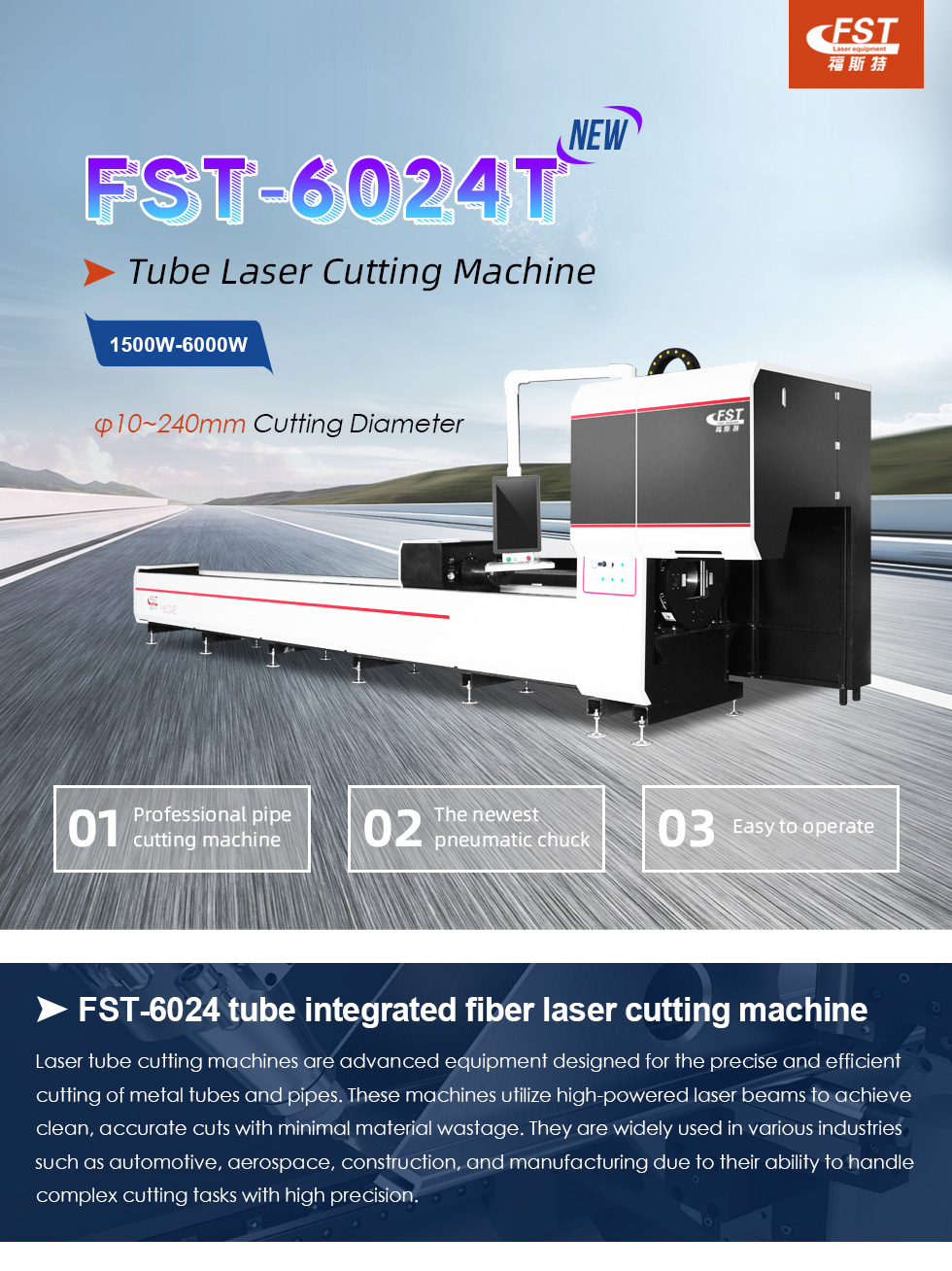

Water Cooling Fiber Laser Pipe Cutting Machine For Meta Tube Metal Cutting Price

Short Description:

Laser tube cutting machines are advanced equipment designed for the precise and efficient cutting of metal tubes and pipes. these machines utilize high-powered laser beams to achieve clean, accurate cuts with minimal material wastage. they are widely used in various industries such as automotive, aerospace, construction, and manufacturing due to their ability to handle complex cutting tasks with high precision.

Send email to us Download as PDF

Product Detail

Product Tags

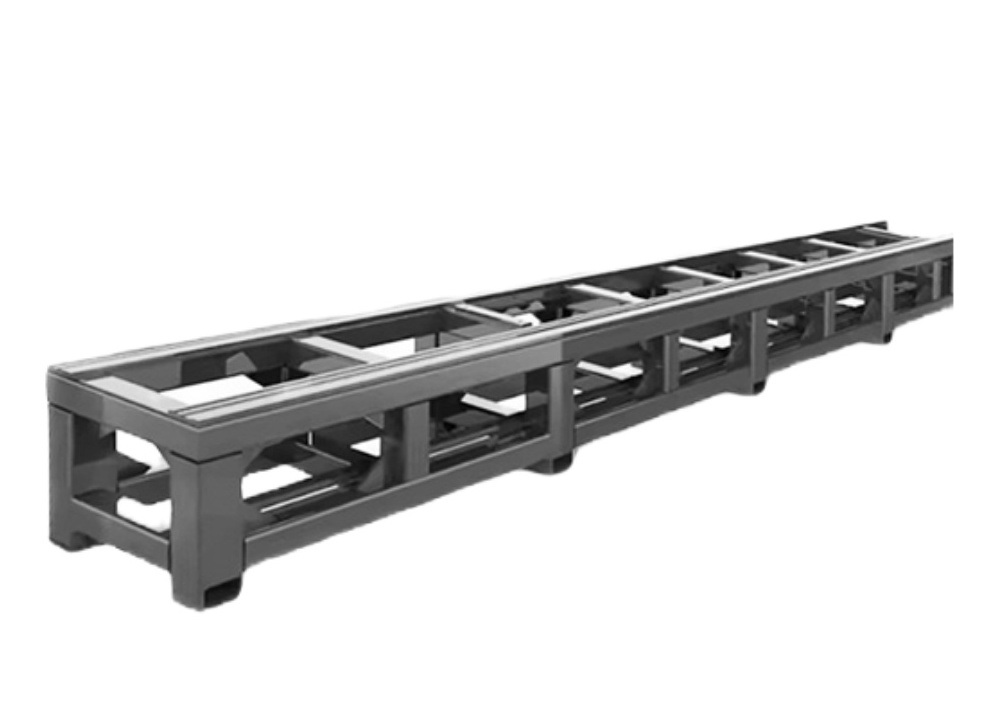

HEAVY-DUTY MECHANICAL STRUCTURE

Adopting high-quality carbon steel welding bed,it is more stable and durable.Which has strong structural rigidity,small deformation, and low vibration to ensure cutting accuracy.

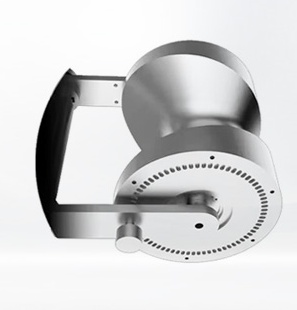

FRACTIONAL AUTOMATIC SUPPORT INSTALLATION

lt employs inteligent tube support design,which can solve the deformation problems in the process of long tube cutting.

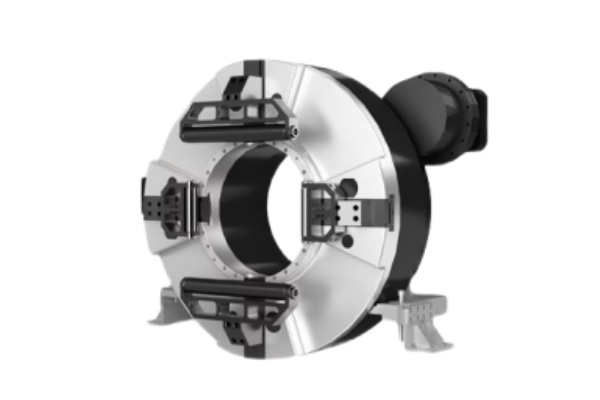

FRONT CHUCK

The middle chuck adopts a fully sealed appearance dust-proof structure to prevent dust from entering,and is beautiful and generous with aluminum alloy panel + stainless steel cover buckle. Full stroke clamping range without gripper transposition adjustment,clamping force and load bearing force is strong,stable performance, high efficiency and clamping accuracy.

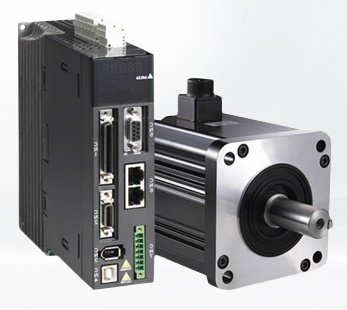

SERVO DRIVER AND SERVO MOTOR

Servo motors stabilise and drive the beam to control the movement of the XYZ axis according to the programmed instructions to complete the cutting operations with complex precision,and the user can adjust the parameters according to their needs.

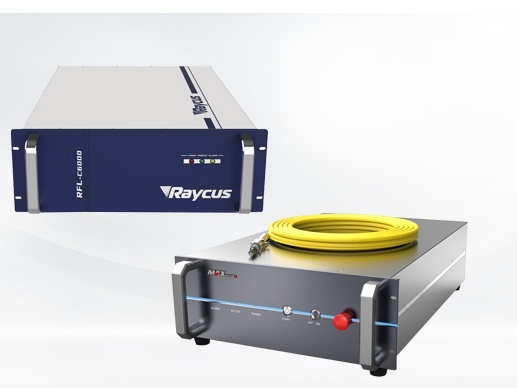

LASER SOURCE

Professional cutting laser source.With high-quality beam quality.high light conversion efficiency.the light emitting mode is more conducive to achieving a good and stable cutting effect with high quality.

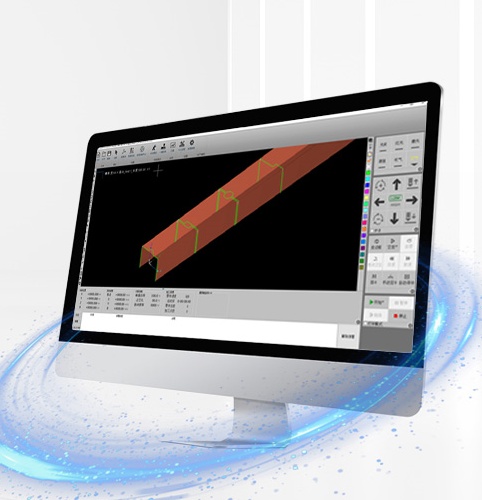

TubePro

TubePro designed for professional tube cutting.supports production of tube and profile of various shape. lt works with TubesT nesting software seamlessly to realize technique setting.advanced toolpath generation and nesting for standard and special production need.

1.Auto Find Tube Center in Production

2.Workpiece and Floating Coordinates

3.Seven-Axis Tube Delivering

4.Tube Holder

5.Comer technique

6.Active Control at Comer Cutting

7.Quick Frog-Leap

8.Free Form Tube & Profile Production

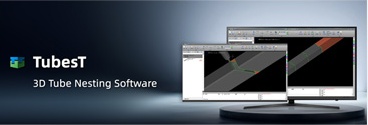

TubesT

3D Tube Nesting Software

TubesT is a 3D tube nesting software designed for CypTube/TubePro laser cutting system, From parts drawing and modification, full type compensation,strategic nesting to report generation,using TubesT will meet and exceed your production needs.

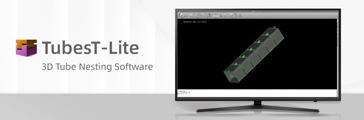

TubesT-Lite

3D Tube Nesting Software

TubesT-Lite is a free software to generate toolpath for FsCuT tube cutting system.It's designed for CypTube/TubePro can import part from external igs file.draw the part of standard shape and array-nest the part on the tube.

PARAMETER

cutting thickness

PARAMETER

Model	FST-6024T
Working area(mm)	6000*φ10-240mm
Laser Power	1500W/2000W/3000W/4000W/6000W etc.
Working table	Tube Y:6000mm X:250mm Z:200mm
Cooling Method	Water Cooling Protection
Cutting head	Raytools/OSPR/Au3tech/WSX/Precitec
Control system	TubePro
Laser source	Raycus/Max/Reci/IPG
Maximum Acceleration	1G
Positioning Accuracy	士0.05mm
Maximum Rotational Speed	85r/min
Machine Size	790017402380mm
Table Maximum Load(KG)	300KG
Power Parameters	Three-phase AC 380V 50Hz (Can be customized)
Machine weight	4T
