Split fiber Laser marking machine

Short Description:

Advantages of fiber laser marking machine

Fiber laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel ,Brass, Aluminium, Steel, Iron etc and can also mark on m -any non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon

1. No Consumables, Long lifespan Maintenance Free
2. Multi-functional
3. Simple Operation, Easy to use
4. High Speed Laser Marking
5. Optional rotary axis for different cylindrical

Send email to us Download as PDF

Product Detail

Product Tags

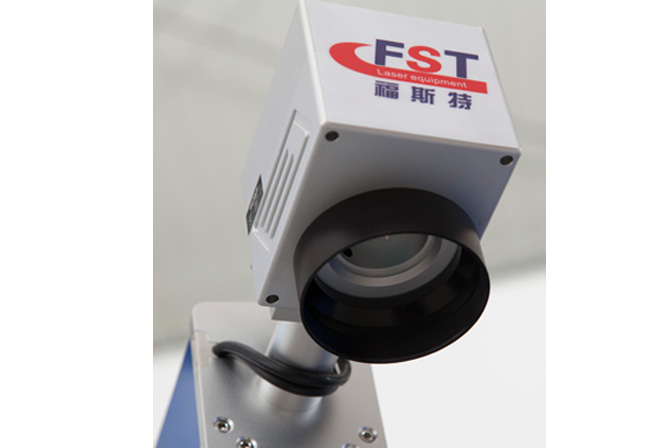

GALVO HEAD

Famous brand Sino-galvo, high speed galvanometer scan adopting SCANLAB technology, digital signal, high precision and Speed.

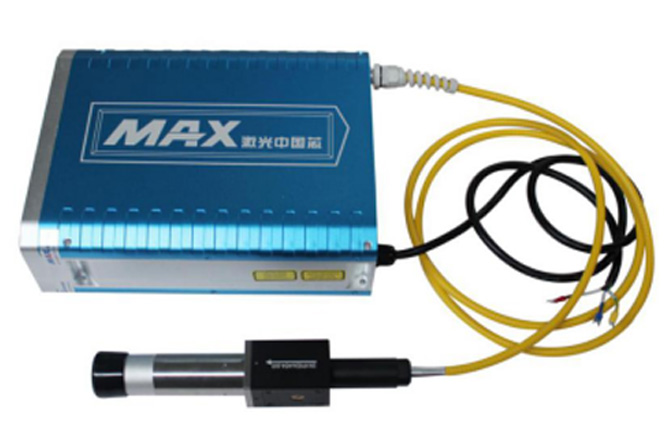

LASER SOURCE

We use Chinese famous brand Max laser source Optional: IPG / JPT / Raycus laser source.

JCZ CONTROL BOARD

Ezcad genuine products, user-friendly interface , functional diversity, high stability, high precision .Each board has its own number to ensure that it can be inquired in the original factory. Refuse to fake

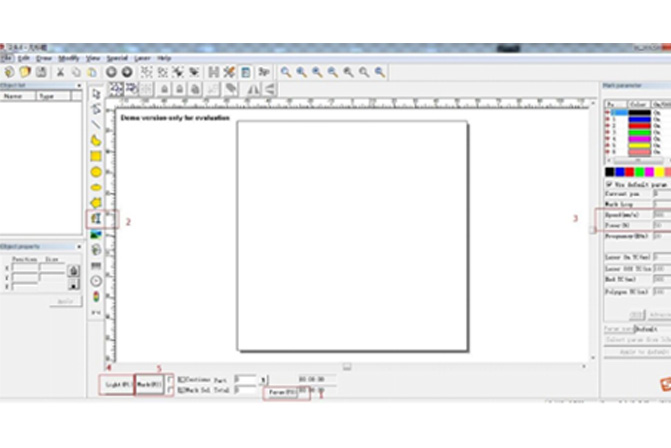

THE CONTROL SOFTWARE

1. Powerful editing function.

2. Friendly interface.

3. Easy to use.

4. Support Microsoft Windows XP, VISTA, Win7, Win10 system.

5. Support ai, dxf, dst, plt, bmp, jpg, gif, tga, png, tif and other file formats.

6. Support for True type fonts, single Line fonts (JSF ), SHX fonts, dot matrix fonts ( DMF ), 1D bar codes and 2D bar codes . Flexible variable text processing, changing text in real time during processing, can directly read and write text files, SQL databases and Excel file.

MARKING RULER AND ROTATING HANDLE

Enables customers to precisely position for fast engraving Adapting To Different Products Height

FOOT SWITCH

It can control the laser on and off make the operate more convenient.

Product Video

Specification

Technical Parameters

Model	fiber marking machine
Working area	110110/150150/200200/300300(mm)
Laser power	10W/20W/30W/50W
Laser wavelength	1060nm
Beam quality	m²<1.5
Application	metal and partial nonmetal
Marking Depth	≤1.2mm
Marking Speed	7000mm/ standard
Repeated Precision	±0.003mm
Working voltage	220V or 110V /(+-10%)
Cooling Mode	Air Cooling
Supported graphic formats	AI，BMP，DST，DWG，DXF，DXP，LAS，PLT
Controlling software	EZCAD
Working temperature	15°C-45°C
Optional parts	Rotary Device, Lift platform, other customized Automation
Warranty	2 year
Package	Plywood
