Short Description:

Advantages of fiber laser marking machine
1. No Consumables, Long lifespan Maintenance Free
The Fiber laser source has super long lifespan of over 100,000 hours without any maintenance . No need to spare any extra consumer parts at all . Suppose you will work for 8 hours per day, 5 days a week, A fiber laser could work properly for you for more than 8-10 years without extra costs except electricity
2. Multi-functional
It could Mark / Code / Engrave un-removable serials Numbers, batch Numbers Expiry info, Best Before date, logo any Characters that you want . It could also mark QR code
3. Simple Operation, Easy to use
Our patent software supports almost all common formats, The operator does not have to understand programming, Just simply set a few parameters and click start


Download as PDF

Product Detail

Product Tags

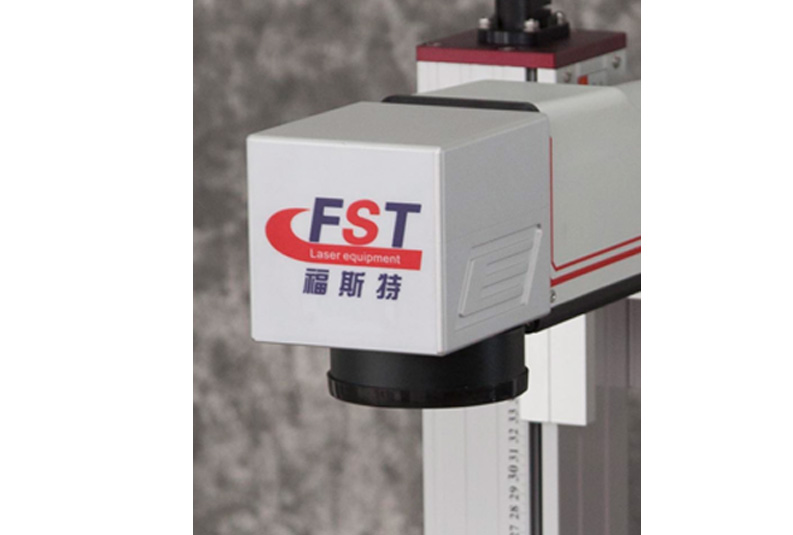

FIELD LENS

We use famous brand to provides precision laser Standard 110x110mm marking area . Optional 150x150mm , 200X200mm 300x300mm etc

FIELD LENS
FIELD LENS

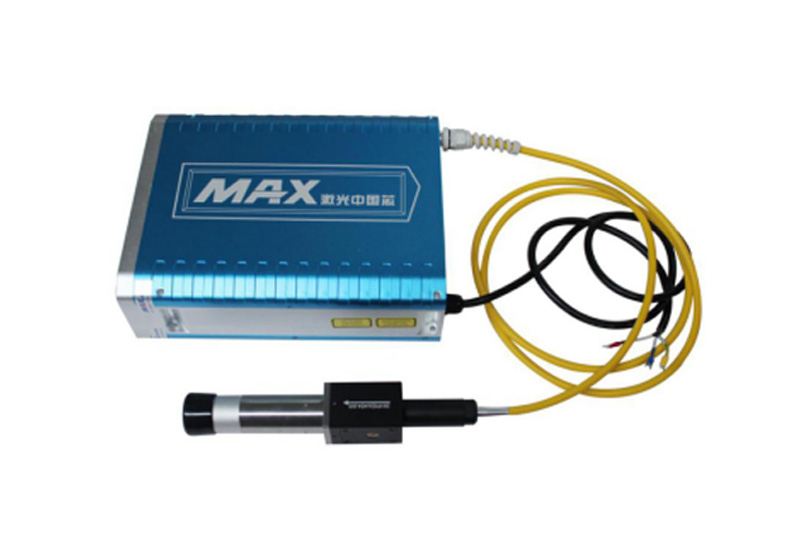

LASER SOURCE

We use Chinese famous brand Max laser source Optional : IPG / JPT / Raycus laser source.

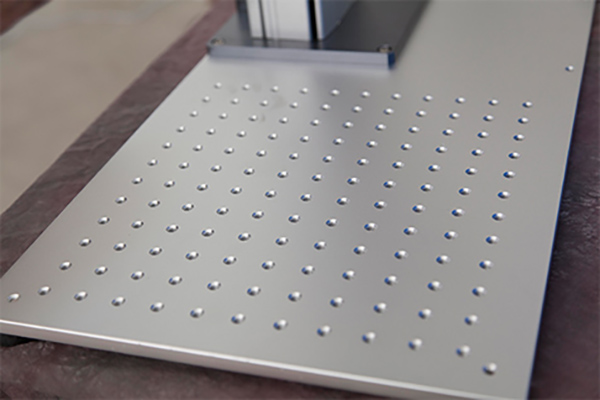

WORKING PLATFORM

Alumina working platform and imported precise beeline device. Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform.

WORKING-PLATFORMa

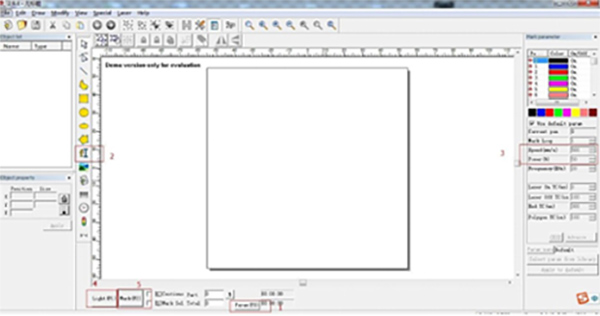

THE CONTROL SOFTWARE

65

1. Powerful editing function.

2. Friendly interface.

3. Easy to use.

4. Support Microsoft Windows XP, VISTA, Win7, Win10 system.

5. Support ai , dxf , dst , plt , bmp ,jpg , gif , tga , png , tif and other file formats.

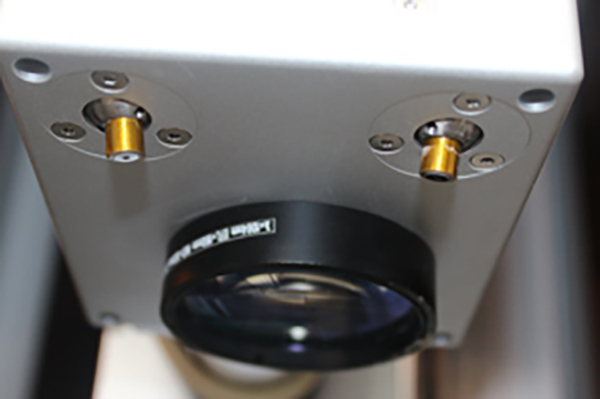

DOUBLE RED LIGHT POINTER

When two red light coincides best focus Double red light pointer help customers make focus quickly and easily.

DOUBLE-RED-LIGHT-POINTER

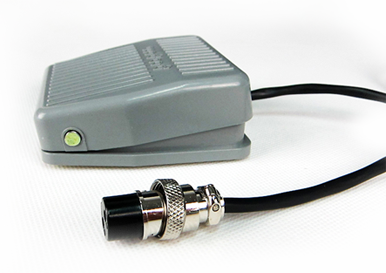

FOOT SWITCH

FOOT SWITCH

It can control the laser on and off make the operate more convenient.

Product Video

Specification

Technical Parameters
Technical Parameters
Model Fiber marking machine
Working area 110*110/150*150/200*200/300*300(mm)
Laser power 10W/20W/30W/50W
Laser wavelength 1060nm
Beam quality m²<1.5
Application metal and partial nonmetal
Marking Depth ≤1.2mm
Marking Speed 7000mm/ standard
Repeated Precision ±0.003mm
Working voltage 220V or 110V /(+-10%)
Cooling Mode Air Cooling
Supported graphic formats AI，BMP，DST，DWG，DXF，DXP，LAS，PLT
Controlling software EZCAD
Working temperature 15°C-45°C
Optional parts Rotary Device, Lift platform, other customized Automation
Warranty  2 year
Package  Plywood
