Portable Desktop Metal Fiber Laser Engraving Machine Aluminum Metal Fiber Laser Marking Machine Home Use

Short Description:

Advantages of desktop fiber laser marking machine

No consumables, Long lifespan Maintenance Free

Simple operation, Easy to use

High speed Laser Marking

Optional rotary axis for different cylindrical

Fiber laser marking machine can work with most metal marking applications , such as Gold , Silver , Stainless Steel ,Brass , Aluminium , Steel , Iron etc and can also mark on m -any non-metal materials , such as ABS , Nylon , PES , PVC , Makrolon


Product Detail

Product Tags

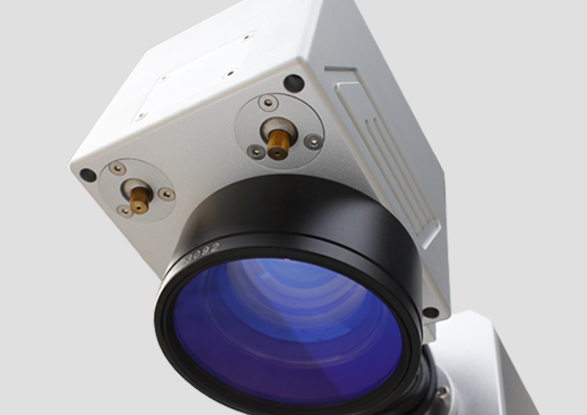

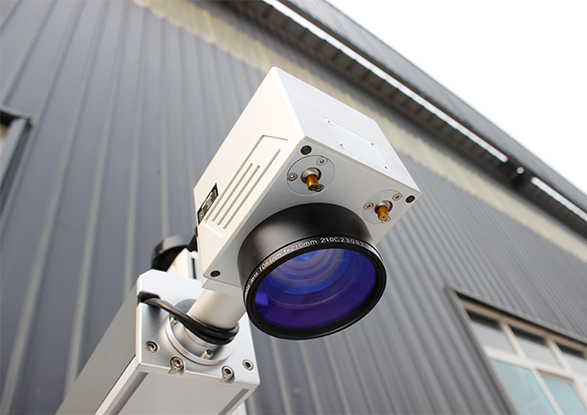

FIELD LENS

We use famous brand to provides precision laser Standard 110x110mm marking area . Optional1 50x150mm, 200X200mm 300x300mm etc.

FIELD LENS
FIELD LENS

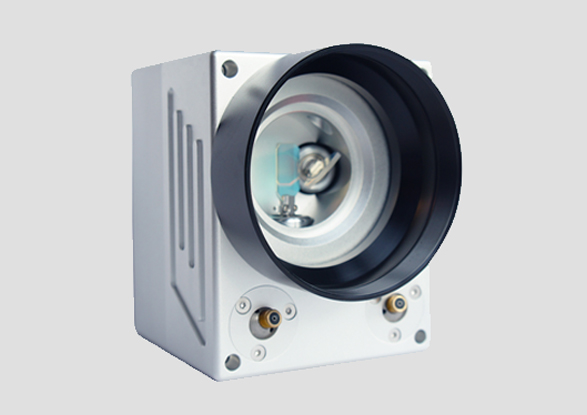

GALVO HEAD

Famous brand Sino-galvo , high speed galvanometer scan adopting SCANLAB technology, digital signal, high precision and Speed.

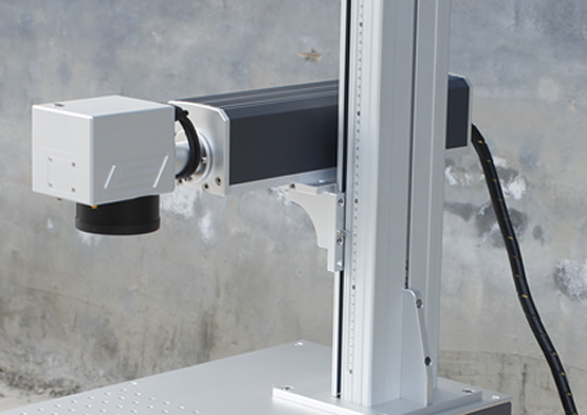

LASER SOURCE

We use Chinese famous brand Max laser source Optional : IPG / JPT / Raycus laser source.

FIELD LENS
FIELD LENS

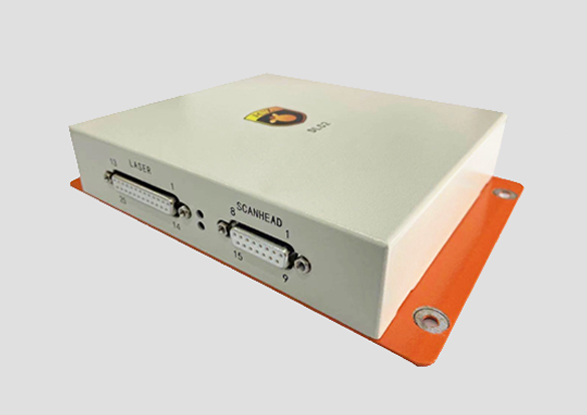

CONTROL BOARD

Ezcad genuine products, user-friendly interface, functional diversity, high stability, high precision .Each board has its own number to ensure that it can be inquired in the original factory . Refuse to fake

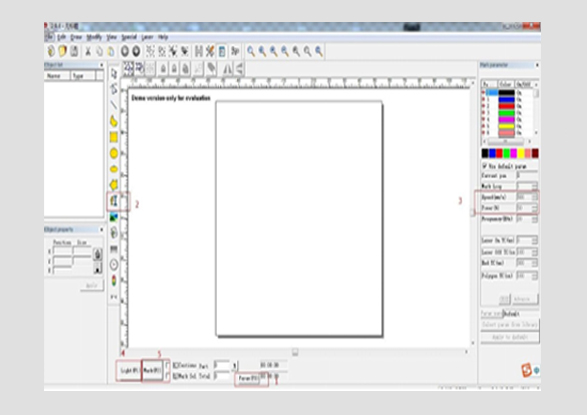

SOFTWARE

1. Powerful editing function.

2. Friendly interface

3. Easy to use

4. Support Microsoft Windows XP, VISTA, Win7, Win10 system

5. Support ai, dxf, dst, plt, bmp, jpg, gif, tga, png, tif and other file formats.

FIELD LENS
FIELD LENS

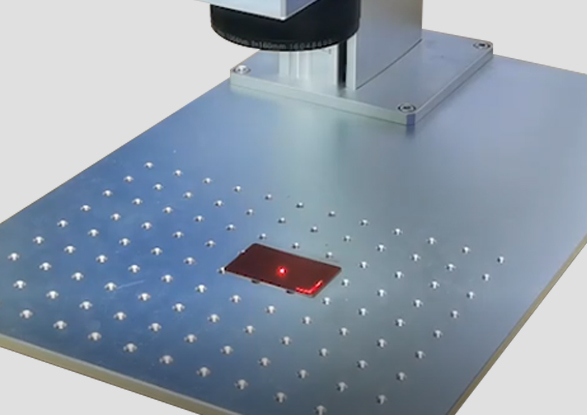

RED LIGHT PREVIEW

Adopt Red light preview to show the laser path since laser beam is invisible.

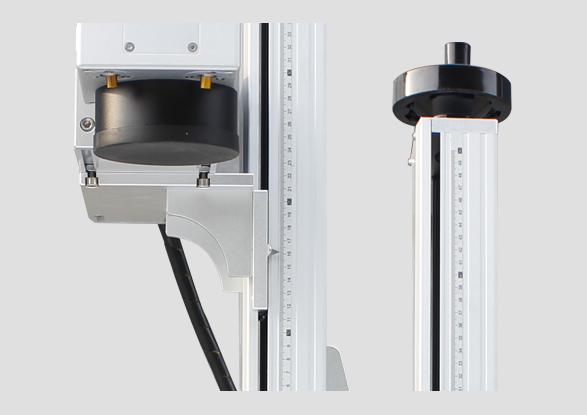

MARKING RULER AND ROTATING HANDLE

Enables customers to precisely position for fast engraving Adapting To Different Products Height

FIELD LENS
FIELD LENS

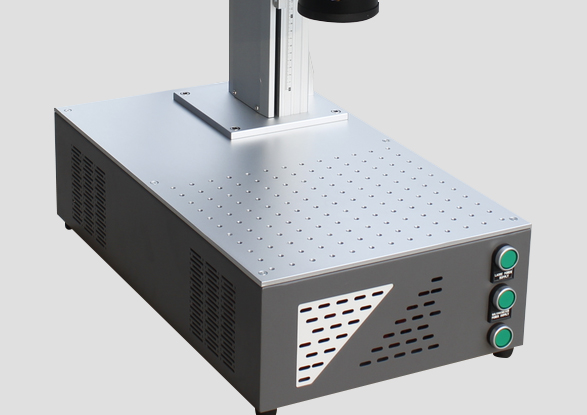

WORKING PLATFORM

Alumina working platform and imported precise beeline device. Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform.

FOOT SWITCH

It can control the laser on and off make the operate more convenient.

FIELD LENS
GOGGLES ( OPTIONAL )

GOGGLES ( OPTIONAL )

Can protect eyes from laser Wave 1064nm, let the operate more safe.

ELECTRIC LIFT ( OPTIONAL )

So that customers can quickly and accurately locate Efficient and labor-saving.

FIELD LENS

Product Video

Specification

Technical Parameters
Technical Parameters
Model Desktop laser marking machine
Laser Type Fiber Laser
Working area 110*110/150*150/200*200/300*300(mm)
Laser power 20W/30W/50W
Laser wavelength 1064nm
Laser Power Supply MAX/RAYCUS/JPT
Application metal and some nonmetal
Marking Line Speed ≤7000mm/s
Minimum Line Width 0.02mm
Communication Interface USB
Working voltage 220V or 110V (±10%)
Cooling Mode Air Cooling
Supported graphic formats AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
Controlling software EZCAD
Working temperature 15°C-45°C
Optional parts Rotary Device, 2D/3D Work Table , other customized Automation
Warranty  2 year
