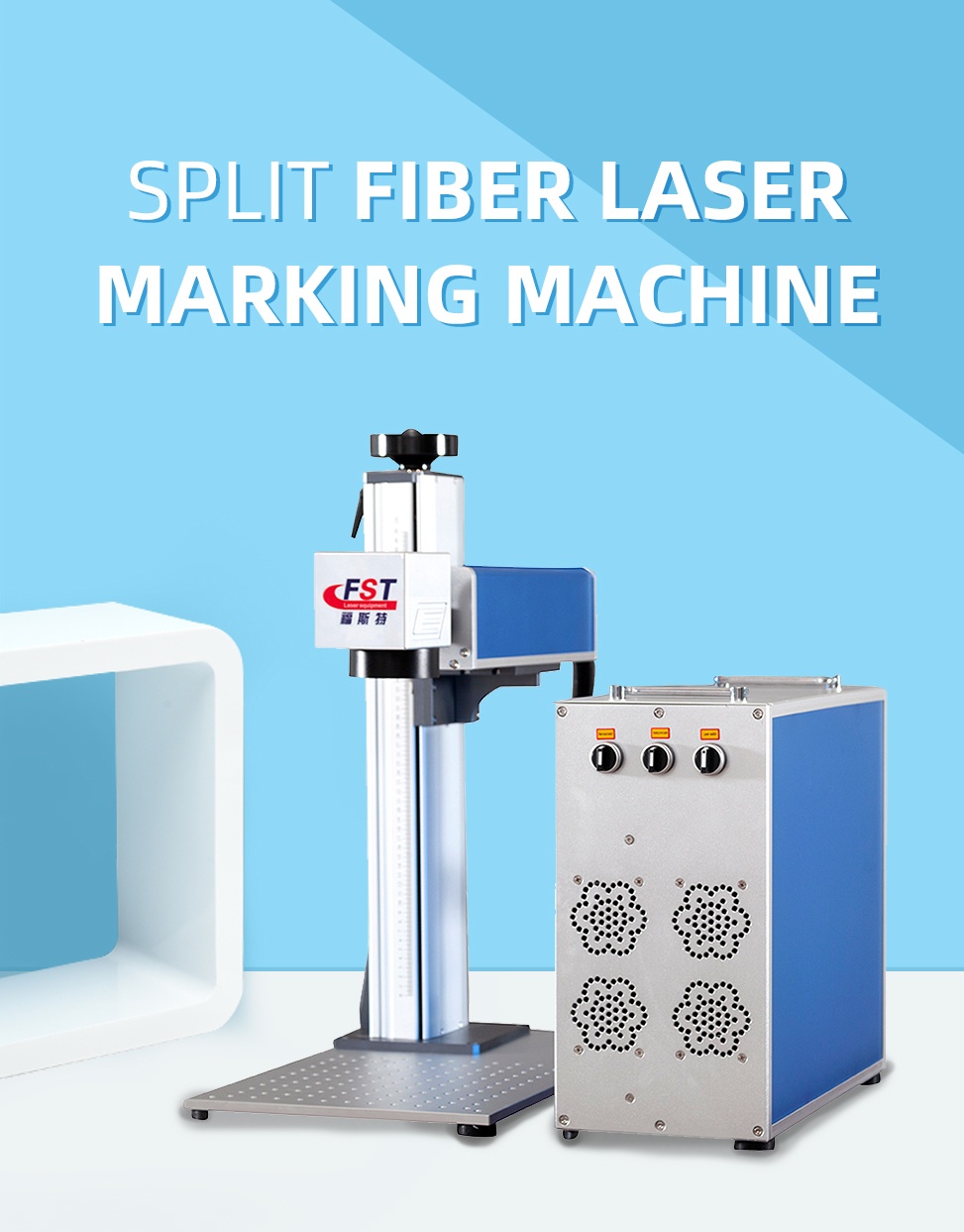

Mini Portable desktop Fiber Laser Marking Machine for stainless steel

Short Description:

Company product advantages:

•No consumables, Long lifespan Maintenance Free

•Multi-functional

•Simple operation, Easy to use

•High Speed Laser Marking

•Optional rotary axis for different cylindrical

Send email to us Download as PDF

Product Detail

Product Tags

DETAILS

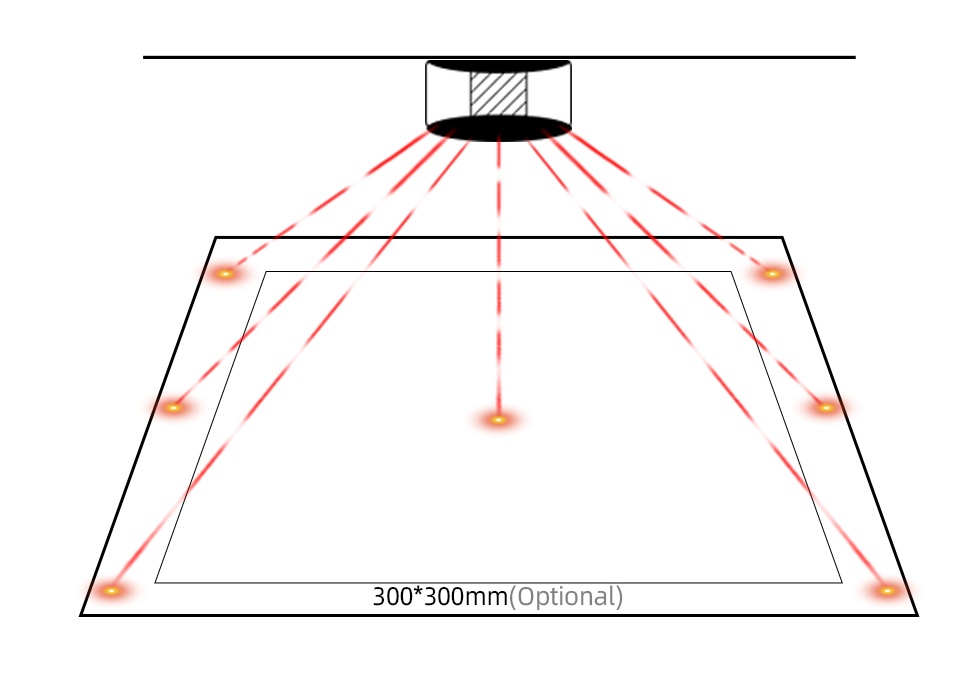

FIELD LENS

We use famous brand to provides precision laser.Standard 110x110mm marking area.Optional 150x150mm,200x200mm,300x300mm etc.

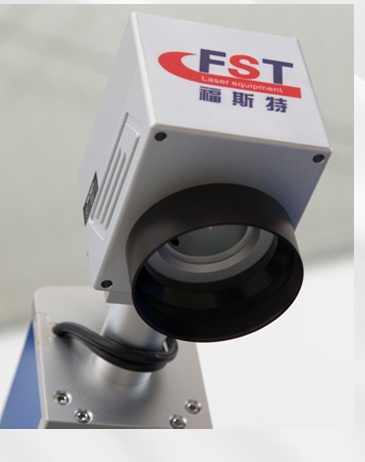

GALVO HEAD

Famous brand Sinogalvo, high speed galvanometer scan adopting SCANLAB technology, digital signal, high precision and Speed.

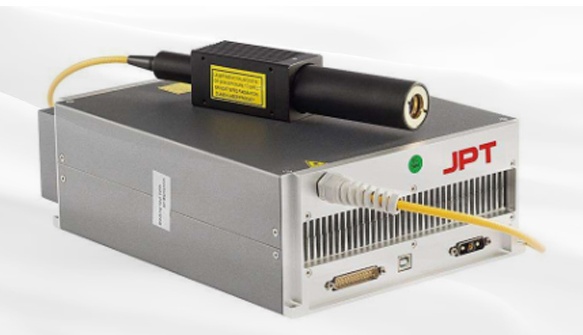

LASER SOURCE

We use Chinese famous brand Max laser source.

Optional:IPG /JPT/Raycus laser source.

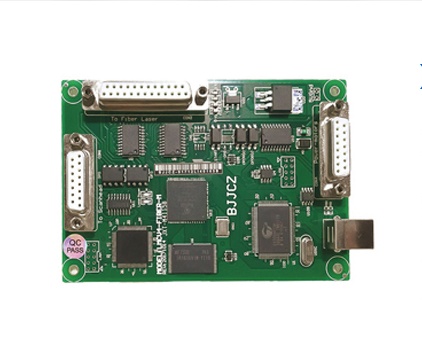

JCZ CONTROL BOARD

Ezcad genuine products, user-friendly interface, functional diversity, high stability, high precision.

Each board has its own number to ensure that it can be inquired in the 0riginal factory. Refuse to fake.

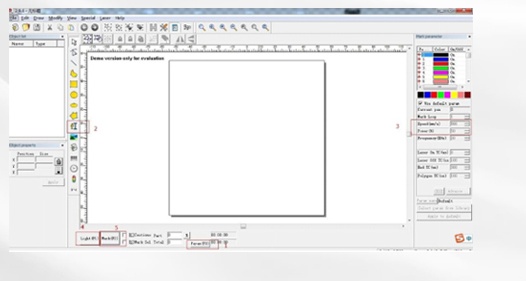

THE CONTROL SOFTWARE

1. Powerful editing function.

2. Friendly interface.

3. Easy to use.

4. Support Microsoft Windows XP,VISTA, Win7, Win10 system,

5. Support ai, dxf, dst,plt, bmp,jpg, gif,tga,png,tif and other file formats.

6. Support for True Type fonts, single line fonts (SF), SHX fonts, dot matrix fonts (DMF),1D bar codes and 2D bar codes. Flexible variable text processing, changing text in real time during processing, can directly read and write text files, sOL databases and Excel file.

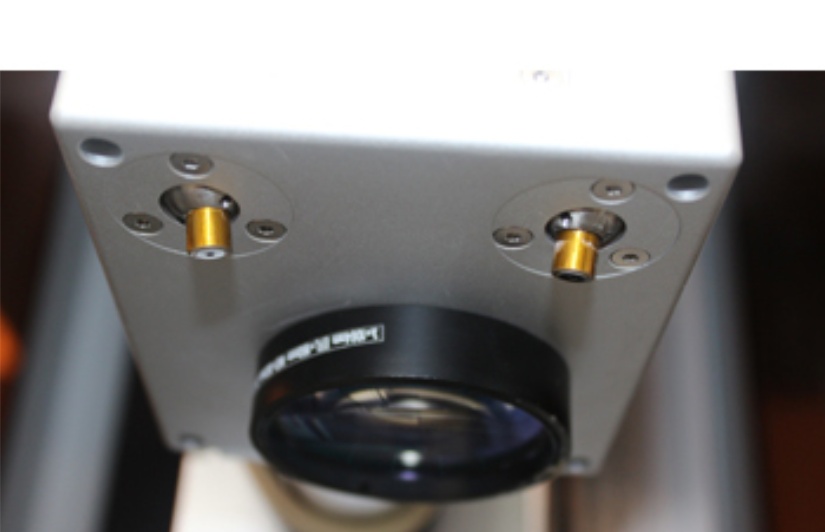

DOUBLE RED LIGHT POINTER

When two red light coincides best focus,Double red light pointer help customers make focus quickly and easily.

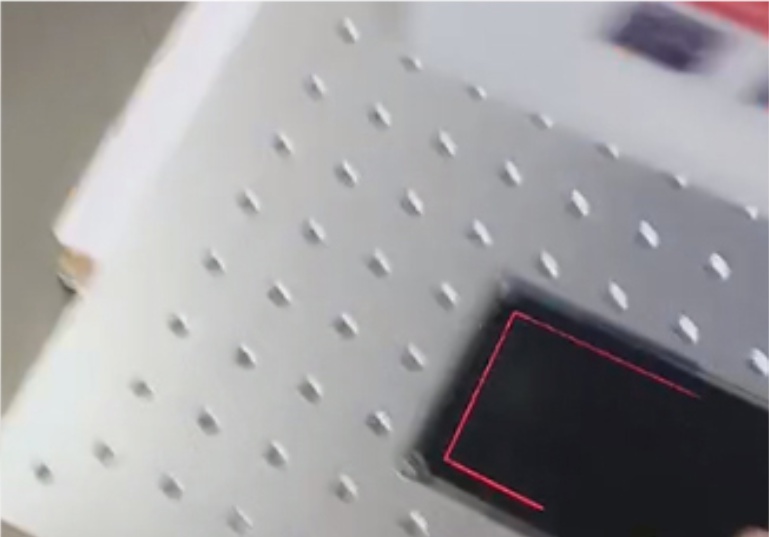

RED LIGHT PREVIEW

Adopt Red light preview to show the laser path since laser beam is in-visible.

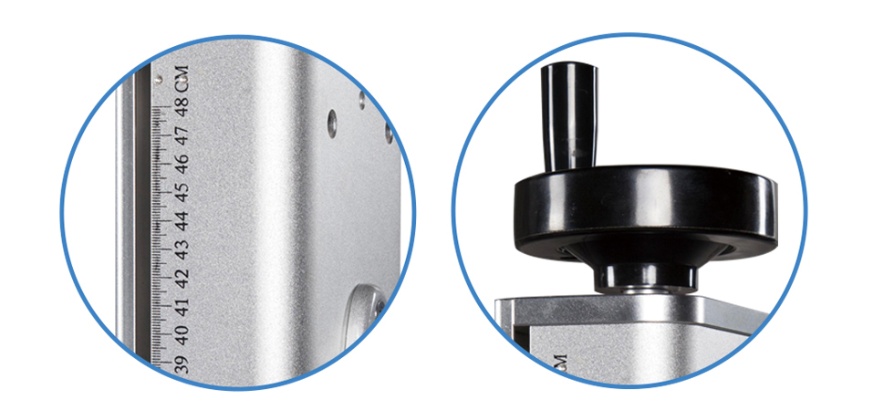

MARKING RULER AND ROTATING HANDLE

Enables customers to precisely position for fast engraving.Adapting To Different Products Height

PARAMETER

Laser Type	Fiber Laser Marking Machine
Working area	110mm110mm/150mm150mm/200mm200mm/300mm300mm
Laser power	10W120W30W150W
Laser wavelength	1064nm
Beam quality	m*<1.5
Application	metal and partial nonmetal
Marking Speed	7000mm/second
Repeated Precision	±0.003mm
Working voltage	220V/or 110V(+-10%)
CoolingMode	Air Cooling
Supported graphic formats	AI，BMP,DST，DWG，DXF，DXP，LAS，PLT
Controling software	EZCAD
Working ctemperature	15°C-45°C
Optional parts	Rotary Device, Lift platform, other customized Automation
Warranty	2 year
Package	Plywood
