mini marking factory marker label metal name plate fiber laser engraving machine

Short Description:

Integrates multiple core components such as fiber laser, high-speed galvanometer, power supply, and genuine EZCAD system. This mini laser marking machine is a small-volume, lightweight, fast-speed,high-flexibility,cost-effective mini laser marking machine.

1.No Consumables, Long lifespan Maintenance Free

2.Multi-functional

3.Small and Simple Operation, Easy to use

4.High speed Laser Marking

5.Optional rotary axis for different cylindrical


Product Detail

Product Tags

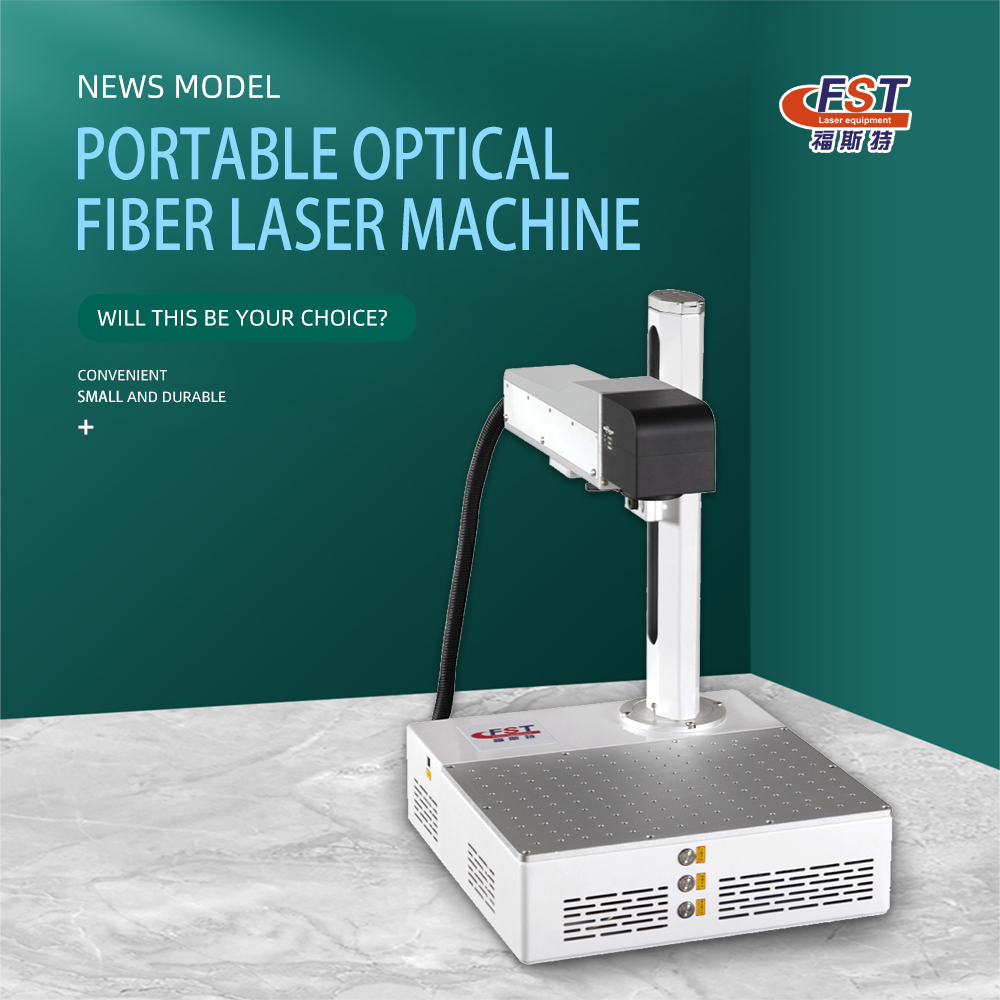

small fiber laser marking machine

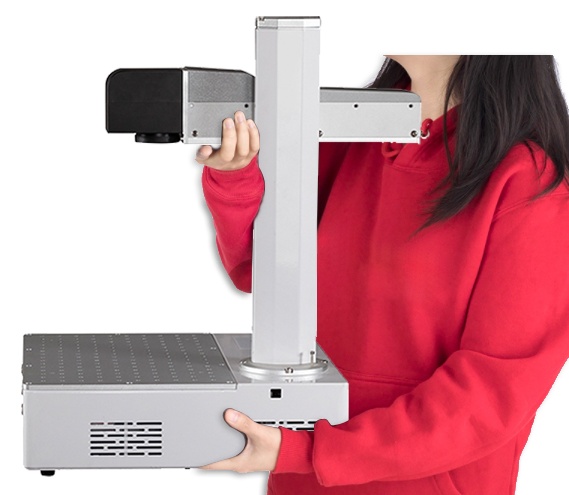

You can take it anywhere.Because it's so small.

It won't take up any of your space and is easy to carry around the office.

010
020

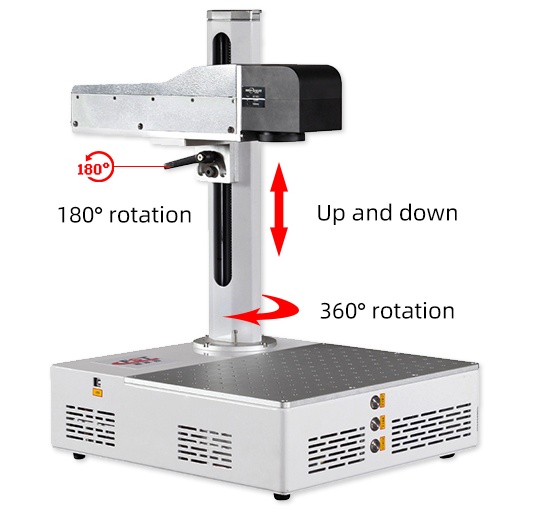

The column of the mini laser marking machine can be rotated 360°to facilitate multi-angle marking of objects that are not easy to move.

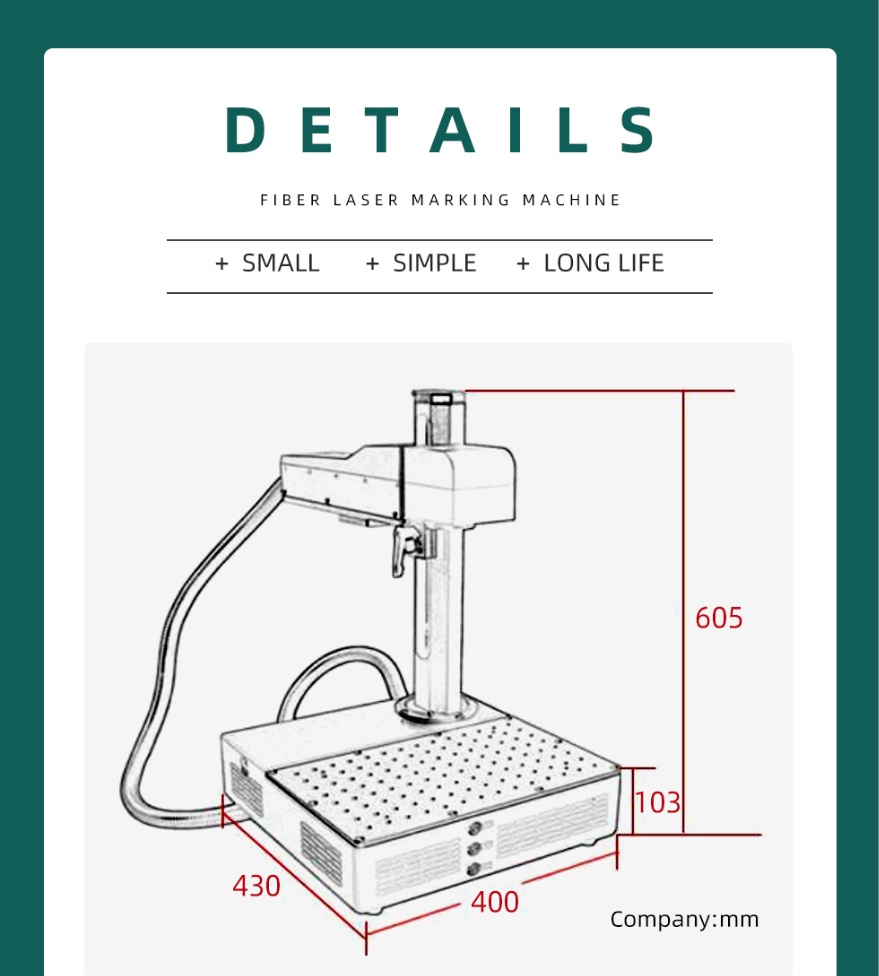

030

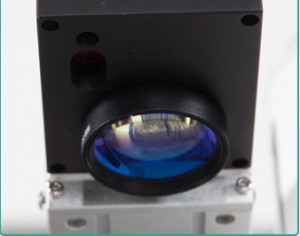

FIELD LENS

We use famous brand to provides precision laser.Standard 110 x110mm marking area optional 150x150mm .

040
050

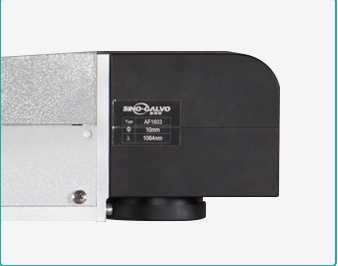

GALVO HEAD

Famous brand Sino-galvo, high speed galvanometer scan adopting SCANLAB technology, digital signal,high precision and Speed.

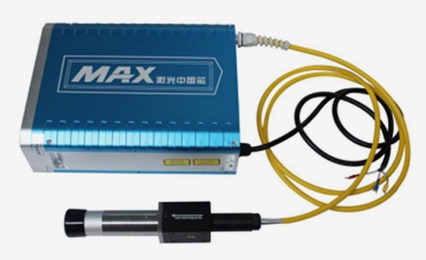

LASER SOURCE

We use Chinese famous brand Max laser source.optional:IPG /jPT/Raycus laser source.

060
070

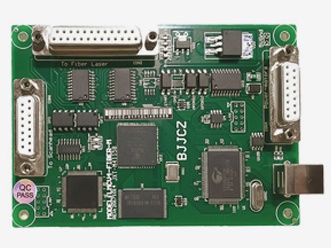

CONTROL BOARD

JCZ Ezcad genuine products, user-friendly interface, functional diversity, high stability, high precision.Each board has its own number and refuses to be counterfeited.

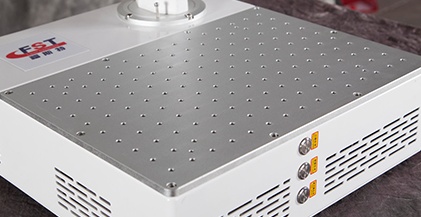

WORKING PLATFORM

Alumina working platform and imported precise beeline device.Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform.

080
090

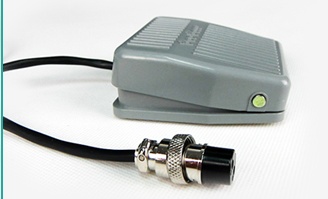

FOOT SWITCH

It can control the laser on and off. make the operate more convenicent.

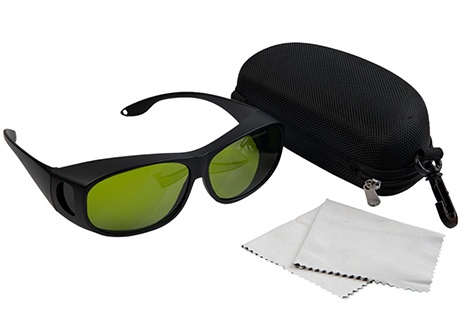

GOGGLES

Can protect eyes from laser wave 1064nm, let the operate more safe.

100

Specification

Technical Parameters
Technical Parameters
Model fiber laser marking machine
Working area 110*110/150*150(mm)
Laser power 10W/20W/30W
Laser wavelength 1060nm
Beam quality m²<1.5
Application metal and partial nonmetal
Marking Speed 7000mm/ standard
Repeated Precision ±0.003mm
Working voltage 220V or 110V /(+-10%)
Cooling Mode Air Cooling
Supported graphic formats AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Controlling software EZCAD
Working temperature 15°C-45°C
Optional parts Rotary Device, Lift platform, other customized Automation
Warranty  2 year
Package  Plywood
