Mini Handheld Portable Metal Fiber Laser Welding Machine For Stainless Steel

Short Description:

Advantages of fiber laser welding machine

*Famous Fiber Laser Source
Using well-known brand laser generators (Raycus / jPT / Reci / Max / IPG), a high photoelectric conversion rate ensures the laser power and makes the welding effect better, Foster laser can design different configurations to meet customer needs.

*IndustrialWater Chiller
The industrial water cooler ensures the heat dissipation of the core optical path components, allowing the welding machine to provide consistent welding quality and helping to improve the overall quality of the weld itself. lt can also increase welding output by reducing the downtime of fiber laser welding machines. in addition, an excellent industrial water cooler can also prolong the service life of the laser welding machine.

*4 in 1 Handheld Laser Head The handheld laser head has a simple appearance, is small and light, and can be used by hand for a long time. The integrated design of the button and handle is simple and easy to use. lt can realize three functions of welding cleaning, weld seam cleaning and cutting through the intelligent controller ac-cording to different usage scenarios, truly realizing four in one functions in one machine.

*Interactive Touch Screen Control System Foster laser provides Relfar, Super chaoqiang, Qilin, Au3Tech 4-in-1 operating system with high performance, intuitiveness, and ease of use. lt can not only provide good weld results but also provide good cleaning and cutting results.The operating system supports Chinese, English, Korean, Russian, Vietnamese and other languages.


Product Detail

Product Tags

福斯特焊接机英文_01

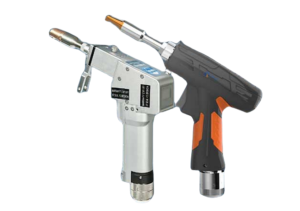

LASER WELDING GUN

Fast speed , good at thin plate Welding , precision welding.

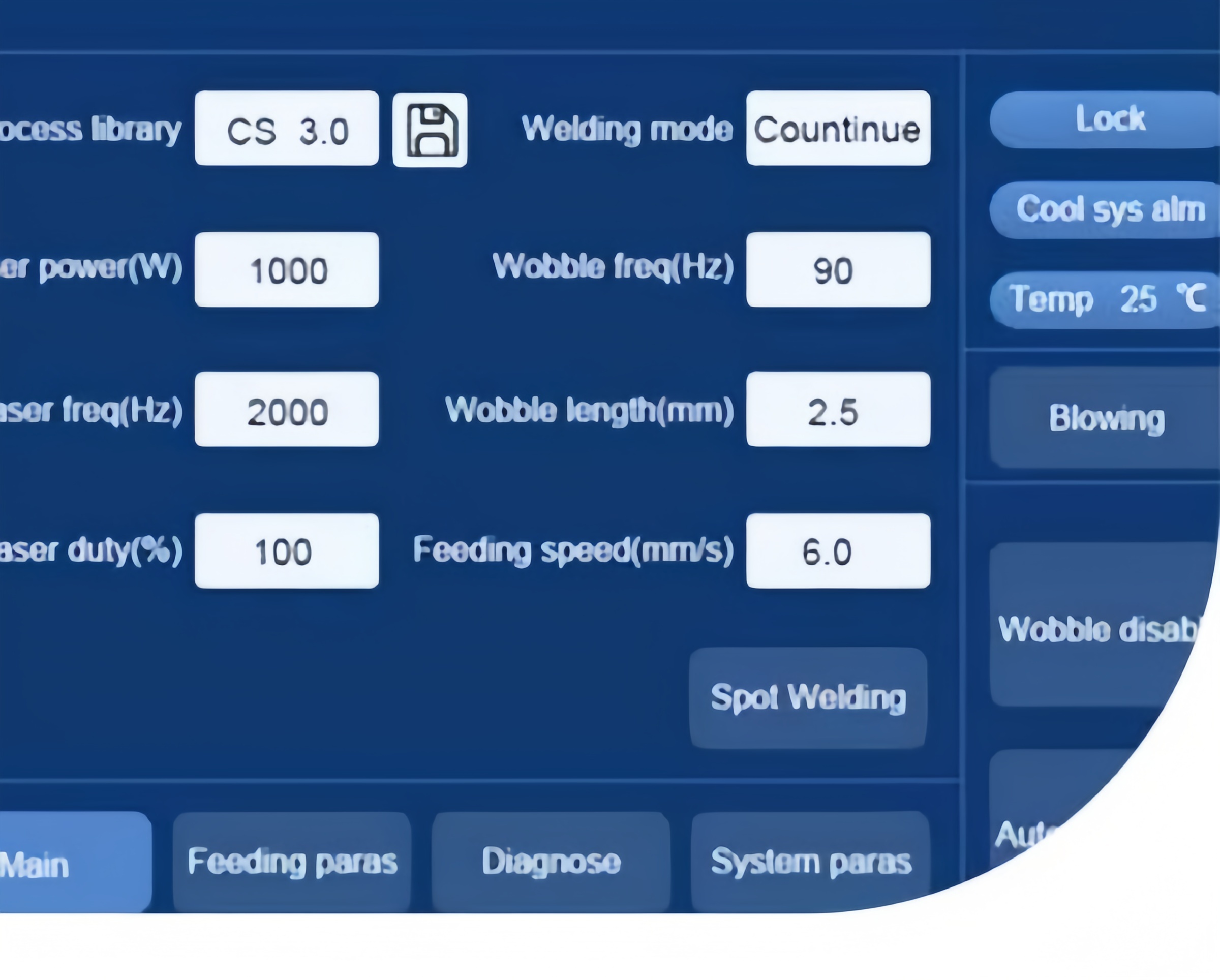

WELDING SYSTEM

Supported languages: English, Russian, German, French,Korean,japanese,Spanish, Portuguese, Arabic, Polish, etc

support Bluetooth wireless connection.

Support USB system upgrade.

laser welding machine-1-1
laser welding machine-11

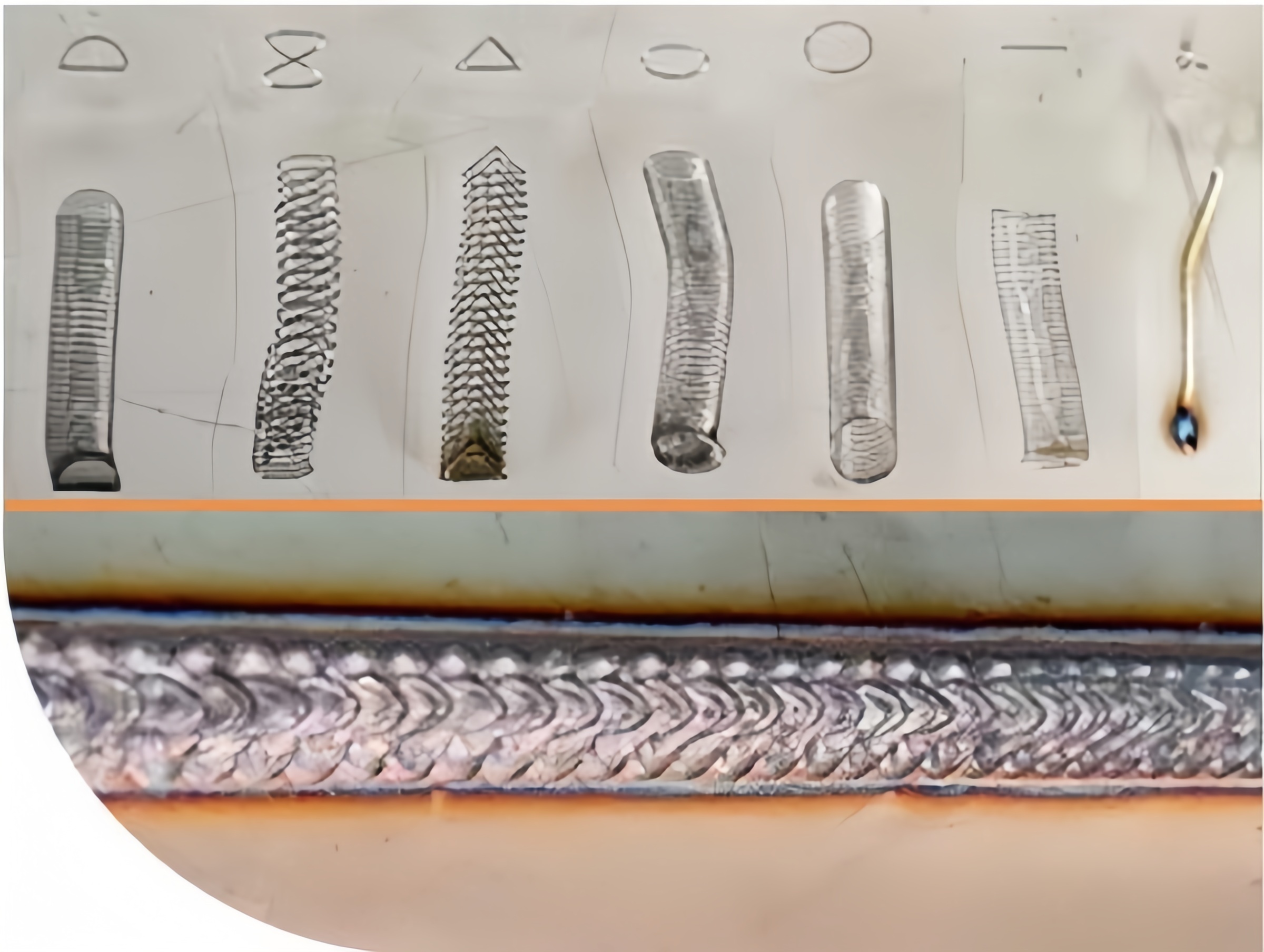

SINGLE SWING ORD OUBLE SWING WELDING HEAD

single swing welding head

Double swing welding head

Fish scale welding

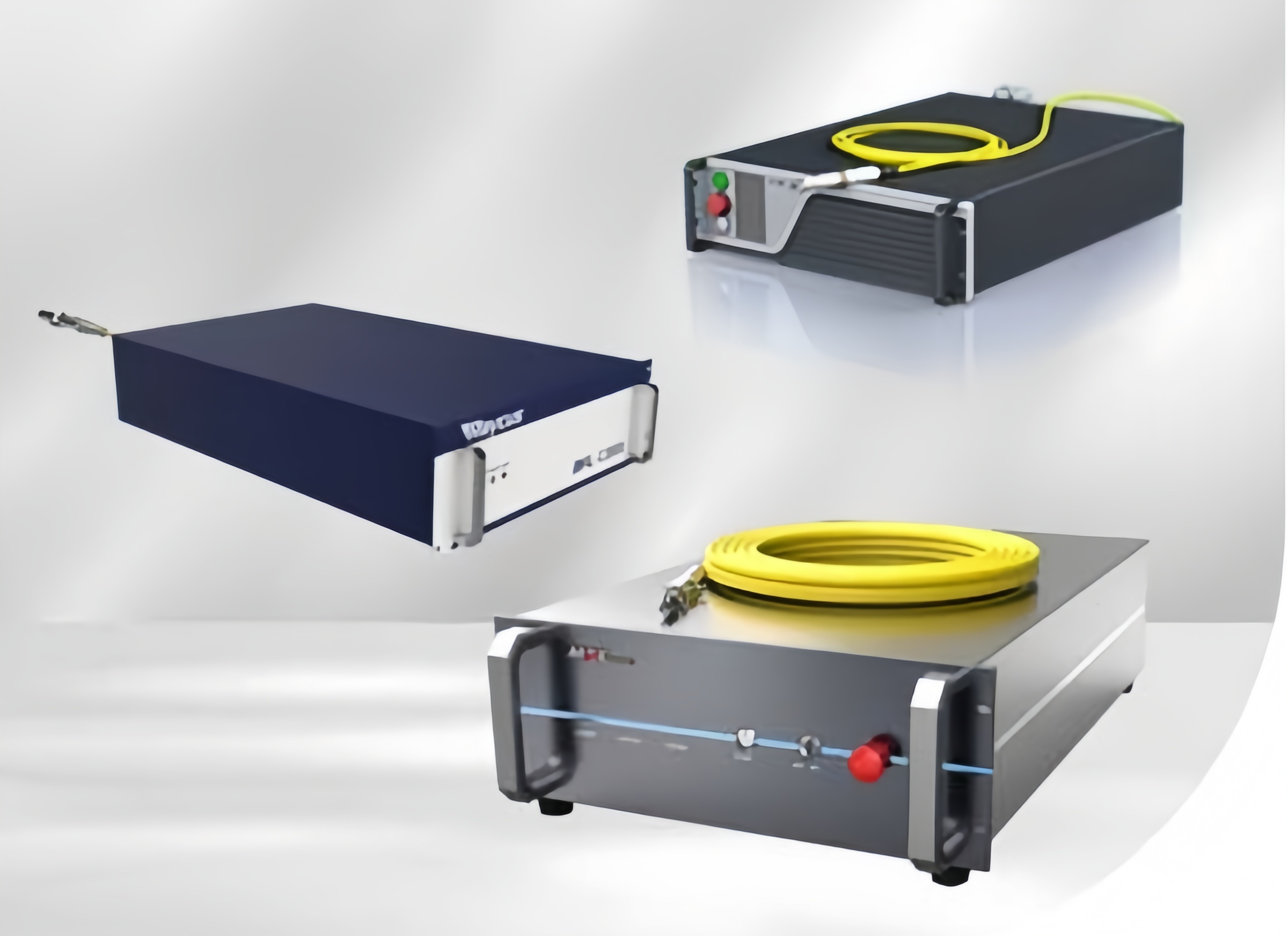

LASER SOURCE

Famous brands such as Raycus, MaX,IPG, JPT, etc. The most important part of laser welding machine. working life is 100,000 hours.

126
laser welding machine-12

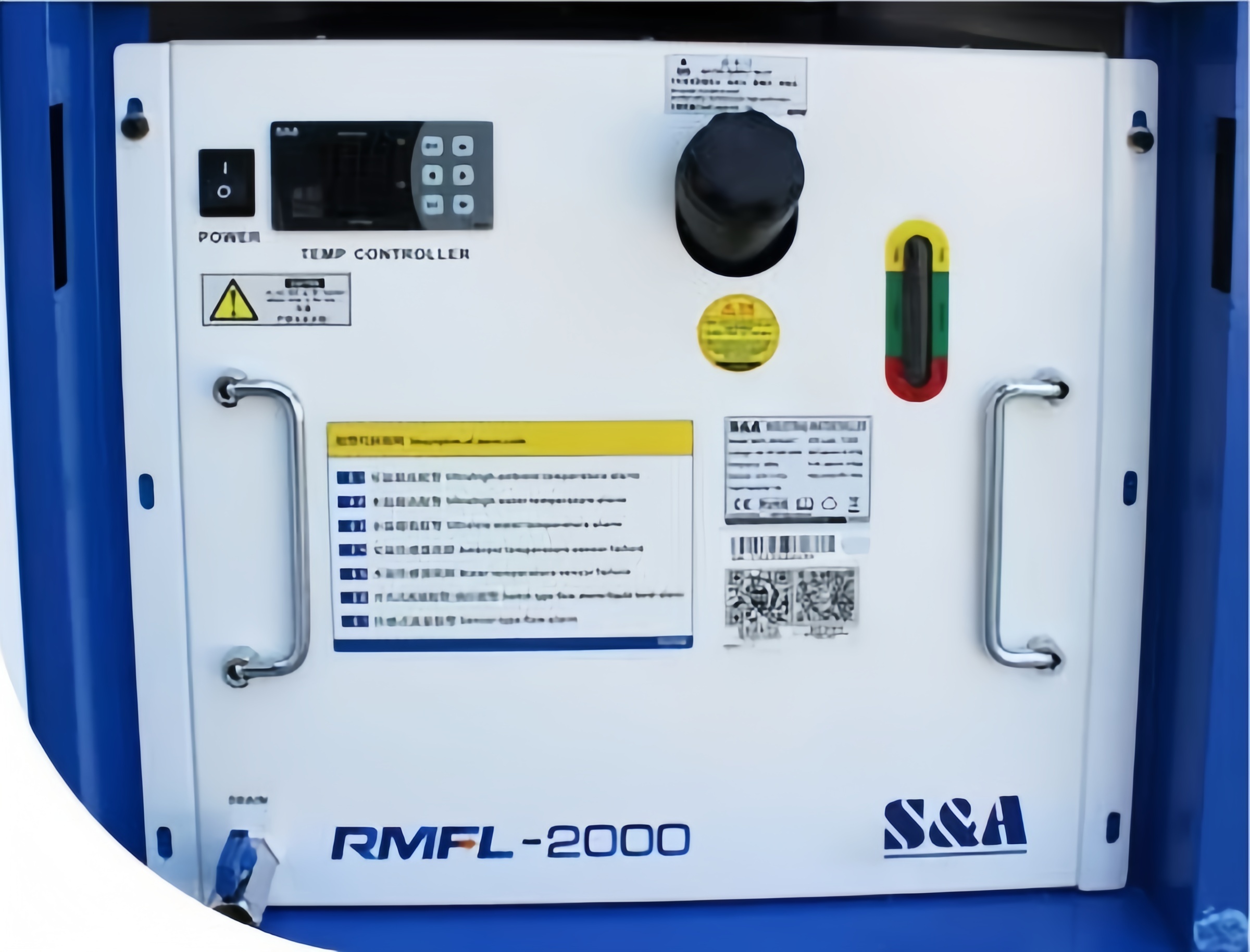

WATER CHILLER

HanLi and S&A teyu brand can be selected. Protect the laser source and prolong the life of the laser source.

3IN1 CLEANING RANGE

Relfar: 0-80MM.
Super chaoqiang: 0-120MM.
Qilin: 0-40MM.

1256
265

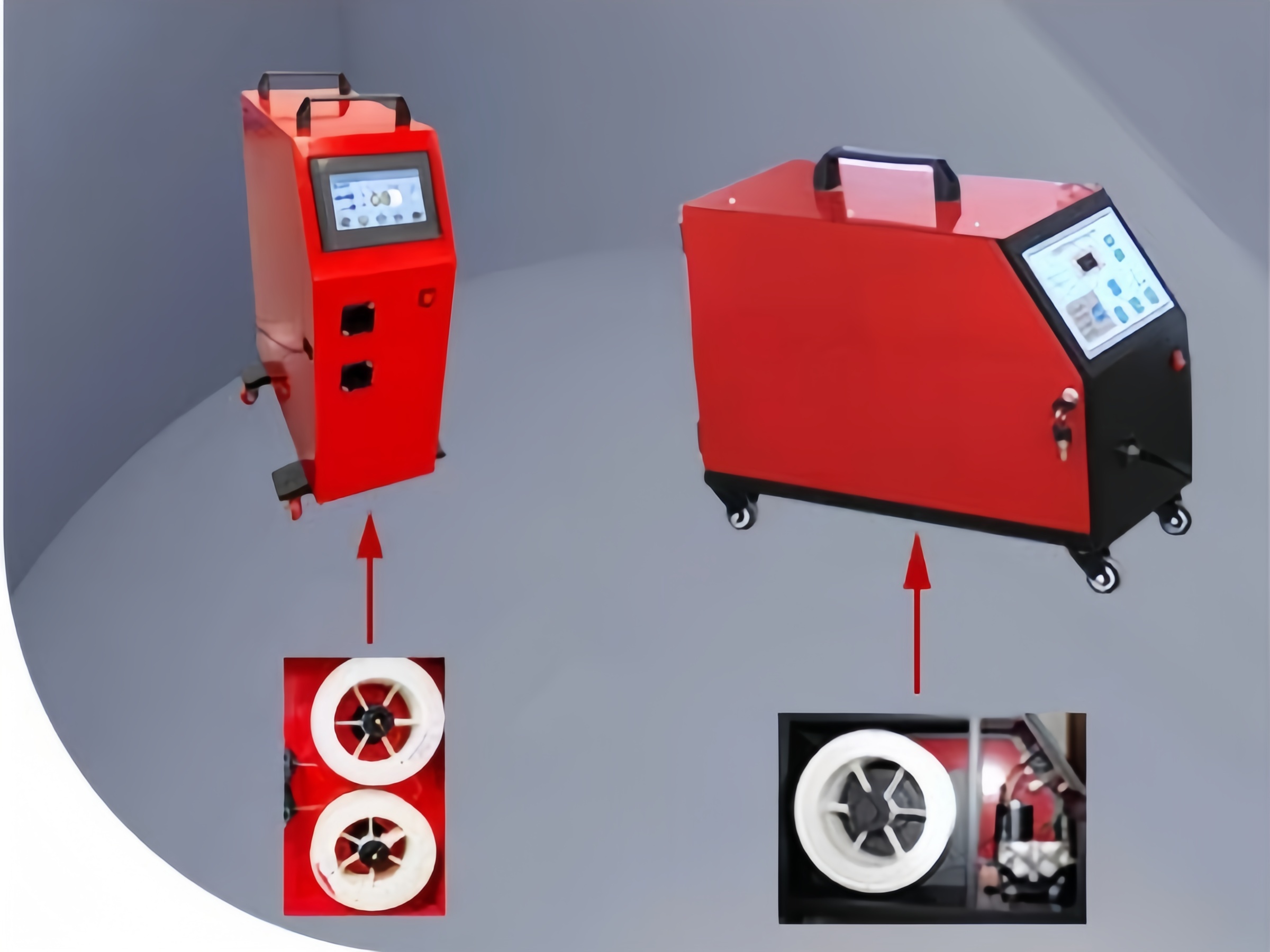

WIRE FEEDER

Support welding wire: 0.8, 1.0, 1.2,1.6 mm

Customizable:2.0,2.5mm

Default single welding wire feeder

Double welding wire feeder can be purchased to support wider weld seams

Product Video

Specification

Technical Parameters
Technical Parameters
Model Fiber laser welding machine
Laserwavelength 1070nm
Laserpower 1000W/1500W/2000W
Operating mode Continue us/pu Ise
Length of fiber-optical 10m(standard)
Interface of fiber-optical QBH
Module life lOOOOOhrs
Power supply 220V/ 380V
Cooling method WaterCooling
LaserEnergy Stability <2%
Air humidity 10-90%
Recommended welding thickness 1000W Stainless steel, carbon steel 0-2mm
Red light positioning Support
Recommended welding thickness
1000W Stainless steel, carbon steel 0-2mm Galvanized sheet,aluminum 0-1.5mm
1500W Stainless steel, carbon steel 0-3mm Galvanized sheet,aluminum 0-2mm
2000W Stainless steel, carbon steel 0-4mm Galvanized sheet,aluminum 0-3mm
