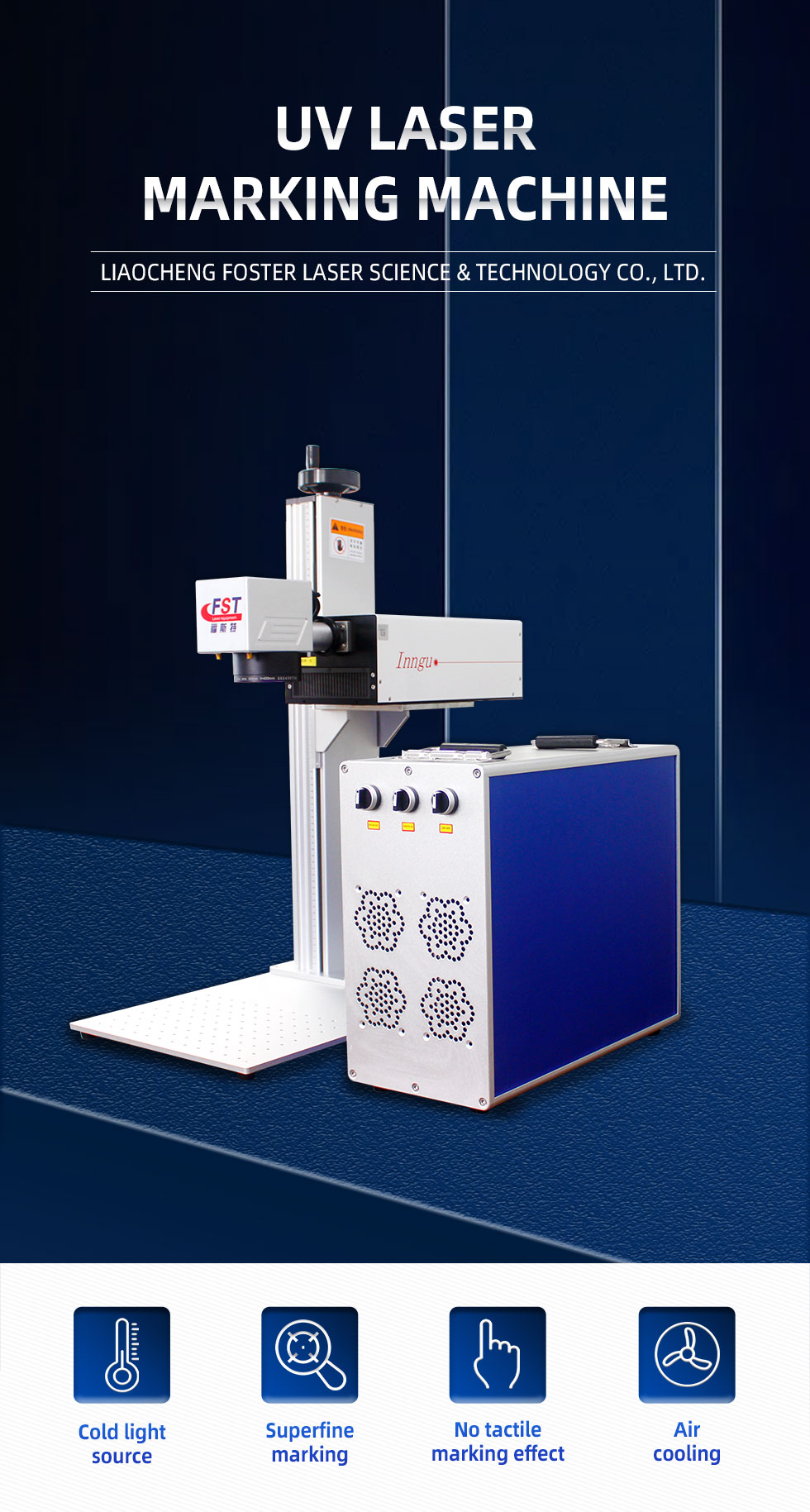

UV laser marking engraving printing machine fiber laser marking machine

Short Description:

1.The machine takes 355nm light laser device as the light source.Ultraviolet laser marking machines have the advantage of limiting thermal stress that other laser machines do not.

2, The heat affected area is very small, will not produce thermal effects, will not produce material scorching problem.

3, The good quality and small focus spotlight could achieve the ultra fine marking with high speed and high efficiency.

4,Preinstalled high-precision practical multi-functional work surface, the table has a number of flexible screw holes, convenient installation of special fixture platform.

5,The cooling system is air cooling, to ensure that the laser long life,stability,reliable work and other characteristics.

6, High efficiency of the photoelectric conversion and long service life.


Product Detail

Product Tags

UV
1
33

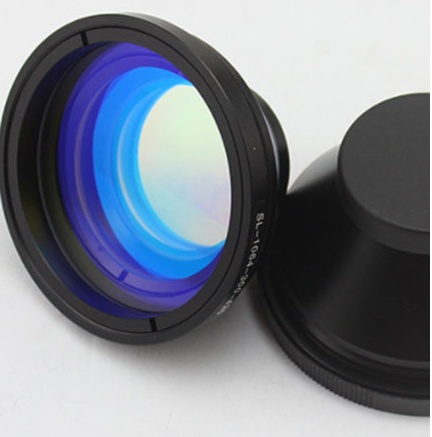

FIELD LENS

We use famous brand to provides precision laser.Standard 110x110mm marking area. Optional 150x150mm 200x200mm 300x300mm etc.

Optional:OPEX etc

2

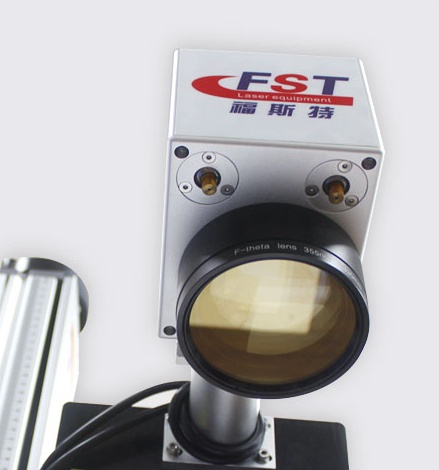

GALVO HEAD

Famous brand Sino-galvohigh speed galvanometerscan adopting SCANLAB technology,digital signal,high precision and speed

3

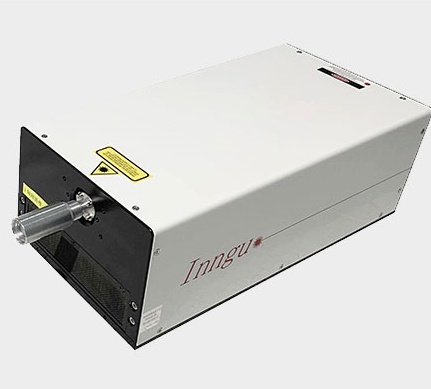

LASER SOURCE

We use Chinese best Ultra-violet laser source brand YINGGU.Optional: Raycus,MaxIPG /JPT

4

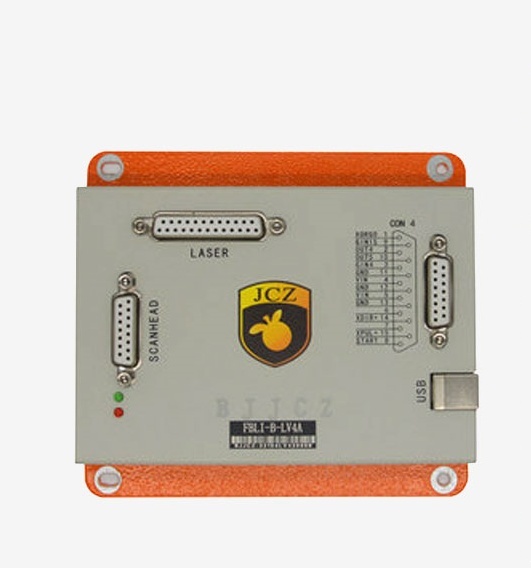

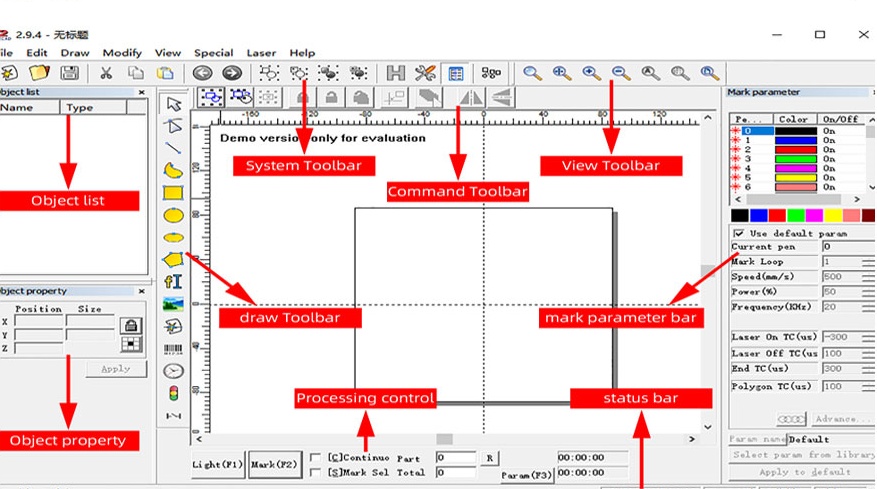

JCZ CONTROL

Ezcad genuine products, user-friendly interface, functional diversity, high stability, high precision.Each board has its own numberto ensure that it can be inquired in the original factory Refuse to fake

JCZ THE CONTROL SOFTWARE

5
7

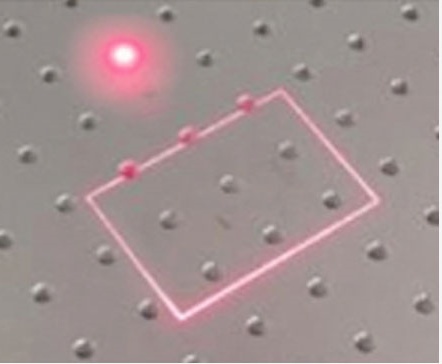

RED LIGHT PREVIEW

Adopt Red light preview to show the laser path since laser beam is in-visible.

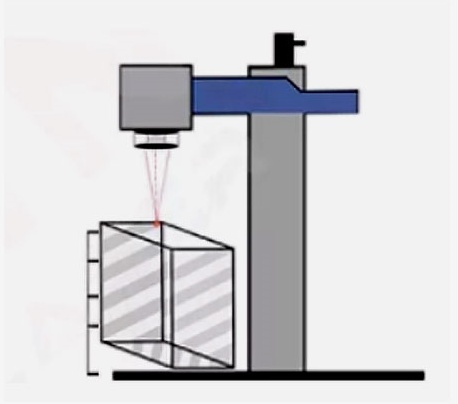

ADAPTING TO DIFFERENTPRODUCTS HEIGHT

The red light guiding focusing function is optional, the marking height can be adjusted in the range of 0-150mm and the lifting can be adjusted according to the thickness of different products with the high precision lifting screw, making the operation convenient and accurate.

9
8

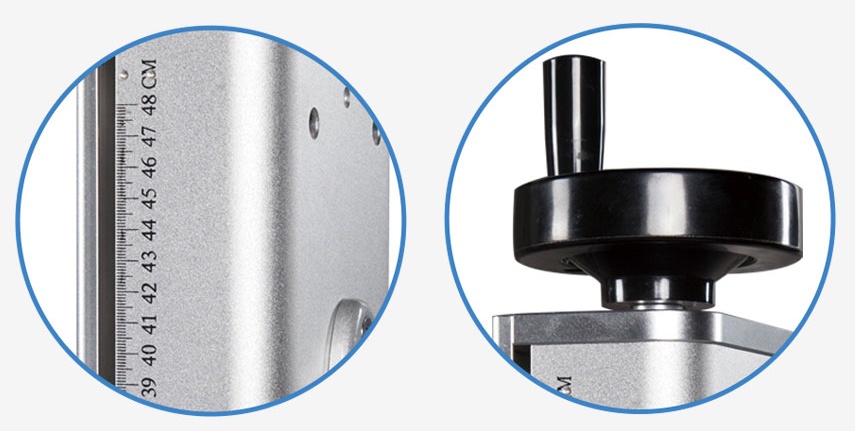

SCALE RULER

Enables customers to precisely position for fast engraving Adapting To Different Products Height.

11

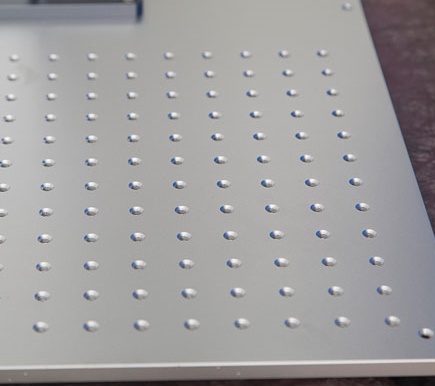

WORKING PLATFORM

Alumina working platform and imported precise beeline device.Flexibility mesa have multiple screw holes, convenient and custom installation,special fixture industry platform.

12

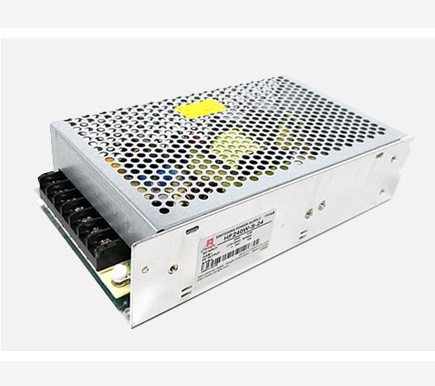

POWER SUPPLY

Brand selection:Shanghai Hengfu, Taiwan Meanwell

13

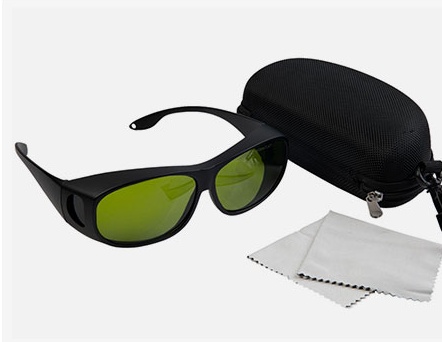

GOGGLES

Can protect eyes from laser wave 1064nm, let the operate more safe.

14

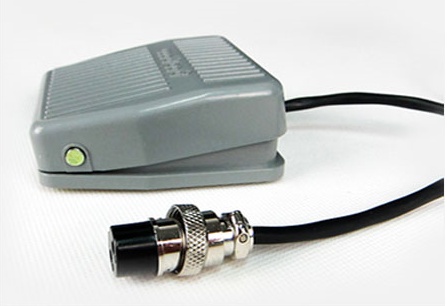

FOOT PEDAL

It can control the laser on and off. make the operate more convenicent.

PARAMETER
PARAMETER
Laser Type UV Laser Markng Machine
Working area 110*110/150*150/200*200/300*300(mm)
Laser power 3W15W/8W/10W(optional)
Laser wavelength 355nm
Application metal and nonmetal
Marking speed 7000mm/second
Repeated Precision 0.003mm
Working voltage 220V/0r 110V(+-10%)
Cooling Mode Air Cooling
Supported graphic formats AI, BMP, DST, DWG, DXF,DXP, LAS, PLT
Controlling software EZCAD
Optional parts Rotary Device, Lift platform, other customized Automation
Waranty 2 year
Package Plywood
