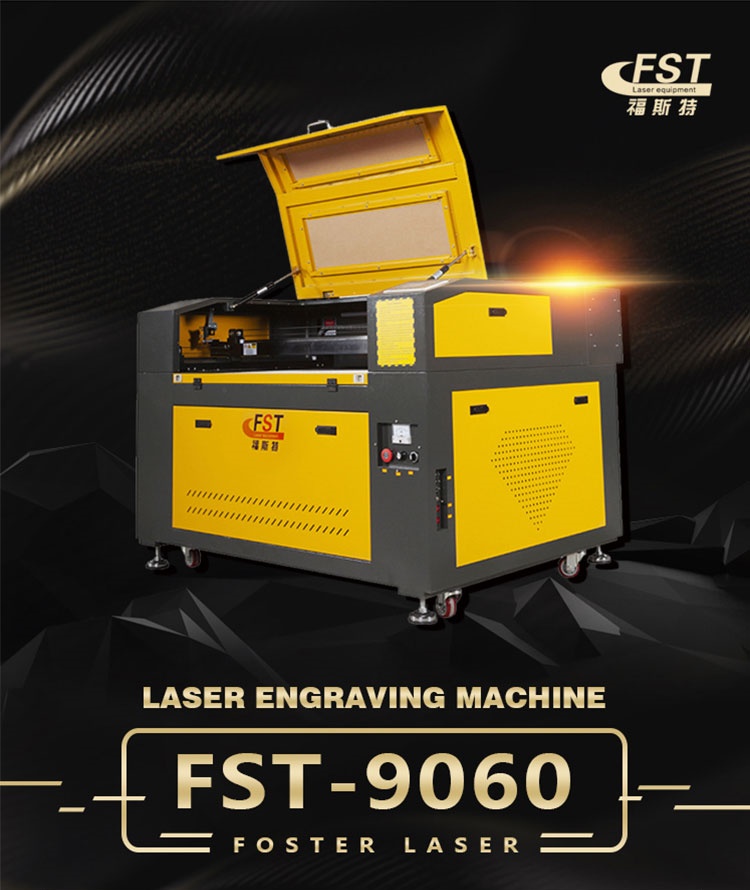

Laser Engraver Cutter CO2 Cutting Machine 9060 Laser Metal Cutting Engraving Machine

Short Description:

Application industry:

advertising logo signs, gifts, paper-cut process, bamboo carving process, printing plate, decoratio

Applicable materials:Acrylic, MDF, plexiglass, bamboo sheet, sponge, paper, leather, cloth, color plates and so on.

Typical cases:

crystal word cutting, furniture, sheet metal cutting, MDF frame cutting, paper cutting model cutting

Send email to us Download as PDF

Product Detail

Product Tags

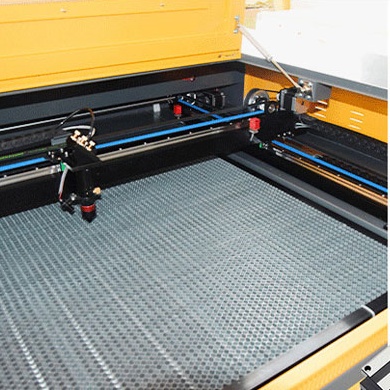

Three-wire straight square rail

Double the cutting speed, high configuration,low price, high cost performance.

Stability performance

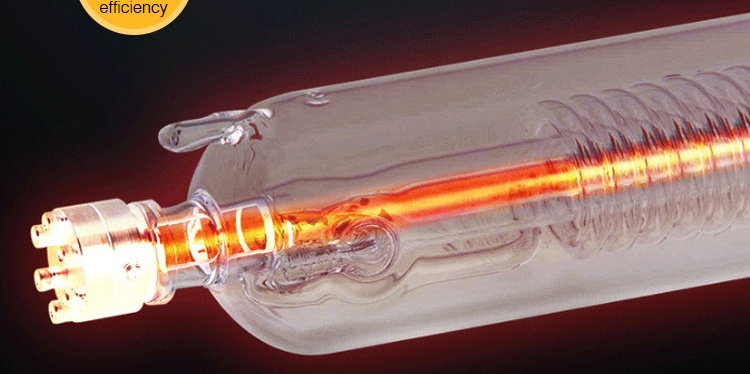

Brand CO2 laser tube.Multiple power options Delicate light spot, strong focusing effect,improve cutting efficiency

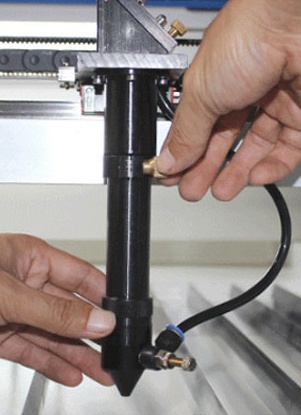

Industrial grade focusing laser head

Red light positioning, automatic blowing protection enclosed dust-proof laser head, adjustable height.High light transmittance, fine carving, strong cutting force.

Imported ll -Vl lenses

Stable light spot, accurate focal length, high efficiency

Product Details

Model	FST-9060
Worktable	Honeycomb/Aluminum knife
Eneraving area	600*900mmm
Laser power	60W/80W/100W/130W/150w etc
Engraving speed	500mm/s Max
Cutting speed	60mm/s
Cutting Depth(Acrylic)	0-15mm(acrylic)
Up and down work table	up and down 300mm adjustable
Minimum shaping character	1x1mm
Power supply	220v(or 110v)+/-10%
Resetting positioning	Accuracy less than or equal to 0.01mm
Water protecting	Yes
Operating Temperature	0-45℃C
Operating humidity	35-70°C
Graphic format supported	PLT/DXF/BMP/JPG/GIF/PNG/TIF
Operation System	Windows XP/Vista/win7/win8/win10
Software	Ruida rdworksv8
water cooling	Yes
Laser tube	Sealed Co2 glass laser tube
