Laser Auto Feeding 1813 CO2 Fabric Laser Engraver Cutter Machines For Clothes Garment Leather Cutting

Short Description:

1. Automatic Feeding and Rolling System—save manpower and greatly reduce costs.

2. Fabric laser cutter is suitable for engraving and cutting on very long work piece, such as one roller of cloth, fabric, leather, garment.

3. Top-level configuration, such as: Ruida control system,Taiwan guide rail, famous laser tube, Leisai drive, 57 motor, etc.

4. Double heads ( Optional ) with high efficiency and effectiveness work simultaneously.


Product Detail

Product Tags

FIELD-LENS72

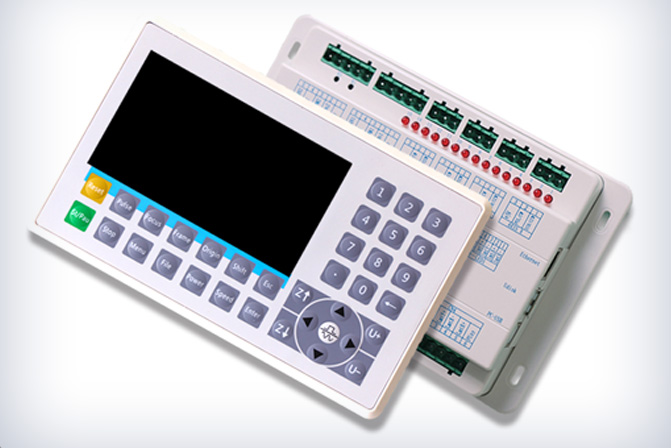

RUIDA CONTROL SYSTEM

World Famous brand

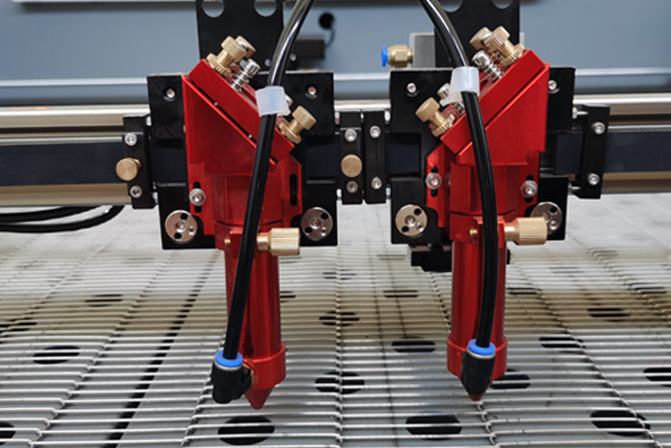

LASER HEAD

Industrial grade laser head, the default is single head, can be double headed or Multi headed

FIELD-LENS72
FIELD-LENS72

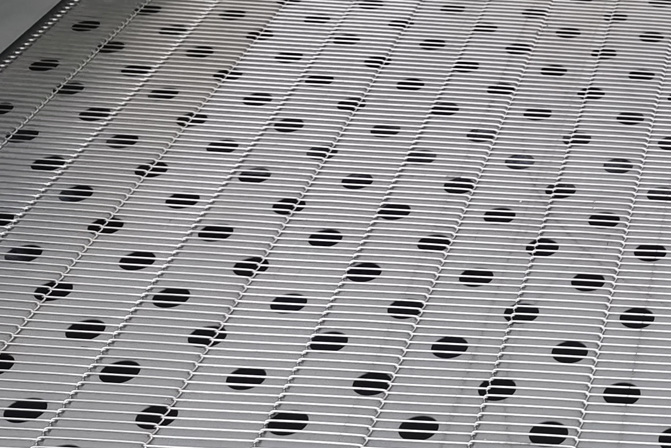

WORKING PLATFORM

Automatic feeding platform labor-saving intelligent control.

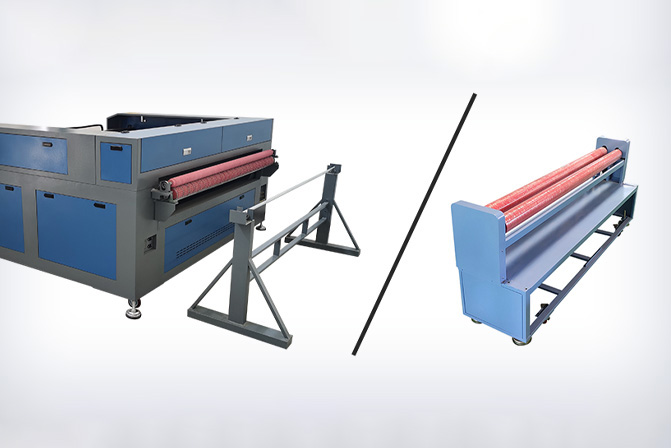

FEEDING SYSTEM

Can be upgraded to electric automatic feeding system.

FIELD-LENS72
FIELD-LENS72

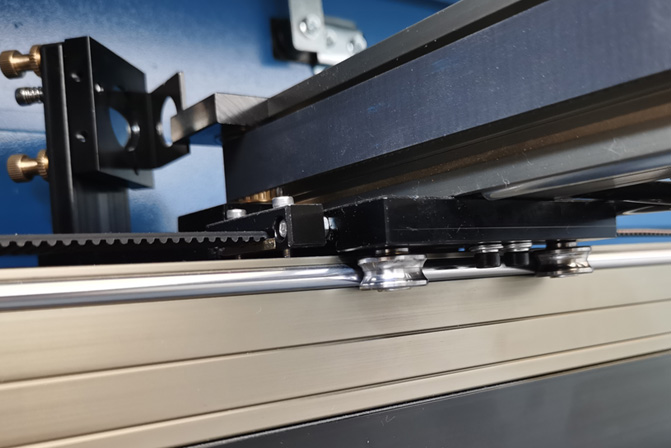

HIGH PRECISION GUIDE RAIL

High speed slide rail low resistance.

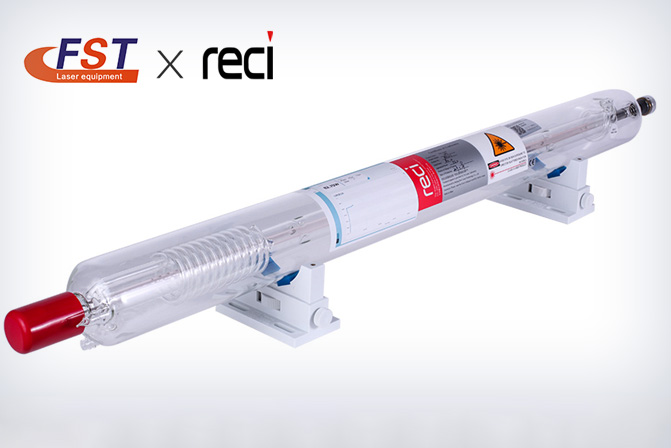

CO2 GLASS LASER TUBE

Famous Chinese brand laser tubes ( RECI, EFR, CDWG, YONGLI, etc . )

FIELD-LENS72
FIELD-LENS72

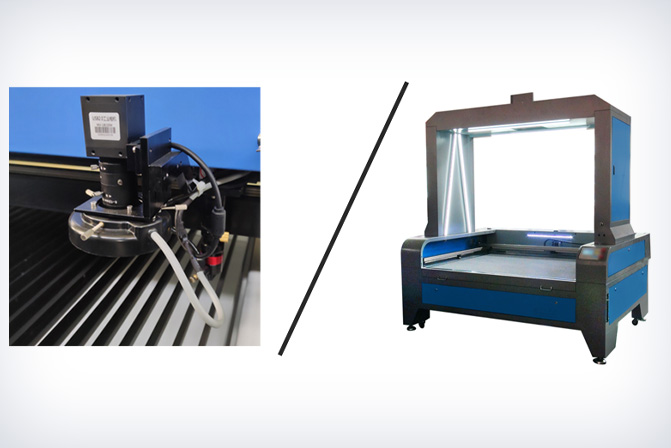

OPTIONAL CCD CAMERA

Camera imaging automatic recognition of cutting.

FAQ

Q1: I know nothing about this machine, what kind of machine should I choose?
A: You don’t have to be a laser Expert, let us be the professional one who guide you to choose the right solution. The only thing you need to do is to tell us what you want to do, Our professional sales will give you proper recommendations based just on what you need.

Q2: When I got this machine, but I don’t know how to use it. What should I do?
A: Well. First of all, our machine is designed for easy use. You will know how to use it when you have it as long as you can use a computer. Besides, we will also provide English users manual and installation and operating video. If you still have questions, you are welcomed to contact with us anytime for a online free guiding. Our Professional after-sales engineers are always ready to help.

Q3: If some problems happen to this machine during warranty period, what should I do?
A: We will supply free parts if your machine is still on warranty. While we also supply free life long after-sales services too. So any questions, please don’t hesitate to let us know, we are always ready to help. Your satisfaction is always our greatest pursuit.

Product Video

Specification

Technical Parameters
Technical Parameters
Model Auto Feeding Laser Cutting Machine
Laser type Co2 laser tube
Laser power 80W/100W/130W/150W/160W/180W/300W(optional)
Working area 1600x1000/1800x1000/1800x1300mm
Engraving speed 0-800mm/s
Cutting speed 0-400mm/s
Repeating precision ±0.05mm
Moving system Offline stepping control system
Cooling mode Water cooling and protection system
Working voltage AC 220V / 110V ±10%
Operating temperature 0-45℃
Controlling software Ruida, Coreldraw, AUTOCAD
Supported format PLT,DXF,AI,DWG,CDR,BMP,JPG,PNG,etc
Working table    Stainless steel net +Auto-feeding working table
Applicable materials Fabric,leather etc. Flexible material
The above parameters are laboratory test results, subject to actual operating conditions.
