JPT Mopa Split Laser marking machine

Short Description:

Advantages of MOPA color laser marking machine
WHAT CAN THE MOPA COLOR LASERFOSTERMARKING MACHINE DO ?
1 . MOPA can mark different color on stainless steel and titanium
2 . MOPA Lasers are a better choice for the thin aluminum oxide plate surface stripping anode processing
3 . MOPA Lasers are used to mark the black trademark, model and text on the surface of the anodized aluminum material
4 . MOPA laser can adjust the pulse width and frequency parameters flexibly, Which can not only make the line drawn fine, but also the edges appear smooth and not rough, especially for some plastic marking.
No Consumables, Long lifespan Maintenance Free
The Fiber laser source has super long lifespan of over 100,000 hours without any maintenance . No need to spare any extra consumer parts at all . Suppose you will work for 8 hours per day, 5 days a week, A fiber laser could work properly for you for more than 8-10 years without extra costs except electricity
Multi-functional
It could Mark / Code / Engrave un-removable serials Numbers, batch Numbers Expiry info, Best Before date, logo any Characters that you want . It could also mark QR code
Simple Operation, Easy to use
Our patent software supports almost all common formats, The operator does not have to understand programming, Just simply set a few parameters and click start
High Speed Laser Marking
The laser marking speed is very fast, 3-5 times than the traditional marking machine .
Optional rotary axis for different cylindrical
Optional rotary axis can be used to mark on different cylindrical, spherical objects . The stepper motor is used for digital control, and the speed can be automatically controlled by computer, which is more convenient, simple, safe and stable.
APPLICATION INDUSTRY MOPA
Electronics : Iphone, IPAD, Ipod, Keyboard and more standard parts.
Jewelry & Acessories : Rings, Pendant, Bracelet, Necklace, Sunglasses, Watches etc .
Electronic Components : Phone, PAD, Resistors, Capacitors, Chips, Printed Circuit Boards, etc.
Mechanical Parts : Bearings, Gears, Standard Parts, Motor, etcInstrument : Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools : Knives, Tools, Measuring Tools, Cutting Tools, etc.
Automobile Parts : Pistons & Rings, Gears, Shafts, Bearings, ClutchLights, etc.
Handicrafts : Zipper, Key Holder, Souvenir, etc.


Product Detail

Product Tags

FIELD LENS

FIELD LENS

 We use famous brand to provides precision laser Standard 110x110mm marking area. Optional 150x150mm, 200X200mm 300x300mm etc.

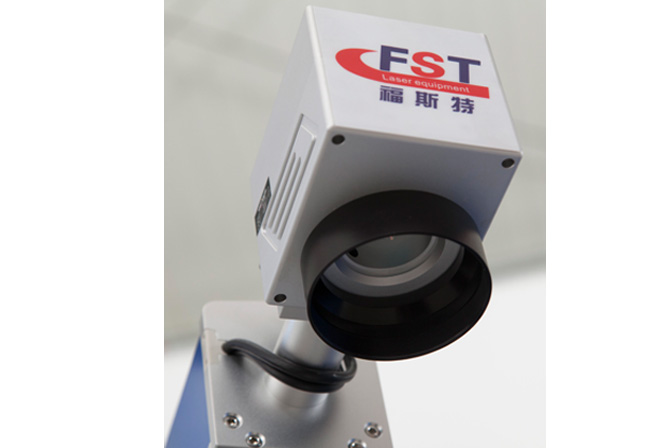

GALVO HEAD

Famous brand Sino-galvo , high speed galvanometer scan adopting SCANLAB technology, digital signal, high precision and Speed.

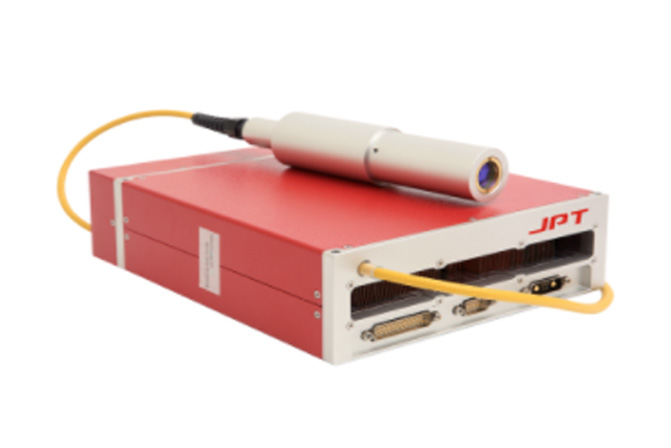

LASER SOURCE

We use Chinese famous brand Max laser source Optional: IPG / JPT / Raycus laser source.

FIELD LENS
FIELD LENS

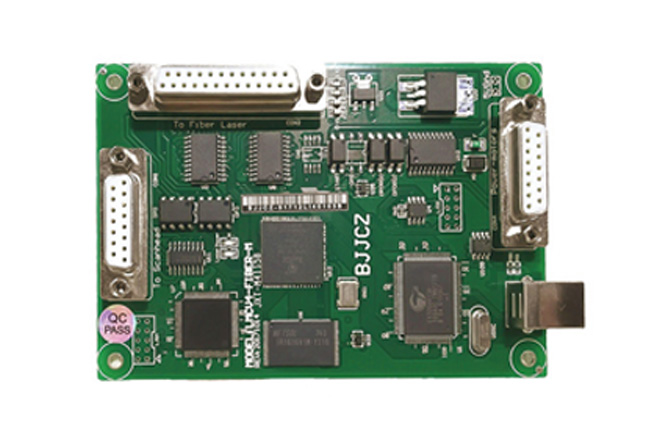

JCZ CONTROL BOARD

Ezcad genuine products, user-friendly interface, functional diversity, high stability , high precision. Each board has its own number to ensure that it can be inquired in the original factory. Refuse to fake

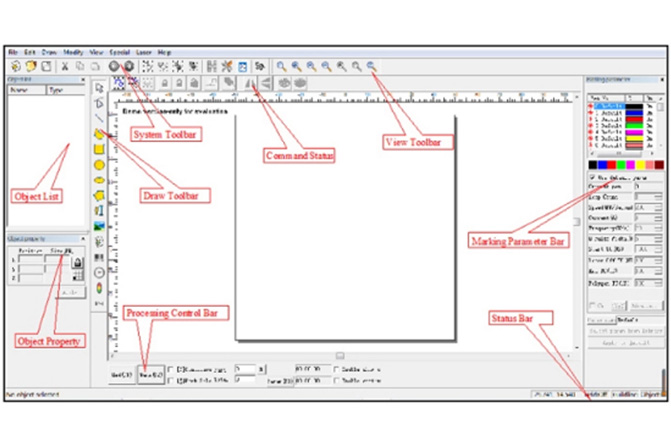

SOFTWARE

1. Powerful editing function.

2. Friendly interface.

3. Easy to use.

4. Support Microsoft Windows XP, VISTA, Win7, Win10 system.

5. Support ai, dxf, dst, plt, bmp, jpg , gif , tga , png , tif and other file formats.

6. Support for True type fonts , single Line fonts USF ) , SHX fonts , dot matrix fonts ( DMF ) , 1D bar codes and 2D bar codes . Flexible variable text processing , changing text in real time during processing , can directly read and write text files , SQL databases and Excel file.

FIELD LENS
FIELD LENS

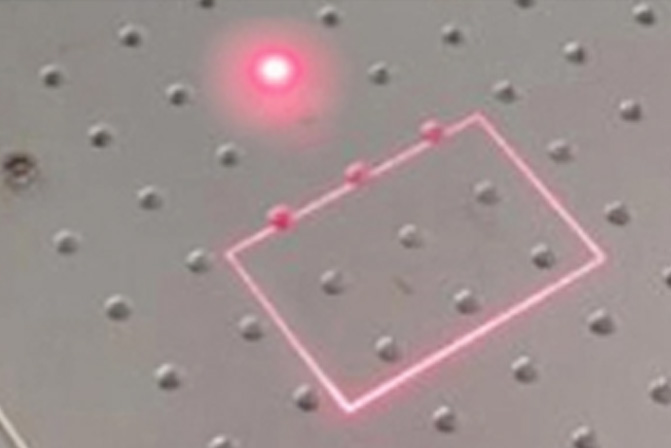

DOUBLE RED LIGHT POINTER

When two red light coincides best focus Double red light pointer help customers make focus quickly and easily.

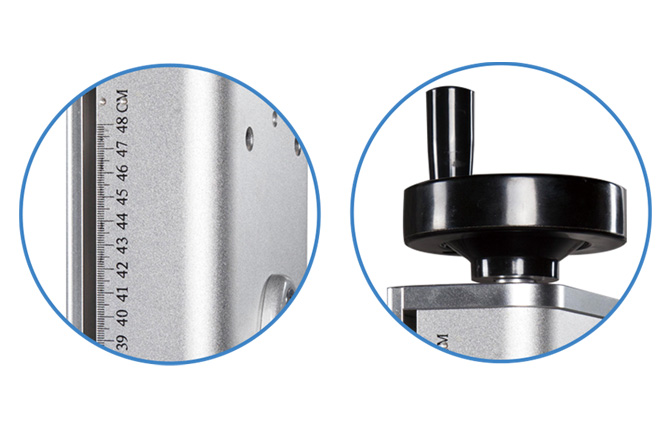

MARKING RULER AND ELECTRIC LIFT

Enables customers to precisely position for fast engraving Adapting To Different Products Height

FIELD LENS
FIELD LENS

WORKING PLATFORM

Alumina working platform and imported precise beeline device. Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform.

FOOT SWITCH

It can control the laser on and off make the operate more convenient.

FIELD LENS
FIELD LENS

GOGGLES ( OPTIONAL )

Can protect eyes from laser Wave 1064nm, let the operate more safe.

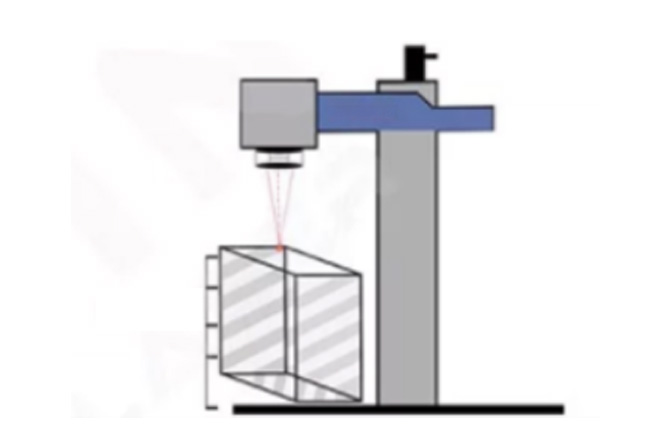

ADAPTING TO DIFFERENT PRODUCTS HEGHT

The red light guiding focusing function is optional , the marking height can be adjusted in the range of 0-150mm . and the lifting can be adjusted according to the thicknessof different products with the high precision lifting screw making the operation convenient and accurate.

FIELD LENS
FIELD LENS

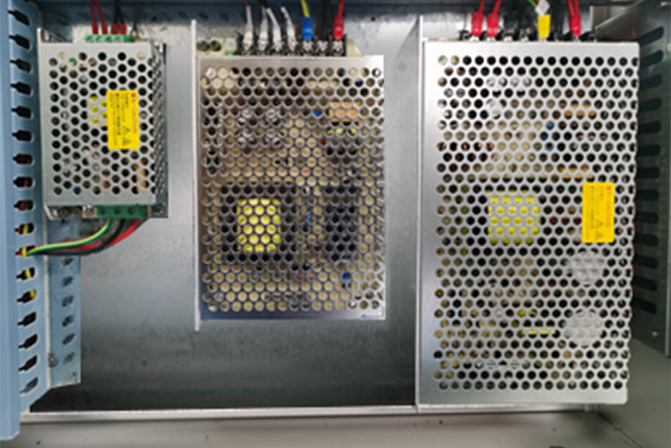

POWER SUPPLY

Power supply for galvo head and control board

Product Video

Specification

Technical Parameters
Technical Parameters
Product Name MOPA laser engraving color metal
Laser Power 20W / 30W / 50W / 70W
Laser Source Brand JPT (Raycus / IPG / Max optional)
Marking Area 110*110mm / 200*200mm / 300*300mm or more
wavelength 1064nm
pulse width can adjust
Control System EZCAD software from JCZ
Controlling software EZCAD
Supported graphic formats AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
Marking Speed 7000mm/s
Cooling Mode Air cooling--Built-in
Operation Environment 5℃~35℃
Power Supply 220V / 50HZ or 110V / 60HZ  (+-10%)
Operation System Win XP / 7 / 8 / 10 (32 bit , 64 bit)
G.W. 70KGS
Package (L*W*H) 46cm*83cm*87cm
Warranty  2 year
Optional parts Rotary Device, Lift platform, other customized Automation
Package  Plywood
