Handheld Mobile Portable Mini Fiber Laser Marking Machine for metal nameplate mold flange coding machine

Short Description:

Advantages of split fiber laser hand held marking machine

1. MODULAR DESIGN
Separate laser generator and lifter , more flexible , Can mark on bigger area and complicated surface Air-cooled inside , small occupation,easy to install .

2.S IMPLE OPERATION
High efficiency for photoelectric conversion , simple operation , Compact in structure , support harsh working environment , no consumables .

3. EASY FOR TRANSPORTATION , MARK BIG OBJECTS
Fiber laser marking machine is portable and hand held . Easy for transportation . Its movable marking operation allows user to mark on large pieces or some pieces not movable .

4. NO CONSUMABLES , LONG LIFESPAN MAINTENANCE FREE
The Fiber laser source has super long lifespan of over 100,000 hours without any maintenance . No need to spare any extra consumer parts at all.
Suppose you will work for 8 hours per day , 5 days a week , A fiber laser could work properly for you for more than 8-10 years Without extra costs except electricity .

Send email to us Download as PDF

Product Detail

Product Tags

FIELD LENS

We use famous brand to provides precision laser Standard 110x110mm marking area . Optional 150x150mm , 200X200mm 300x300mm etc

GALVO HEAD

Famous brand Sino-galvo, high speed galvanometer scan adopting SCANLAB technology, digital signal, high precision and Speed.

LASER SOURCE

We use Chinese famous brand Max laser source Optional : IPG / JPT / Raycus laser source.

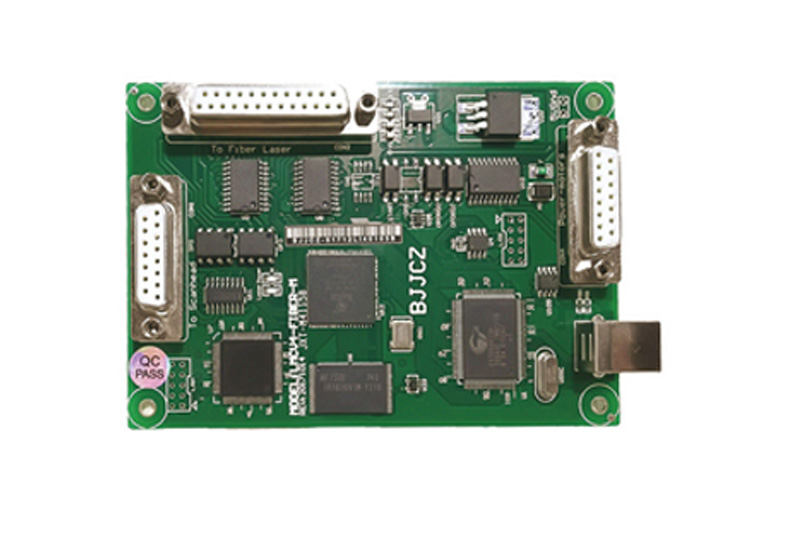

JCZ CONTROL BOARD

Ezcad genuine products, user-friendly interface, functional diversity, high stability, high precision. Each board has its own number to ensure that it can be inquired in the original factory. Refuse to fake

THE CONTROL SOFTWARE

1. Powerful editing function.

2. Friendly interface.

3. Easy to use.

4. Support Microsoft Windows XP, VISTA, Win7, Win10 system.

5. Support ai , dxf , dst , plt , bmp ,jpg , gif , tga , png , tif and other file formats.

DOUBLE RED LIGHT POINTER

When two red light coincides best focus Double red light pointer help customers make focus quickly and easily.

RED LIGHT PREVIEW

Adopt Red light preview to show the laser path since laser beam is invisible.

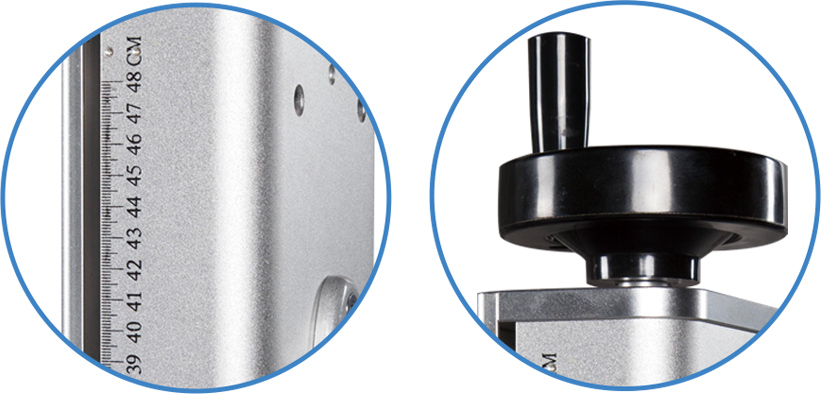

MARKING RULER AND ROTATING HANDLE

Enables customers to precisely position for fast engraving Adapting To Different Products Height

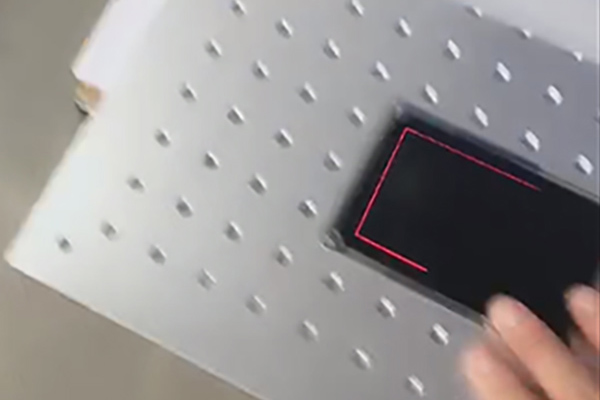

WORKING PLATFORM

Alumina working platform and imported precise beeline device. Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform.

FOOT SWITCH

It can control the laser on and off make the operate more convenient.

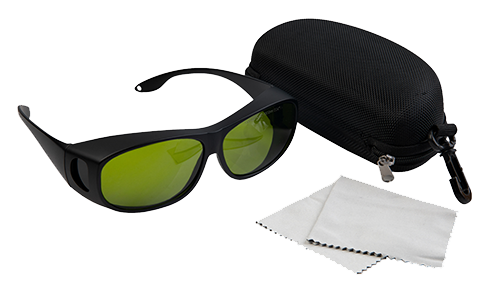

GOGGLES ( OPTIONAL )

Can protect eyes from laser Wave 1064nm, let the operate more safe.

Product Video

Specification

Technical Parameters

Model	Fiber marking machine
Working area	110110/150150/200200/300300(mm)
Laser power	10W/20W/30W/50W
Laser wavelength	1060nm
Beam quality	m²<1.5
Application	metal and partial nonmetal
Marking Depth	≤1.2mm
Marking Speed	7000mm/ standard
Repeated Precision	±0.003mm
Working voltage	220V or 110V /(+-10%)
Cooling Mode	Air Cooling
Supported graphic formats	AI，BMP，DST，DWG，DXF，DXP，LAS，PLT
Controlling software	EZCAD
Working temperature	15°C-45°C
Optional parts	Rotary Device, Lift platform, other customized Automation
Warranty	2 year
Package	Plywood
