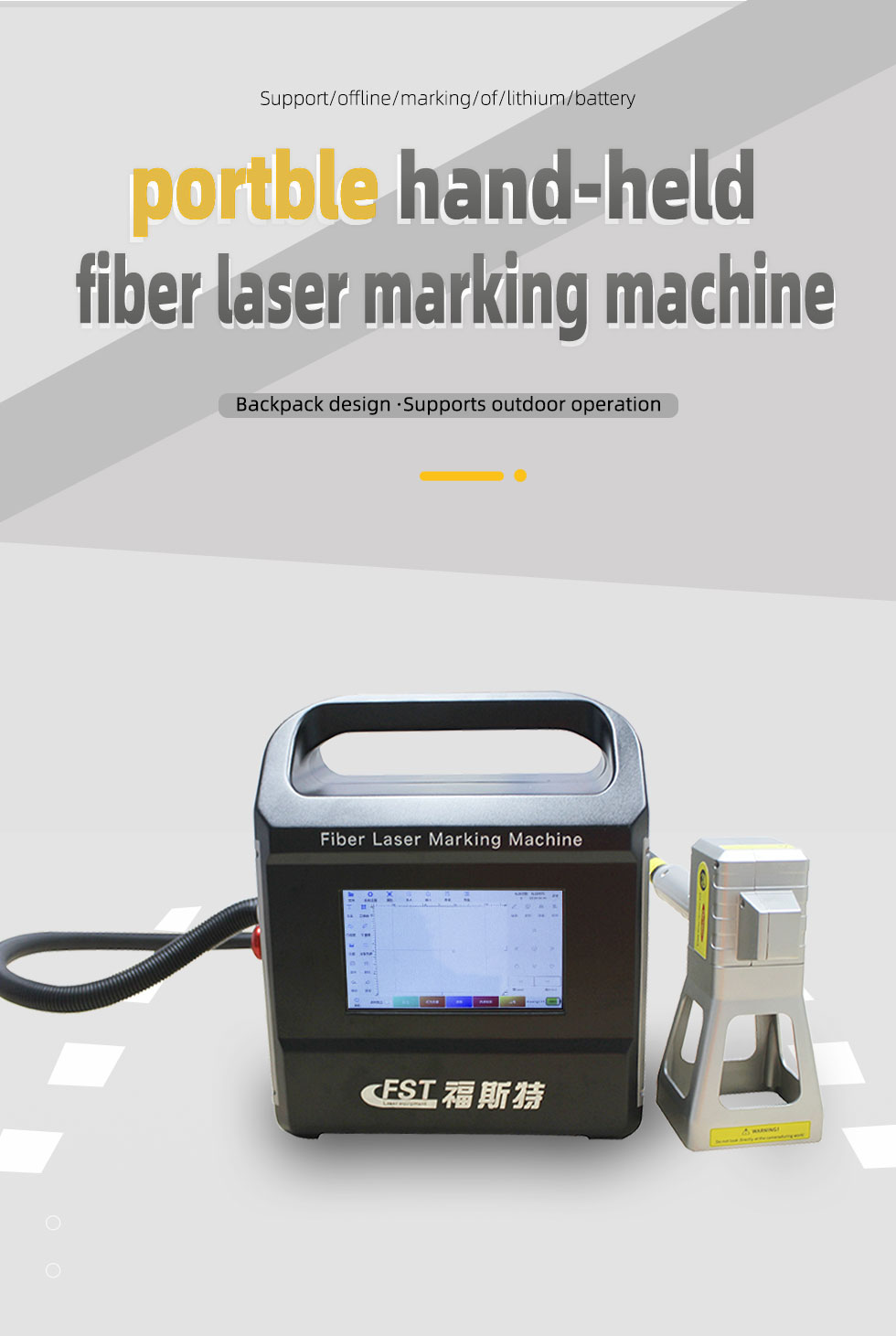

Hand Held Laser Portable Backpack Mini Fiber Laser Marking Machine

Short Description:

Handheld laser marking machine is an efficient and precise industrial device used for permanent marking on various materials. lts features include high precision and clarity, suitable for marking on precision components; non-contact processing, which avoids damage to the workpiece; and wide applicability, usable on materials like metal and plastic.

•SMALL SIZE

•LIGHT WEIGHT

•SUPPORT U DISK IMPORT

•TOUCH SCREEN EDITING

•AUTOMATIC FUNCTION

•LONG SERVICE LIFE

Send email to us Download as PDF

Product Detail

Product Tags

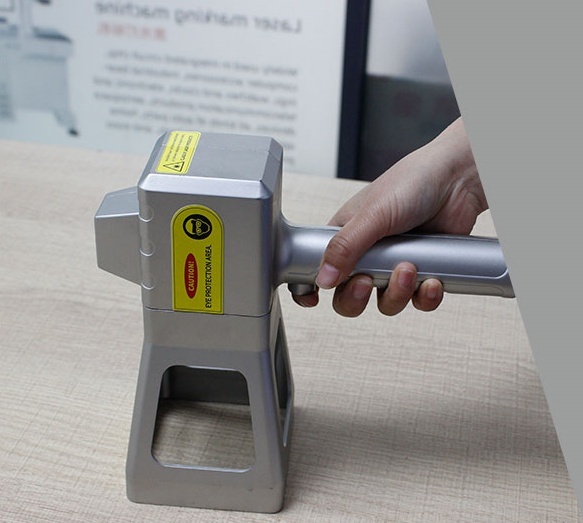

Handle

1.weight 0.8KG

2.diameter 35mm

3.Suitable for long time operation

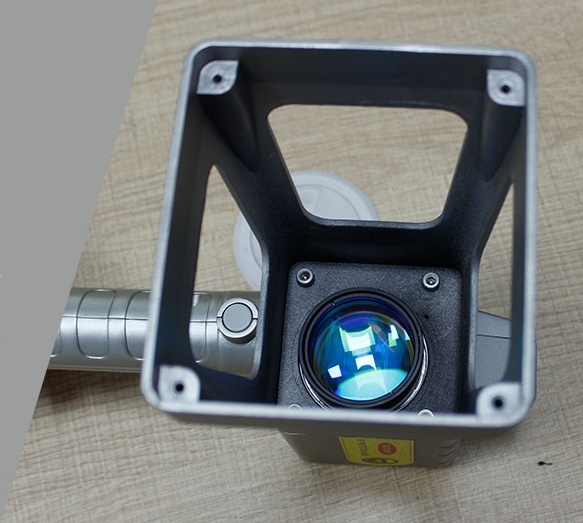

Galvanometer

1.Two-dimensional scanning

2.Good beam quality

3.Permanent and clear marking

Engineering plastic

1.High intensity environmental protection

2.Wear-resistant four-corner design at the back

3.it can be used upright or flat

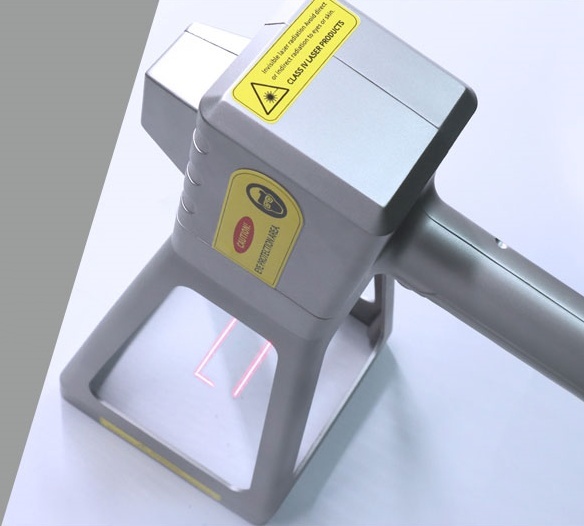

Red light

1.0ne-click red light preview

2.No need to focus, accurate and stable

3.Easier operation

4.Clearer marking

Built-in lasermarking system

1.No computer, touch display,convenient control.

2.Based on open source LinuXSystem, stable and fast.

3.Refuse Carton.

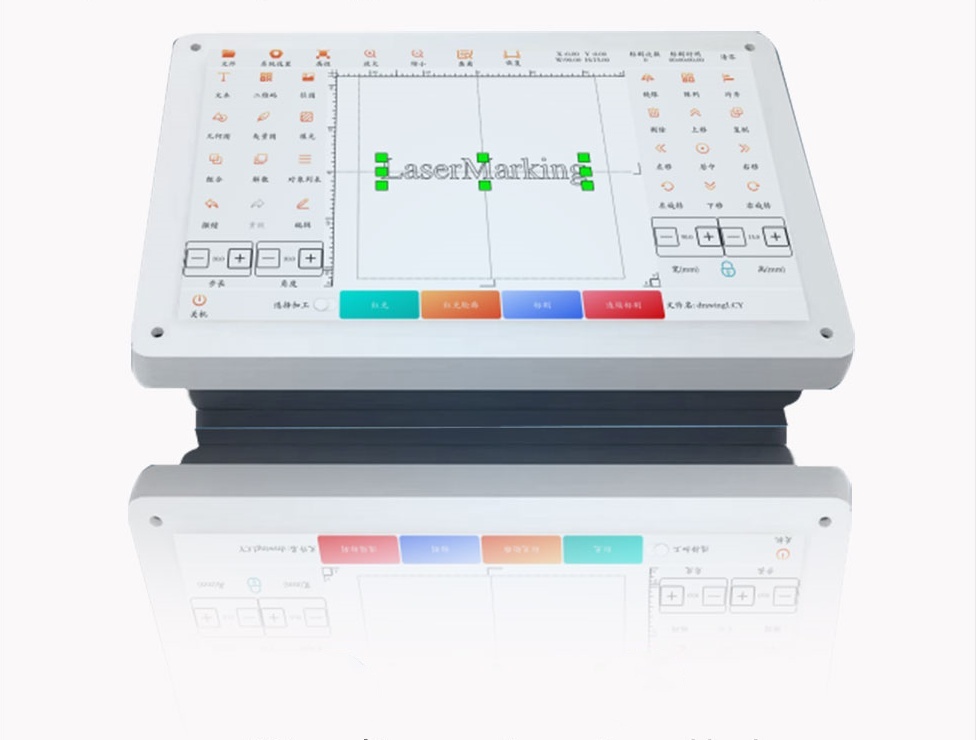

EMBEDDED LASER INTELLIGENTSCANNING SYSTEM

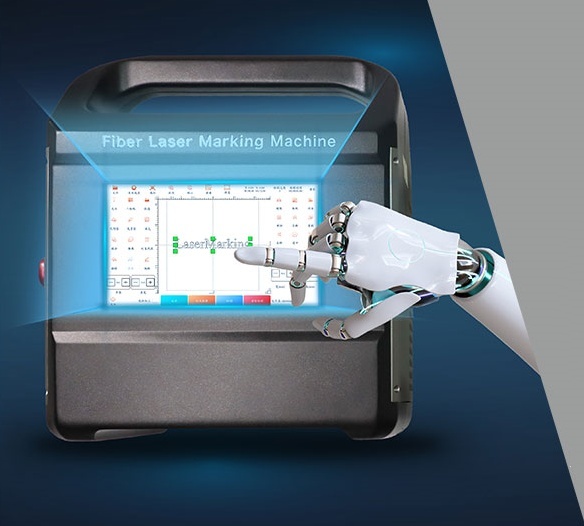

Convenient gesture control of pressure touch panel

Supported languages:

Chinese,English,Japanese, ltalian, Portuguese Spanish,Traditional Chinese, Korean, French, Arabic

PRODUCT PARAMETERS

Parameter table	LMB20/LMB30		LM20/LM30
material	engineering plastic
laser type	fiber laser generator
laser power	20W/30W(Maximum support 50W)
laser wavelength	1064nm
maximum pulse energy	0.7mj
adjustable frequency	1-600kHz
printing method	high-precision two-dimension scanning mode
marking speed	≤7000m/s
operation interface	embedded 7-inch touch screen, Linux operating system
cooling system	built-in air cooling
marking line type	both dot-matrix and vector
marking area	60mmx60mm(Standard)/100x100xmm(0ptional)
position method	red light positioning
marking character lines	any line within the marking range
printing speed	600characters/sec(depends on situation)
language	Chinese, English, Korean, German, Arabic numerals, etc
file format	png,jpg,bmp,dxf,plt,svg
barcode/QR code	CODE25、CODE39、CODE49、CODE93、C0DE126、CODE128、EAN13、EAN128、PDF417、CODBAR.UPCA、UPCA-CHK、UPCE-CHK、Data Matrx、QRCode，etc
power Supply	220V/110V
max Power consumption	20W250W-30W280W
net weight of machine	lithium battery:7.8KG	power supply:6.4KG
Full power Continuous working hours	about 4 hours (lithium battery)
charging time	1.5 hours minutes (lithium battery)
adaptive temperature	0-40°C
relative humidity	30-85RH(No condensation)
appearance dimension	330mm280mm200mm
marking type	QR code, barcode, English, date, logo, pattern, etc
