Fully Enclosed 3015 fiber laser cutting machine with fast speed fiber laser cutter

Short Description:

1,Stretching Aluminum Crossbeam

2, The Segmented Rectangular Tube Welded Bed

3,Welded Bed with Mortise-and-tenon Joint

4,Friendess Control System(CypOne / CypCut)

5,Various Brands Of Laser Head Are Available

APPLICATIONS:Black metals, iron and its alloys, carbon steel,stainless steel, aluminum plates, brass copper and other thin metal materials, most of the metal plate can be cut.


Product Detail

Product Tags

Industrial Machine Bed

laser cutting machine-1
11

The Segmented RectangularTube Welded Bed

The bed's intermal structure is an aviation metal honeycomb structure welded together with a number of rectangular tubes. Stiffeners are placed inside the tubes to strengthen the bed's strength and tensile strength, as well as the resistance and stability of the guide rail, preventing deformation

laser

Lifetime Service

It assures that the machine will perform accurately for a long period and will not distort over its lifetime

laser cutting machine

Higher Precision

High tensile strength, stability, and strength allowing for 20 years of use without distortion

Cast Aluminum Beam

laser cutting machine-2
laser cutting machine-3

Monolithic cast aluminum beam

No deformation, light weight, high strength Light cross beams allow equipment to operate at a faster rate, boosting processing efficiency and quality

laser cutting machine-4

High Speed

The light crossbeam allows the machine to move at a faster rate and enhance cutting efficiency.

laser cutting machine-5

More Efficient

The aerospace industry's aluminum profile beam ensures that the equipment has efficient dynamic performance, considerably increasing processing efficiency while maintaining processing quality

Laser Cutting Head

laser cutting machine-6

Multiple Protection

3 protective lenses, highly effective collimating focus lens protection. 2-way optical water cooling extends the continuous working time effectively.

High-precision

To successfully avoid step loss, a closed-loop stepping motor is used. The repetition accuracy is 1 M and the focusing speed is 100 m m/s.Dust-proof to lP65, with a patent-protected mirror cover plate and no dead angle.

Various Brands Of Laser Head Are Available

We can provide all high quality laser heads. lt has been tested by us for a long time.

Friendess Control System (CypOne /CypCut)

CypCut sheet cutting software is an in-depth design for fiber laser cutting industry.it simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one.From drawing, nesting to workpiece cutting all can be finished by a few clicks.

1.Auto Optimize lmported Drawing

2.Graphical Cutting Technique Setting

3.Flexible Production Mode

4.Statistic of Production

5.Precise Edge Finding

6.Dual-Drive Error Offset

cutting machine

Famous brand product

1111
Main Configuration
Optional Configuration
Technical Parameters

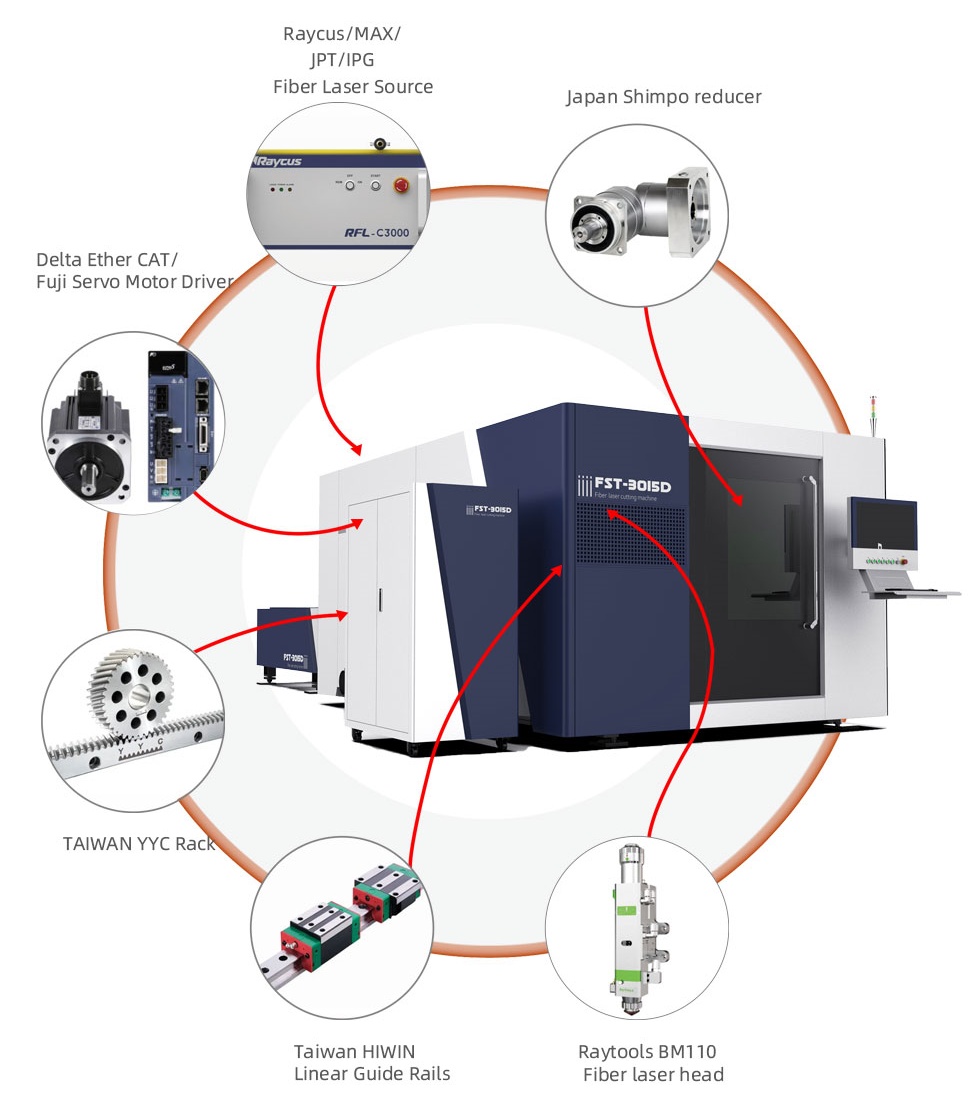

Main Configuration

Model

FST-FM Series

Control System

Empower

Drives and MotorsFiber Laser

Delta Ether CAT/Fuji Servo Motor Driver

Head

Raytools Laser Head

Fiber Source

Raycus or Max or lPG

Lubrication System

Electrical Motored

Guide Rails

Taiwan HIWIN Rails

Rack and Gear

Taiwan YYC Rack

Driver system power

X=0.75/1.3KW,Y=0.75/1.3KW,Z=400W

Reducer

Japan SHIMPO

Electron Component

DELIXI ELECTRIC

Chiller

HanLi /S&A

Voltage

220V 1Ph or 380V 3Ph,50/60Hz

Gross weight

1.9T

Optional Configuration

Model

Detail

Control System

Empower

Drives and Motors

Delta Ether CAT/Fuji Servo Motor Driver

Fiber Laser Head

RAYTOOLS BM110 Automatic Focus Laser Head

Stabilizer

Made in Chinia

Exhaust fan

3KW

Wooden packing

With metal bracket

Technical Parameters

Model

FST-FM 3015 Fiber Laser Cutting Machine

Working Size

1500*3000mm

Laser Power

1/1.5/2/3/4/6/8/12KW

Laser Wavelength

1080nm

Laser Beam quality

<0.373mrad

Working Life of Fiber Source

More than 10,0000 hours

Position Type

Red Dot Pointer

Cutting Thickness

0.5-10mm Within The Range Standard Precision

Max. ldle Running Speed

80-110M/min

Max acceleration

1G

Reorientation Accuracy

Within ±0.01mm

Lubrication System

Electrical Motored

Cooling mode

Water cooling and protection system

Machine power

9.3KW/13KW/18.2KW/22.9KW

Auxiliary Gas for Cutting

Oxygen, Nitrogen, Compressed Air

Compatible Software

AutoCAD, CorelDraw, etc.

Handle Control

Wireless Control Handle

Graphic Format

DXF/PLT/AI/LXD/GBX/GBX/NC code

Power Supply Voltage

220V 1Ph or 380V 3Ph, 50/60Hz

Warranty

2 Years
