FST 6010T Fully Automatic Tube Laser Cutting Machine Metal Pipe Fiber Cutting Machine

Short Description:

FST-6010 FULLY AUTOMATIG LASER TUBE CUTTING MACHINE

Specifically designed for high volume cutting of tubes and pipes provide far greater efficiency than normal laser systems when cutting pipes and tubular metals.Tube and rectangular tube can finish full automatic feeding without human operation. The fast corner response improves cutting efficiency greatly. The work pieces can be unloaded automatically in different areas after cutting.


Product Detail

Product Tags

01
0036

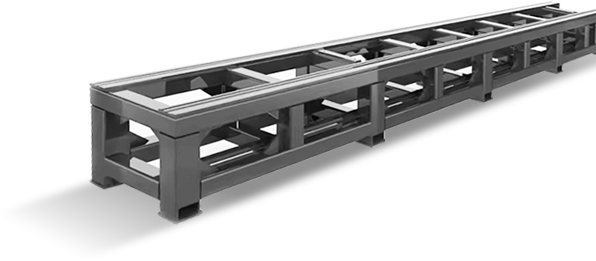

Stable Machine Bed and Gantry Structure

Machine bed and the gantry structure adopt plate welding structure.

After heat treatment and annealing to remove stress,the structure is stable and the rigidity is good,

1
2

Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

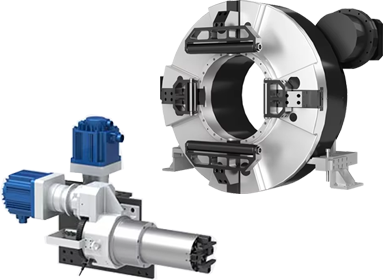

Double Chuck Clamping

Clamping round tube Φ10~100mm. Servo motor and reducer are driven synchronously to ensure processing accuracy.Both front and rear chucks are pneumatically tightened.

3
4

Intelligent Auto-focusing Laser Head

Freely design and instantly cut all kinds of complex graphics or text products, trigger more new tube design inspirations, help you quickly complete the development of new products, and reduce R&D costs.

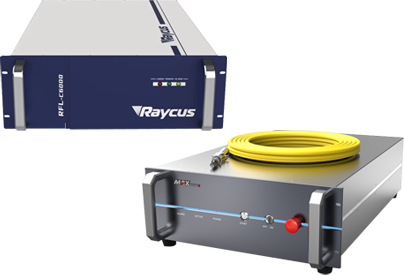

Laser Source

Professional cutting laser source. With high-quality beam quality, high light conversion efficiency,the light emitting mode is more conducive to achieving a good and stable cutting effect with high quality.

5
6

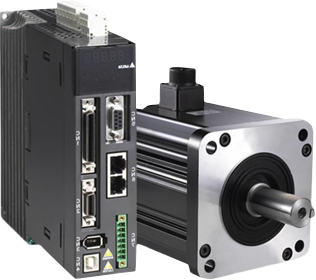

Servo Driver and Servo Motor

Servo motors stabilise and drive the beam to control the movement of the XYZ axis according to the programmed instructions to complete the cutting operations with complex precision and the user can adjust the parameters according to their needs.

TubePro

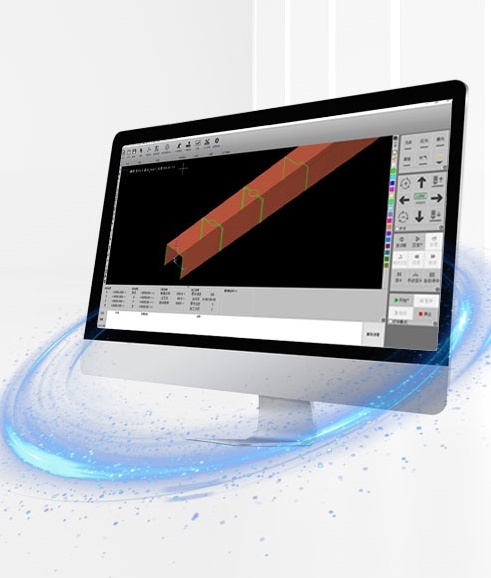

TubePro designed for professional tube cutting.supports production of tube and profile of various shape. it works with TubesT nesting software seamlessly to realize technique setting.advanced tool path generation and nesting for standard and special production need.

1.Auto Find Tube Center in Production

2.Workpiece and Floating Coordinates

3.Seven-Axis Tube Delivering

4.Tube Holder

5.Comer Technique

6.Active Control at Comer Cutting

7.Quick Frog-Leap

8.Free Form Tube & Profile Production

101
1111

APPLICATION MATERIALS

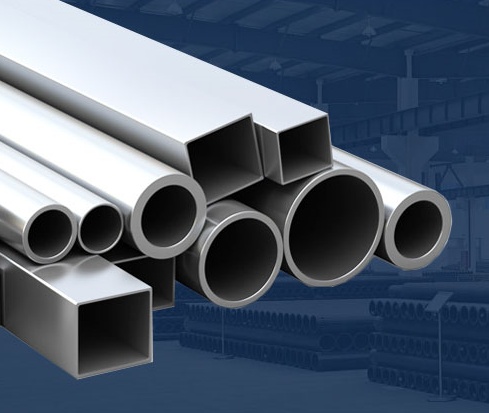

Full Automatic laser pipe cutting machine can be used for cutting stainless steel, carbon steel,.alloy steel, silicon steel, spring steel, aluminum,aluminum alloy, galvanized sheet, aluminum-zinc plated sheet, pickled sheet, copper,silver, gold, titanium and other metal plates and tubes. High accurate processing size, can re-place many traditional processing equipment such as sawing, drilling and so on.

PARAMETERS

Technical Parameters
Cut material and thickness
Technical Parameters
Model FST-6010 Fully Automatic Tube Laser Cutting Machine
Working Area 6000mmΦ16-100mm
Laser Power 1000W/2000W/3000W/4000W/6000wetc
Cooling Method Water cooling protection
Positioning Accuracy ±0.03m
Maximum Acceleration 1.5G
Repeatability ±0.02m
Cutting Materials Round tube/Square tube
Laser Source Brand Raycus/Max/Reci/PG
Max Movement Speed 100m/min
Power Parameters 380V/50HZ
Maximum Speed 150m/min

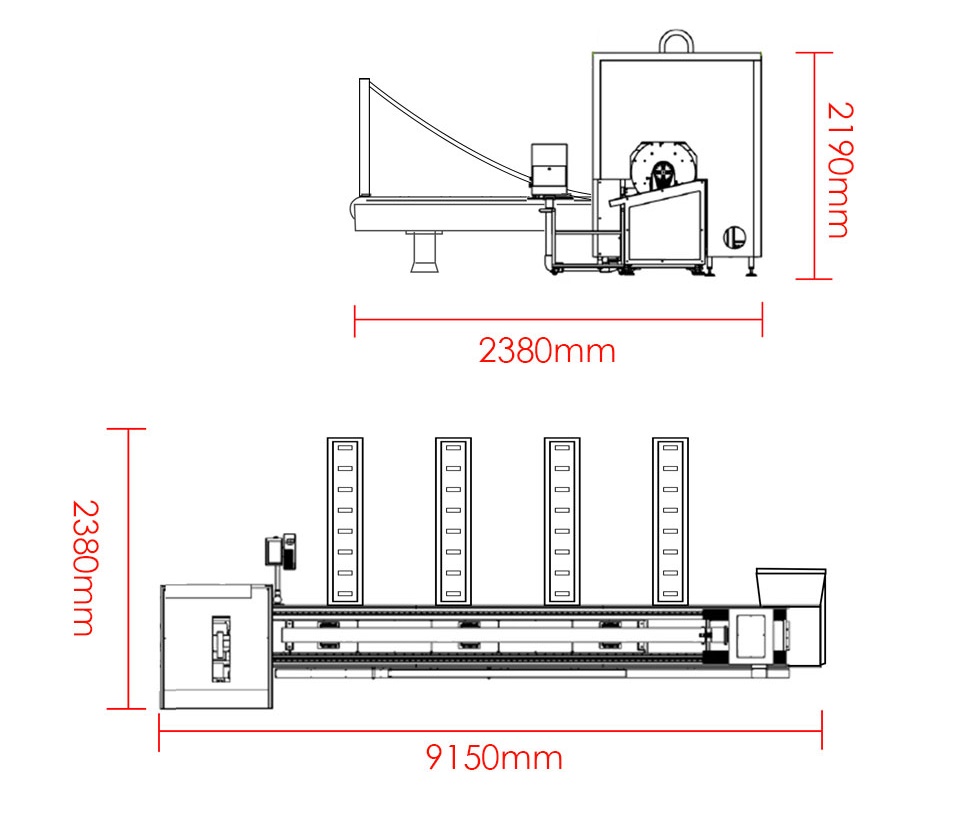

Machine Size 9150*2380*2190mm
Weight of filling material 1.8T
Power Parameters Three-phase AC 380V50Hz(Can be customized)
Machine weight 4.5T



Cut material and thickness

Material

1500W

2000W

3000W

Carbon Steel (mm)

1-10mm

1-10mm

1-16mm

Stainless Steel (mm)

1-6mm

1-6mm

1 -8mm

Aluminum (mm)



1-4mm

1-6mm
