1060 laser engraving machine

Short Description:

Advantages of FST- 1060 laser cutting machine

1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting

2. USB Interface, U-flash Disk Supported, Ethernet cable WIFI ( Optional parts

3. Air Assist, Remove heat and combustible gases from the cutting surface

4. Embedded Exhaust Fan, Easier install, Safer transport

5. Rotary Axis, Engrave any cylindrical object ( Optional parts)

6. Aluminum Knife Worktable or Honeycomb Worktable

7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser

8. Water Cooling and Protection System

9. Red light positioning

10. Emergency Stop Button

1 1. Larger Size, 1000’600mm working area

12. The lifting platform is electric control

13. drag-and-chain transmission line

14. Laser focal length : 5CM

Application Materials:

Acrylic, Plexiglas, double color board, ABS board, PVC board, bamboo, MDF, wood, paper, leather, fabric, wool, rubber, resin etc

Application Industry:

Advertisement, Garments sampling, Small width tailoring, leather industry, shoe making, decoration, furniture, packing and printing, model industry, craftwork and gift, etc

Send email to us Download as PDF

Product Detail

Product Tags

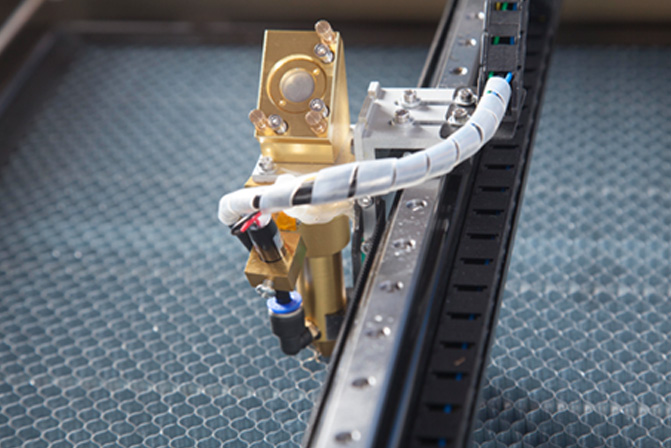

LASER HEAD

The air pipe has been installed on it. So that dust will not contact the lens. The blown air can cool the lens and cool the material surface. Red light positioning function ( Optional )

Cooling and blowing

Cool and blow air to prevent cuts from burning. Air Assist Remove heat and combustible gases from the cutting surface

Aluminum knife worktable (Optional)

To process hard materials like acrylic, wood and so on

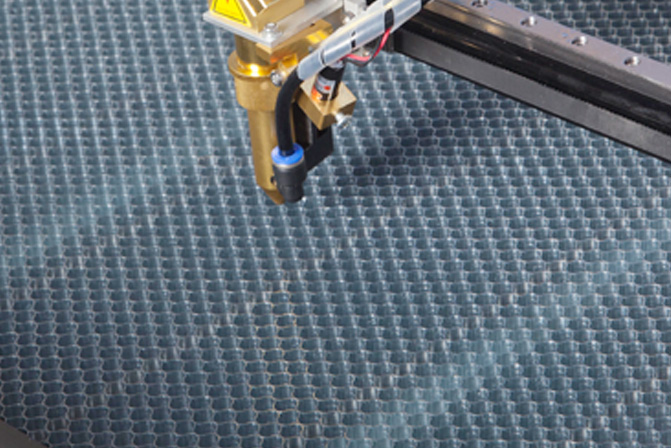

Honeycomb worktable

1. Small holes make sure good supporting performance which is suitable for leather cloth and other thin oft materials

2. The hole of honeycomb worktable is small , so the small work piece can be placed on the table surface to be processed

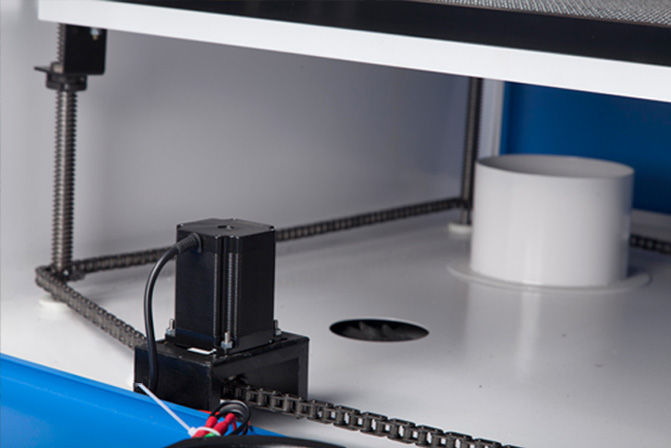

Electric Up down worktable

The height of the platform can be adjusted, freely to facilitate products of any thickness

Features

1. Adopt advanced laser engraving and cutting control system : Ruida RDC6442control system, the control pannal support different language include Chinese, English, French, Pyccko, Portuguese, Tukish, German, Spanish, Vietnamese, Korean, Italian

2. Standard Rdworksv8 software : It support 15 different languages, clude : Chinese, English, Japanese, French, German, Portuguese, Polish, Spanish, Russian, Korean, Vietnamese, Indonesian, Italian, Turkrish, Arabic

It can compatible with many other software, like Coreldraw, Photoshop,AUTOCAD, TAJIMA, etc.

You can use these software to make designs, then import to Rdworks to cut or engrave

3. Rdworks software support files in different format : Al, DXF, PLT, DST, B -MP, DSB, EPS, DAT, NC, RDB, GIF, JPG, JPEG, JPE, JFIF, PNG, MNG, ICOCUR, TIF, TIFF, TGA, PCX, WBMP, WMF, EMF, JBG, J2C, JPC, PGX, RASPNM . PGM. RAW

4. Storage : The main board has EMS Memory which enables the user to store more than 100 files

5. Laser output control : Can regulate the laser power from 1-100% according to different material .

6. Interface : USB2 . 0 interface support connect to computer by USB cable, it also support offline work.

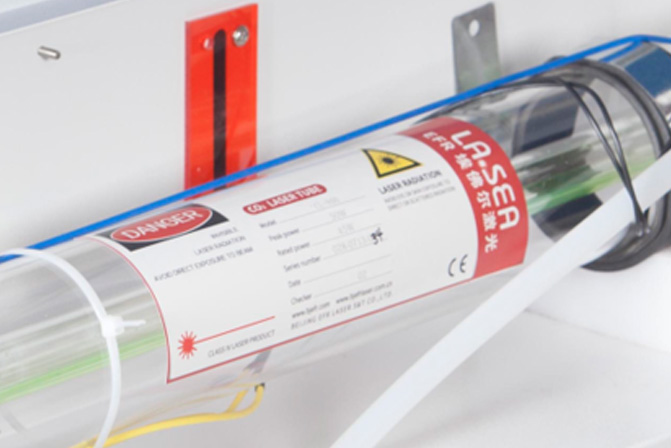

LASER TUBE

Closed Co2 laser tube, long life stable power Installation of reinforcement settings, the lase tube is not easy to collide and cause damage when moving the machine ( EFR, RECI, CDWJYONGLI, JOY. Optional

X Axis can upgrade to linear guide

special linear guide rail good stability and long service life low noise and high precision

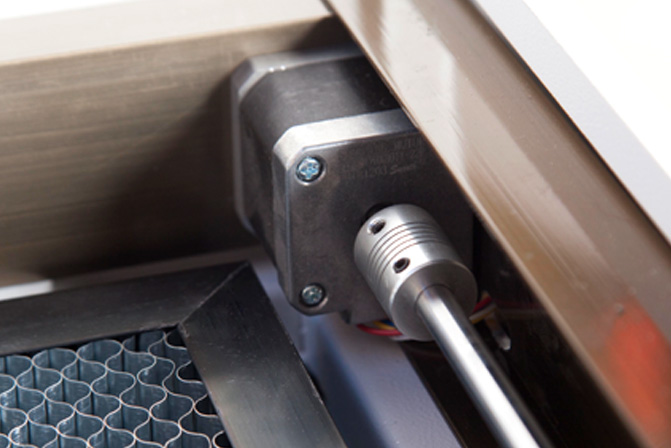

Stepper motor

Strong power, reliable performance. safe and fast. ensure the normal operation of the machine

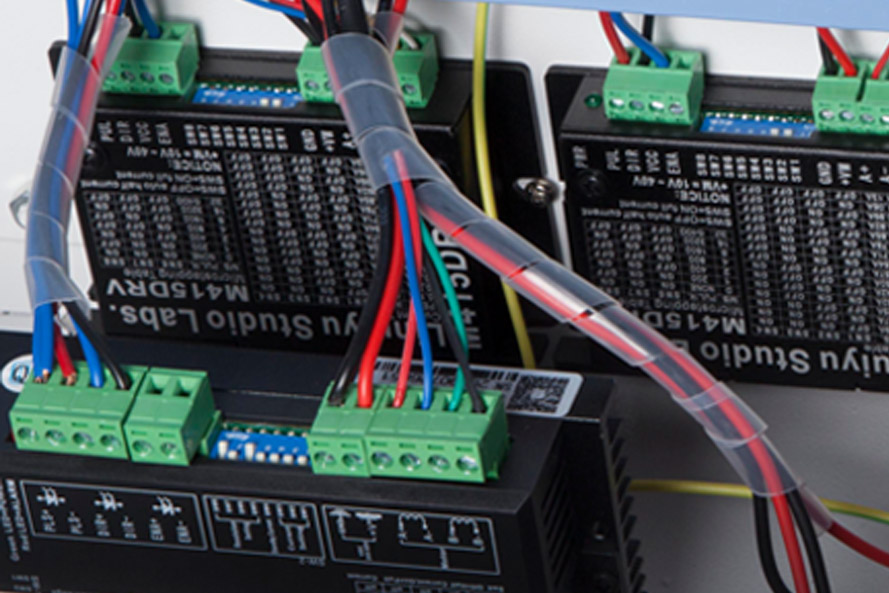

High Speed Stepper Subd- ivision Driver Control System

Adopt Chinese Top Brand Step Motor and Driving System Num- eral timing Simulation quantum control laser power. Little error, repetition high precision.

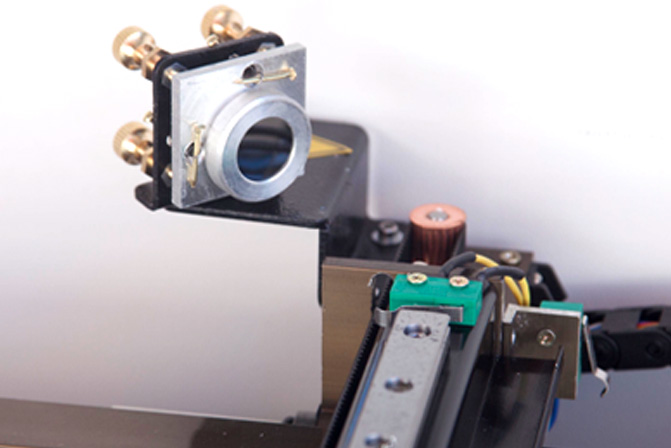

Reflector

45 mirror adjustment set. Three-point dimming bolt for easier dimming.

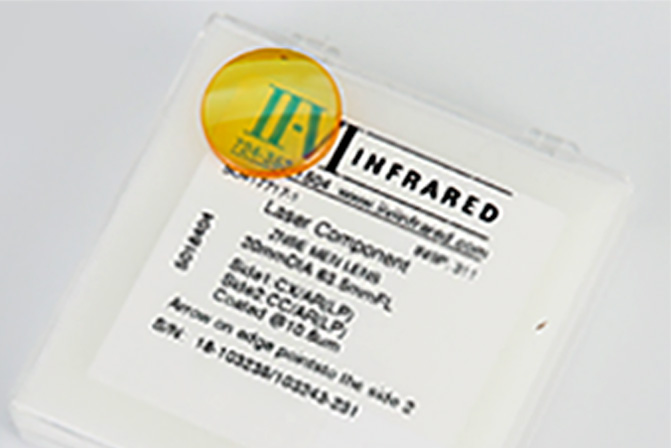

USA II-VI LENS

Imported USA II-VI Lens, suitable for various environments, and has high precision and high speed.

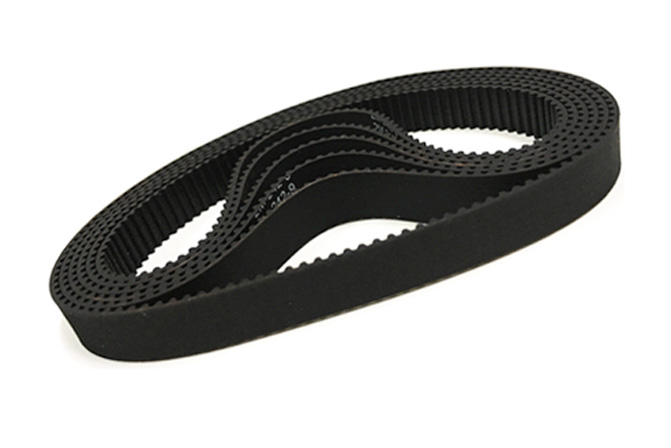

FAMOUS BRANID BELT

The ONK brand belt, wear resistance, good stability, compact structure and low noise

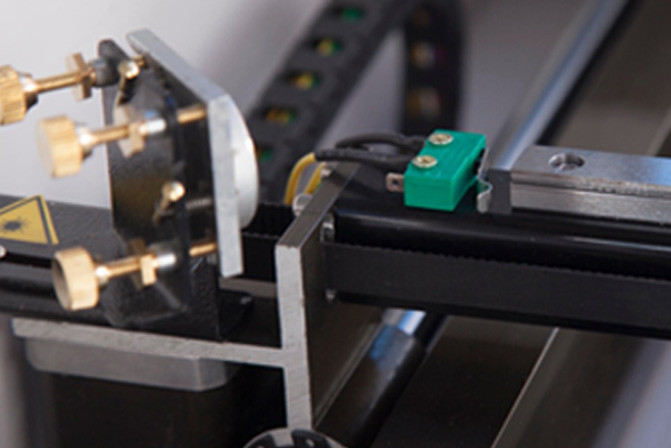

Limit switch

Prevent hitting of moving system

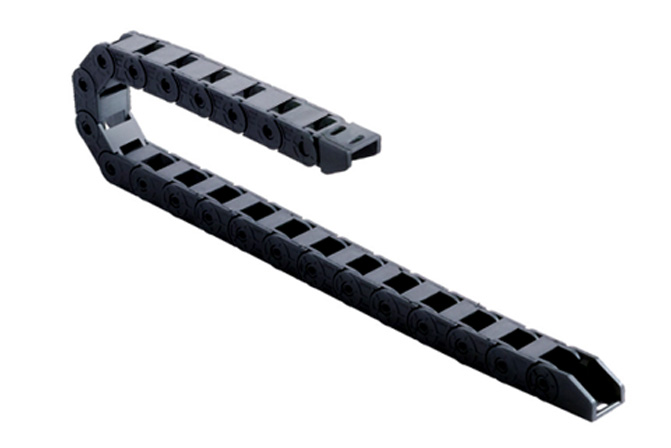

LEADING CHAIN

Towline routing and wear-resistant high-strength cables, beautiful and extend the life of the machine

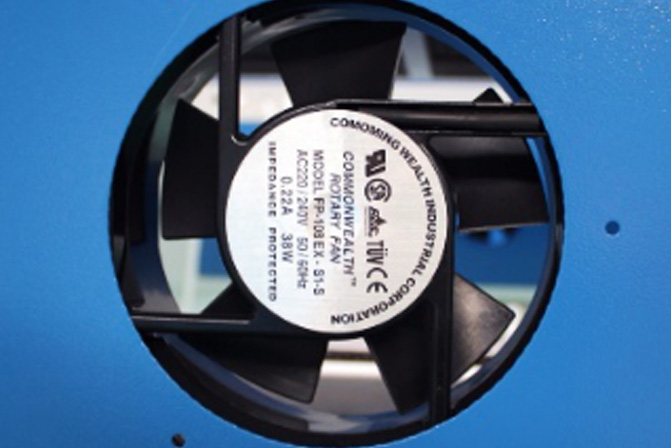

Buit-in exhaust fan

Built-in Exhaust Fan. Easier install,Safer transport

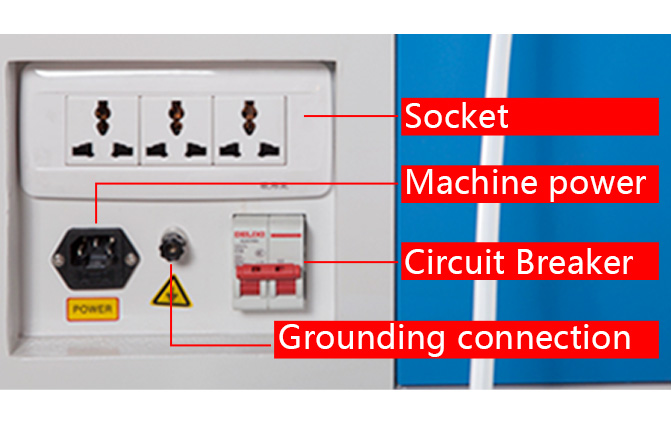

Security protection

Ensure the safe operation of the machine and the safe use of electricity

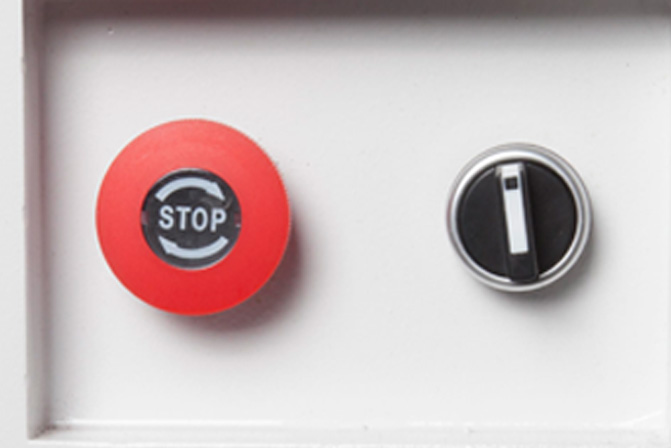

Double stop switch

Ensure the safe operation of the machine and the safe use of electricity

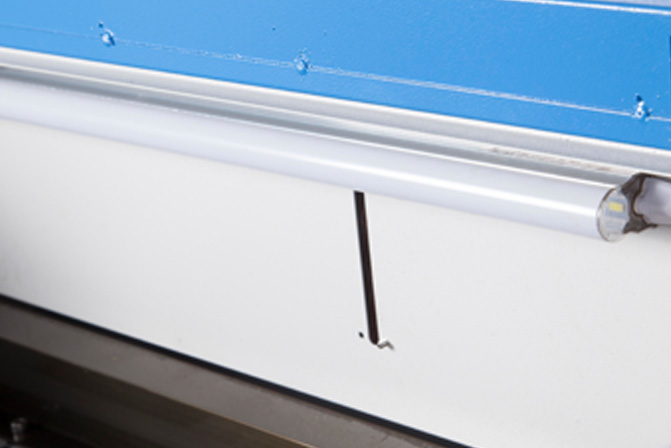

LED Light

Easy to use, humanized operation

Product Video

Specification

Technical Parameters

Model	FST-1060 / 1040
Worktable	honeycomb or Aluminum knife
Eneravingarea	1000*600mm
Laser Power	50W/60W/80W/100W/130W/150W
Engraving Speed	500mm/s Max
Cutting Speed	60mm/s
Cutting Depth (Acrylic)	0-20mm (acrylic)
Up and down wak table	Upand dcwn adjustable
Minimum Shaping Character	English 1x1 mm (Chinese Characters 2*2mm)
Resolution Ratio	0.0254mm (1000dpi)
Power Supply	220V(orll0V)+/-10% 50Hz
Resetting Positioning	Accuracy less than or equal to 0.01mm
Water protecting sensor and alarm	Yes
Operating Temperature	0-45°C
Operating Humidity	35-70℃
Graphic Format Supported	PLT/DXF/BMP/JPG/GIF/PGN/TIF
Operation System	Windews XP/Windows 7/8/10
Software	Reworks/ CorelDRAW/ AutoCAD
Control Configuration	Ruida
Water Cooling(Yes/No)	Yes
Laser Tube	Sealed CO2 glass laser tube
