Foster foctory driect selling closed fiber laser marking machine

Short Description:

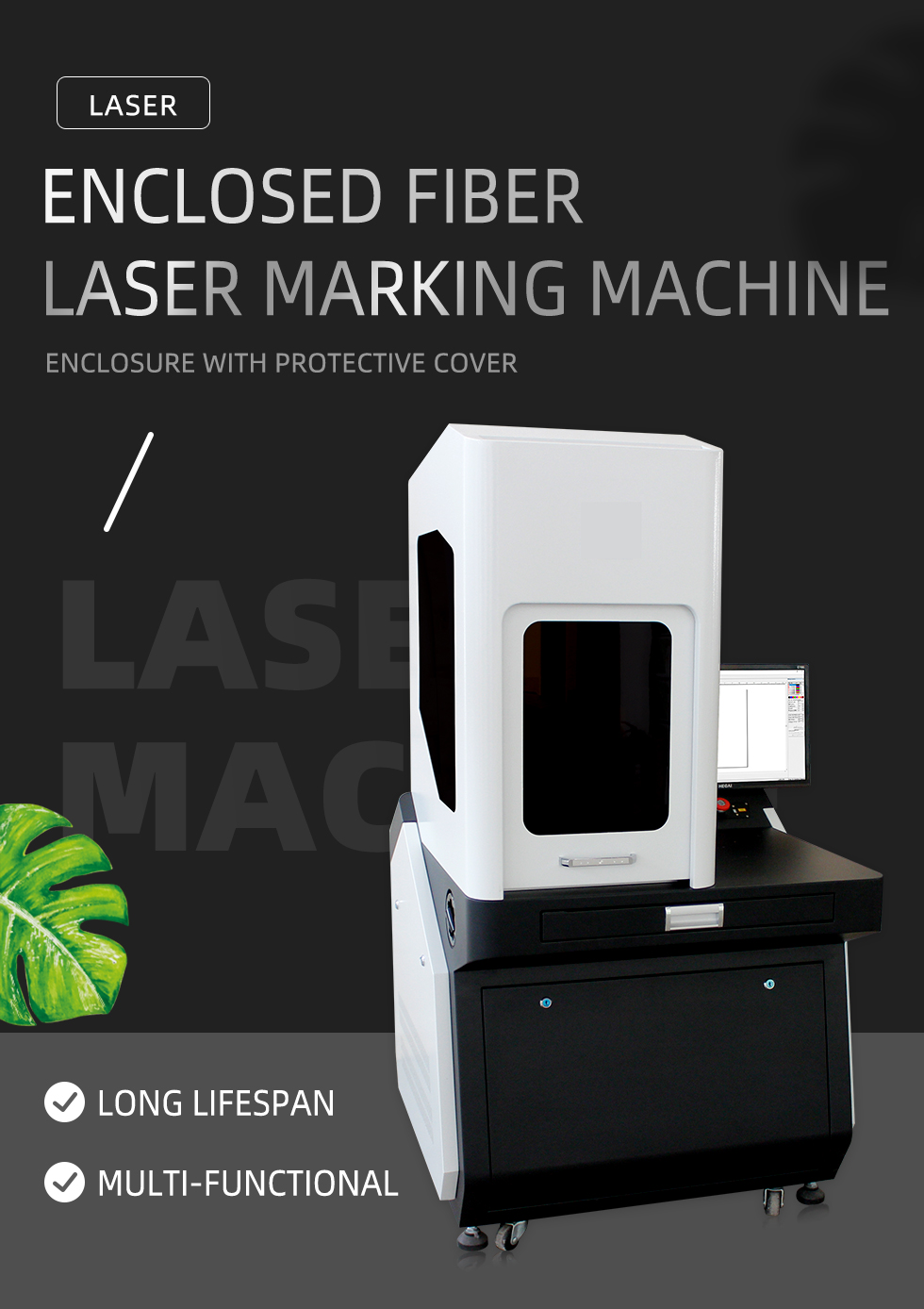

Advantages of enclosed fiber laser marking machine

1.ENCLOSURE WITH PROTECTIVE COVER AND HIGHEST LEVEL PROTECTION

Protecting human body off laser beam. We are not only offering a unique visual of the object being engraved, but also the best possible protection

2.NO CONSUMABLES, LONG LIFESPAN MAINTENANCE FREE

The Fiber laser source has super long lifespan of over 100, 000 hours without any maintenance. No need to spare any extra consumer parts at all. Suppose you will work for 8 hours per day, 5 days a week, A fiber laser could work properly for you for more than 8-10 years

3.MULTI-FUNCTIONAL

It could Mark/ Code/Engrave un-removable serials Numbers, batch Numbers, Expiry info, Best Before date, logo & any Characters that you want. It could also mark QR code

4.SIMPLE OPERATION, EASY TO USE

Our patent software supports almost all common formats the operator does not have to understand programming Just simply set a few parameters and click start

5.HIGH SPEED LASER MARKING

The laser marking speed is very fast, 3-5 times than the traditional marking machine

6.OPTIONAL ROTARY AXIS FOR DIFFERENT CYLINDRICAL

Optional rotary axis can be used to mark on different cylindrical, spherical objects. The stepper motor is used for digital control, and the speed can be automatically controlled by computer, which is more convenient, simple, safe and stable


Product Detail

Product Tags

01
04

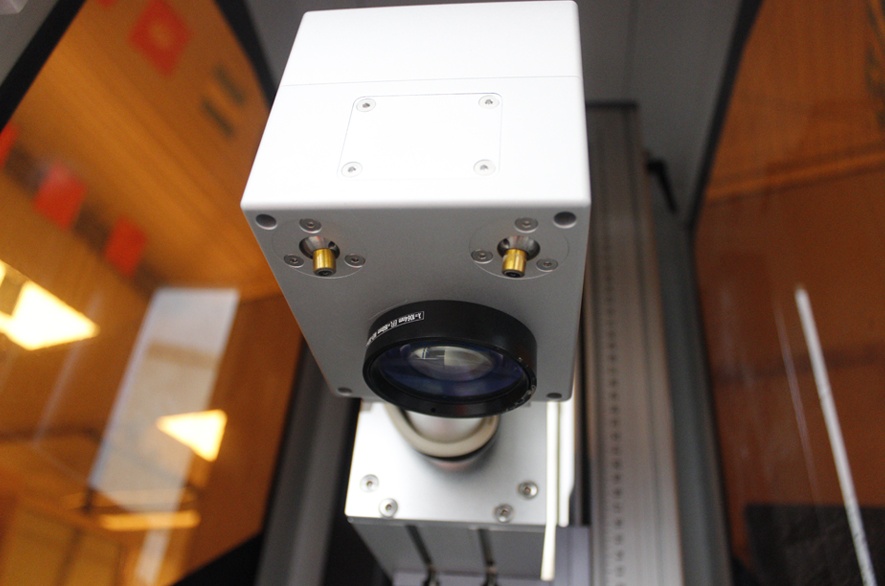

FIELD LENS·GALVO HEAD

We use famous brand to provides precision laser.Standard 110 x110mm marking area.Optional 150x150mm,200x200mm,300x300mm etc.Famous brand Sino-galvo, high speed galvanometer scan adopting SCANLAB technology, digital signal, high precision and speed.

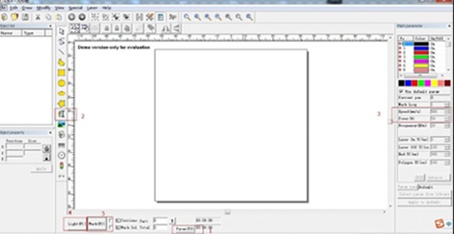

THE CONTROL SOFTWARE

1. Powerful editing function.

 2. Friendly interface.

 3. Easy to use.

 4. Support Microsoft Windows XP, VISTA, Win7, Win10 system.

 5. Support ai, dxf, dst, plt, bmp, jpg, gif, tga, png, tif and other file formats.

 6. Support for True type fonts, single Line fonts USF ), SHX fonts, dot matrix fonts ( DMF ), 1D bar codes and 2D bar codes . Flexible variable text processing, changing text in real time during processing, can directly read and write text files, SQL databases and Excel file.

06
07

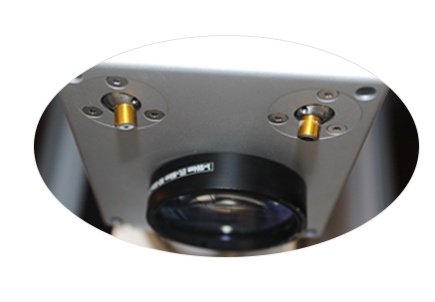

DOUBLE RED LIGHTPOINTER

When two red light coincides best focus.Double red light pointer help customers make focus quickly and easily.

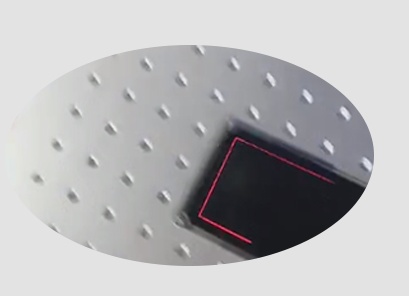

RED LIGHT PREVIEW

Adopt Red light preview to show the laser path since laser beam is in-visible

08
09

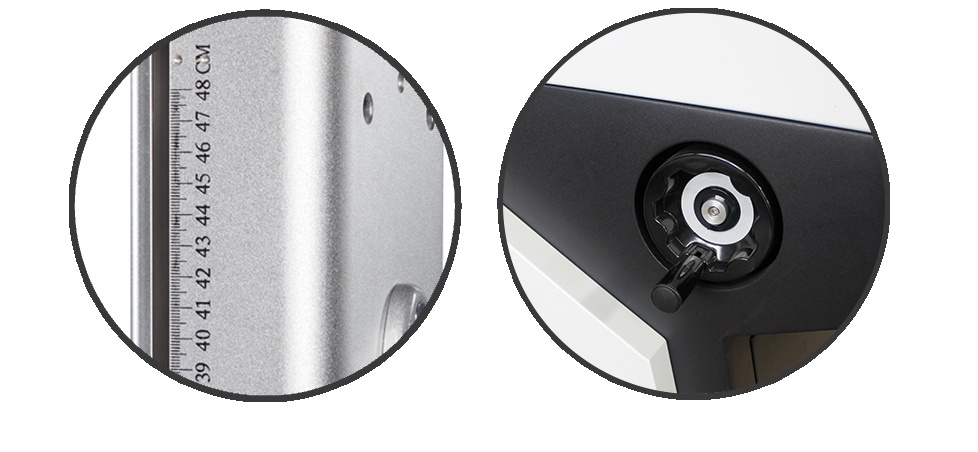

MARKING RULER AND ROTATING HANDLE

Enables customers to precisely position for fast engraving Adapting To Different Products Height.

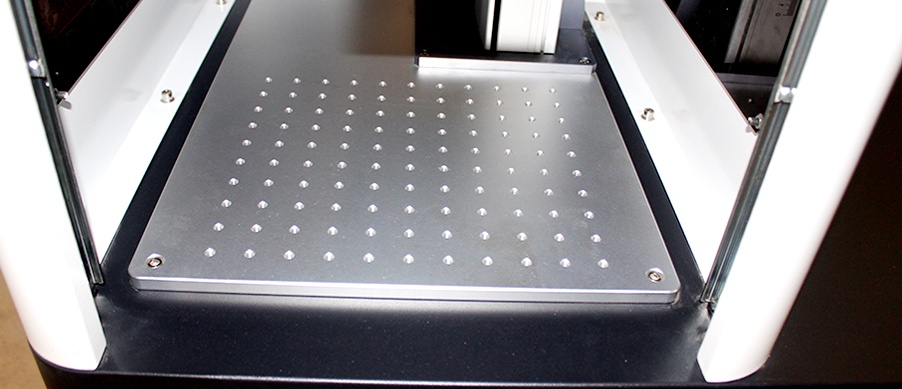

WORKING PLATFORM

Alumina working platform and imported precise beeline device Flexibility mesa have multiple screw holes, convenient and custom installation,special fixture industry platform.

10

Specification

Technical Parameters
Technical Parameters
Laser Type Enclosed Fiber Laser Marking Machine
Working area 110*110/150*150/200*200/300*300(mm)
Laser power 10W/20W/30W/50W
Laser wavelength 1060nm
Beam quality m²<1.5
Application metal and partial nonmetal
Marking Speed 7000mm/second
Repeated Precision ±0.003mm
Working voltage 220V / or 110V (+-10%)
Cooling Mode Air Cooling
Supported graphic formats AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
Controlling software JCZ - EZCAD
Operating System Windows Systems
Working temperature 15°C-45°C
Optional parts Rotary Device, Lift platform, other customized Automation
Warranty  2 year
Package  Plywood
