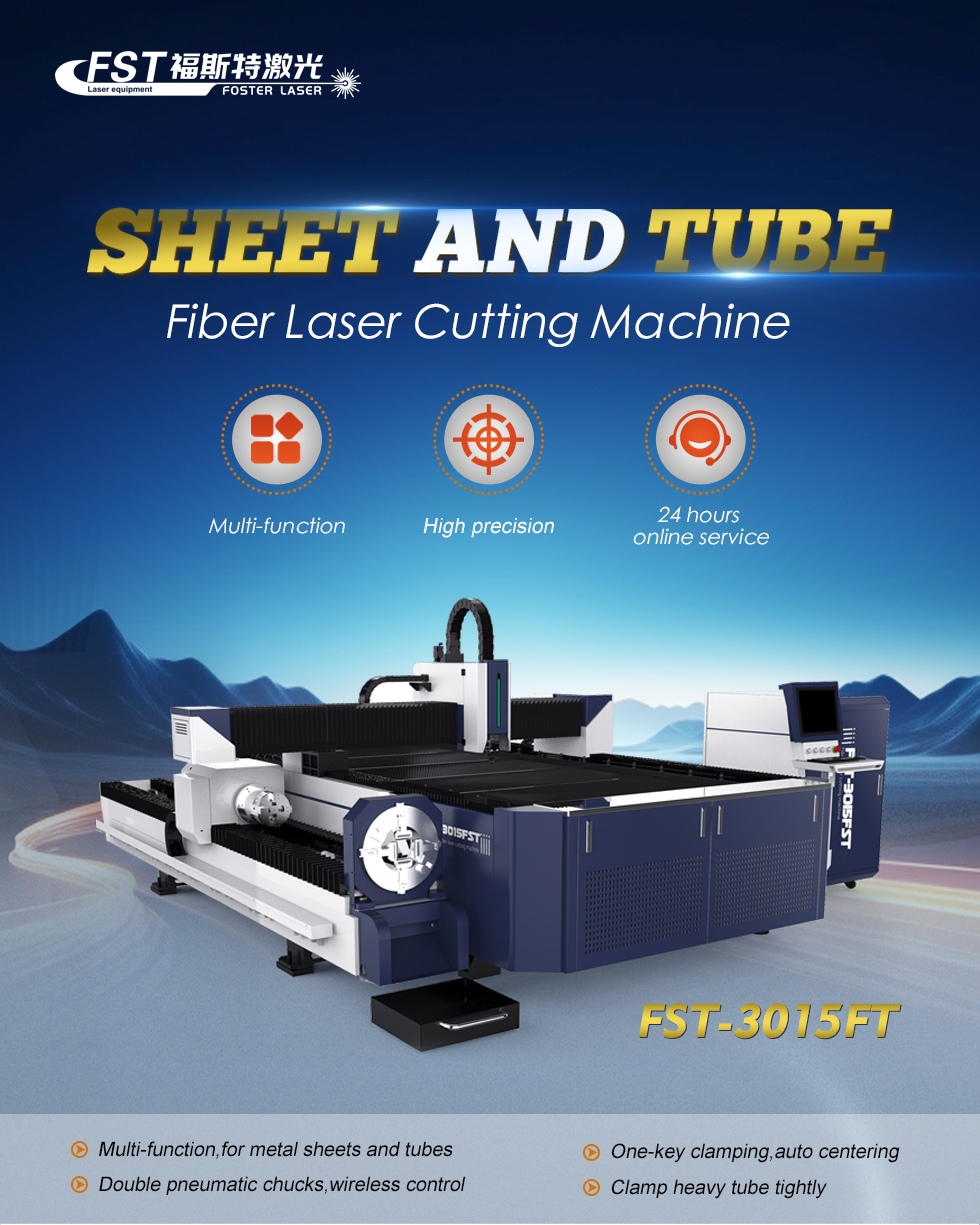

Foster Exchange Worktable Fiber Laser Cutting Machine Max Steel Metal Automatic Laser Cutting Machine

Short Description:

Dual-Purpose functionality:Capable of cutting both tubes and plates, meeting various processing needs.

Cost Reduction:Lowers the cost of purchasing and maintaining multiple machines.reducing overall equipment investment.

Efficiency and space Saving:Saves on transportation costs and usage space,significantly improving work efficiency.

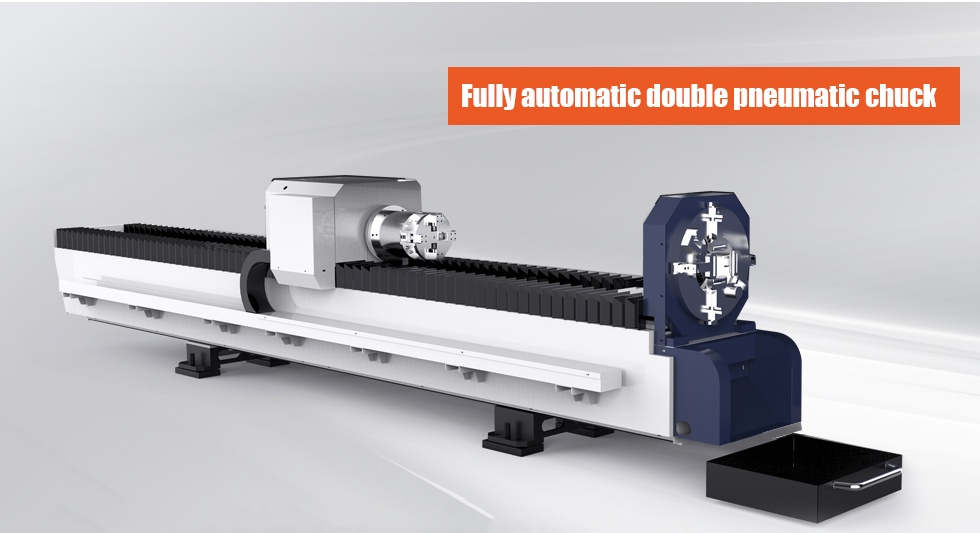

Advanced clamping System:Features double pneumatic chucks, automatic chuck, and pneumatic clamping.Available in lengths of 3 meters or 6 meters, with diameters ranging from 20 to 220 mm

Durable Construction:Built with a robust steel bed to ensure the machine remains distortion-free for many years.

Send email to us Download as PDF

Product Detail

Product Tags

One-click chuck opening and automatic centering will reduce the waiting time for loading and unloading.

Pneumatic open clamp: with large and constant damping force,the heavy pipe is not loose or slipped, which guarantees the cutting accuracy.

The special support frame can avoid the sagging deformation of the pipe. improve the cutting accuracy, and prolong the service life of the chuck.

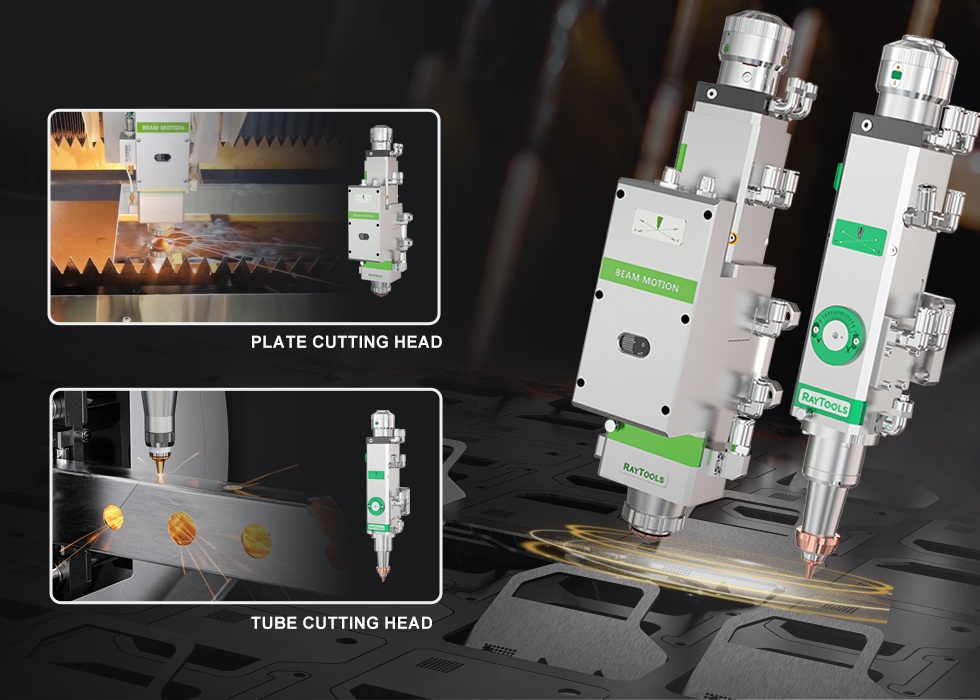

LASER CUTTING HEAD

Versatile Cutting: The laser head enables high-precision cutting of both plates and tubes, ensuring smooth, burr-free edges.

Auto-Focusing: Equipped with automatic focusing capabilities the laser head adjusts the focus based on different materials and thicknesses, enhancing cutting efficiency and quality.

High Power Output: Provides stable high-power output suitable for cutting metals of various thicknesses.

Superior Cooling: Advanced cooling system ensures the laser head maintains a stable temperature during prolonged operation, extending its lifespan.

Superior Cooling: Advanced cooling system ensures the laser head maintains a stable temperature during prolonged operation, extending its lifespan

Durability: Constructed with high-quality materials and craftsmanship, the laser head boasts long-lasting durability and high reliability.

Multi-Material Compatibility: Capable of cutting a wide range of metal materials, including carbon steel, stainless steel, aluminum, and copper, meeting diverse processing needs.

Modular Design: Simple, modular design makes the laser head easy to maintain and replace,enhancing equipment maintenance convenience,

Protective Lens: Equipped with high-quality protective lenses to effectively prevent damage from smoke and splatter during the cutting process.

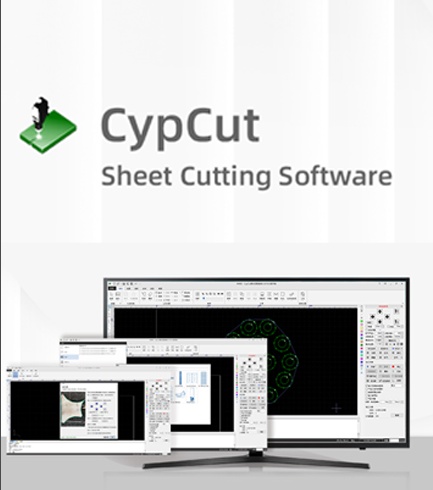

CYPCUT

CypCut sheet cutting software is an in-depth design for fiber laser cutting industry. lt simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing, nesting to workpiece cutting all can be finished by a few clicks

1.Auto Optimize Imported Drawing

2.Graphical Cutting Technique Setting

3.Flexible Production Mode

4.Statistic of Production

5.Precise Edge Finding

6.Dual-Drive Error Offset

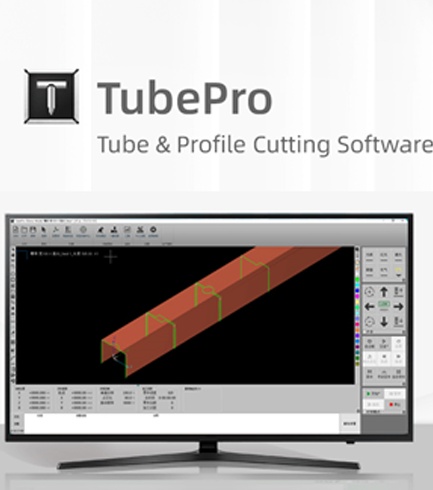

TubePro

tubepro designed for professional tube cutting,supports production of tube and profile of various shape. it works with TubesT nesting software seamlessly to realize technique setting,advanced toolpath generation and nesting for standard and special production need.

1.Auto Find Tube Center in Production2.Workpiece and Floating Coordinates

3.Seven-Axis Tube Delivering

4.Tube Holder

5.Corner Technique

6.Active Control at Corner Cutting

7.Quick Frog-Leap

8.Free Form Tube & Profile Production

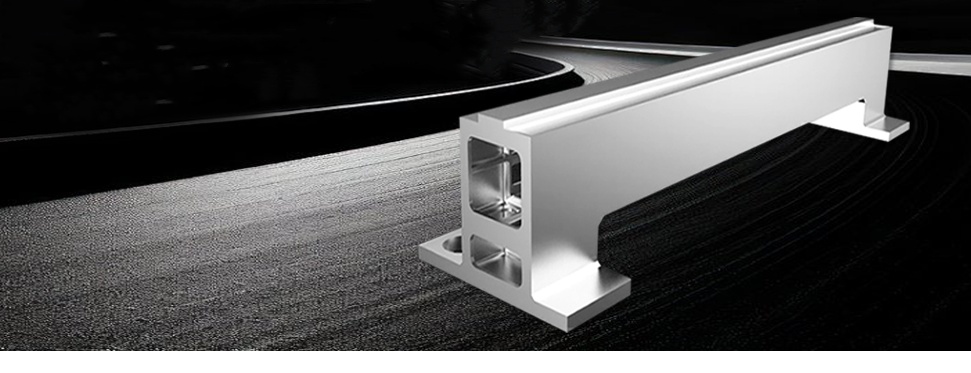

MONOLITHIC CAST ALUMINUM BEAM

No deformation,light weight,high strength Light cross beams allow equipment to operate at a faster rate boosting processing efficiency and quality

HIGH SPEED

The light crossbeam allows the machine to move at a faster rate and enhance cutting eficiency

MORE EFFICIENT

The aerospace industry's aluminum profile beam ensures that the equipment has efficient dynamic performance considerably increasing processing efficiency while maintaining processing quality

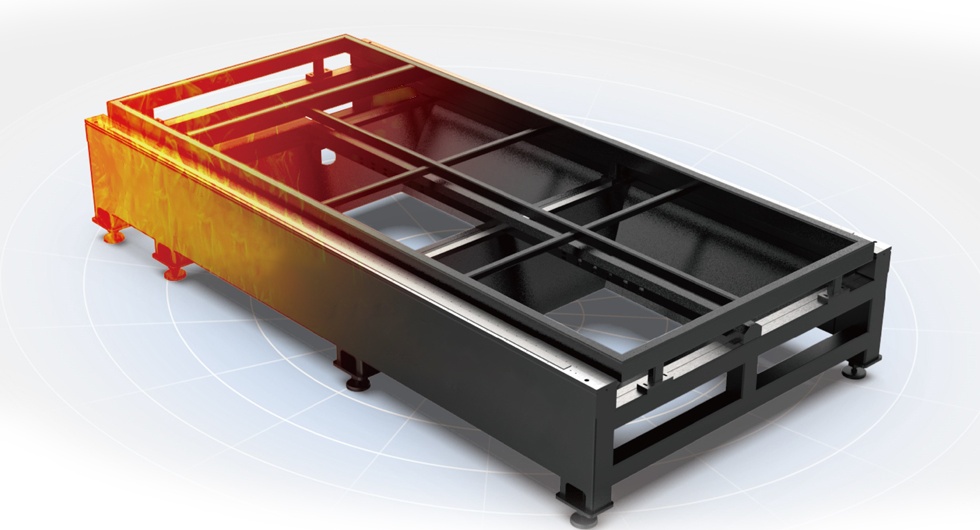

The Segmented Rectangular Tube Welded Bed

The bed's intemal structure is an aviation metal honeycomb struc-ture welded together with a number of rectangular tubes . Stiff-eners are placed inside the tubes to strengthen the bed's strength and tensile strength , as well as the resistance and stability of the guide rail , preventing deformation.

Lifetime Service

It assures that the machine will perform accurately for a long period and will not distort over its lifetime

Higher Precision

High tensile strength , stability and strength allowing for 20 years of use without distortion.

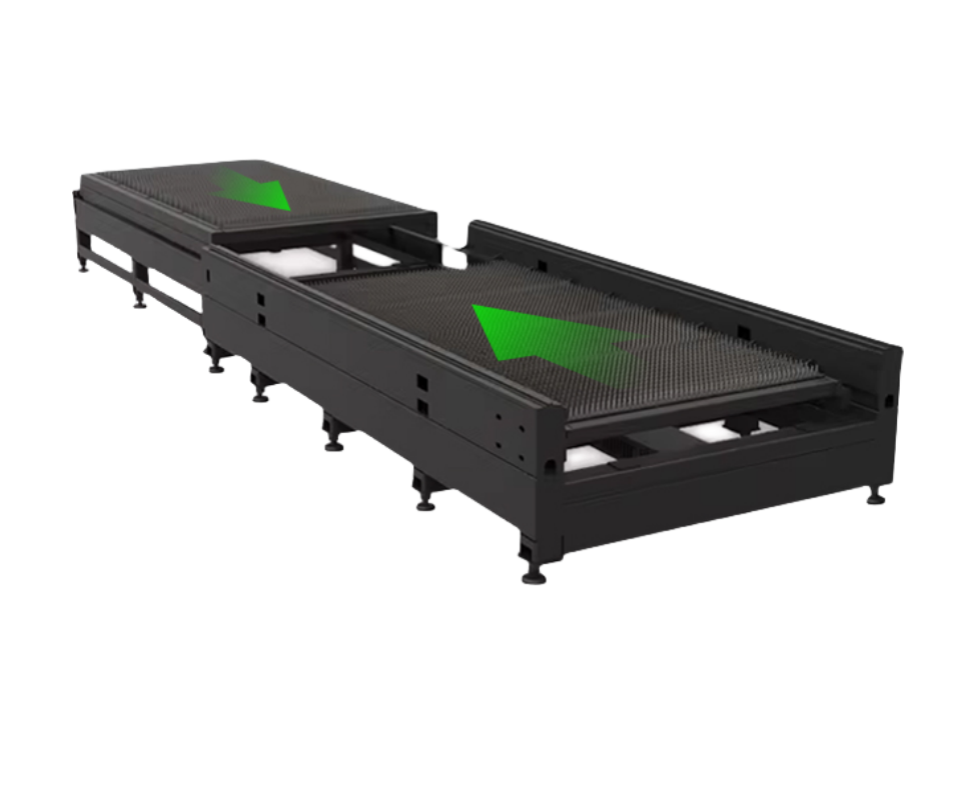

INTELLIGENT AUTOMATICEXCHANGE TABLE (OPTIONAL)

The exchange table is a critical component of the fiber laser cutting machine, consisting of two platforms and associated automation systems.This feature allows operators to swap work pieces on the alternate platform during the cutting process without halting operations. With the automatic exchange table system.operators can prepare the next work piece in advance,enabling continuous cutting,the exchange platform only takes 15 seconds for each exchange,operations and thus enhancing production efficiency while minimizing downtime.

PRODUCT PARAMETERS

Model	FST-3015FT	FST-4015FT	FST-4020FT	FST-6020FT
Working area(mm)	3000*1500	4000*1500	4000*2000	6000*2000
Laser Power	1500W/2000W/3000W/6000W/8000W/12000W
Working table	Sheet and Tube
Cutting head	Raytools/Precitec/WSX/OSPRI
Max Running speed	120m/min
Laser source	Max/Raycus/IPG
Maximum acceleration	1G
Voltage	380V three-phase
Graphic Format supported	AI, BMP, Dst, DWg, DXF, DXP, LAS, PLT
CNc System	TubePro & cypcut
