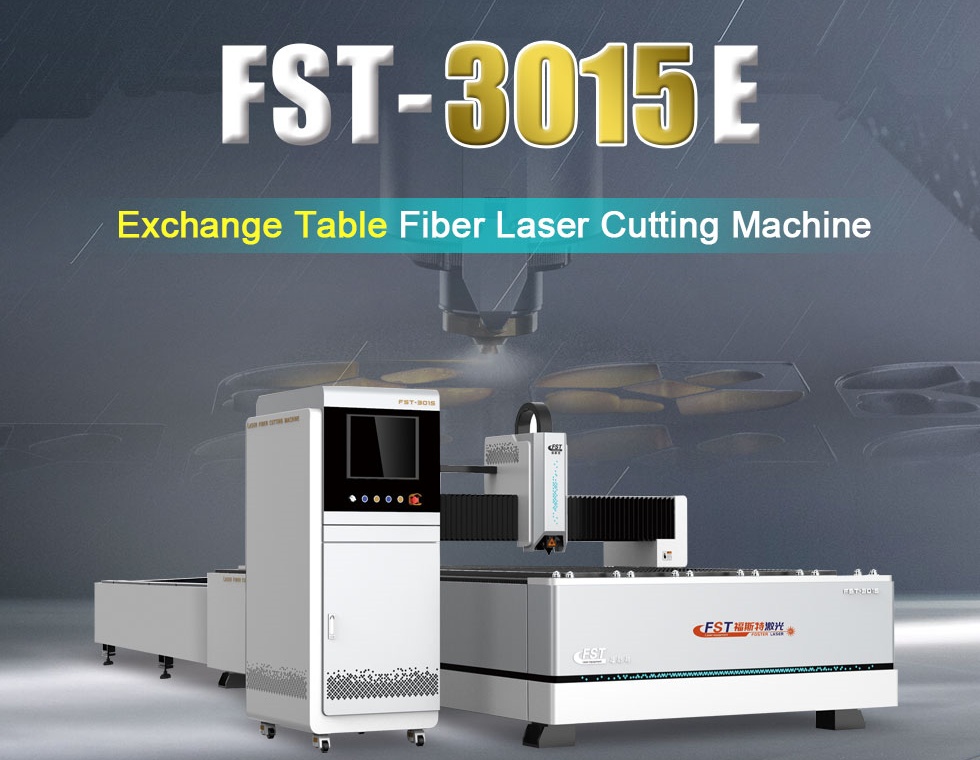

Fiber Laser Cutter Machine Carbon Laser Cut Machinery For Stainless Steel

Short Description:

Foster Exchange table Fiber laser cutting machine offers enhanced production efficiency and flexibility by enabling automatic table swapping for continuous processing, reducing downtime, and accommodating various materials and workpiece sizes.

01.High Efficiency Production: Utilizes advanced fiber laser technology for rapid cutting speeds and efficient production capabilities.

02.Flexible Processing: Equipped with an automatic exchange table system for continuous processing, enhancing productivity and supporting rapid cutting of multiple materials.

03.Precision Cutting: Laser cutting technology ensures precise cutting with high quality and accuracy, suitable for complex shapes and fine processing.

04.Intelligent Operation: User-friendly interface and intelligent control system make operation simple and easy to master.

05.Energy-saving and Environmentally Friendly: Fiber laser technology eliminates the need for chemical agents, resulting in no emissions of exhaust gases or wastewater, meeting environmental requirements.

06.Durable and Stable: Robust structure and high stability ensure long-term continuous operation with minimal risk of failure, extending the equipment’s lifespan and reliability.

07.Wide Application: Ideal for cutting metal materials such as steel, aluminum, and copper, widely used in industries including mechanical manufacturing, automotive parts, and electronics.

Send email to us Download as PDF

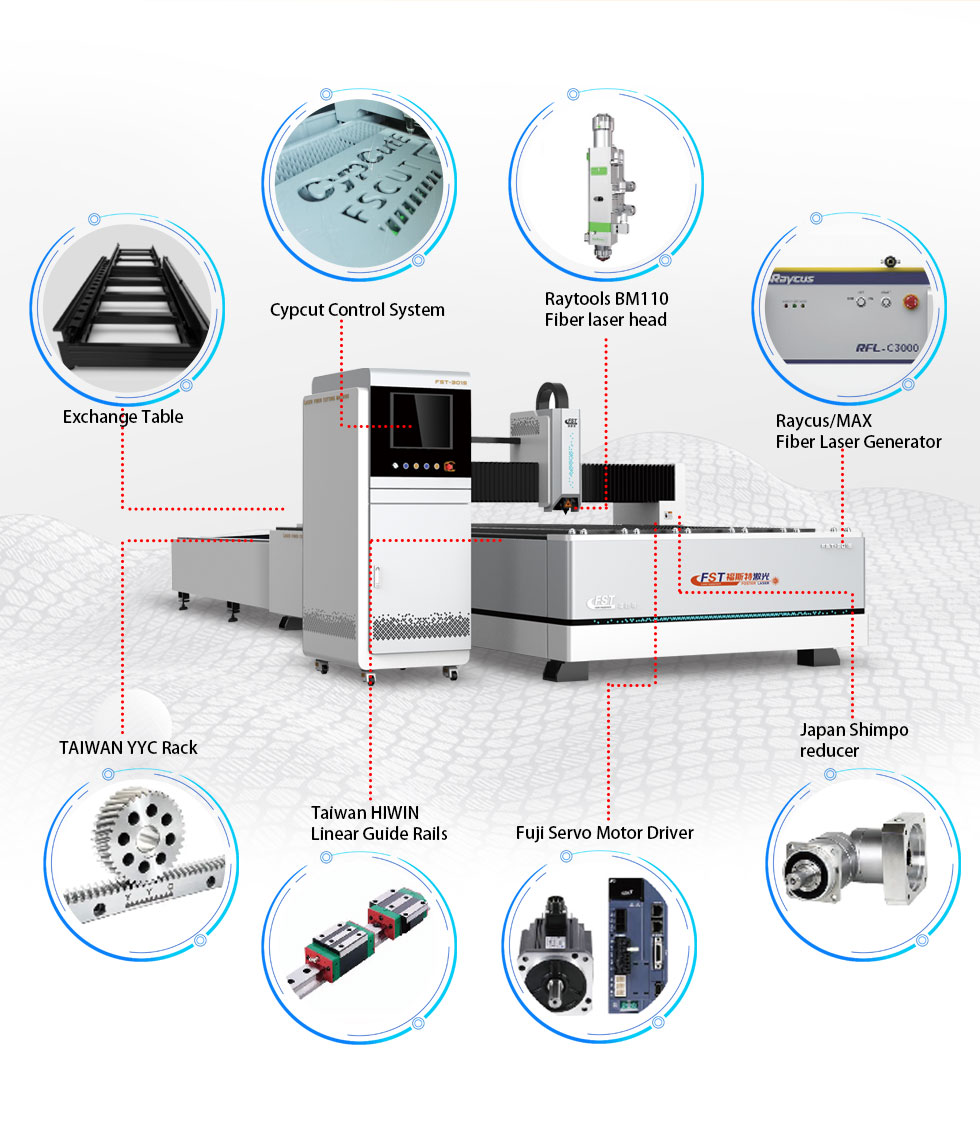

Product Detail

Product Tags

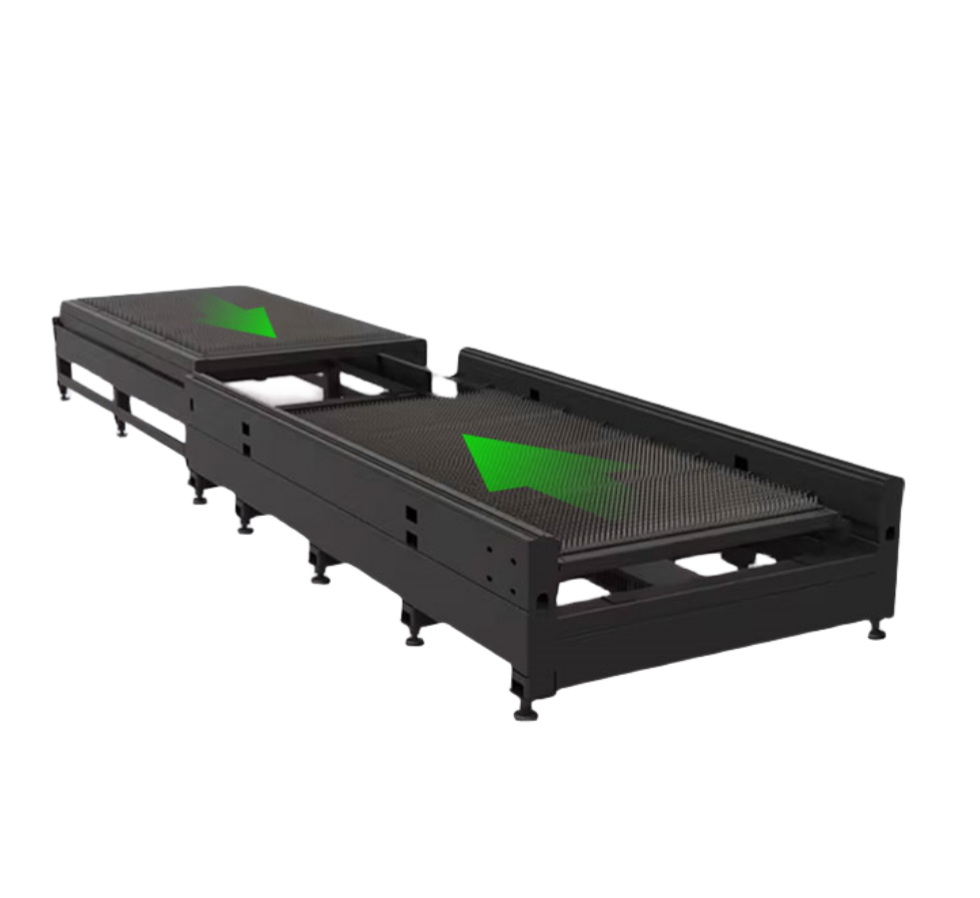

INTELLIGENT AUTOMATICEXC:HANGE TABLE

The exchange table is a critical component of the fiber laser cutting machine, consisting of two platforms and associated automation systems.This feature allows operators to swap work pieces on the alternate platform during the cutting process without halting operations. With the automatic exchange table system operators can prepare the next work piece in advance,enabling continuous cutting,the exchange platform only takes 15 seconds for each exchange,operations and thus enhancing production efficiency while minimizing downtime.

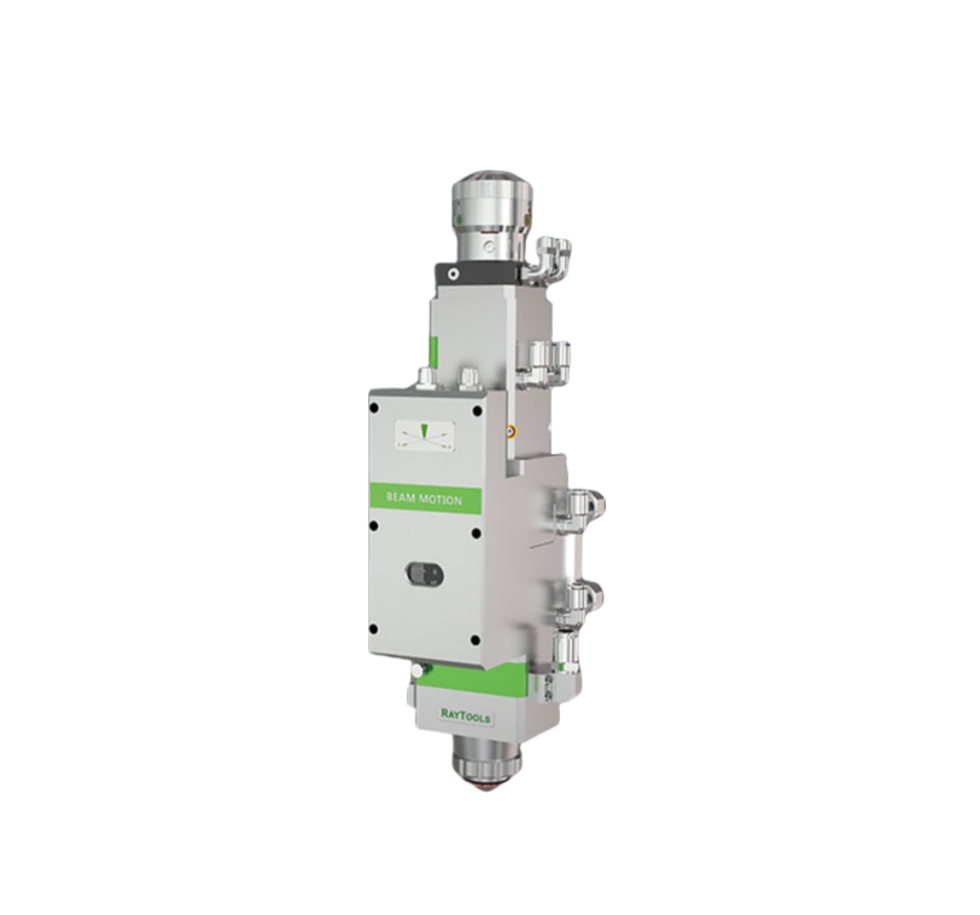

LASER CUTTING HEAD

Multiple Protection

3 protective lenses , highly effective collimating focus lens protection.2-way optical water cooling extends the continuous working time effectively.

High-precision

To successfully avoid step loss,a closed-loop stepping motor is used.The repetition accuracy is 1 M and the focusing speed is 100mm/s. Dust-proof to lP 65,with a patent-protected mirrorcover plate and no dead angle.

Various Brands Of Laser Head Are Available

We can provide all high quality laser heads .lt has been tested by us for a long time.

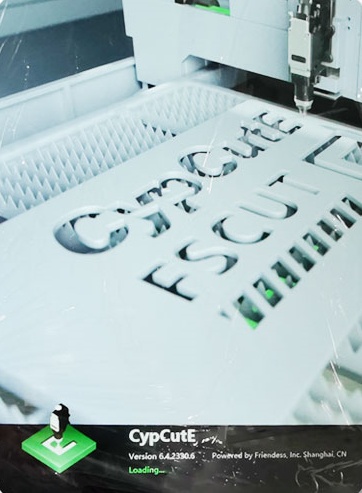

CYPCUT

CypCut sheet cutting software is an in-depth design for fiber laser cutting industry.lt simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing, nesting to workpiece cutting all can be finished by a few clicks

1.Auto Optimize lmported Drawing

2.Graphical Cutting Technique Setting

3.Flexible Production Mode

4.Statistic of Production

5.Precise Edge Finding

6.Dual-Drive Error Offset

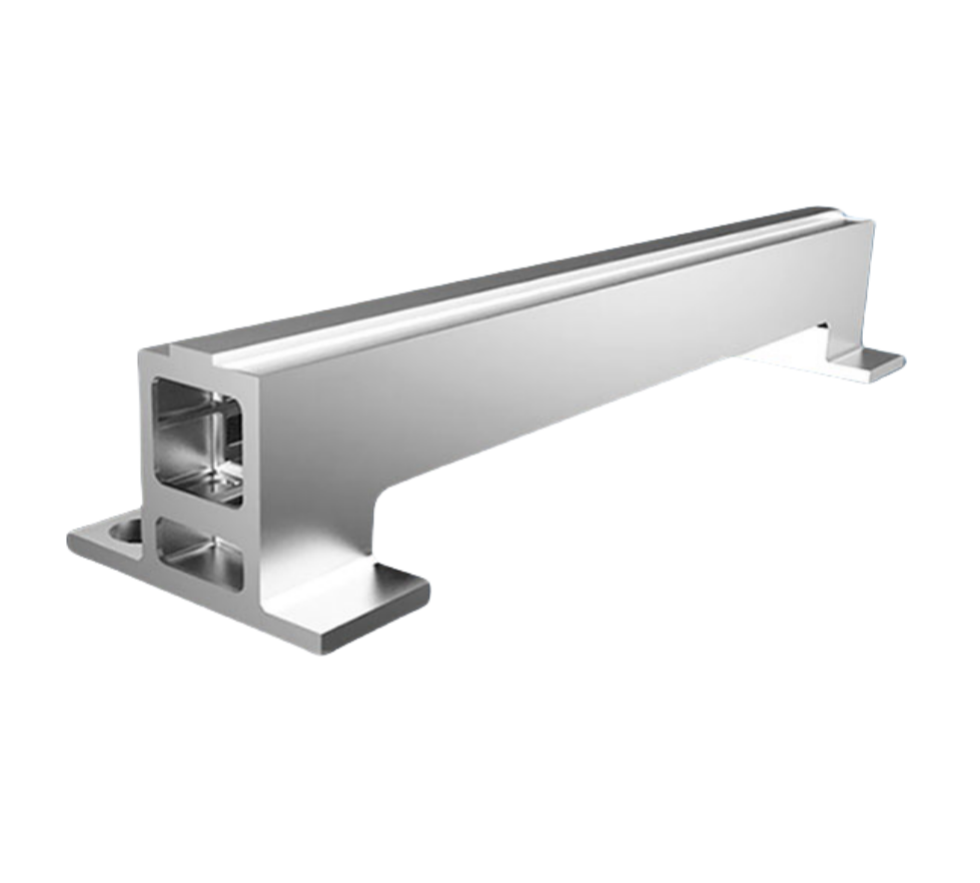

ALUMINUM BEAM

MONOLITHIC, CAST ALUMINUM BEAM

No deformation,light weight,high strength Light cross beams allow equipment to operate at a faster rate boosting processing efficiency and quality

HIGH SPEED

The light crossbeam allows the machine to move at a faster rate and enhance cutting eficiency.

MORE EFFICIENT

The aerospace industry's aluminum profile beam ensures that the equipment has efficient dynamic performance considerably increasing processing efficiency while maintaining processing quality

PARAMETERS

Model	FST-3015E
Working area	3000*1500mm
Laser Power	2000W/3000W/6000W/8000W/12000W
Working table	2 (Exchanged)
Repeat Repositioning Accuracy	±0.03mm
Accuracy of Positioning	±0.02mm
Max Running Speed	120m/min
Laser Source	MAX/Raycus /IPG
Maximum acceleration	1G
Voltage	380v three-phase 50hz
Graphic Format Supported	AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
