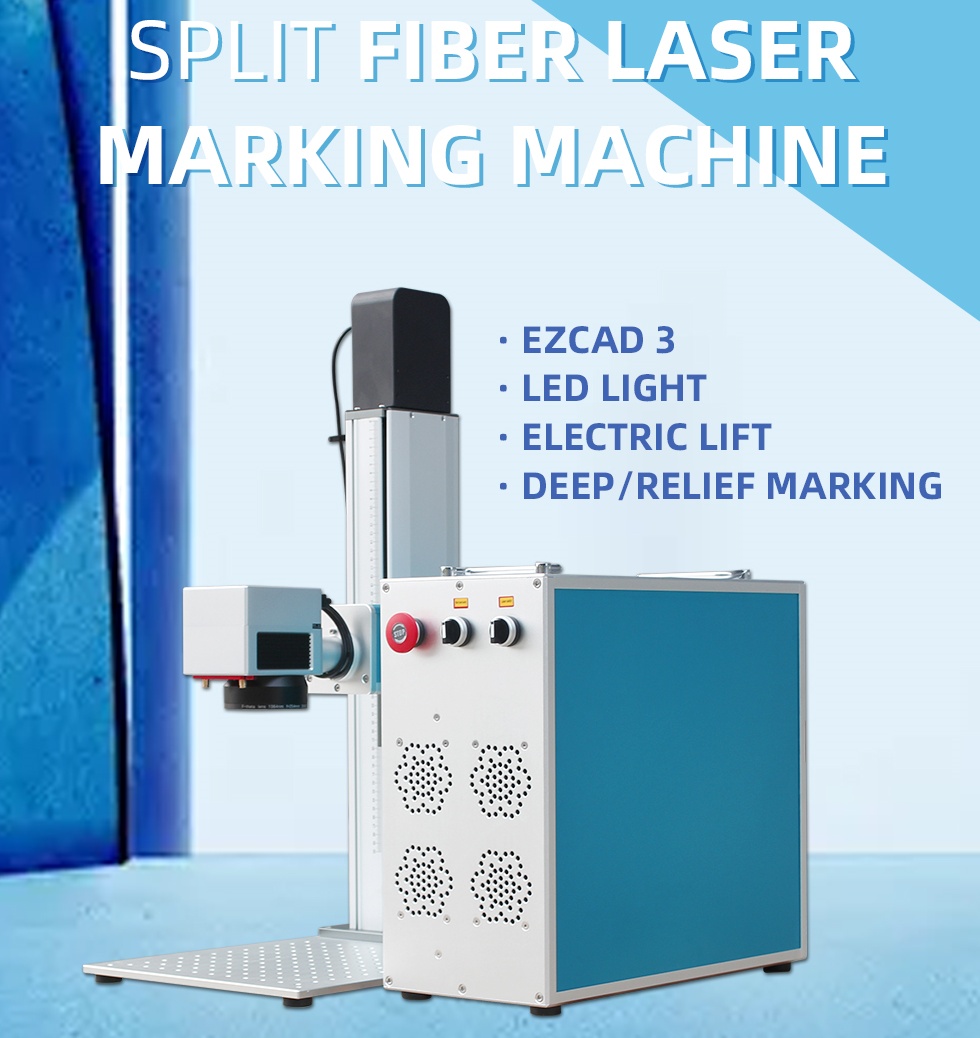

Electric lifting split fiber Laser marking machine for Aluminum Stainless steel Iron nameplates making

Short Description:

Advantages of split fiber laser hand held marking machine

1.Electric lift, EZCAD 3

With electric lifting and EZCAD3 kit, we can low-cost deep marking and 3D layered engraving . Get 3D or relief effect .

2.No Consumables, Long lifespan Maintenance Free

The Fiber laser source has super long lifespan of over 100,000 hours without any maintenance . No need to spare any extra consumer parts at all . Suppose you will work for 8 hours per day, 5 days a week, A fiber laser could work properly for you for more than 8-10 years without extra costs except electricity.

3.Multi-functional

It could Mark / Code / Engrave unremovable serials Numbers, batch Numbers Expiry info, Best Before date, logo any Characters that you want . It could also mark QR code .

4.Simple Operation, Easy to use

Our patent software supports almost all common formats, The operator does not have to understand programming, Just simply set a few parameters and click start .

5.High Speed Laser Marking

The laser marking speed is very fast, 3-5 times than the traditional marking machine.

6.Optional rotary axis for different cylindrical

Optional rotary axis can be used to mark on different cylindrical, spherical objects . The stepper motor is used for digital control, and the speed can be automatically controlled by computer, Which is more convenient, simple, safe and stable.

Fiber laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel,Brass, Aluminium, Steel, Iron etc and can also mark on m -any non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon


Product Detail

Product Tags

2-1
2-3
2-6

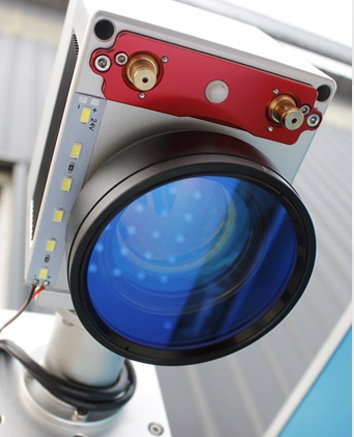

GALVO HEAD

Famous brand Sino-galvo, high speed galvanometer scan adopting SCANLAB technology, digital signal, high precision and Speed.

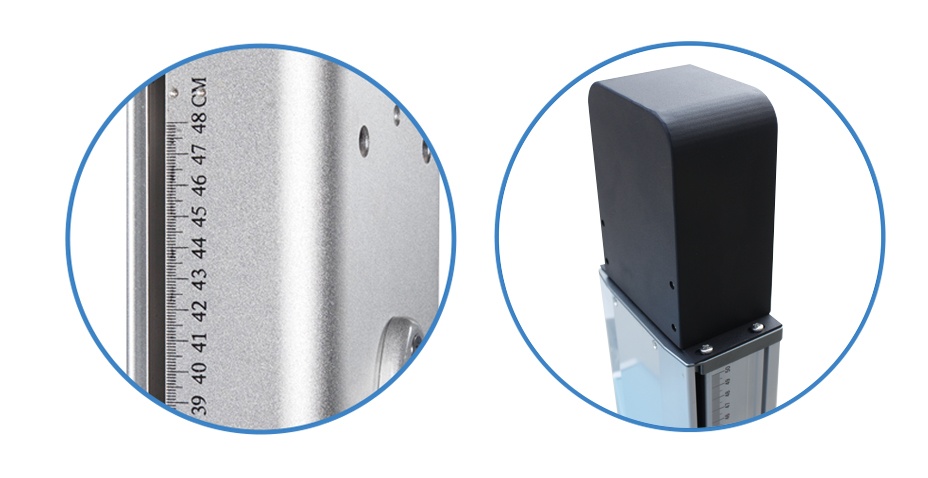

MARKING RULER AND ELECTRIC LIFT

Enables customers to precisely position for fast engraving Adapting To Different Products Height

2-8
2-7

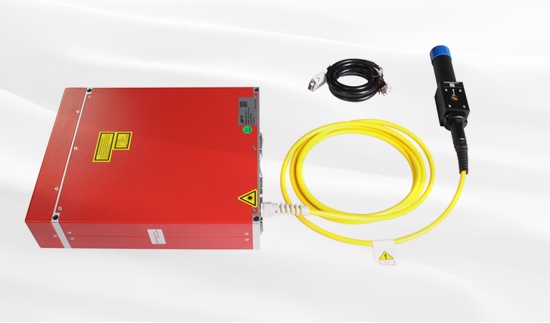

LASER SOURCE

We use Chinese famousbr and jPT laser source.Optional: lIPG/Raycus /Max laser source.

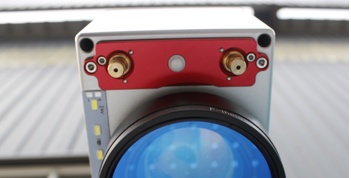

DOUBLE RED LIGHT POINTER

When two red light coincides best focus.Double red light pointer help customers make focus quickly and easily.

2-9_1

Specification

Technical Parameters
Technical Parameters
Model fiber laser marking machine
Working area 110*110/150*150/200*200/300*300(mm)
Laser power 10W/20W/30W/50W
Laser wavelength 1060nm
Beam quality m²<1.5
Application metal and partial nonmetal
Marking Speed 7000mm/ standard
Repeated Precision ±0.003mm
Working voltage 220V or 110V /(+-10%)
Cooling Mode Air Cooling
Supported graphic formats AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
Controlling software EZCAD
Working temperature 15°C-45°C
Optional parts Rotary Device, Lift platform, other customized Automation
Warranty  2 year
Package  Plywood
