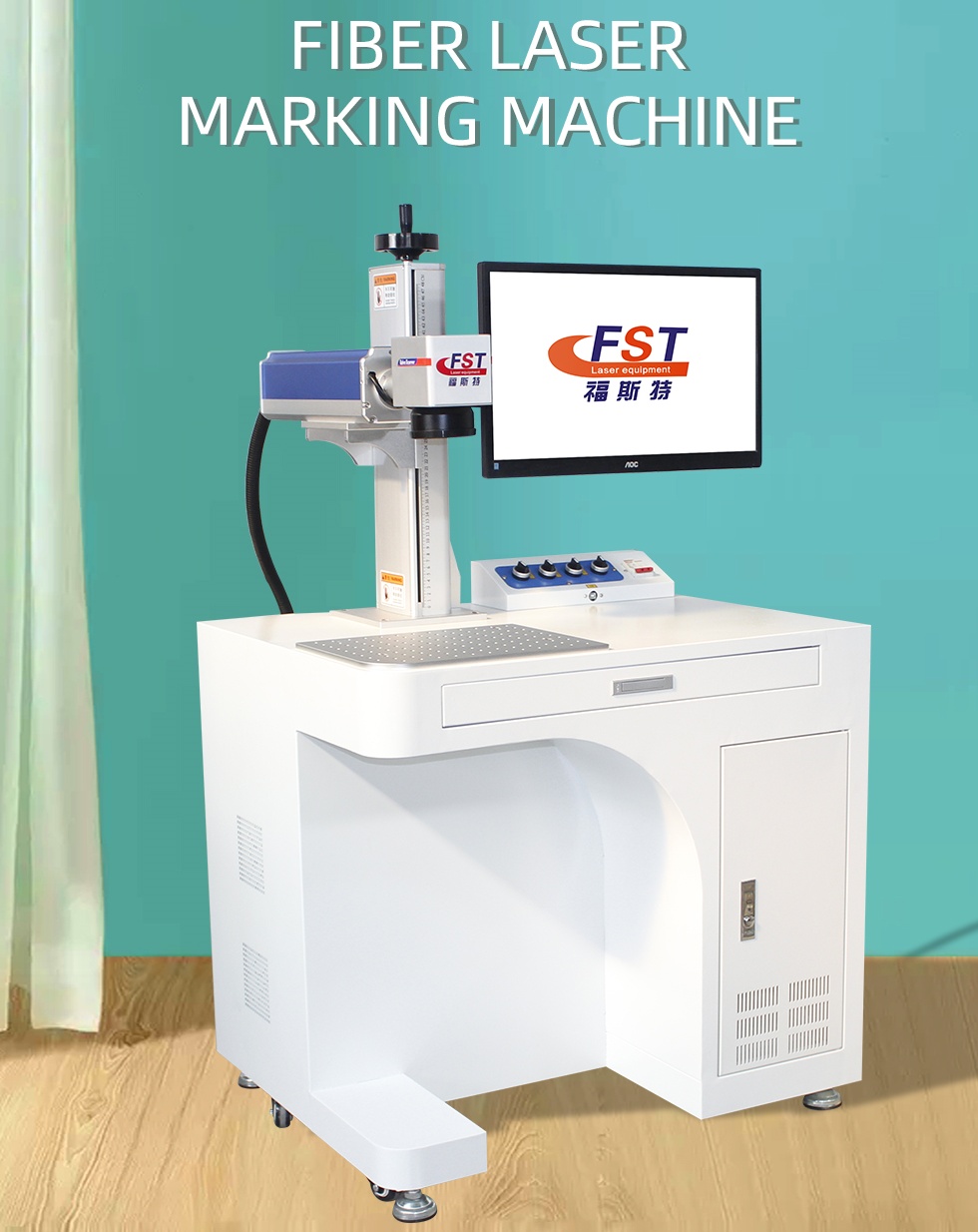

Desktop fiber laser marking machines metal laser printing engraving machine

Short Description:

Advantages of fiber laser marking machine

1.No Consumables, Long lifespan Maintenance Free

The Fiber laser source has super long lifespan of over 100,000 hours without any maintenance . No need to spare any extra consumer parts at all . Suppose you will work for 8 hours per day, 5 days a week, A fiber laser could work properly for you for more than 8-10 years without extra costs except electricity

2.Multi-functional

It could Mark / Code / Engrave un-removable serials Numbers, batch Numbers Expiry info, Best Before date, logo any Characters that you want . It could also mark QR code

3.Simple Operation, Easy to use

Our patent software supports almost all common formats, The operator does not have to understand programming, Just simply set a few parameters and click start

4.High Speed Laser Marking

The laser marking speed is very fast, 3-5 times than the traditional marking machine

5.Optional rotary axis for different cylindrical

Optional rotary axis can be used to mark on different cylindrical, spherical objects . The stepper motor is used for digital control, and the speed can be automatically controlled by computer, which is more convenient, simple, safe and stable.

Fiber laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel ,Brass, Aluminium, Steel, Iron etc and can also mark on m -any non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon


Product Detail

Product Tags

156
11

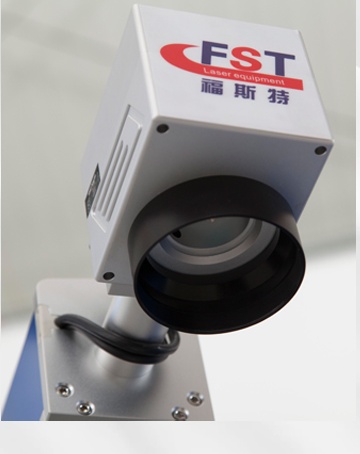

GALVO HEAD

Famous brand Sino-galvo, high speed galvanometer scan adopting SCANLAB technology, digital signal, high precision and Speed.

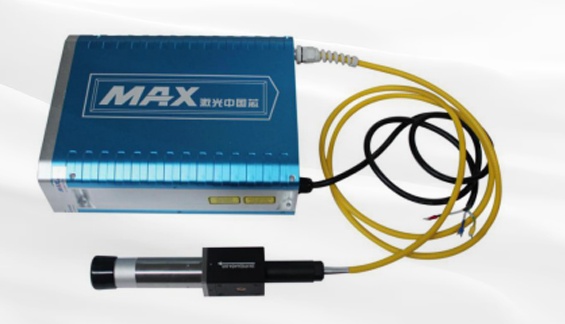

LASER SOURCE

We use Chinese famous brand Max laser source Optional : IPG / JPT / Raycus laser source.

12
13

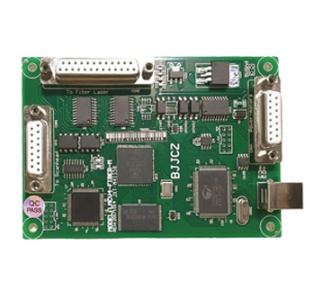

JCZ CONTROL BOARD

Ezcad genuine products, user-friendly interface, functional diversity, high stability, high precision.Each board has its own number to ensure that it can be inquired in the original factory. Refuse to fake.

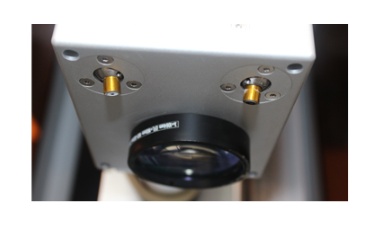

DOUBLE RED LIGHT POINTER

When two red light coincides best focus.Double red light pointer help customers make focus quickly and easily.

15
16

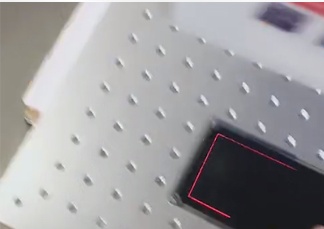

RED LIGHT PREVIEW

Adopt Red light preview to show the laser path since laser beam is in-visible.

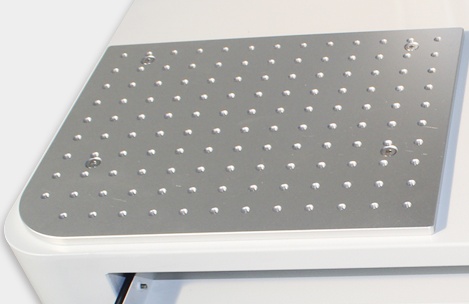

WORKING PLATFORM

Alumina working platform and imported precise beeline device.Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform.

17
18

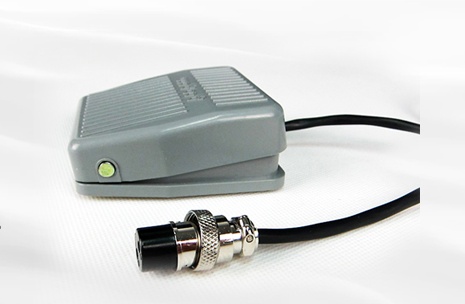

FOOT SWITCH

It can control the laser on and off. make the operate more convenicent.

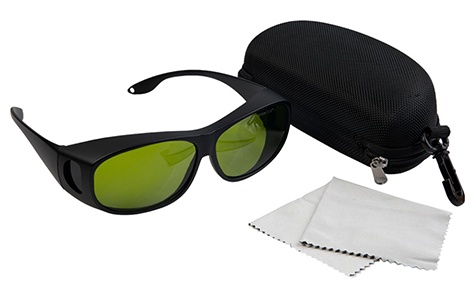

GOGGLES(OPTIONAL)

Can protect eyes from laser wave 1064nm, let the operate more safe.

19

Specification

Technical Parameters
Technical Parameters
Laser type fiber laser marking machine
Working area 110*110/150*150/200*200/300*300(mm)
Laser power 10W/20W/30W/50W
Laser wavelength 1060nm
Beam quality m²<1.5
Application metal and partial nonmetal
Marking Speed 7000mm/ standard
Repeated Precision ±0.003mm
Working voltage 220V or 110V /(+-10%)
Cooling Mode Air Cooling
Supported graphic formats AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
Controlling software EZCAD
Working temperature 15°C-45°C
Optional parts Rotary Device, Lift platform, other customized Automation
Warranty 2 year
Package Plywood
