CO2 Laser Engraving Machine For Machine Wood MDF Leather Acrylic

Short Description:

Application field of laser engraving machine

Foster laser CO2 Laser Engraving Machine with different working area,laser power or working table, which application is engraving and cutting on acrylic,wood, fabric,cloth, leather rubber plate,PVC,paper and other kinds of non metal materials.1060 laser cutting machine are widely used in clothing,shoes,luggage, computer embroidery clipping,model,electronic appliances,toys,furniture,advertising decoration,pack-aging and printing,paper products,handicrafts.House hold appliances,laser processing and other industries


Product Detail

Product Tags

9060-1

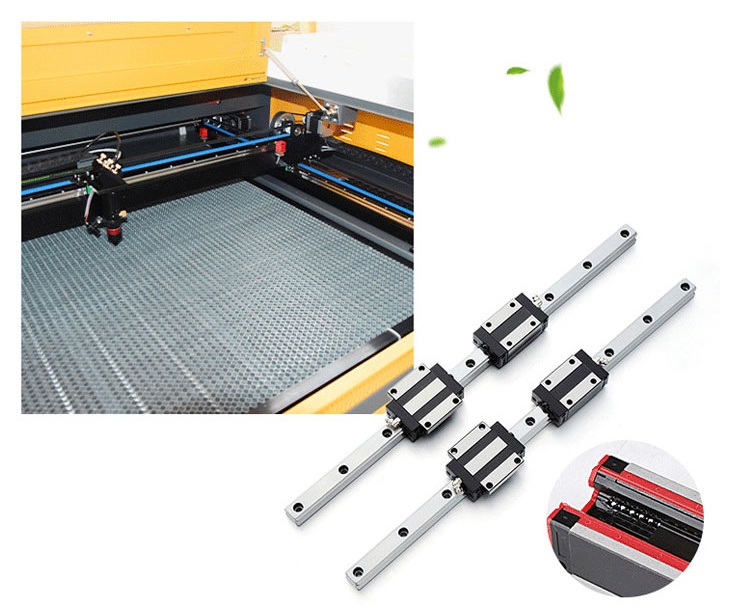

Three-wire straight square rail

Double the cutting speed, high configuration,low price, high cost performance.

Stability performance

Brand CO2 laser tube.Multiple power optionsDelicate light spot, strong focusing effect,improve cutting efficiency

9060_03
9060_04

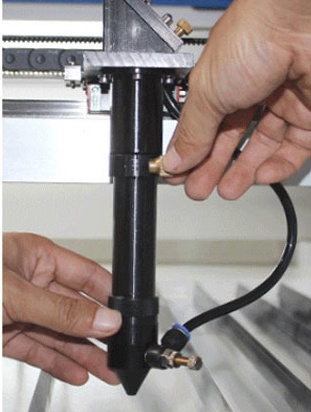

Industrial grade focusing laser head

Red light positioning, automatic blowing protection,enclosed dust-proof laser head, adjustable height.High light transmittance, fine carving, strong cutting force.

Imported ll -Vl lenses Stable light spot, accurate focal length, high efficiency

9060_05
Product Details
Product Details



Model:FST-6090 Engraving area:600X900mm
interface: UsB2.0(offline work supported) Engraving Speed: 1200mm/s Max
Laser Power:60W/80W/100W/130W/150W Cutting Speed: 0-500mm/s
Cutting Depth: (80w Laser Tube) Acrylic Max 20mm Minimum Shaping Character:1X1mm
Software: Laser CUT,Laser CAD, Laser WORK Gross Power: 1000/1200W
Graphic Format Supported: PLT/DXF/BMP/AI Operating Temperature: 0-45°C
Operation System:Windows98/ME/2000/XP/VISTA/Windows 7 Laser Tube:Sealed CO2 glass laser tube
Cooling System:Water Cooling and protection system Machine Dimension:1490x1100x1080mm
Up and down work table :550mm Up and Down adjustable by Motor Packing dimension:1690x1300x1350mm
Worktable: Honey comb worktable/aluminum knife//up and down Power Supply:220V(or110V)+/-10% 50Hz
Optional Spare Parts: Rotary Clamp : used to engrave on curve surface Resetting positioning accuracy<0.01mm



9060_06
