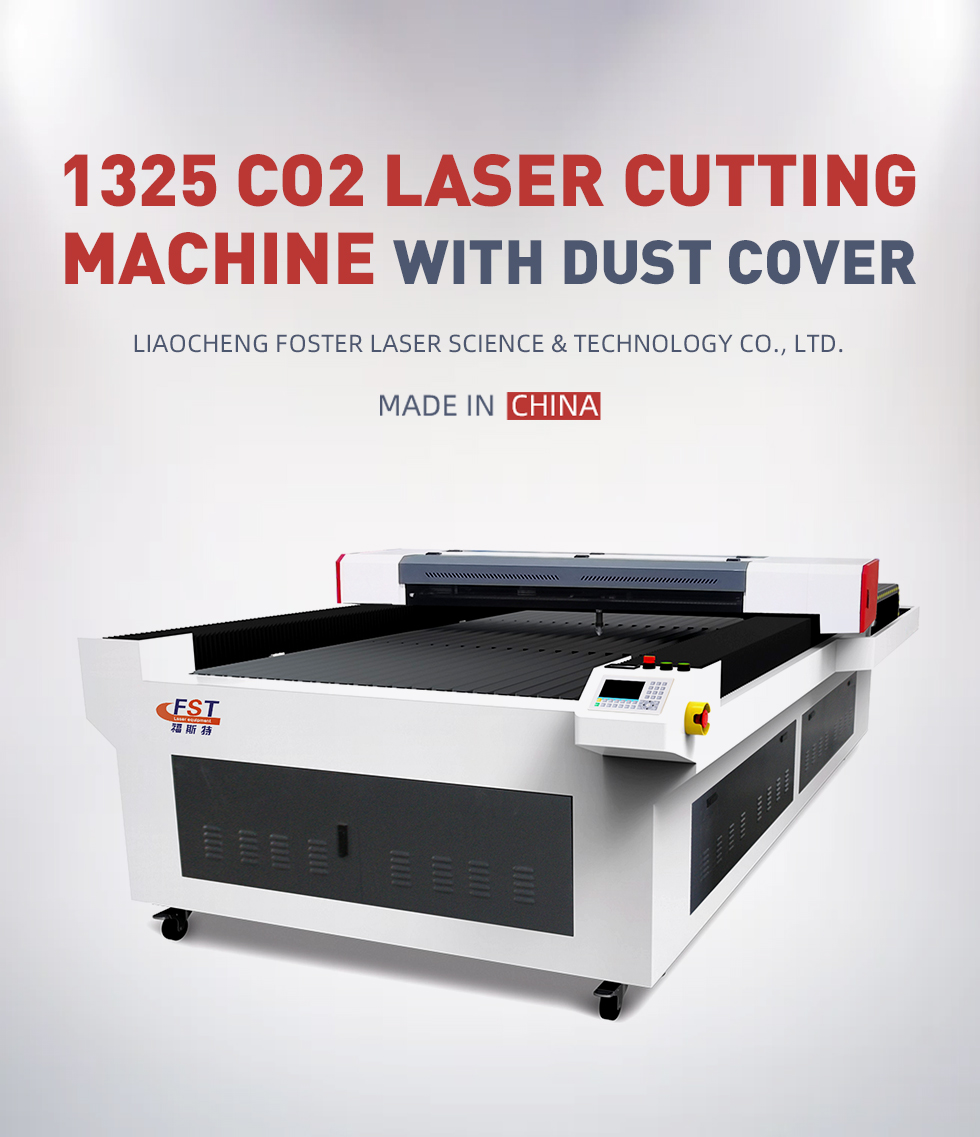

co2 1325 100w 150w 180w dust cover laser cutting machine for MDF paper

Short Description:

APPLICABLE INDUSTRIES:

Model industry (construction models, aviation and navigation models and wooden toys), advertisement,decoration, arts and crafts, electronic and electric appliances garment industry fabric leather cut, etc.

WORKING MATERIALS:

Nonmetal materials such as acrylic, MDF, wood planks (light planks, paulownia wood), bamboo ware, double color sheets, paper, leather, shells, coconut shells, ox horns, resin, animal grease,ABS boards, lampshade, etc.

Send email to us Download as PDF

Product Detail

Product Tags

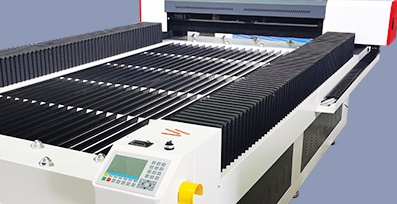

Designed with dust cover

safe, beautiful, clean, and protect the guiderail and belt.

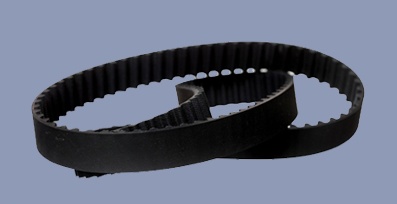

Adopt Belt Transmission Method

Use Chinese Famous Fujian "ONK” Brand.Transmission Belt Contains Metal Maerial Inside, Never Loosen, Anti-fire, Long Life Time.

High speed stepper subdivisionDriver control system

Adopt Chinese Top Brand " Leadshine" or "JUST MOTION CONTROL" Step Motor and Driving System. Little error ,repetition high precision.

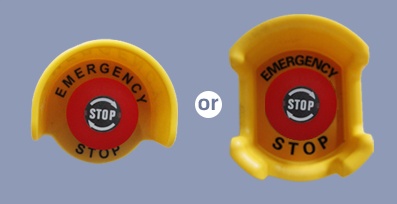

New type Emergency stop button

New type Emergency stop button, high quality, high safety.

Specification

DETAILED PARAMETER

Model	FST-1325 with dust cover
Worktable	Honeycomb or Aluminum knife
Engraving area	2500*1300mm
Laser Power	60W/80W1100W1150W/180W2200W/300W
Engraving Speed	0-1200mm/s
Cutting Speed	0-500mm/s
Cutting Depth (Acrylic)	0-30mm
Resetting positioning accuracy	<0.0 1mm
Minimum Shaping Character	1* 1mm
Power Supply	220V(or110V)+/10%50Hz
Software	Indirect output : ArtCut, Photoshop
Software	Direct output :CorelDraw, AutoCAD, Lasercut, Laserwork, LaserCAD, RDworks
Operation System	Windows XP/VISTA/Win 7/Win 10
Cooling System	Water Cooling and protection system
Control system	DSP System
Operating Temperature	0-45℃
Operating Humi dity	35-70
Gross Weight	1100kg
