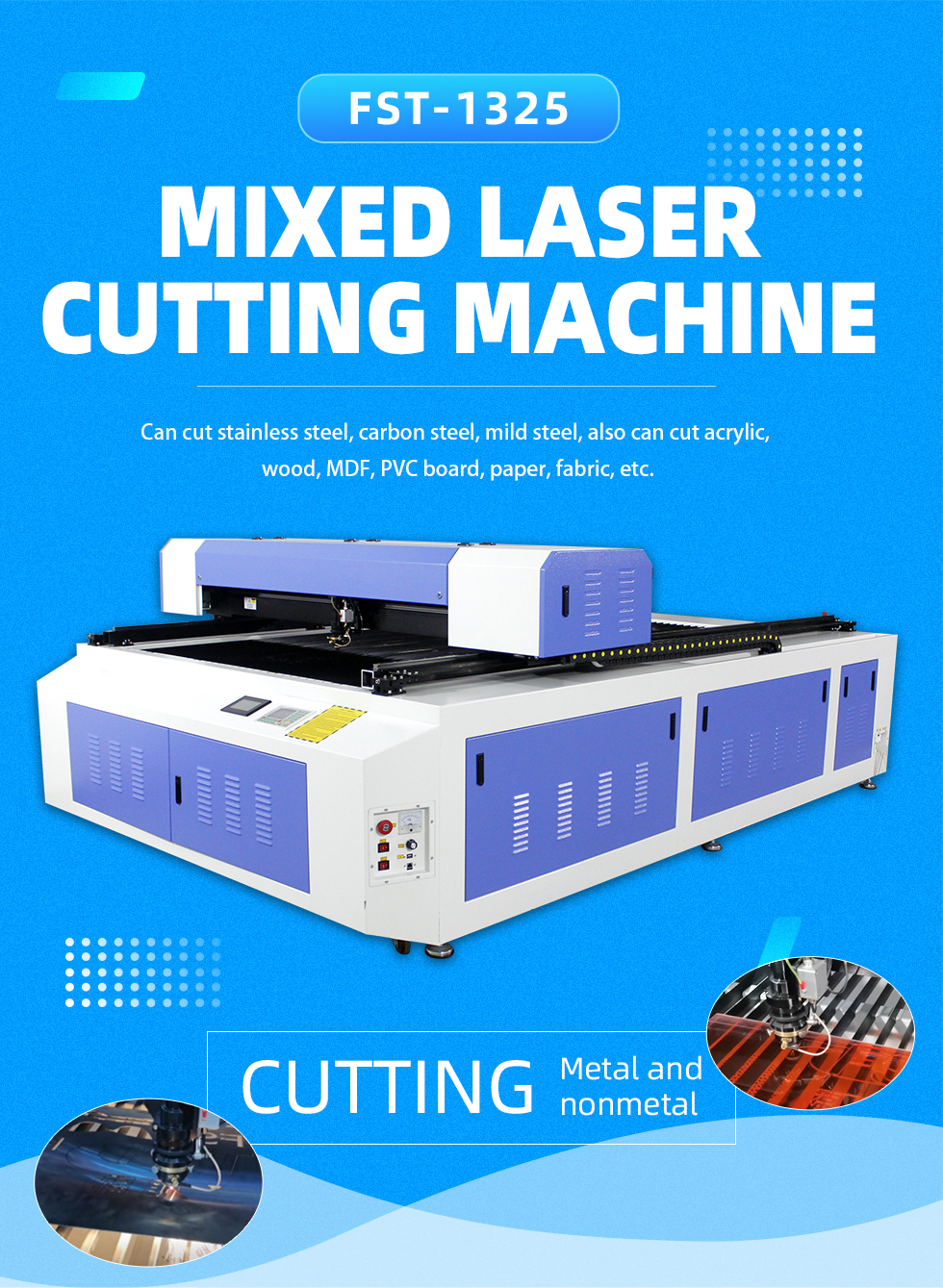

CNC Mixed CO2 Laser Cutting Machine 1325 Laser Cutter Cut Metal And Nonmetal

Short Description:

① Mix Cutting: lt supports both Metal and Non-Metal Cutting, can cut stainless steel, carbon steel, mild steel, also can cut acrylic, wood, MDF, PVC board,paper, fabric, etc.

②Adopt 150w/180w/260w/300w Laser Tube, high power.

③ Dynamic Auto-Focusing Metal Sheet Laser Cutting Head: When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically.

④ Advanced LCD Touch Screen+ USB port+ DSp Offline Control: which can not only work without computer, but also connect to U disk, USB communication.

⑤ Matched Professional cutting software: Metal Cut, is particularly designed and written for both metal and non-metallic cutting, with high compatibility,support Windows operating system.


Product Detail

Product Tags

1325-mixed
laser head

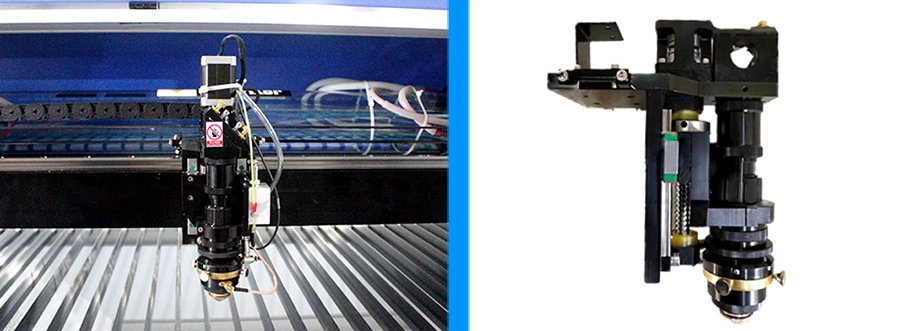

LASER HEAD

Auto focus laser head for metal sheets cutting with assistance gas.Dynamic Auto-Focusing Metal Sheet Laser cutting Head: When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically

laser tube

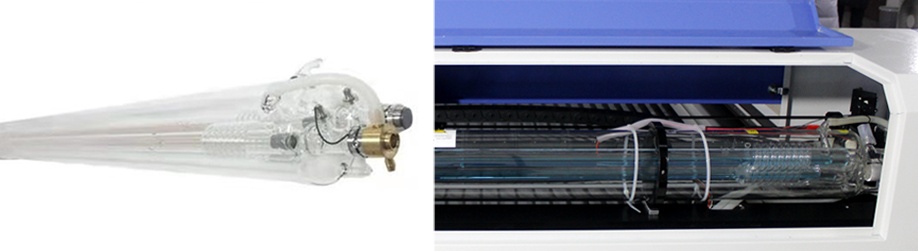

LASER TUBE

High quality jOY laser tube, 150w/180w/280w/300w laser power can be optional. 150w 180w are co2 glass laser tube, 300w are combined laser tube, as the picture showing.

Wark bench

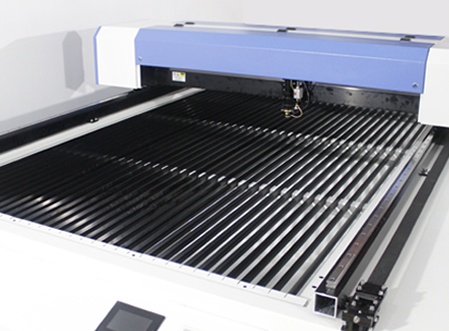

WORKBENCH

Blade table for 1325 laser machine. Also honeycomb table can be optional. Two kinds of tables are available for different material.

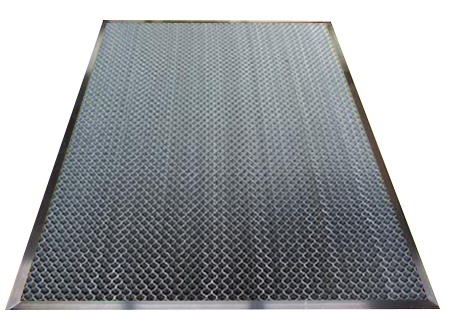

HONEYCOMB WORKTABLE

1 )small holes make sure good supporting performance which is suitable for leather. cloth and other thin soft materials.

2 )The hole of honeycomb worktable is small , so the small workpiece can be placed on the table surface to be processed

honeycomb
guide

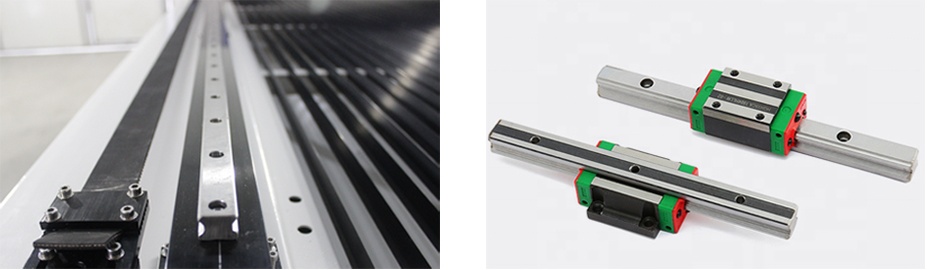

LINEAR SOUARE GUIDE RAILS

Taiwan Hiwin/PMl Linear square guide rails, higher precision with stroke limit.

Specification

MACHINE PARAMETERS
MACHINE PARAMETERS

Machine description:

FST-1325 Laser Machine

Work area size

1300*2500mm

Laser type:

Hermeticand detached co2 laser tube

Laser power:

150w/180w/220w/300w

Cooling mode:

Circulating-water-cooling

Power adjustment:

0-100% controlling, no segment and adjusting by software

Machine control and drive:

Speedy DSP controlling, stepper motor

Max engraving speed:

60000mm/min

Max cutting speed:

50000mm/min

Repeating location:

0.01 mm

Minimum character:

Chinese character:1.5mm;crisscross-row: 1mm

Working voltage:

AC 220V 50Hz / 110V 60HZ



Working environment:



Temperature: 0-45°c, Humidity: 5%-95%, and congeal-water

removed

Controlling software language:



English, chinese

Dictate format:

*.plt,*.dst,*.dxf,*.bmp,*.dwg,*ai,*las,support

AutoCAD,CoreDraw direct outputting
