China Manufacturer RF split CO2 Laser marking machine for wood leather nonmetal

Short Description:

Advantages of metal tube RF co2 galvo laser marking machine

Galvo Co laser marking machine is equipped. I DAVI with China best quality laser source Davi .The laser source life more than 20, 000 hours

High-speed galvanometer scanning system with high precision, production capacity is 25 times that of co2 laser engraver

Air cooling, the extensive equipment performance, competitive of working continuously for 24 hours

Send email to us Download as PDF

Product Detail

Product Tags

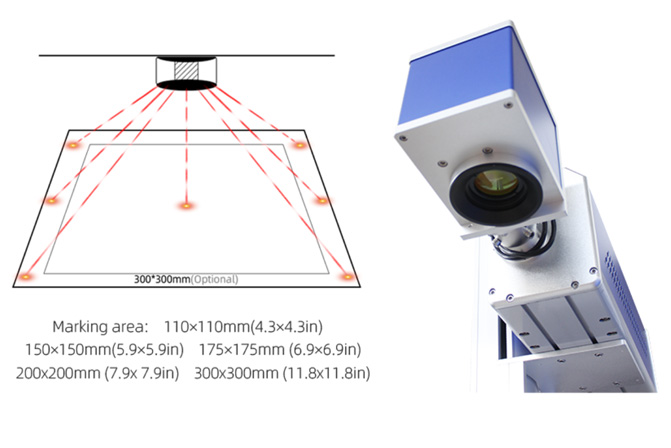

FIELD LENS AND GALVO HEAD

Chinese famous brand, high precision , high speed

Marking area: 110*110mm,150x150mm, 175*175mm,200*200mm, 300*300mm

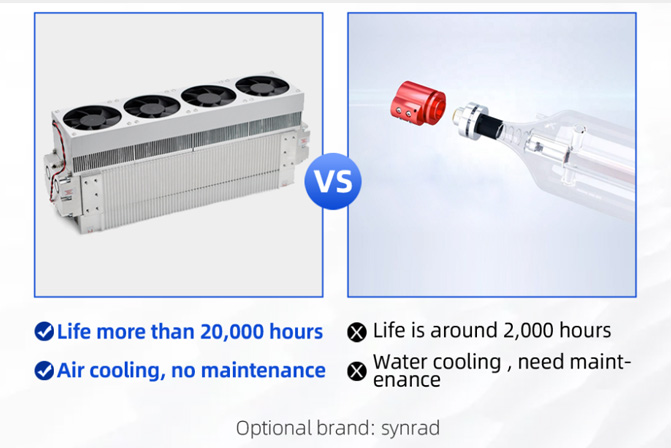

LBRAND RF LASER SOURCE

Excellent Davi Laser Source , no need maintenance long life more than 20,000 hours

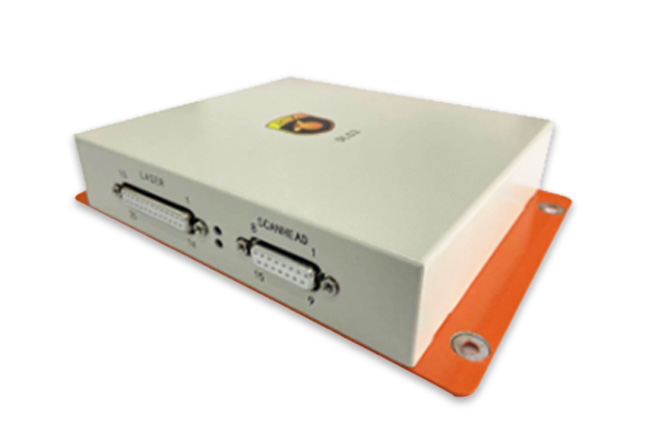

JCZ CONTROL BOARD

① Ezcad genuine products

② User-friendly interface

③ Functional diversity

④ High stability

⑤ High precision

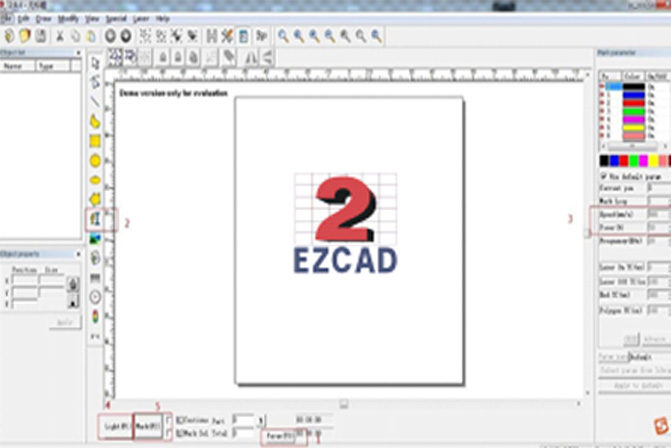

EZCAD CONTROL SOFTWARE

1. Powerful editing function.

2. Friendly interface.

3. Easy to use.

4. Support Microsoft Windows XP, VISTA, Win7, Win10 system.

5. Support ai, dxf, dst, plt, bmp ,jpg, gif, tga, png, tif and other file formats.

DOUBLE RED LIGHT POINTER

When two red light coincides best focus Double red light pointer help customers make focus quickly and easily.

RED LIGHT PREVIEW

Adopt Red light preview to show the laser path since laser beam is invisible.

POWER SUPPLY

Brand selection: Shanghai Hengfu, Taiwan Meanwell

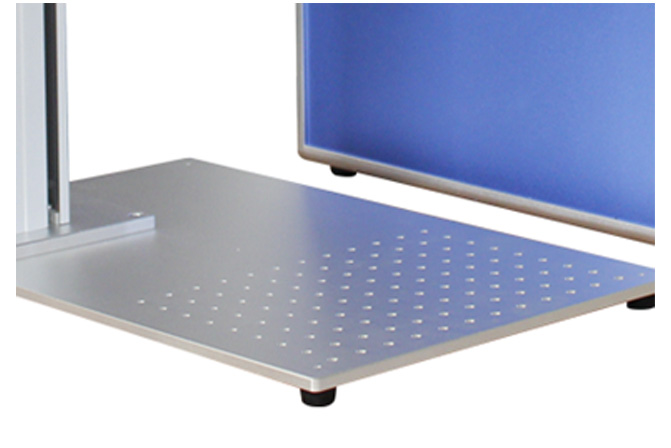

WORKING PLATFORM

Alumina working platform and imported precise beeline device. Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform.

FOOT SWITCH

It can control the laser on and off make the operate more convenient.

GOGGLES ( OPTIONAL )

Can protect eyes from laser Wave 1064nm, let the operate more safe.

SCALE RULER

Enables customers to precisely position for fast engraving Adapting To Different Products Height

FIXTURE ( OPTIONAL )

1. Easy to put kinds of materials on the worktable

2. There are multiple flexible screw holes on the worktable convenient for customized installtion

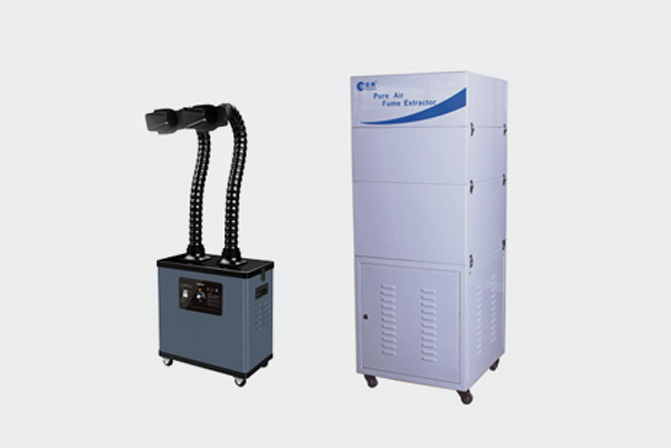

SMOKE PURIFIER ( OPTIONAL )

Purify smoke , dust and smell clean the air and avoid polluting the environment

Product Video

Specification

Technical Parameters

Products Name	Metal tube RF CO2 Laser Marking Machine
Types & Model	FST Ezcad-Series
Laser Source Brand	DAVI
Laser Power	20W, 30W, 50W, 60W, 100W
Laser Wavelength	10.6um
Max Mar Speed	7000mm/s
Control Card	Original EZCAD from JCZ brand
Filed Lens Brans	wavelength
Galvo Head	Sino Galvo
Marking Area	110110mm to 300300mm
Mininum Line Width	0.015mm
Mininum Character	0.2mm
Operation System	Win XP / 7 / 8 / 10 (32 bit , 64 bit)
Power Supply	AC110V /220V +10% ,50HZ/60HZ
