cabinet type fiber laser marking machine laser engrave machine for Metal

Short Description:

Advantages of fiber laser marking machine
1. No Consumables, Long lifespan Maintenance Free
The Fiber laser source has super long lifespan of over 100,000 hours without any maintenance . No need to spare any extra consumer parts at all . Suppose you will work for 8 hours per day, 5 days a week, A fiber laser could work properly for you for more than 8-10 years without extra costs except electricity
2. Multi-functional
It could Mark / Code / Engrave un-removable serials Numbers, batch Numbers Expiry info, Best Before date, logo any Characters that you want . It could also mark QR code
3. Simple Operation, Easy to use
Our patent software supports almost all common formats, The operator does not have to understand programming, Just simply set a few parameters and click start
4. High Speed Laser Marking
The laser marking speed is very fast, 3-5 times than the traditional marking machine
5. Optional rotary axis for different cylindrical
Optional rotary axis can be used to mark on different cylindrical, spherical objects . The stepper motor is used for digital control, and the speed can be automatically controlled by computer, which is more convenient, simple, safe and stable.
Fiber laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel ,Brass, Aluminium, Steel, Iron etc and can also mark on m -any non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon


Product Detail

Product Tags

Advantages

> No Consumables, Long lifespan Maintenance Free
The Fiber laser source has super long lifespan of over 100,000 hours without any maintenance. No need to spare any extra consumer parts at all. Suppose you will work for 8 hours per day, 5 days a week, A fiber laser could work pr- operly for you for more than 8-10 years without extra costs except electricity.

> Multi-functional
It could Mark/Code/Engrave un-removable serials Numbers, batch Numbers, Expiry info, Best Before date, logo & any Characters that you want. It could also mark QR code.

> Simple Operation, Easy to use
Our patent software supports almost all common formats, The operator does not have to understand programming, Just simply set a few parameters and click start.

> High Speed Laser Marking
The laser marking speed is very fast, 3-5 times than the traditional marking machine.

> Optional rotary axis for different cylindrical
Optional rotary axis can be used to mark on different cylindrical, spherical objects.The stepper motor is used for digital control,and the speed can be automatically controlled by computer,which is more convenient,simple,safe and stable.

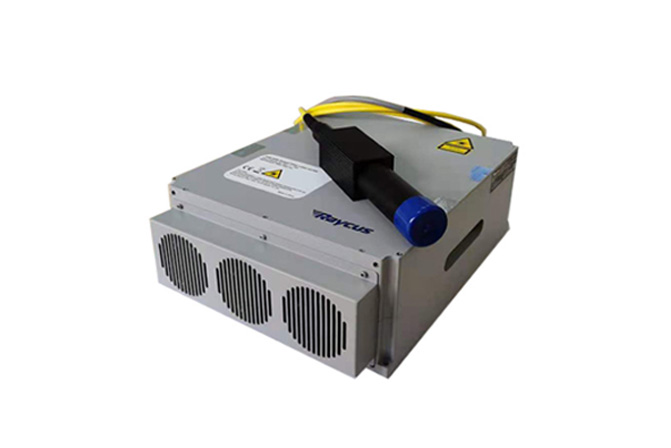

LASER SOURCE

We use Chinese famous brand Max laser source Optional : IPG / JPT / Raycus laser source.

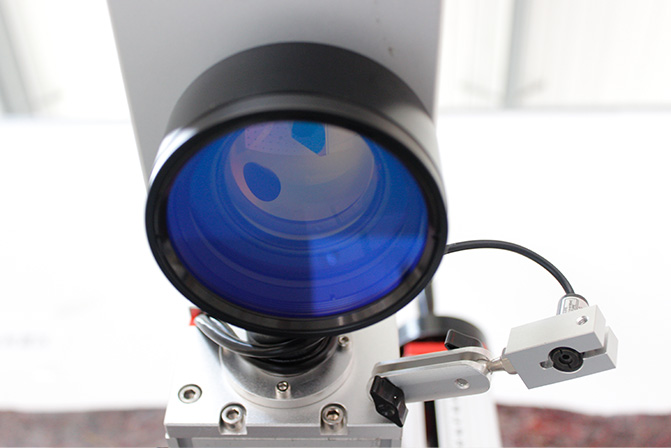

FIELD LENS
FIELD LENS

FIELD LENS

We use famous brand to provides precision laser Standard 110x110mm marking area. Optional 150x150mm, 200X200mm 300x300mm etc

LASER SOURCE

We use Chinese famous brand Max laser source Optional : IPG / JPT / Raycus laser source.

FIELD LENS

SOFTWARE

FIELD LENS

1. Powerful editing function.

2. Friendly interface.

3. Easy to use.

4. Support Microsoft Windows XP, VISTA, Win7, Win10 system.

5. Support ai, dxf, dst, plt, bmp, jpg, gif, tga, png, tif and other file formats.

6. Support for True type fonts, single Line fonts USF ), SHX fonts, dot matrix fonts ( DMF ), 1D bar codes and 2D bar codes . Flexible variable text processing, changing text in real time during processing, can directly read and write text files, SQL databases and Excel file.

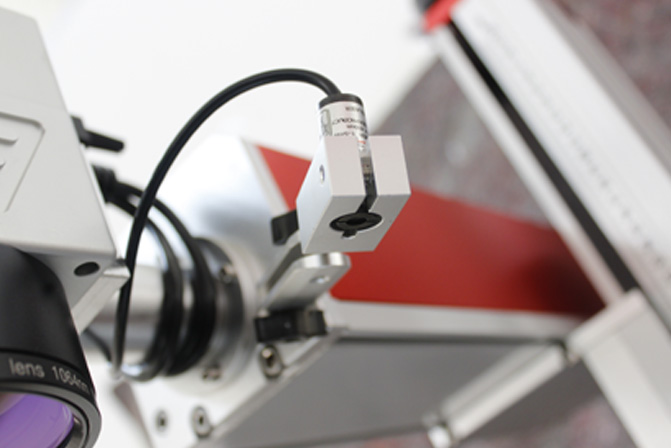

DOUBLE RED LIGHT POINTER

When two red light coincides best focus Double red light pointer help customers make focus quickly and easily.

FIELD LENS

Product Video

Specification

Technical Parameters
Technical Parameters
Laser type fiber laser marking machine
Working area 110*110/150*150/200*200/300*300(mm)
Laser power 10W/20W/30W/50W
Laser wavelength 1060nm
Beam quality m²<1.5
Application metal and partial nonmetal
Marking Speed 7000mm/ standard
Repeated Precision ±0.003mm
Working voltage 220V or 110V /(+-10%)
Cooling Mode Air Cooling
Supported graphic formats AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
Controlling software EZCAD
Working temperature 15°C-45°C
Optional parts Rotary Device, Lift platform, other customized Automation
Warranty  2 year
Package  Plywood
