Cabinet RF Laser Co2 Engraving Machine 20w 30w Co2 Laser Marking Machine for Plastic Jeans Glass Wood Acrylic

Short Description:

Advantages of CO2 RF laser marking machine
1. Advanced CO2 metal laser tube life more than 20,000 hours
2. High precision and permanent marking pertormance
3. Air cooling, no maintenance
4. Can mark on most of non-metals

Co2 laser marking engraving machine can engrave serial number ,picture , logo , random number , bar code , 2d barcode and various arbitrary patterns and text on flat plate and also cylinders

The main processing object is non-metal, widely used in craft gifts, furniture, leather clothing, advertising signs, model making food packaging, electronic components, fixtures, glasses, buttons, label paper, ceramics, bamboo products, product identification, serial number, pharmaceutical packaging, printing plate making, shell


Product Detail

Product Tags

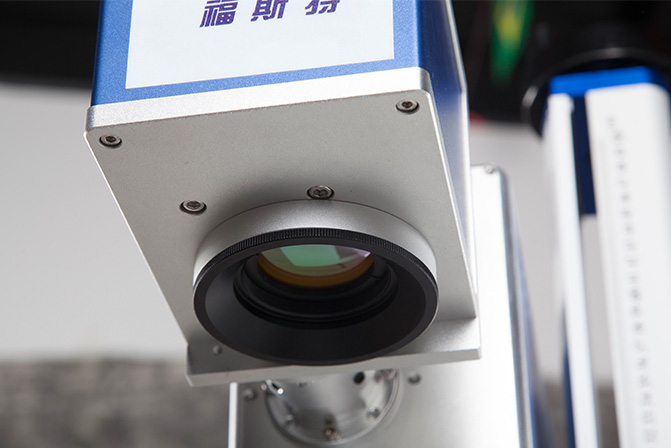

FIELD LENS

FIELD LENS

We use famous brand to provides precision laser Standard 110x110mm marking area. Optional 150x150mm, 200*200mm, 300*300mmetc.

Optional:OPEX etc.

GALVO HEAD

Famous brand Sino-galvo, high speed galvanometer scan adopting SCANLAB technology, digital signal , high precision and Speed.

LASER SOURCE

Excellent Davi Laser Source. no need maintenance, long life more than 20,000 hours .we can also configure the other brand source like SYNRAD Coherent.

FIELD LENS
FIELD LENS

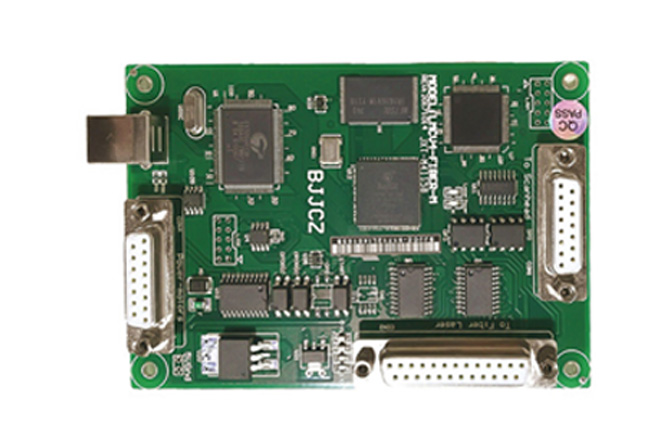

JCZ CONTROL BOARD

① Ezcad genuine products

② User-friendly interface

③ Functional diversity

④ High stability

⑤ High precision

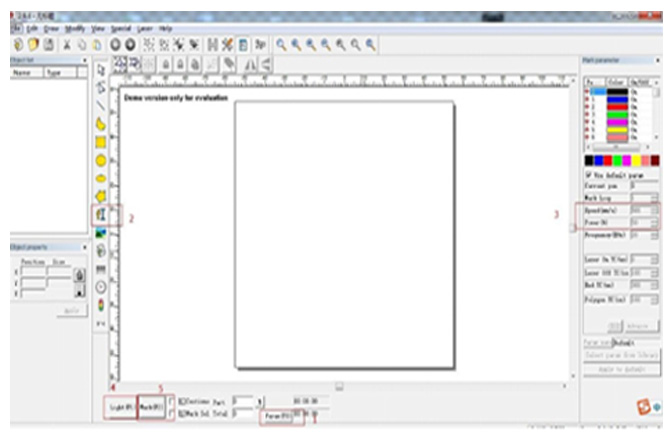

EZCAD CONTROL SOFTWARE

1. Powerful editing function.

2. Friendly interface.

3. Easy to use.

4. Support Microsoft Windows XP, VISTA, Win7, Win10 system.

5. Support ai, dxf, dst, plt, bmp ,jpg, gif, tga, png, tif and other file formats.

FIELD LENS
FIELD LENS

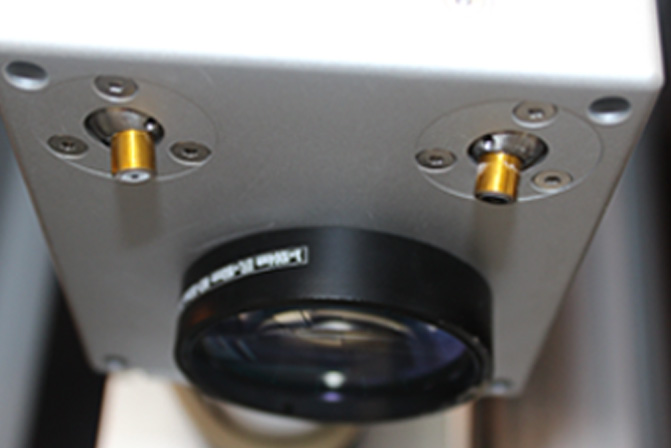

DOUBLE RED LIGHT POINTER

When two red light coincides best focus Double red light pointer help customers make focus quickly and easily.

RED LIGHT PREVIEW

Adopt Red light preview to show the laser path since laser beam is invisible.

WORKING-PLATFORM
FIELD LENS

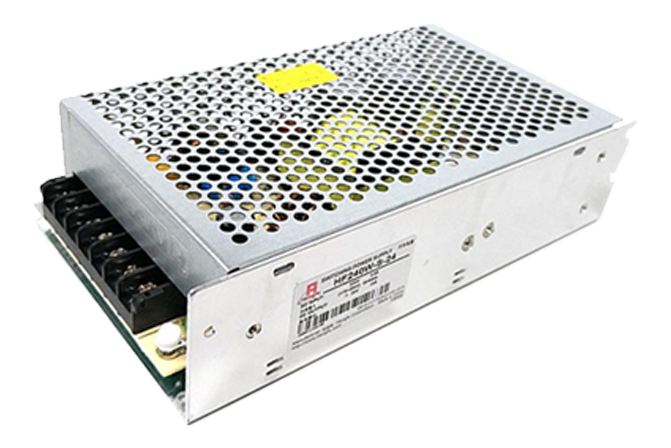

POWER SUPPLY

Brand selection: Shanghai Hengfu, Taiwan Meanwell

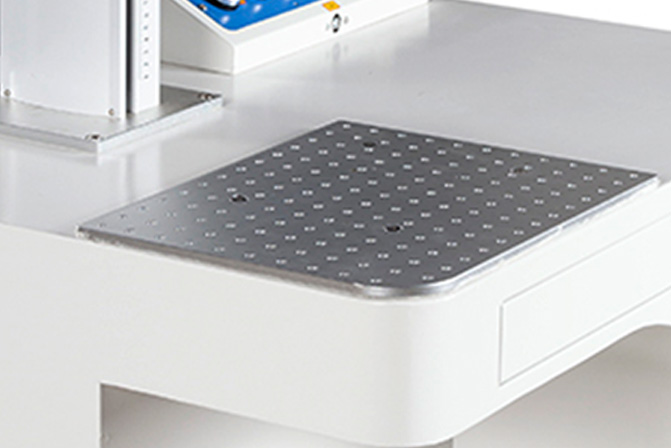

WORKING PLATFORM

Alumina working platform and imported precise beeline device .Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform.

FIELD LENS
FIELD LENS

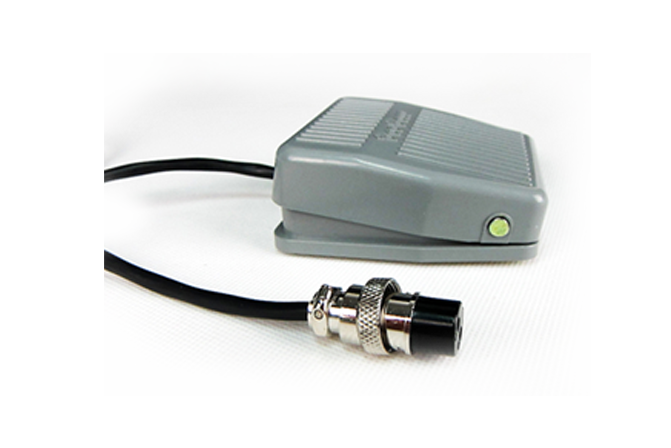

FOOT SWITCH

It can control the laser on and off make the operate more convenient.

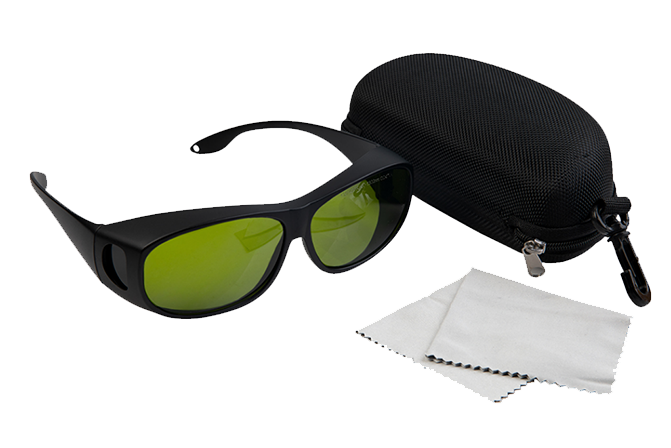

GOGGLES ( OPTIONAL )

Can protect eyes from laser Wave 1064nm, let the operate more safe.

FIELD LENS
FIELD LENS

SCALE RULER

Enables customers to precisely position for fast engraving Adapting To Different Products Height

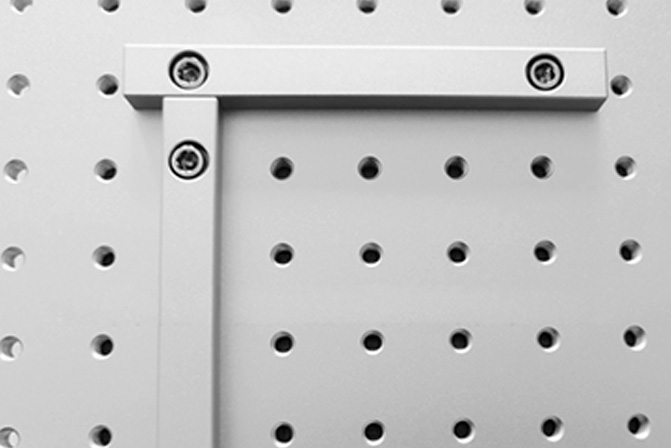

FIXTURE ( OPTIONAL )

1. Easy to put kinds of materials on the worktable

2. There are multiple flexible screw holes on the worktable convenient for customized installtion

FIELD LENS

Product Video

Specification

Technical Parameters
Technical Parameters
Products Name CO2 Laser Marking Machine
Types & Model FST Ezcad-Series
Laser Source Brand DAVI
Laser Power 20W, 30W ,50W, 60W, 100W
Laser Wavelength 10.6um
Max Mar Speed 7000mm/s
Control Card Original EZCAD from JCZ brand
Filed Lens Brans wavelength
Galvo Head Sino Galvo
Marking Area 110*110mm to 300*300mm
Mininum Line Width 0.015mm
Mininum Character 0.2mm
Operation System Win XP / 7 / 8 / 10 (32 bit , 64 bit)
Power Supply AC110V /220V +10% ,50HZ/60HZ
Operation Environment Working temperature: 0°-40°,
