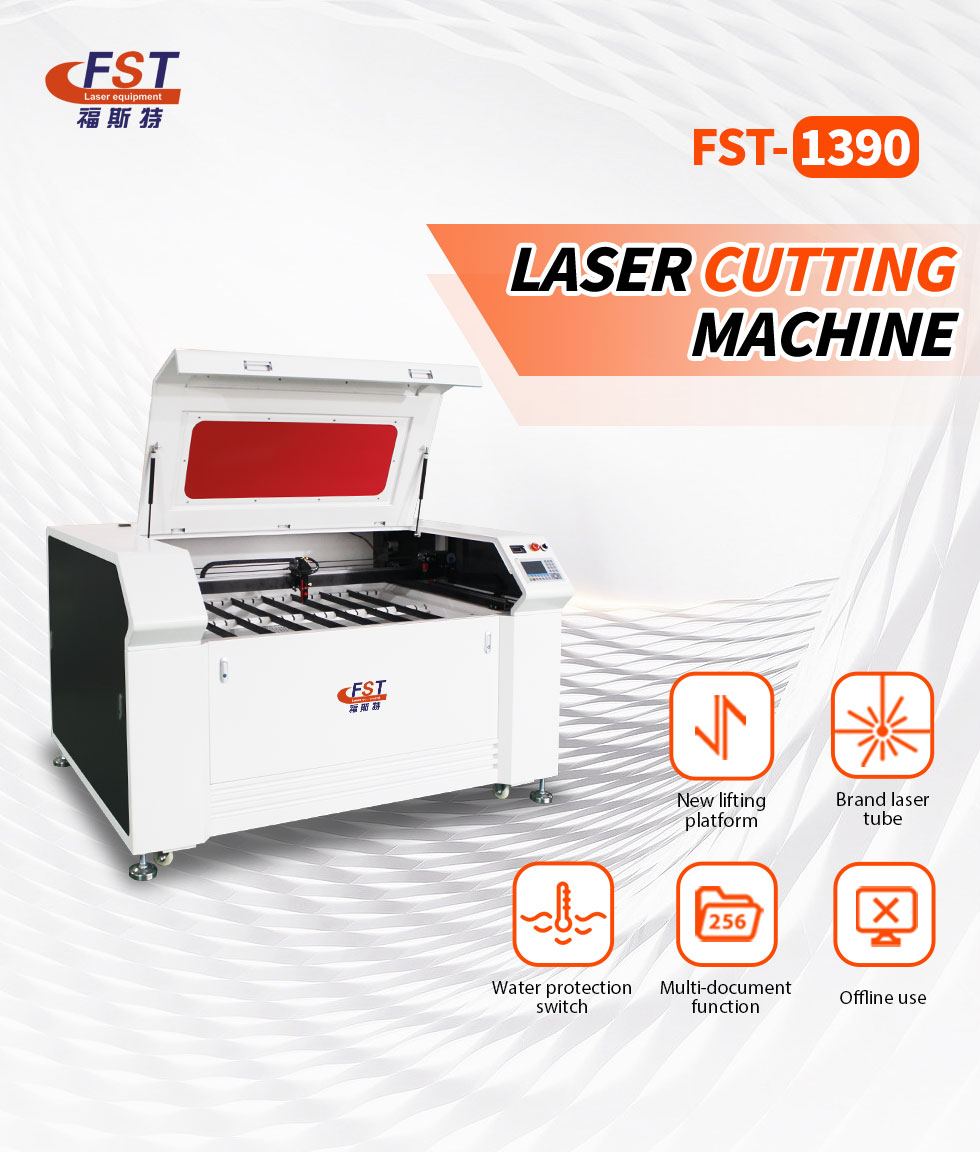

Acrylic Wood Plastic Cloth CNC 1390 100W 130W 150W Laser Cutting Machine Price

Short Description:

Foster laser CO2 Laser Engraving Machine with different working area,laser power or working table, which application is engraving and cutting on acrylic, wood, fabric,cloth, leather, rubber plate, PVC, paper and other kinds of non metal materials.

1390 laser cutting machine are widely used in clothing, shoes,luggage, computer embroidery clipping, model, electronic appliances, toys, fumiture, advertising decoration, packaging and printing, paper products, handicrafts, Household appliances.laser processing and other industries.




Product Detail

Product Tags

1390-1

WORK AREA

ALUMINUM KNIFE

To process hard materials like acrylic,wood and so on.

1390-11
1390-12

WORK AREA

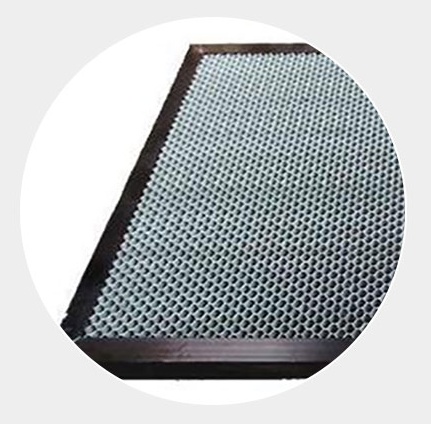

HONEYCOMB WORKTABLE

1.Small holes make sure good supporting performance which is suitable for leather. cloth and other thin soft materials

2.The hole of honeycomb worktable is small , so the small workpiece can be placed on the table surface to be processed.

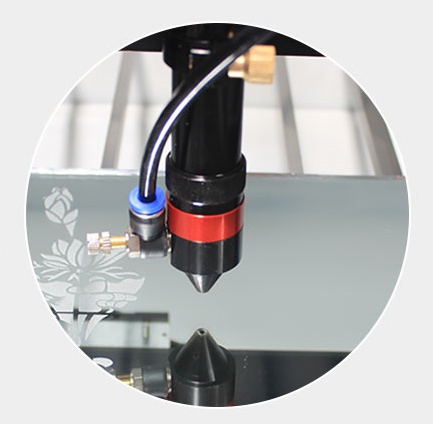

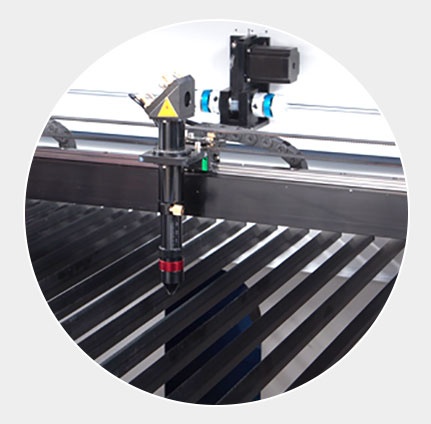

INDUSTRIAL LASER HEAD

High precision retractable laser head,easy to adjust focal length, equipped with red light positioning system, accurate positioning, reduce material loss.

Auto-blowing to protect laser head and prevent the laser burning

1390-13
1390-14

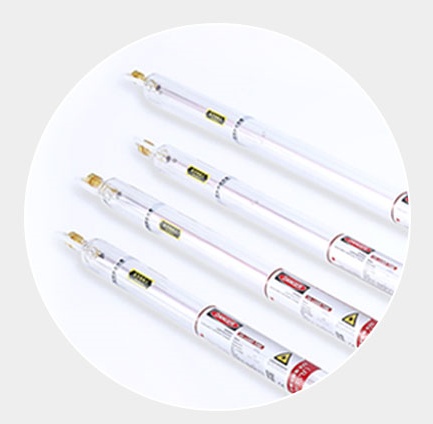

LASER TUBE

Closed Co2 laser tube, long life.stable power. Installation of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine(EFR, RECI, CDWJ,YONGLI, JOY. Optional)

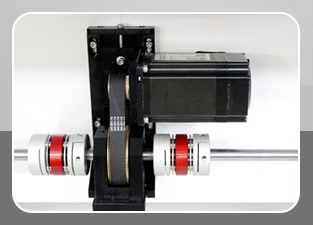

BRAND STEPPER MOTOR

High operating accuracy,high temperature resistance,can bear the high temperature generated by high-speed operation,and low noise.

1390-15
1390-16

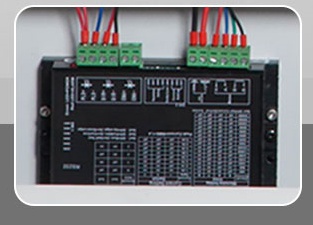

MOTOR-DRIVER

1.self adaptive circuit

2.necessary accessories of offline working

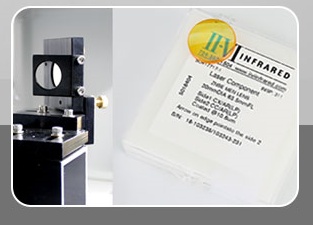

USA I-VI LENS

Imported USA ll-Vl Lens,suitable for vanous environments, and has high precision and high speed.

1390-17
1390-18

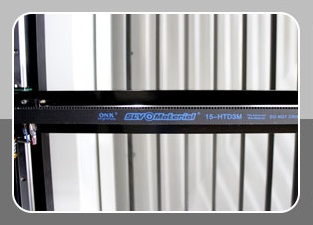

FAMOUS BRAND BELT

The ONK brand belt, wear resistance,good stability,compact structure and low noise.

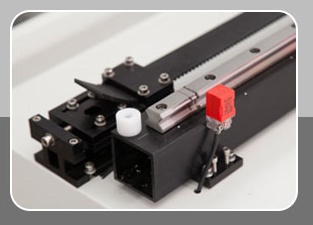

FAMOUS BRAND SWICH

Engineering design,easy to operate

1390-19
1390-20

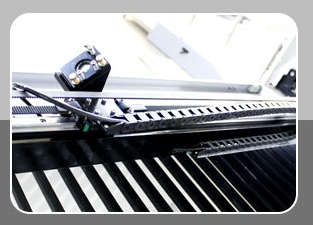

LEADING CHAIN

The current lead and breather pipe are included in it.Thicker,more stable Keep the laser head from shaking

139-10

Specification

Technical Parameters
Technical Parameters
Model FST-1390
Worktable Honeycomb or blade
Engraving area 1300*900mm
Laser Power 60W/80W/100W/150W/300W
Engraving Speed 0-60000mm/min
Engraving Depth 5mm
Cutting Speed 0-5000mm/min
Cutting Depth ( Acrylic ) 0-30mm( acrylic )
Up and down worktable Up and down 550mm adjustable
Minimum Shaping Character 1*1mm
Resolution Ratio 0.0254mm(1000dpi)
Power Supply 220V(or 110v)+/-10% 50HZ
Resetting Positioning Accuracy less than or equal to 0.01mm
Water protecting sensor and alarm Yes
Operating Temperature 0-45℃
Operating Humidity 35-70℃
Graphic Format Supported PLT/DXF/BMP/JPG/GIF/PGN/TIF
Operation System Windows XP/VISTA/ Windows 7/8/10
Software RDworks /LaserCAD /AotuCAD
Control Confiquration DSP
Water Cooling ( Yes /No ) Yes
Maximum Height Of Materials To Engrave ( mm ) 120mm
Laser Tube Sealed CO2 glass laser tube
Machine Dimension 1840*1400*1030mm
Packing Dimension 2040*1600*1320mm
