960 two parts laser engraving machine

Short Description:

Advantages of FST- 9060 laser cutting machine
Foster laser Co2 Laser Engraving Cutting machine with different working area, laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of non metal materials. 1080laser cutting machine are widely used in clothing, shoes, luggage, computer embroidery clipping, model, electronic appliances, toys, furniture, advertising decoration, packaging and printing paper products, handicrafts. Household appliances, laser processing and other industries

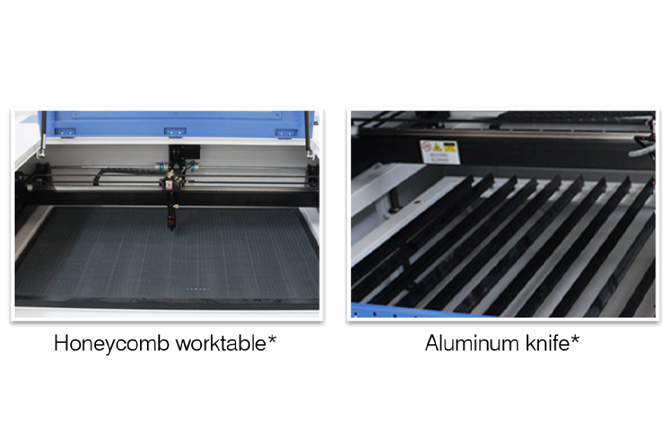

1.Aluminum knife or honeycomb table . Two kinds of of tables are available for different material
2.CO2 Glass sealed laser tube China famous brand ( EFR , Reci good beam mode stability , long service time
3.Imported lens and mirrors . High transmittance , good focusing,reflection effect
4.Ruida Controller system , support online / offline working , English language system , adjustable cutting speed and power
5.High accuracy stepper motors and drivers . Belt transmission
6.Tiwan Hiwin Linear square guide rails , higher precision
7.Open style , the front and back of the machine is open which is possible for longer material , breakthrough the limit of the work piece length

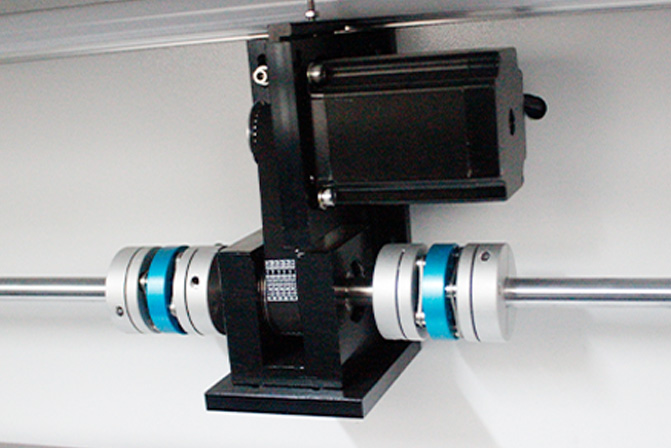

8.Rotate cutting available

Send email to us Download as PDF

Product Detail

Product Tags

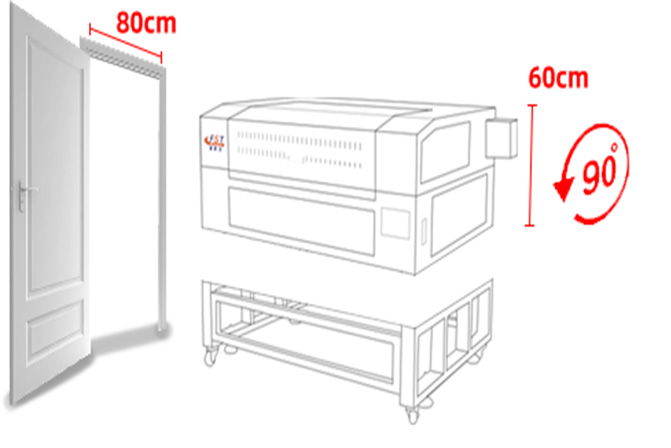

Very convenient through the narrow door

My door is too narrow(only 80CM wide), how to move the laser cutter into my house? You can try this model laser cutter!

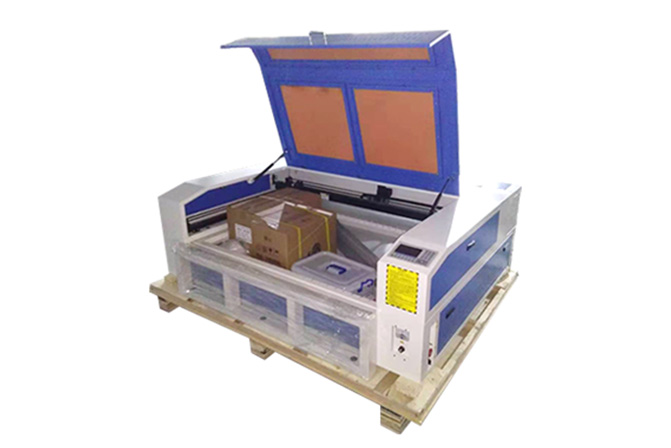

Greatly reduce transportation costs

The minimum packing size may be 1.5CBM (160,125,75cm). Can reduce a lot of unnec- essary expenses.

WORK AREA

900x600mm * You can choose one or two. It depends on the needs of the customer.

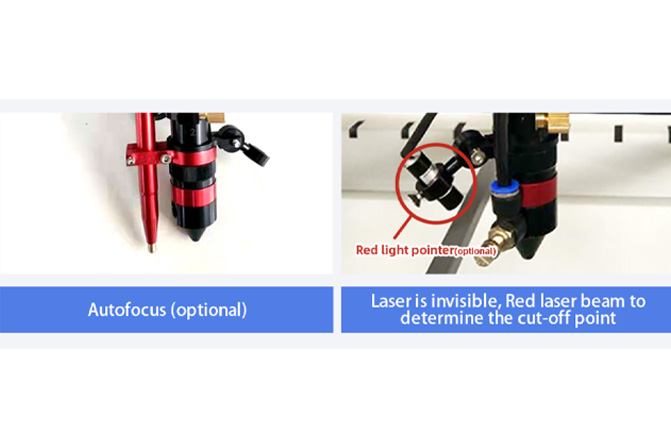

INDUSTRIAL LASER HEAD

High precision retractable laser head easy to adjust focal length, equipped with red light positioning system, accurate positioning, reduce material loss. Auto-blowing to protect laser head and prevent the laser burning

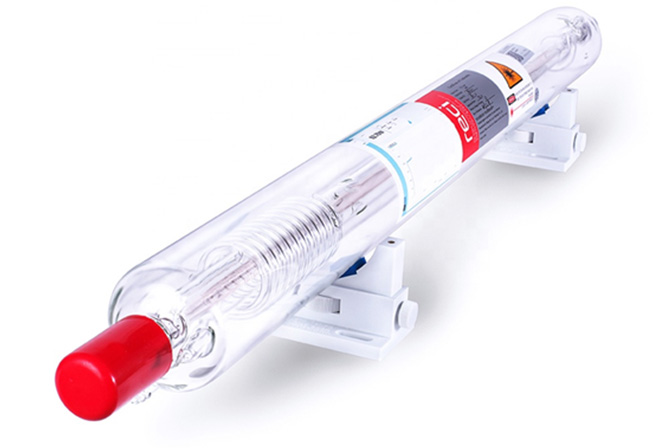

LASER TUBE

Closed Co2 laser tube, long life stable power Installation of reinforcement settings, the lase tube is not easy to collide and cause damage when moving the machine ( EFR, RECI, CDWJYONGLI, JOY. Optional)

BRAND STEPPER MOTOR

High operating accuracy, high temperature resistance, can bear the high temperature generated by high-speed operation, and low noise.

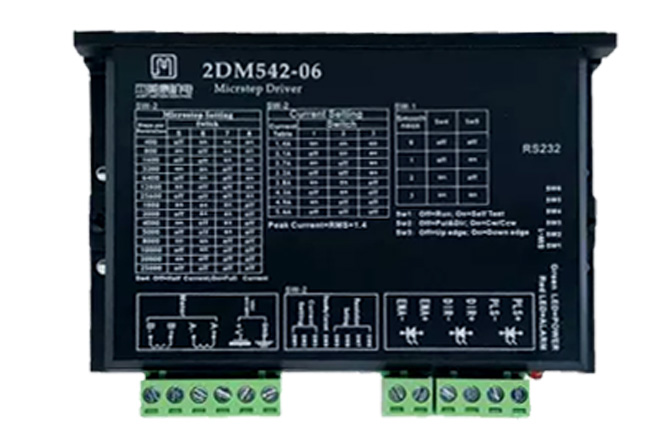

MOTOR-DRIVER

Self adaptive circuit

Necessary accessories of off-line working

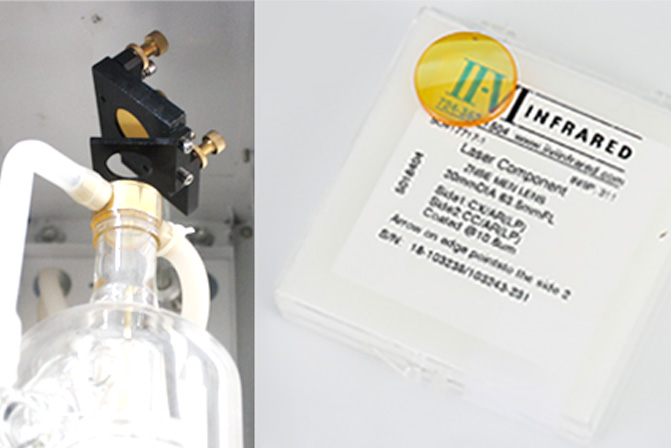

USA II-VI LENS

Imported USA II-VI Lens, suitable for various environments, and has high precision and high speed.

FAMOUS BRANID BELT

The brand belt, wear resistance, good stability, compact structure and low noise

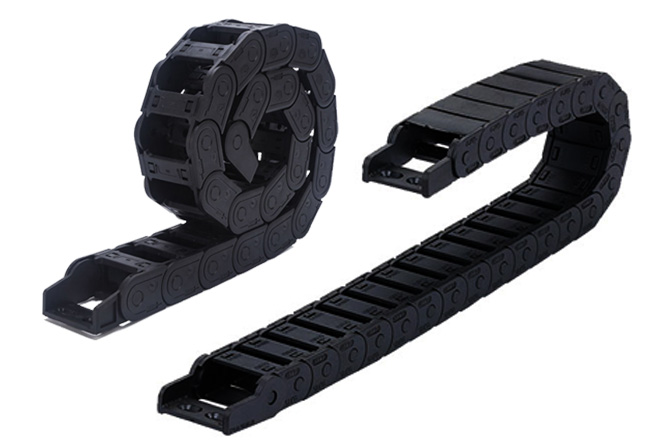

LEADING CHAIN

The current lead and breather pipe are included in it. Thicker, more stable Keep the laser head from shaking

CONTROL PANEL

1.Adopt advanced laser engraving and cutting control system : Ruida RDC6442control system, the control pannal support different language include Chinese, English, French, Pyccko, Portuguese, Turkish, German, Spanish, Vietnamese,Korean, Italian.

2.Standard Rdworksv8 software: It support 15 different languages, include Chinese, English, Japanese, French, German, Portuguese, Polish, Spanish Russian, Korean, Vietnamese, Indonesian, Italian, Turkrish, Arabic
It can compatible With many other software, like Coreldraw, Photoshop AUTOCAD, TAIIMA, etc.
You can use these software to make designs, then import to Rdworks tocut or engrave.

3. Rdworks software support files in different format : Al, DXF, PLT, DST, BMP, DSB, EPS, DAT, NC, RDB, GIF, PG, PEG, PE, FIF, PNG, MNG, CO, CUR, TIF, TIFF, T GA, PCX, WBMP, WMF, EMF, BG, 2C, JPC, PGX, RAS, PNM, PGM, PPM, SKA, RAW

4.Storage: The main board has EMS Memory which enables the user to storemore than 100 files.

5. Laser output control: Can regulate the laser power from 1-100% according to different material.

6. Interface: USB 2 . 0 interface support connect to computer by USB cable, it also support offline work.

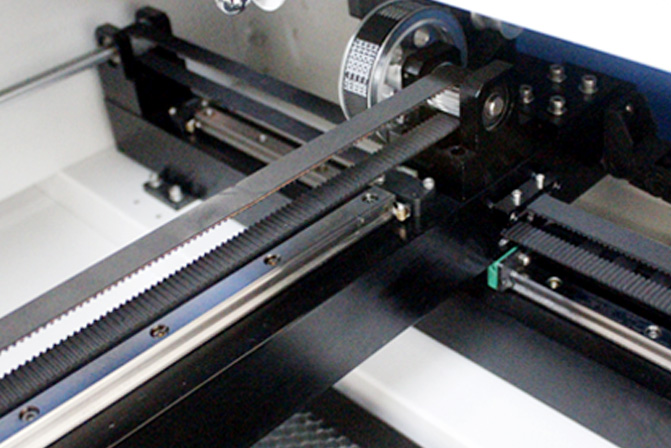

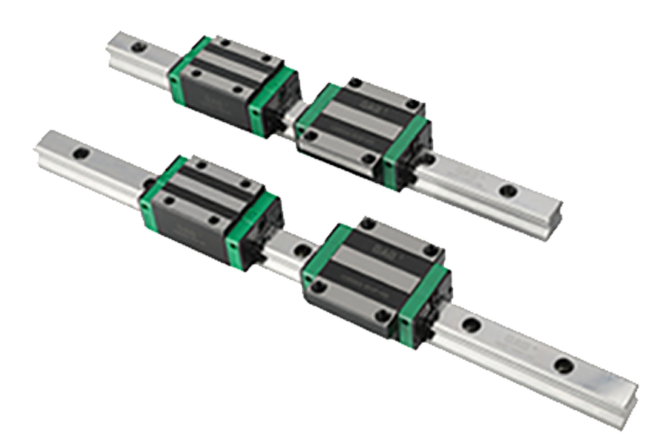

LINEAR GUIDE

XY axis apply imported square rails Ensures stable operation, high precision and long life

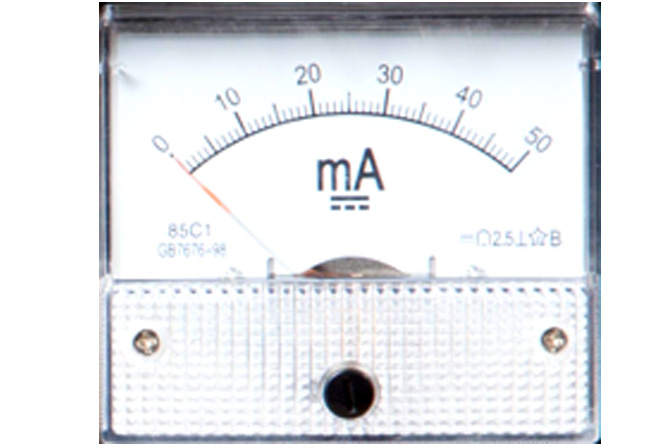

AMPEREMETER

The ammeter can detect whether the laser tube current is normal. ( Optional )

SOFTWARE

COREL DRAW Auto CAD Light burn supported

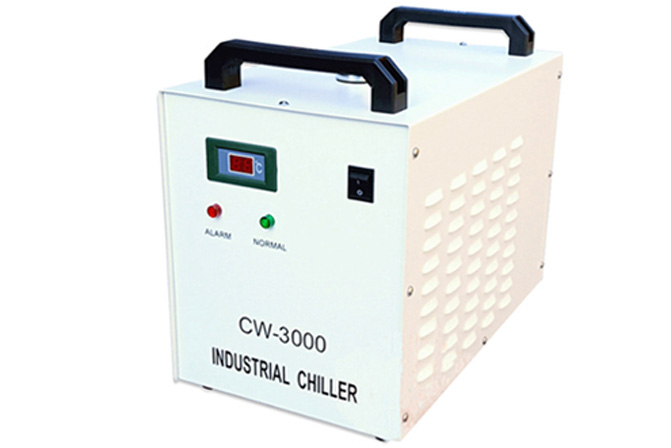

WATER CHILLER

Best in china . it is for cooling the laser tube after water fill in the pipe when machine is working

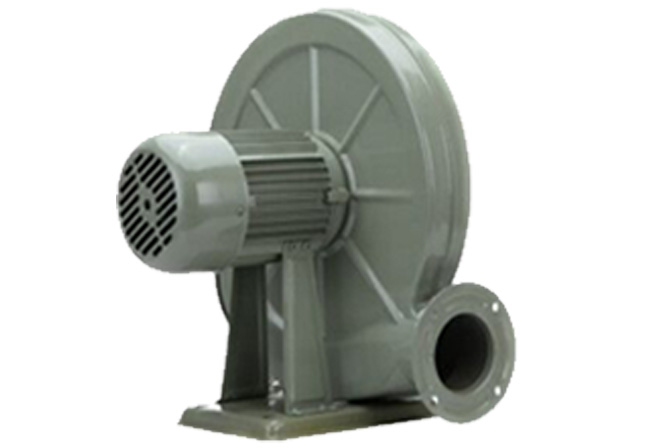

EXHAUST FAN

Removes smoke and dust caused during engraving and cutting

Company and factory

Liaocheng Foster Laser Science&Technology Co,Ltd is a professional manufacturer of laser engraving machine,laser cutting machine,laser marking machine for 18 years. Since 2004, Foster Laser focused on the development and production of various types of laser engraving/cutting/marking machine with the advanced management, strong research strength and steady globalization strategy, Foster Laser establish more perfect product sales and service system in China and around the world, make the world's brand in laser industry.

Our target is "scientific management, high quality, high reputation and takes continuous development as our policy, regards customers as our center, double win with our customers", and we adhere to our tenet of "take the market demand as the guide, continue to take innovation and make improvement". We will try our best to provide the high quality products and perfect service for clients.

Furthermore,we pay much attention to after-sales service. Good service and good quality is same important for Foster Laser will follow the spirit "Credibility and Integrity", try best to provide customer more super product and better service.

Foster Laser--reliable professional L aser equipment supplier!

Welcome to cooperate with us and achieve win-win!

Product Video

Specification

Technical Parameters

Model	FST-9060
Worktable	Honeycomb or Aluminum knife
Eneraving area	600*900mm
Laser Power	50W/60W/80W/100W/130W/150W
Engraving Speed	500mm/s Max
Cutting Speed	60mm/s
Cutting Depth (Acrylic)	0-20mm (acrylic)
Up and down work table	Up and down adjustable
Minimum Shaping Character	English 1 X 1mm (Chinese Characters 2*2 mm
Resolution Ratio	0.0254mm (1000dpi)
Power Supply	220V(or110V)+/-10% 50Hz
Resetting Positioning	Accuracy less than or equal to 0.01mm
Water protecting sensor and alarm	Yes
Operating Temperature	0-45℃
Operating Humidity	35-70℃
Graphic Format Supported	PLT/DXF/BMP/JPG/GIF/PGN/TIF
Operation System	Windows 98/ME/2000/XP/VISTA/Windows 7/8
Software	Rdworks/CorelDRAW/AutoCAD
Engraving on Curve Surfaces	Optional
Control Configuration	Ruida
Water Cooling(Yes/No)	Yes
Laser Tube	Sealed CO2 glass laser tube
