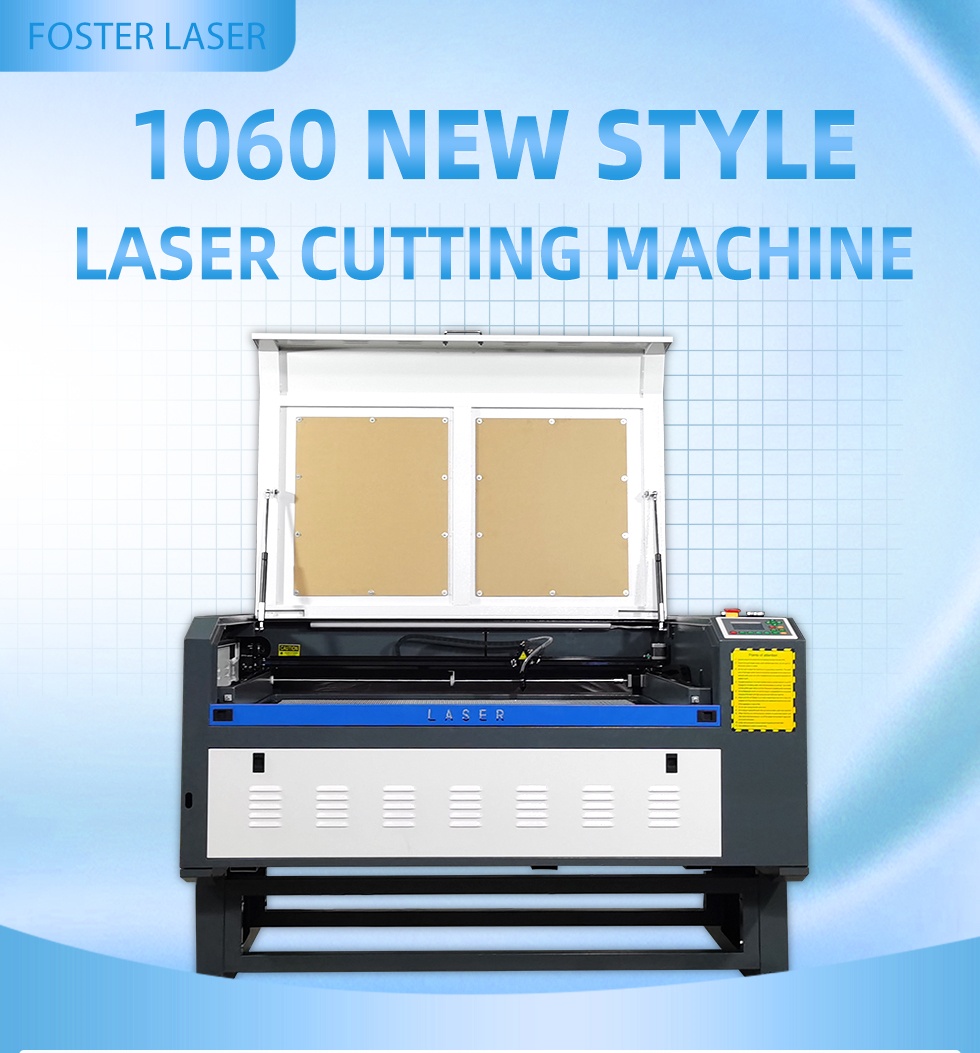

1060 co2 80W 100W cnc laser lazer cutter laser engraver leather wood engraving machine

Short Description:

Foster laser CO2 Laser Engraving Machine with different working area,laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather rubber plate, PVC, paper and other kinds of non metal materials.1060 laser cutting machine are widely used in clothing,shoes,luggage,computer embroidery clipping, model, electronic appliances, toys, furniture, advertising decoration, pack-aging and printing, paper products, handicrafts. Household appliances,laser processing and other industries

Send email to us Download as PDF

Product Detail

Product Tags

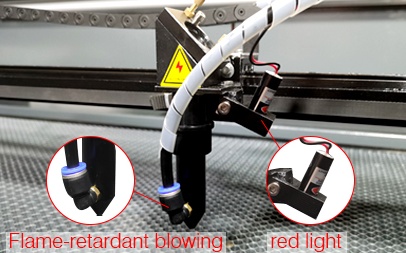

INDUSTRIAL LASER HEAD

High precision retractable laser head,easy to adjust focal length, equipped with red light positioning system,accurate positioning, reduce material loss

Auto-blowing to protect laser head and prevent the laser burning

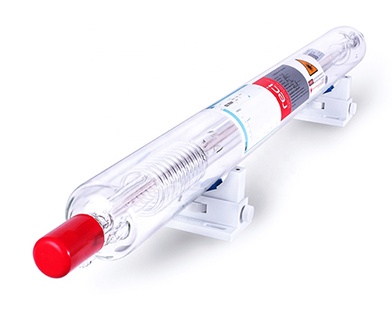

LASER TUBE

Closed Co2 laser tube, long life, stable power.Installation of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine.(EFR, RECI, CDWG,YONGL, JOY. Optional)

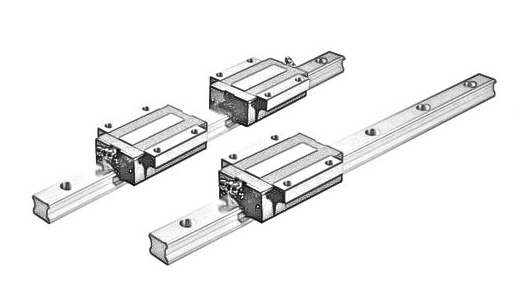

LINEAR GUIDE

XY axis apply imported square rails.Ensures stable operation, high precision and long life.

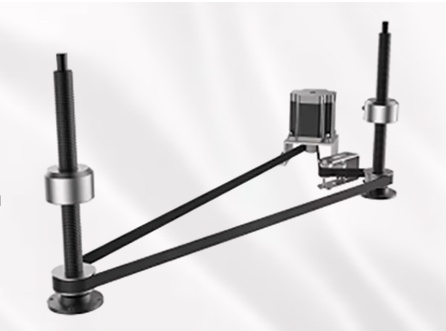

PLATFORM LIFTING

It allows you to process materials of various sizes,can be lifted in Z direction(up-and-down) to get more working space.

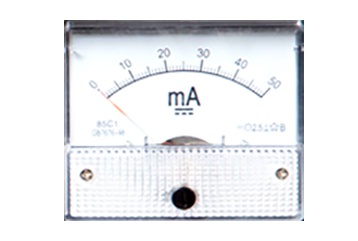

AMPEREMETER

The ammeter can detect whether the laser tube current is normal.(Optional)

SUPPORTED SOFTWARE

Coreldraw and CAD control directly Advanced working software which can be embedded into Coredraw and CADU ser can operate the machine buy Coredraw or CAD software directly

PRODUCT DETAILS

Model	FST-1060 New style

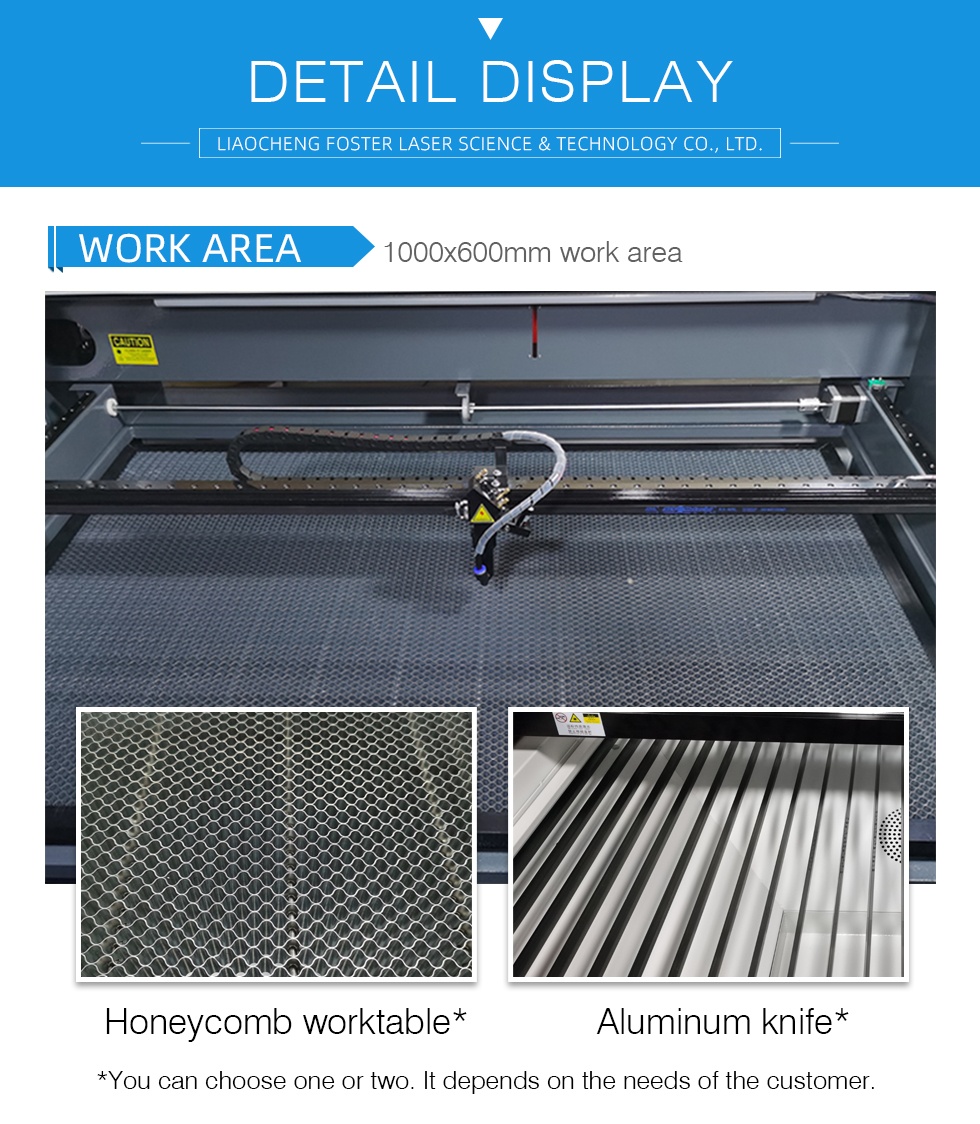

Worktable	honeycomb or Aluminum knife
Engraving area	1000*600mm
Laser Power	50W/60W/80W/100W/130W/750W
Engraving speed	500mm/s Max
Cutting speed	60mm/s
Cutting Depth (Acrylic)	0-20mm (acrylic)
Up and down work table	Upand down adjustable
Minimum Shaping character	English 1x1mm(Chinese characters 2*2mm)
Resolution Ratio	0.0254mm(1000dpi)
Power supply	220V(or110V)+/-10%50HZ
Resetting Positioning	Accuracy less than or equal to 0.01mm
Water protecting sensor and alarm	Yes
Operating Temperature	0-45°C
Operating Humidity	35-70℃
Graphic Format Supported	PLT/DXF/BMP/PG/GIF/PGN/TIF
Operation System	Windows XP/windows 7/8/10
Software	Rdworks/ CorelDRAW/ AuDCAD
Control configuration	Ruida
Water cooling(Yes/No)	Yes
Laser Tube	Sealedco2 glass laser tube
