9060 60W 80W 100W 130W Laser Engraver CO2 Laser Cutting Machine for Acrylic Leather

Short Description:

Foster laser CO2 Laser Engraving Machine with different working area,laser power or working table, which application is engraving and cutting on acrylic, wood, fabric cloth, leather, rubber plate, PVC, paper and other kinds of non metal materials.

9060 laser cutting machine are widely used in clothing, shoes,luggage, computer embroidery clipping, model, electronic appliances, toys, furniture, advertising decoration, packaging and printing, paper products, handicrafts, Household appliances.laser processing and other industries.

Send email to us Download as PDF

Product Detail

Product Tags

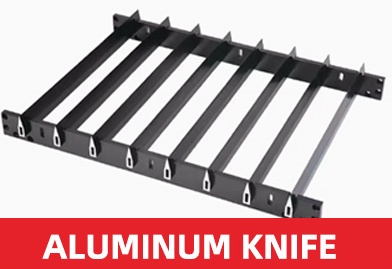

To process hard materials like acrylic, wood and so on.

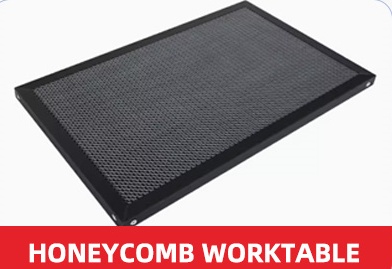

1.Small holes make sure good supporting performance which is suitable for leather. cloth and other thin soft materials.

2.The hole of honeycomb worktable is small , so the small workpiece can be placed on the table surface to be processed,

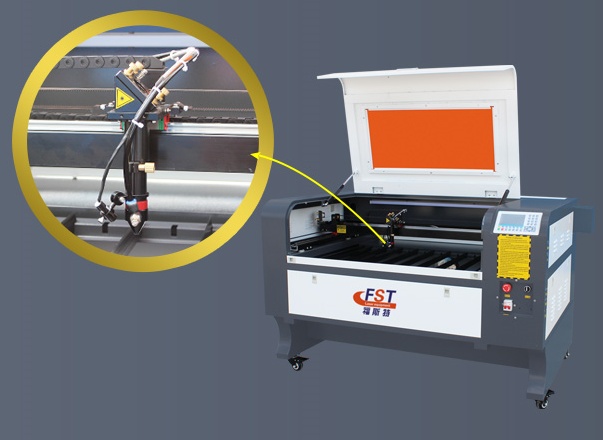

INDUSTRIAL LASER HEAD

High precision retractable laser head,easy to adjust focal length,equipped with red light positioning system, accurate positioning, reduce material loss.

Auto-blowing to protect laser head and prevent the laser burning

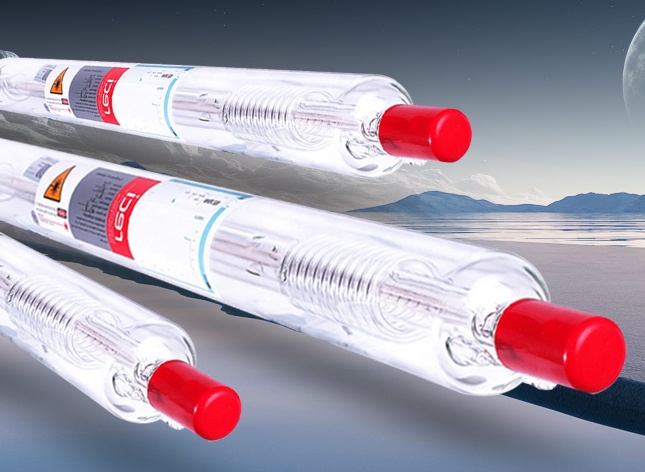

LASER TUBE

Closed Co2 laser tube, long life, stable power. Installation of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine.

High operating accuracy,high temperature resistance can bear the high temperature generated by high-speed operation,and low noise.

1.self adaptive circuit

2.necessary accessories of offline working

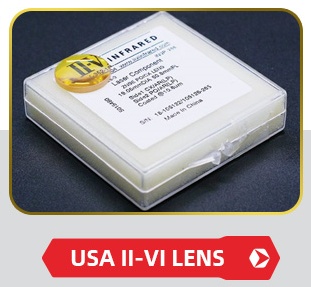

Imported USA ll-Vl Lens suitable for vanous environments, and has high precision and high speed.

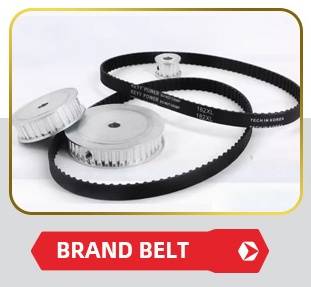

The ONK brand belt, wear resistance,good stability.compact structure and low noise.

Engineering design,easy to operate

The current lead and breather pipe are included in it.Thicker,more stable Keep the laser head from shaking

Foster laser CO2 Laser Engraving Machine with different working area,laser power or working table, which application is engraving and cutting on acrylic, wood, fabric,cloth, leather, rubber plate, PVC, paper and other kinds of non metal materials.

PARAMETER

Model	FST-9060
Worktable	Honeycomb or aluminum knife
Engraving area	900*600mm
Laser Power	60W/80W/100W/130W/150W/180W/300W
Laser Tube	Sealed Co2 glass laser tube
Engraving Depth	5mm
Cutting speed	0-5000mm/min
Cutting Depth ( Acrylic )	0-30mm ( acrylic )
Up and down worktable	Up and down 200mm adjustable
Minimum Shaping Character	1*1mm
Resolution Ratio	0.0254mm(1000dpi)
Power Supply	220V(or110v)+/-10% 50HZ
Resetting Positioning	Accuracy less than or equal to 0.01mm
Water protecting sensor and alarm	Yes
Operating Temperature	0-45℃
Operating Humidity	35-70℃
Graphic Format Supported	PLT/DXF/BMP/JPG/GIF/PGN/TF
Operation System	Windows XP/VSTA/Windows 7/8/10
Software	RDworks / LaserCAD /AotuCAD
Control Confiquration	DSP
Water Cooling ( Yes / No )	Yes
Engraving Speed	0-60000mm/min

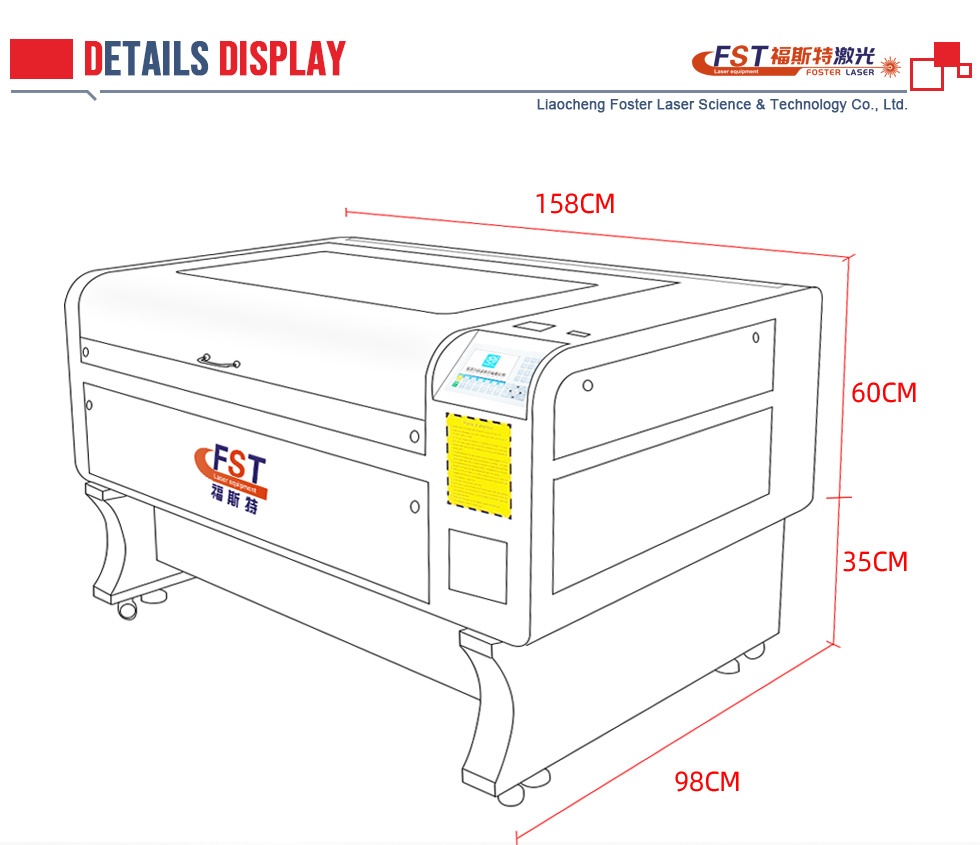

Machine Dimension	1580980950mm
