6024E Tube Metal Cutting CNC Fiber Laser Cutting Machine

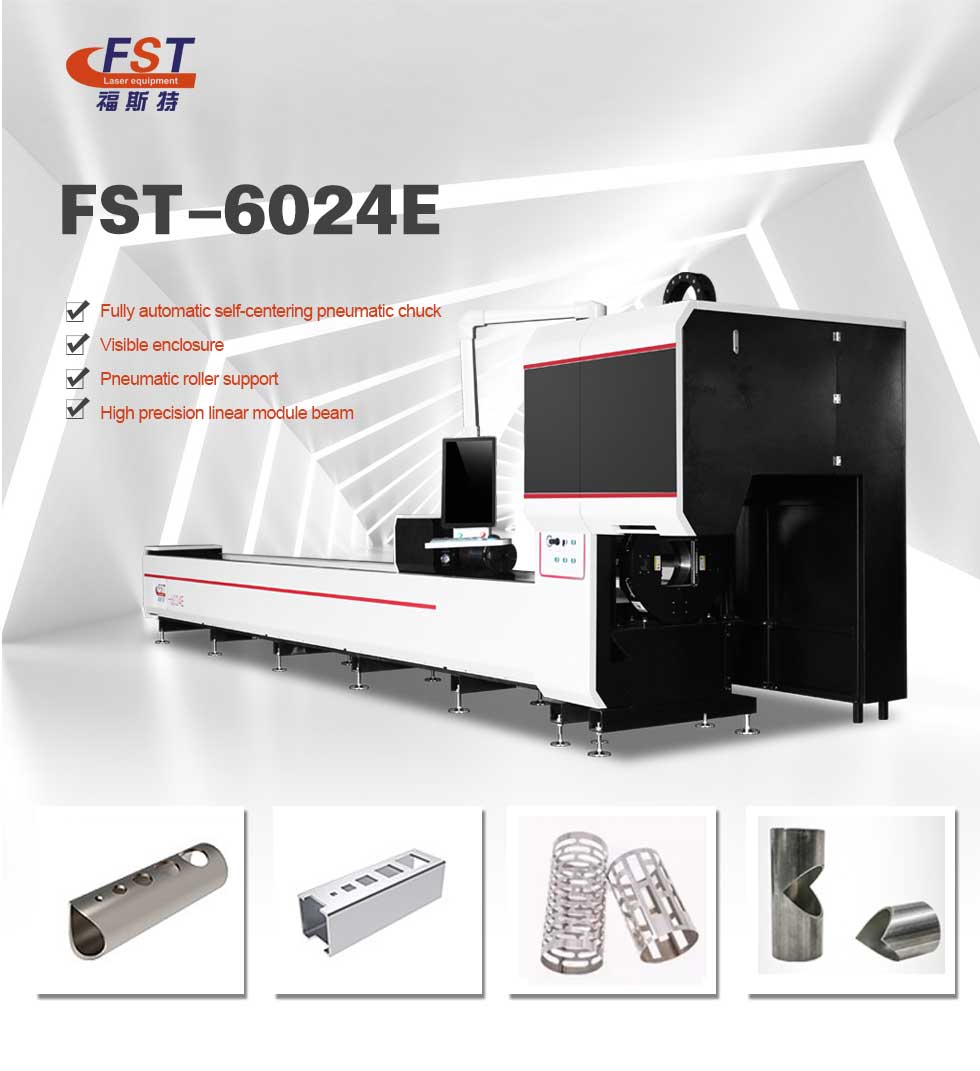

Short Description:

•Fully automatic self-centering pneumatic chuck

•Visible enclosure

•Pneumatic roller support

•High precision linear module beam•

Send email to us Download as PDF

Product Detail

Product Tags

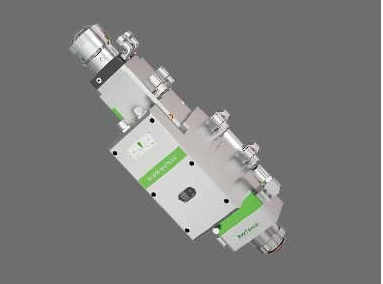

LASER HEAD

High stability and good cutting quality,fast piercing and cutting.

Raytools/Precitec/BOCl for choose.

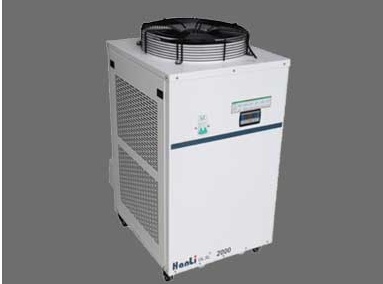

WATER CHILLER

Quickly and effectively reduce the temperature of the laser and cutting head to ensure the normal operation of the machine.

Hanli/S&A for choose.

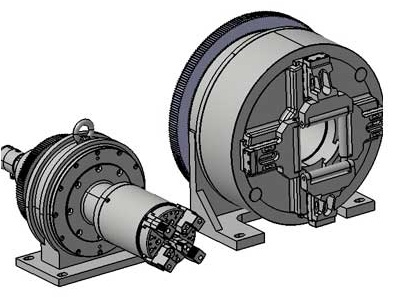

CHUCK

Chuck is for dual use plate&pipe cutting machine.it adopts the pneumatic chuck clamp design on both sides and it can modulate the center automatically The diagonal adjustable range is 10-240mm.

LASER SOURCE

High Power and High Quality Laser Output.

IPG /Raycus /MAX Fiber Source For Choose.

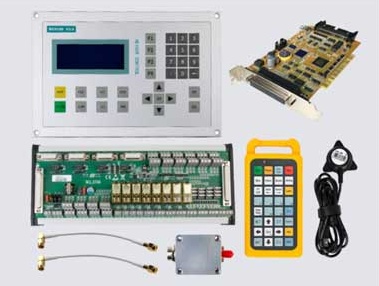

CONTROL SYSTEM

Tube Proplpe cutting software With professional cutting software, fine cutting can be achleved by simple manlpulatilon.

FRAME

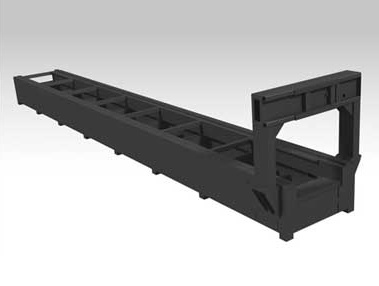

The integrated bed frame ensures the agility of the chuck and the stability during high-speed driving.Pneumatic roller support avoids sagging and deformation of the pipe, improves cutting accuracy and extends the service life of the chuck.

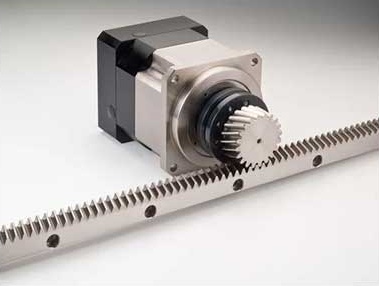

WORKING TABLE-GUIDE RAIL, RACK

HIWIN linear guides and YYC helical racks are used in conjunction with each other, with high guiding accuracy and smooth movement, which can improve the accuracy and stability of the equipment greatly

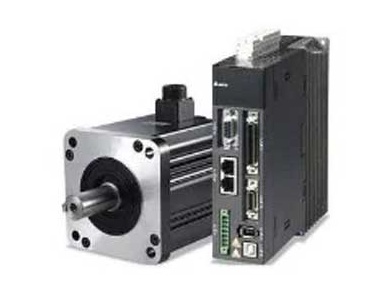

DELTA MOTORS

1. Built-in motion controller

2. High speed digital signal processor (DSP)

3. Gain automatic adjustment, command smoothing.

4. Software analysis and monitoring, capable of executing high-speed displacement, high-precision and other motion control.

5.Can greatly improve the accuracy and speed of cutting products.

Model	FST-6024E Tube Fiber Laser Cutting Machine
Laser Power	1500W/2000W/3000W/4000W
Pipe Processing Range	6000mm*p10~240mm
Maximum Speed	100m/min
Maximum Rotational Speed	100r/min
Z-axis Travel	170mm
Positioning Accuracy	+0.05mm
Repeated Positioning	±0.02mm
Maximum Acceleration	0.8G
Table Maximum Load(KG)	150
Outline Size (mm)	790011001400
Power Parameters	Three-phase AC 380V 50Hz
Protection Level of Total Power Supply	IP54
