4060 Laser Engraving Cutting Machine 50W 60W 80W CO2 Laser Engraver for Wood

Short Description:

1 )Adjustable Speed and Power, Smooth and Precise Engraving and Cutting

2)USB interface, support USB dropped breakpoints continued

3 )Air Assist, Remove heat and combustible gases from the cutting surface

4 )Embedded Exhaust Fan, Easier install, Safer transport

5)Rotary Axis, Engrave any cylindrical object(Optional parts )

6)Aluminum Knife Worktable or Honeycomb Worktable.

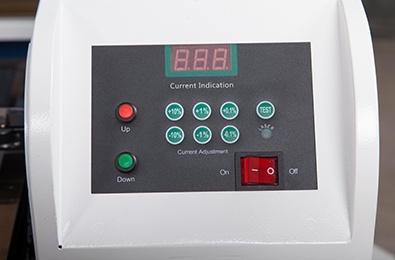

7 ) Intuitive Control Panel, Set Speed, power, and more controls directly from the laser

8)Water Cooling and Protection System

9)Red light positioning

10)Emergency Stop Button

11)Larger Size,400′ 600mm working area

12 )The lifting platform is electric control

13)Drag-and-chain transmission line.

14)Laser focal length: 5CM


Product Detail

Product Tags

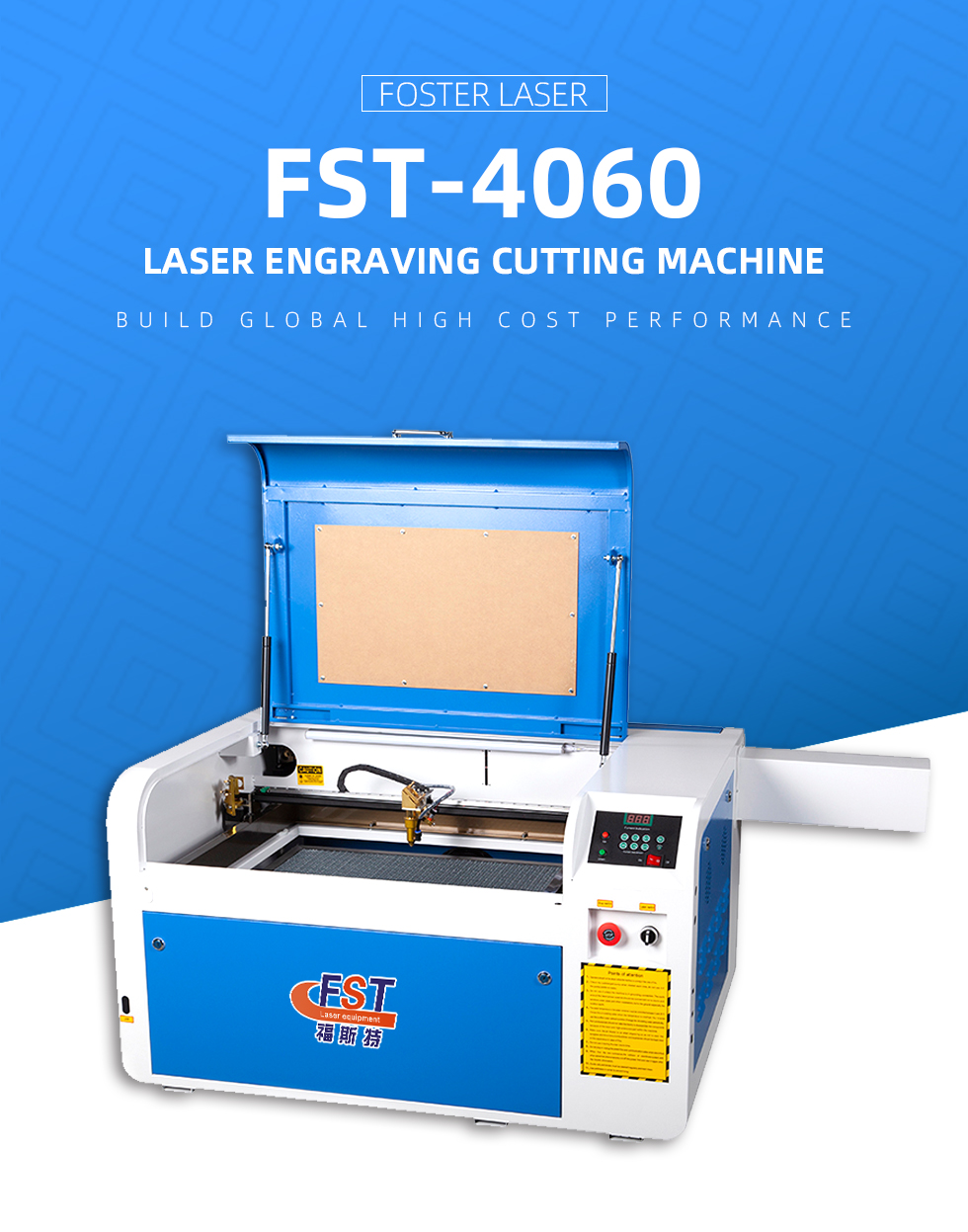

4060M2_01
1
2

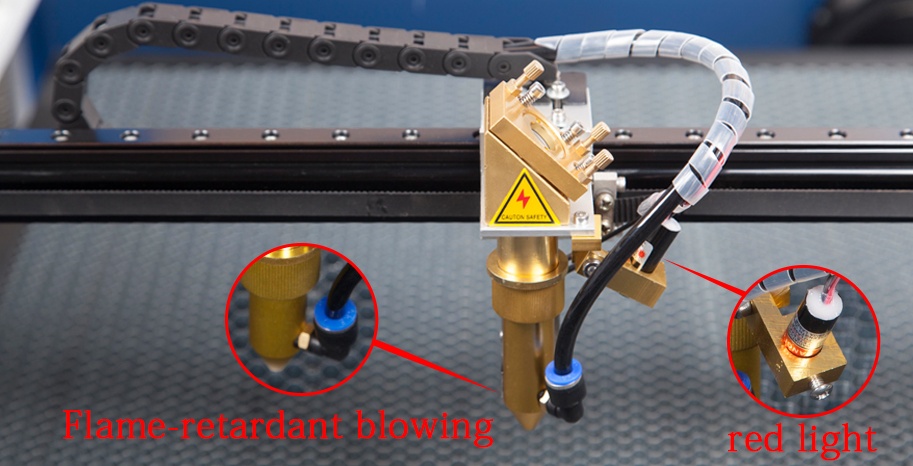

Laser head

The air pipe has been installed on it. So that dust will not contact the lens. The blown air can cool the lens and cool the material surface. Red light positioning function(Optional).

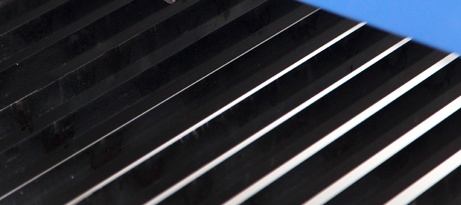

Aluminum knifework table (optional)

To process hard materials like acrylic, wood and so on.

3
4

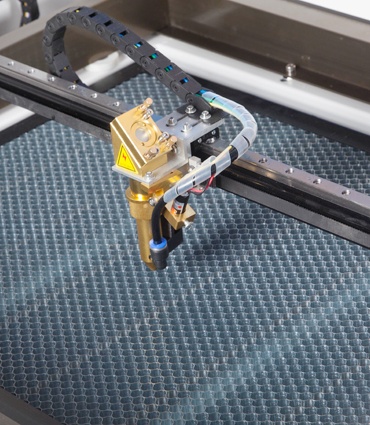

Honeycomb worktable

1 )Small holes make sure good supporting performance which is suitable for leather. cloth and other thin soft materials.

2 )The hole of honeycomb worktable is small , so the small workpiece can be placed on the table surface to be processed

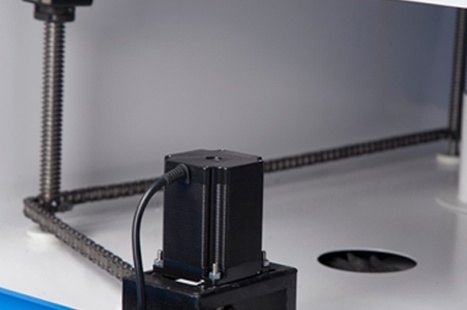

Electric Up downworktable

The height of the platform can be adjusted, freely to facilitate products of any thickness.

5
6

Features

M2 main board is a square port USB interface main board.

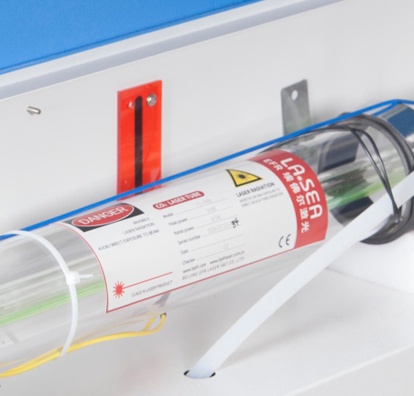

Laser tube

Closed Co2 laser tube, long life,stable power. Installation of reinforcement settings,the laser tube is not easy to collide and cause damage when moving the m-achine.(EFR, RECI, CDWJ, YONGLI, JOY. Optional)

7
8

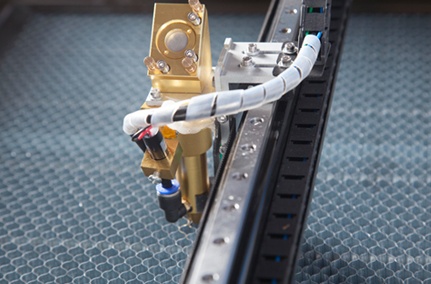

X Axis can upgrade to linear guide

Special linear guide rail good stability and long service life low noise and high precision.

Product Paramenters
Product Paramenters

Model

FST 4060 laser engraving cutting machine

Working area

600*400mm

Laser type

sealed co2 glass laser tube

Laser power

40W150W/60W/80W1100W0-30000mm/min

Engraving speed

0-3600mm/min

Cutting speed

0-3600mm/min

Cutting thickness

0-20mm ( depends on materials)

Resolution rate

+0.05mm

Data transfer interface

USB2.0

Working voltage

220v+10%50hz 110410%60hz

Min shaping character

Character:2*2mm letter:1*1mm

Software

Corel Draw/ Corel Laser/ Laser DRW

Supported graphic formats

BMP PCX TGA TIF PLT CDR

Working temperature

0-45℃

Working humidity

5%-90%

Rsolution ratio

<4500DPI

Optional parts

Rotary axis,water chiller 3000/5000/5200

Machine size

>60W 1400*740*580mm

Machine size

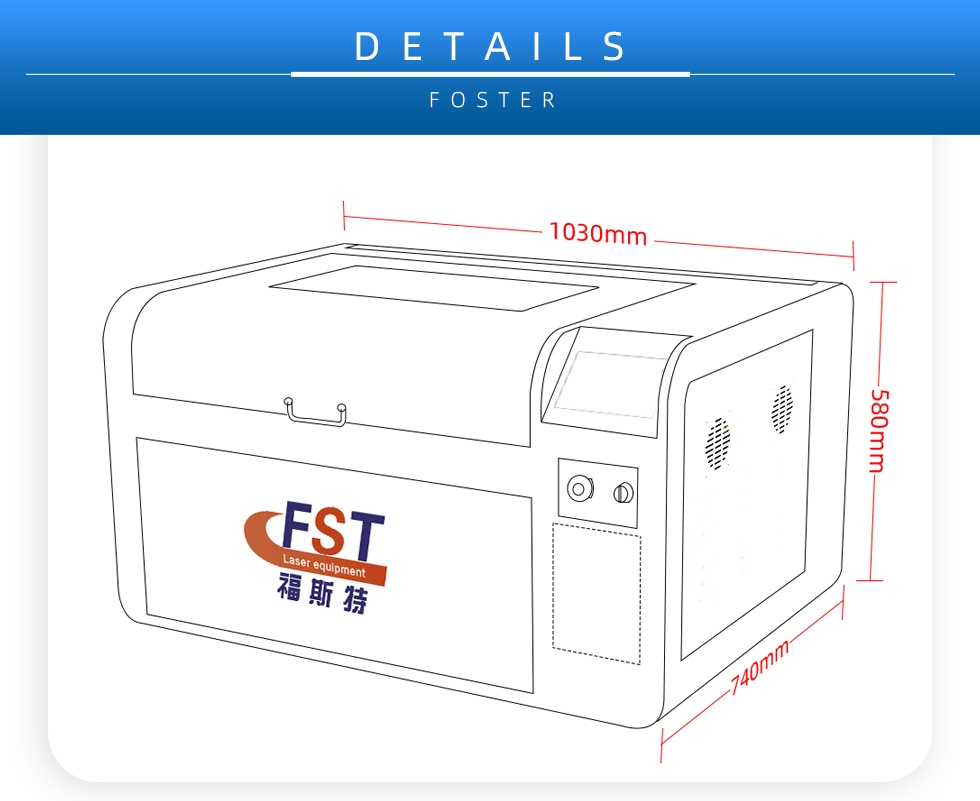

40W150W 1030x740x580mm

Package

Packing in export wooden cases
