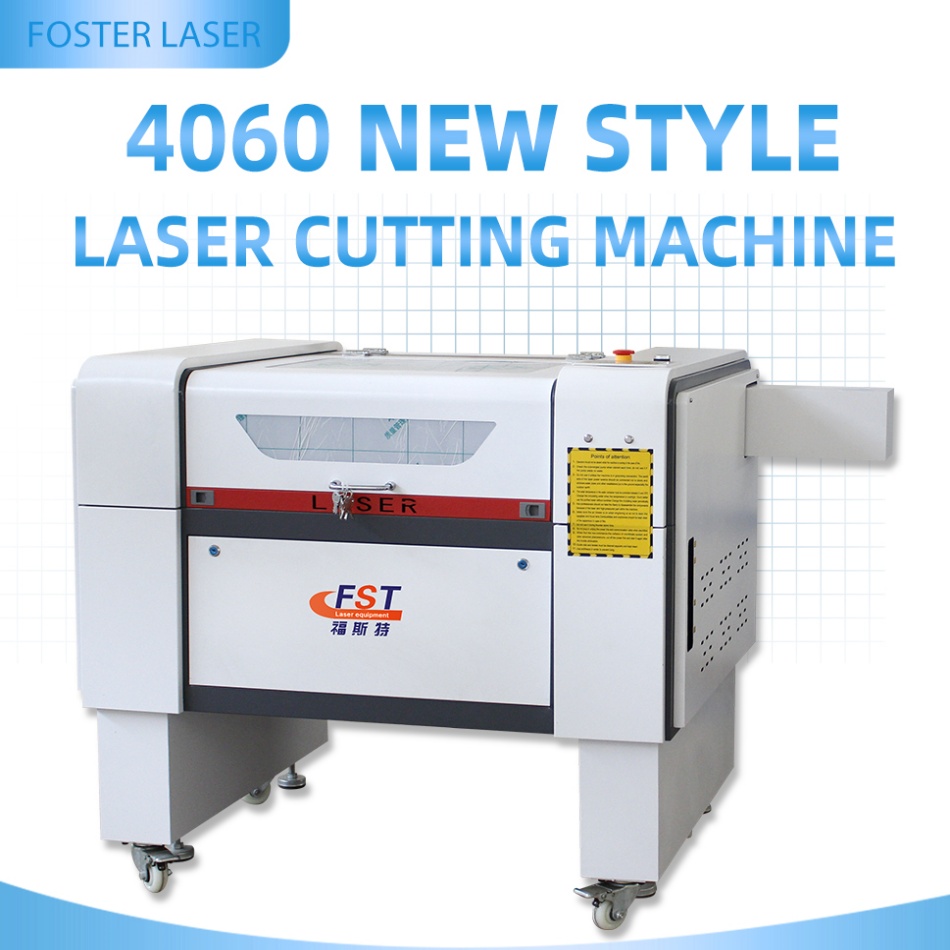

4060 100W Laser Cutting and Engraving Machine for Wood and Paper

Short Description:

1.Aluminum knife or honeycomb table. Two kinds of of tables are available for different material.

2.CO2 Glass sealed laser tube China famous brand (EFR, Reci)good beam mode stability,long service time.

3.imported lens and mirrors, High transmittance, good focusing reflection effect.

4.Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.

5.High accuracy stepper motors and drivers. Belt transmission.

6.Tiwan Hiwin Linear square guide rails, higher precision.

7.Open style, the front and back of the machine is open which is possible for longer material, breakthrough the limit of the work piece length.

8.Rotate cutting available

Send email to us Download as PDF

Product Detail

Product Tags

THREE LINES LINEAR GUIDE

15mm High accuracy, High speed

RUIDA CONTROLLER SYSTEM

Offline use, Easy to operate

FAMOUS LASER TUBE

EFR, RECI, CDWG, YONGLl, JOY (optional)

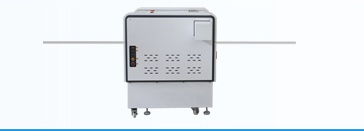

PASS THROUGH DOOR

Front and back feed

TWO-PART SPLIT MACHINE

Save space, save freight, through the narrow door

HIGH COST PERFORMANCE

The same price, the best performance and quality

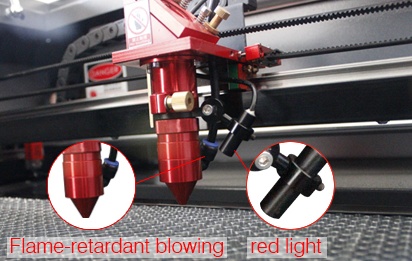

INDUSTRIAL LASER HEAD

High precision retractable laser head,easy to adjust focal length, equipped with red light positioning system,accurate positioning, reduce material loss,

Auto-blowing to protect laser head and prevent the laser burning

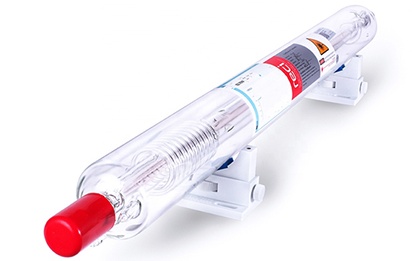

LASER TUBE

Closed Co2 laser tube, long life, stable power.Installation of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine(EFR, RECI, CDWG. Optional)

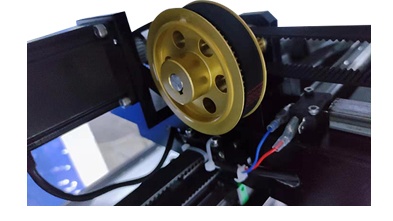

COPPER GEAR

Use copper wheels to better drive the belt to work, wear-resistant and durable.(Optional)

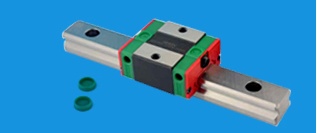

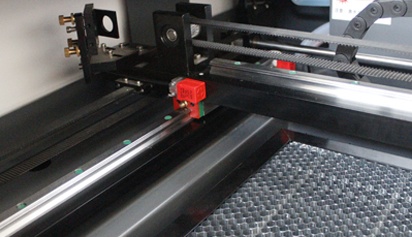

LINEAR GUIDE

XY axis apply imported 15mm square rails.Ensures stable operation,high precision and long life.

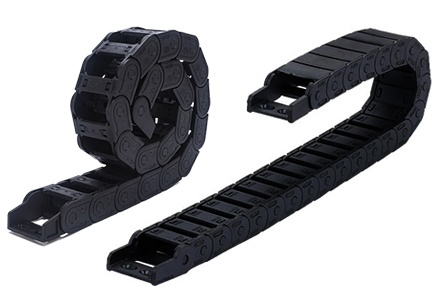

LEADING CHAIN

The current lead and breather pipe are included in it.Thicker,more stable Keep the laser head from shaking

SPECIFICATION

Technical Parameters

Model	FST 6040 laser engraving cutting machine
Working area	600*400mm
Laser type	sealed co2 glass laser tube
Laser power	40W/50W/60W/80W/100W
Engraving speed	0-30000mm/min
Cutting speed	0-3600mm/min
Cutting thickness	0-20mm ( depends on materials)
Resolution rate	±0.05mm
Data transfer interface	USB2.0
Working voltage	220v±10% 50hz 110v±10%60hz
Min shaping character	character:22mm letter:11mm
Software	RdworksV8/ CorelDraw/AutoCAD
Supported graphic formats	BMP PCX TGA TIF PLT CDR
Working temperature	0-45°C
Working humidity	5%-90%
Rsolution ratio	<4500DPI

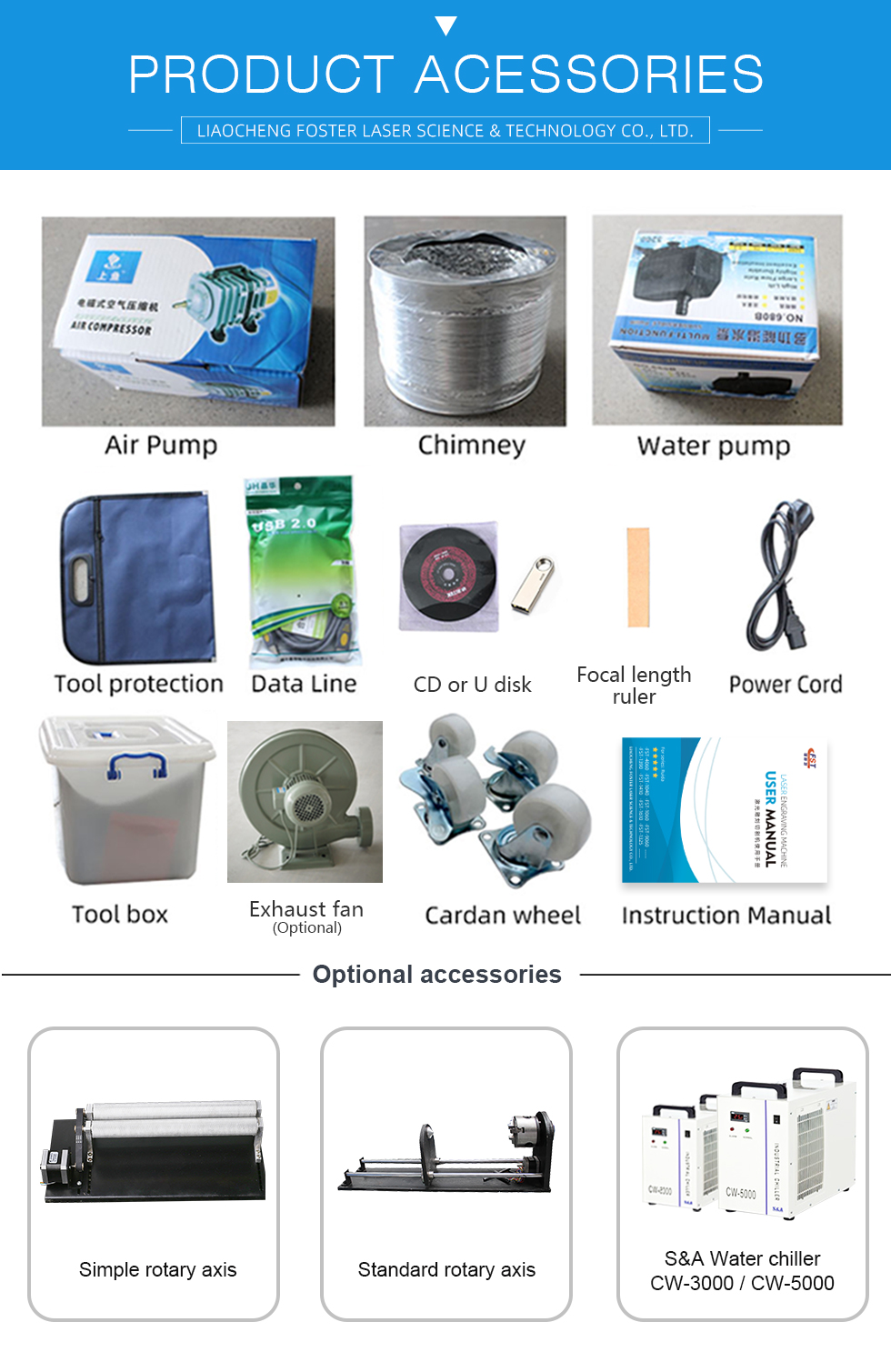

Optional parts	Rotary axis,water chiller 3000/5000/5200.
Machine size	≥60W 1400740580mm
Machine size	40W/50W 1030x740x580mm
Package	Packing in export wooden cases
