3015 Stainless Steel Enclosed Laser Cutter Sheet Metal Fiber Laser Cutting Machine 3000*1500mm

Short Description:

Liaocheng Foster Laser Science &Technology Co , Ltd is a professional manufacturer of laser engraving machine , laser cutting machine , laser marking machine for 18 years . Since 2004 , Foster Laser focused on the development and production of various types of laser engraving cutting / marking machine with the advanced management , strong research strength and steady globalization strategy , Foster Laser establish more perfect product sales and service system in China and around the world , make the worlds brand in laser industry.

Send email to us Download as PDF

Product Detail

Product Tags

The Segmented RectangularTube Welded Bed

The bed's internal structure is an aviation metal honeycomb structure welded together with a number of rectangular tubes. Stiffeners are placed inside the tubes to strengthen the bed's strength and tensile strength, as well as the resistance and stability of the guide rail, preventing deformation

Lifetime Service

distort over its lifetime

It assures that the machine will perform

accurately for a long period and will not

Higher Precision

High tensile strength, stability, and strength allowing for 20 years of use without distortion

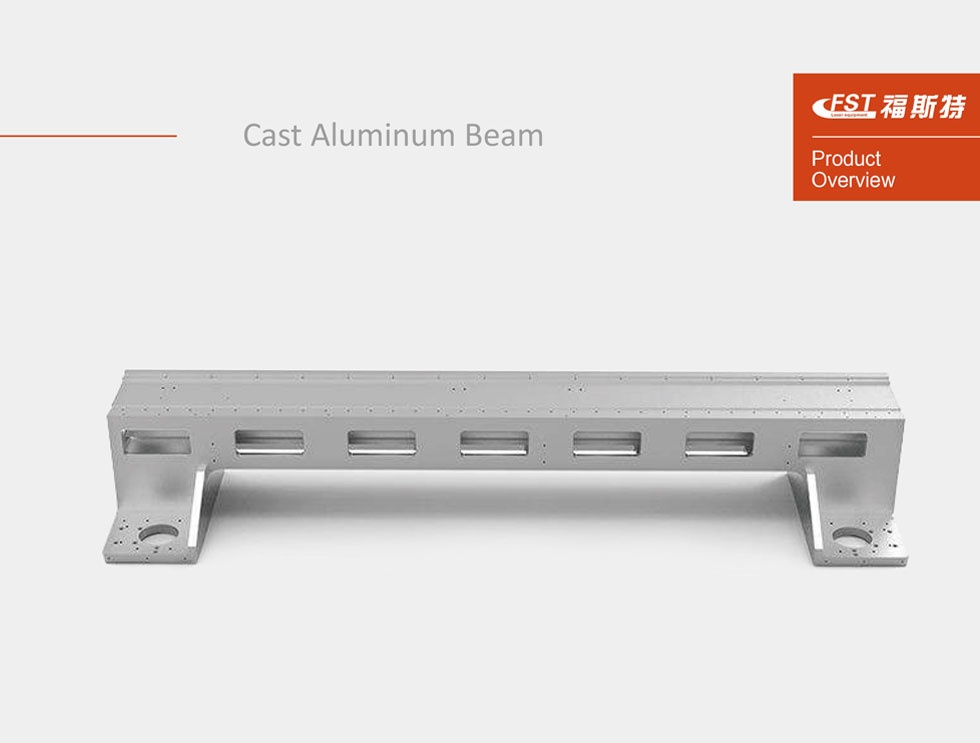

Monolithic cast aluminum beam

No deformation, light weight, high strength Light cross beams allow equipment to operate at a faster rate, boosting processing efficiency and quality

High Speed

The light crossbeam allows the machine to move at a faster rate and enhance cutting efficiency

More Efficient

The aerospace industry's aluminum profile beam ensures that the equipment has efficient dynamic performance, considerably increasing processing efficiency while maintaining processing quality.

Multiple Protection

3 protective lenses, highly effective collimating focus lens protection.2-way optical water cooling extends the continuous working time effectively.

High-precision

To successfully avoid step loss, a closed loop stepping motor is used. The repetition accuracy is 1 M and the focusing speed is 100 m m/s.Dust-proof to IP65, with a patent-protected mirror cover plate and no dead angle.

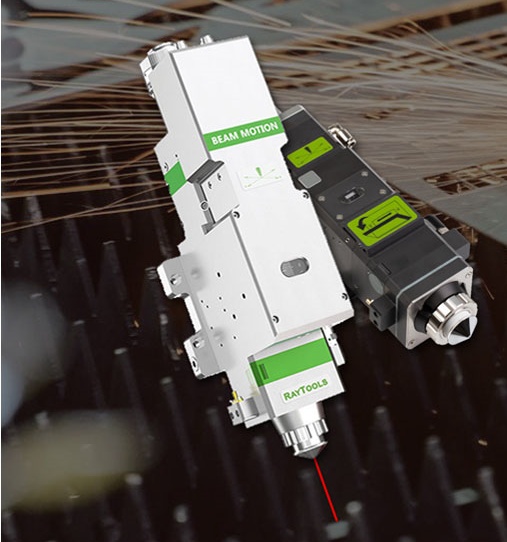

Various Brands Of Laser Head Are Available

We can provide all high quality laser heads. lt has been tested by us for a long time.

CypCut sheet cutting software is an in depth design for fiber laser cutting industry.it simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one.From drawing,nesting to workpiece cutting all can be finished by a few clicks.

1.Auto Optimize Imported Drawing

2.Graphical Cutting Technique Setting

3.Flexible Production Mode

4.Statistic of Production

5.Precise Edge Finding

6.Dual-Drive Error Offset

Main Configuration

Optional Configuration

Technical Parameters

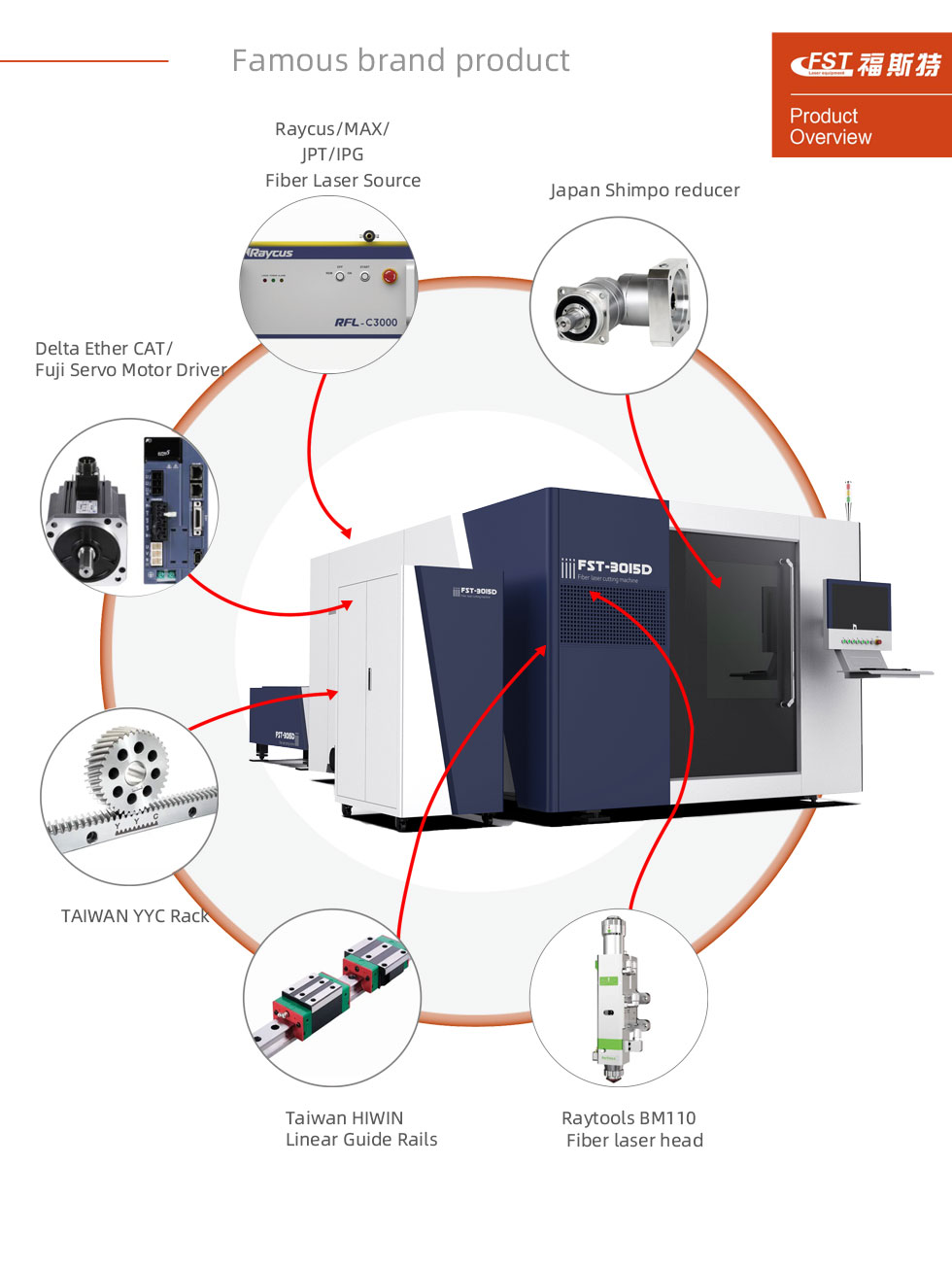

Main Configuration

Model	FST-FM Series
Control System	Empower
Drives and Motors	Delta Ether CAT/Fuji Servo Motor Driver
Fiber Laser Head	Raytools Laser Head
Fiber Source	Raycus or Max or lPG
Lubrication System	Electrical Motored
Guide Rails	Taiwan HIWIN Rails
Rack and Gear	Taiwan YYC Rack
Driver system power	X=0.75/1.3KW,Y=0.75/1.3KW,Z=400W
Reducer	Japan SHIMPO
Electron Component	DELIXI ELECTRIC
Chiller	HanLi /S&A
Voltage	220V 1Ph or 380V 3Ph, 50/60Hz
Gross weight	1.9T

Optional Configuration

Model	Detail
Control System	Empower
Drives and Motors	Delta Ether CAT/Fuji Servo Motor Driver
Fiber Laser Head	RAYTOOLS BM110 Automatic Focus Laser Head
Stabilizer	Made in Chinia
Exhaust fan	3KW
Wooden packing	With metal bracket

Technical Parameters

Model	FST-FM 3015 Fiber Laser Cutting Machine
Working Size	1500*3000mm
Laser Power	1/1.5/2/3/4/6/8/12KW
Laser Wavelength	1080nm
Laser Beam quality	<0.373mrad
Working Life of Fiber Source	More than 10,0000 hours
Position Type	Red Dot Pointer
Cutting Thickness	0.5-10mm Within The Range Standard Precision
Max. ldle Running Speed	80-110M/min
Max acceleration	1G
Reorientation Accuracy	Within ±0.01mm
Lubrication System	Electrical Motored
Cooling mode	Water cooling and protection system
Machine power	9.3KW/13KW/18.2KW/22.9KW
Auxiliary Gas for Cutting	Oxygen,Nitrogen, Compressed Air
Compatible Software	AutoCAD, CorelDraw, etc.
Handle Control	Wireless Control Handle
Graphic Format	DXF/PLT/AI/LXD/GBX/GBX/NC code
Power Supply Voltage	220V 1Ph or 380V 3Ph, 50/60Hz
Warranty	2 Years
