Persisting in High quality, Prompt Delivery, Aggressive Price, now we have established long-term cooperation with consumers from equally overseas and domestically and get new and old clients' large comments for Fiber Laser Cleaning Machine , Industrial Laser Marking Machine , Laser Cutting Machine Metal , Welcomes all overseas friends and merchants to establish collaboration with us. We will provide you with honest, high quality and efficient service to meet your requirements.
2021 High Quality Co2 Laser Machine – 1060 blue laser engraving machine – Foster Detail:

Three lines linear guide
Three lines linear guide

Pass through door

Front and back feed

Three lines linear guide
Three lines linear guide

Ruida Controller system

Offline use, Easy to operate

Three lines linear guide
Three lines linear guide

Ruida Controller system

Offline use, Easy to operate

Three lines linear guide
FIELD-LENS7245

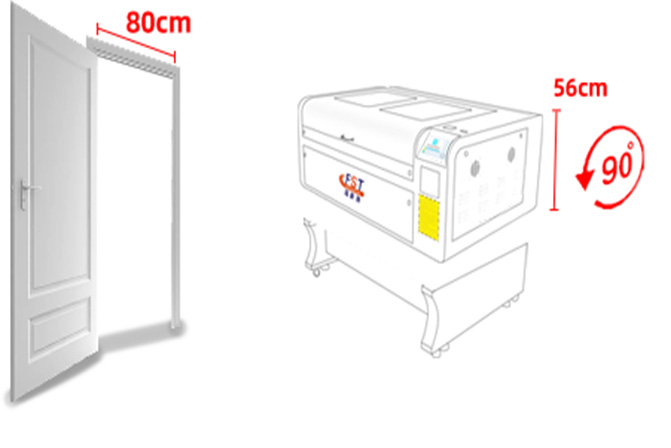

Greatly reduce transportation costs

For container – 40′ HC, if use two part modle, max 45 sets 1060 60W machine can be put in one container, 15 sets more than ordinary models.

FIELD-LENS7245
FIELD-LENS72

INDUSTRIAL LASER HEAD

High precision retractable laser head easy to adjust focal length, equipped with red light positioning system, accurate positioning, reduce material loss. Auto-blowing to protect laser head and prevent the laser burning

FIELD-LENS72
FIELD-LENS72

LASER TUBE

Closed Co2 laser tube , long life stable power Installation of reinforcement settings , the lase tube is not easy to collide and cause damage when moving the machine ( EFR , RECI , CDWJYONGLI , JOY . Optional

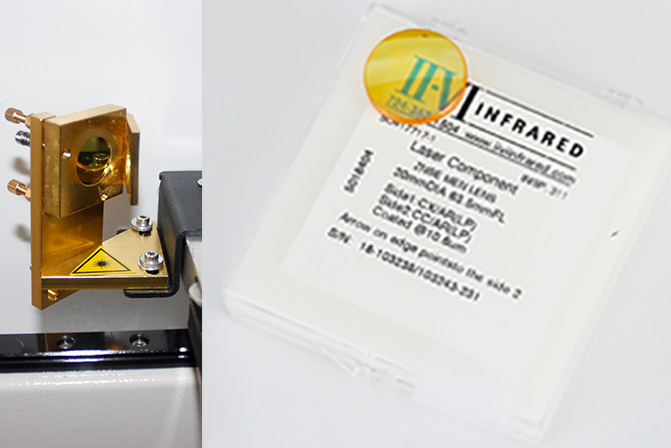

USA II-VI LENS

Imported USA II-VI Lens, suitable for various environments, and has high precision and high speed.

FIELD-LENS72
FIELD-LENS72

FAMOUS BRANID BELT

The ONK brand belt, wear resistance, good stability, compact structure and low noise

LEADING CHAIN

The current lead and breather pipe are included in it .Thicker , more stable Keep the laser head from shaking

FIELD-LENS72

CONTROL PANEL

1.Adopt advanced laser engraving and cutting control system : Ruida RDC6442control system, the control pannal support different language include Chinese ,English, French, Pyccko, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian.

2.Standard Rdworksv8 software : It support 15 different languages, include Chinese ,English, Japanese, French, German, Portuguese, Polish, Spanish Russian, Korean, Vietnamese, Indonesian, Italian, Turkrish, Arabic.
It can compatible With many other software, like Coreldraw, Photoshop AUTOCAD, TAIIMA, etc.
You can use these software to make designs, then import to Rdworks tocut or engrave

3. Rdworks software support files in different format : Al, DXF, PLT, DST, BMP ,DSB, EPS, DAT, NC, RDB, GIF, PG, PEG, PE, FIF, PNG, MNG, CO, CUR, TIF, TIFF, T GA ,PCX, WBMP, WMF, EMF, BG, 2C, JPC, PGX, RAS, PNM, PGM, PPM, SKA, RAW.

4.Storage : The main board has EMS Memory which enables the user to storemore than 100 files.

5. Laser output control : Can regulate the laser power from 1-100% according to different material.

6. Interface : USB 2 . 0 interface support connect to computer by USB cable, it also support offline work.

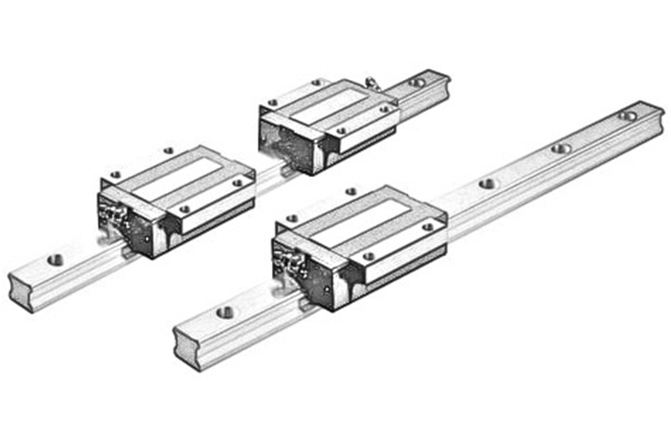

LINEAR GUIDE

XY axis apply imported square rails Ensures stable operation, high precision and long life

FIELD-LENS7213
FIELD-LENS72

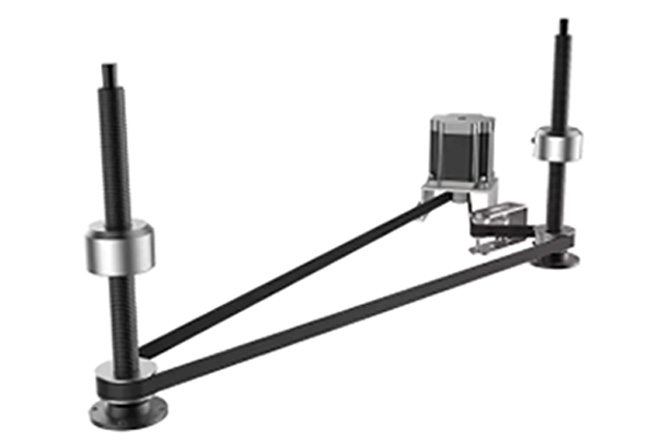

PLATFORM LIFTING

It allows you to process materials of various sizes, can be lifted in Z direction ( up-and- down) to get more working space . ( Optional )

AMPEREMETER

The ammeter can detect whether the laser tube current is normal. ( Optional )

FIELD-LENS72
FIELD-LENS72

SOFTWARE

COREL DRAW Auto CAD Light burn supported

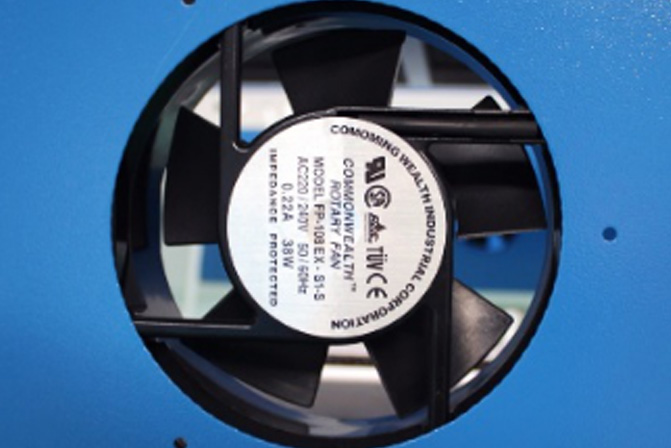

EXHAUST FAN

Removes smoke and dust caused during engraving and cutting

FIELD-LENS72
FIELD-LENS7213

applicable industries

Arts and crafts, advertising, decoration, wood working, leather manuf- acturing, packaging, printing, mould making, furniture, clothing and brand making etc.

Product Video

Specification

Technical Parameters
Technical Parameters

Model FST-1060 / 1040
Worktable honeycomb or Aluminum knife
Eneravingarea 1000*600mm
Laser Power 50W/60W/80W/100W/130W/150W
Engraving Speed 500mm/s Max
Cutting Speed 60mm/s
Cutting Depth (Acrylic) 0-20mm (acrylic)
Up and down wak table Upand dcwn adjustable
Minimum Shaping Character English 1×1 mm (Chinese Characters 2*2mm)
Resolution Ratio 0.0254mm (1000dpi)
Power Supply 220V(orll0V)+/-10% 50Hz
Resetting Positioning Accuracy less than or equal to 0.01mm
Water protecting sensor and alarm Yes
Operating Temperature 0-45°C
Operating Humidity 35-70℃
Graphic Format Supported PLT/DXF/BMP/JPG/GIF/PGN/TIF
Operation System Windews XP/Windows 7/8/10
Software Reworks/ CorelDRAW/ AutoCAD
Control Configuration Ruida
Water Cooling(Yes/No) Yes
Laser Tube Sealed CO2 glass laser tube
