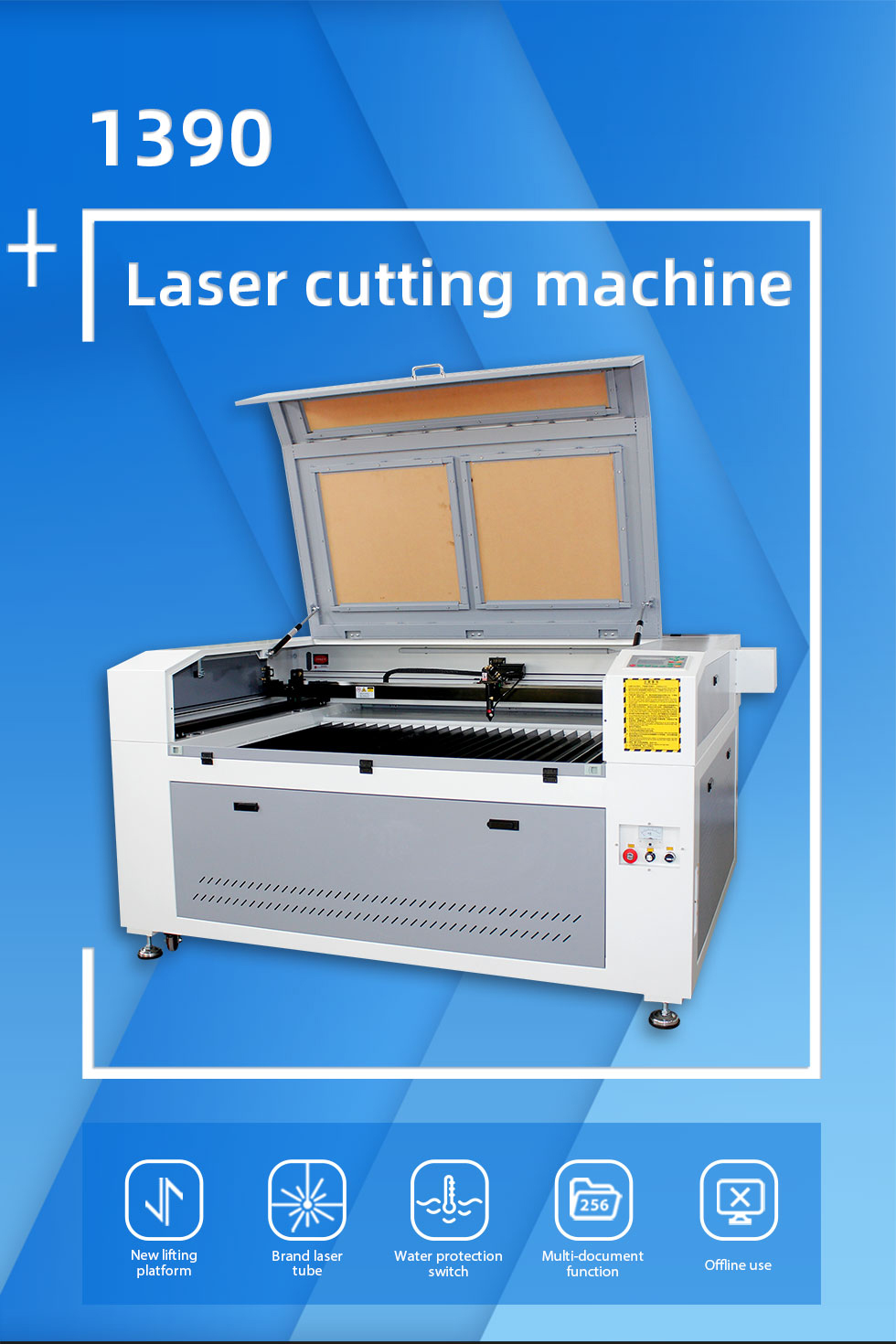

1390 CO2 Laser Engraving Cutting Machine for Wood Acrylic Plywood Leather Plastic MDF

Short Description:

Foster laser CO2 Laser Engraving Machine with different working area,laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather, rubber plate,PVC, paper and other kinds of non metal materials.

1390 laser cutting machine are widely used in clothing, shoes,luggage,computer embroidery clipping, model, electronic appliances,toys, furniture, advertising decoration, packaging and printing, paper products, handicrafts,Household appliances, laser processing and other industries.


Product Detail

Product Tags

laser engraving machine
laser engraving machine-1

ALUMINUM KNIFE

To process hard materials like acrylic,wood and so on.

1
2

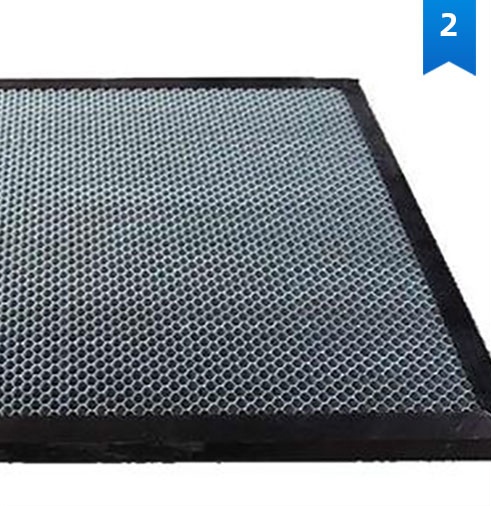

HONEYCOMB WORKTABLE

1 )small holes make sure good supporting performance which is suitable for leather. cloth and other thin soft materials.

2 )The hole of honeycomb worktable is small ,so the small workpiece can be placed on the table surface to be processed.

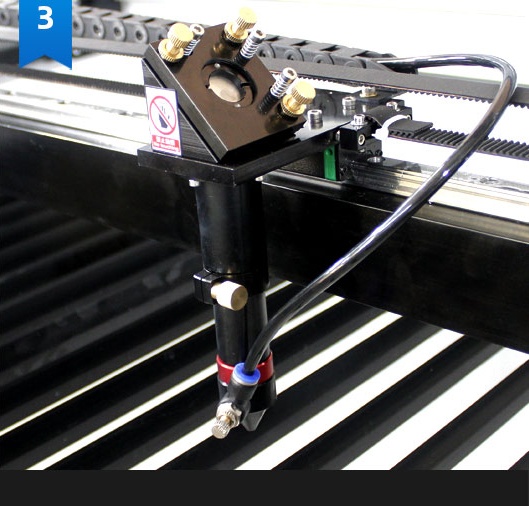

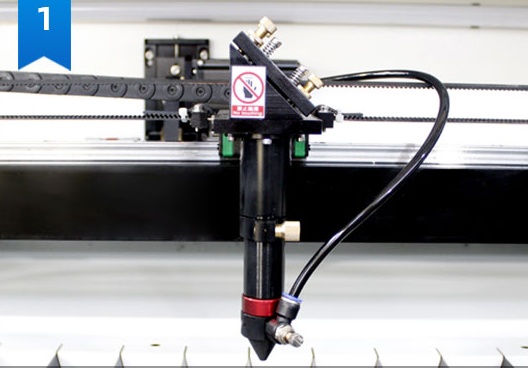

INDUSTRIAL LASER HEAD

High precision retractable laser head easy to adjust focal length, equipped with red light positioning system, ac-curate positioning, reduce material-loss. Auto-blowing to protect laser head and prevent the laser burning

3
4

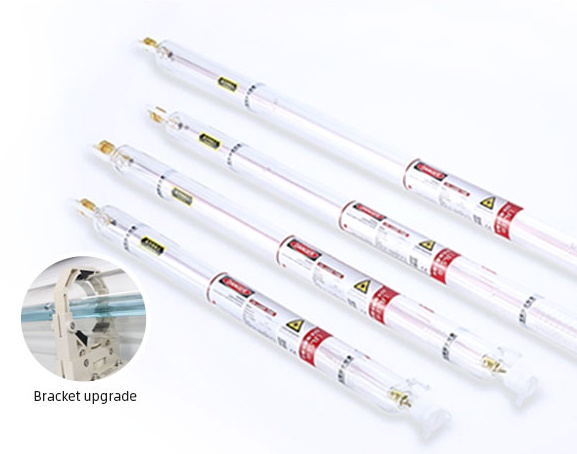

Laser Tube

Closed Co2 laser tube, long life,stable power. installation of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine.(EFR, RECI, CDW)YONGLl, joY. optional)

PRODUCT DETAILS
PRODUCT DETAILS

Model

1390
Worktable honeycomb or blade
Engraving area 1300*900mm
Laser Power 60w/80w/100w/150w/300w
Engraving Speed 0-60000mm/min
Engraving Depth 5mm
Cutting speed 0-5000mm/min
Cutting Depth (Acrylic) 0-30mm (acrylic)
Up and down worktable Ec Up and down 550mm adjustable
Minimum Shaping character 1X 1mm
Resolution Ratio 0.0254mm (1000dpi)
Power supply 220V(or110V)+/-10% 50Hz
Resetting Positioning Accuracy less than or equal to 0.01mm
Water protecting sensor and alarm Yes
Operating Temperature 0-45℃
Operating Humidity 35-70C
Graphic Format Supported PLT/DXF/BMP/JPG/GIF/PGN/TIF
Operation System Windows98/ME/2000/XP/VISTA/Windows 7/8
Software RD Works/Laser CAD
Engraving on Curve Surfaces(Yes/No) NO
Control configuration DSP
Water cooling(Yes/No) Yes
Maximum Height Of Materials To Engrave(mm) 120mm
Laser Tube Sealed Co2 glass laser tube

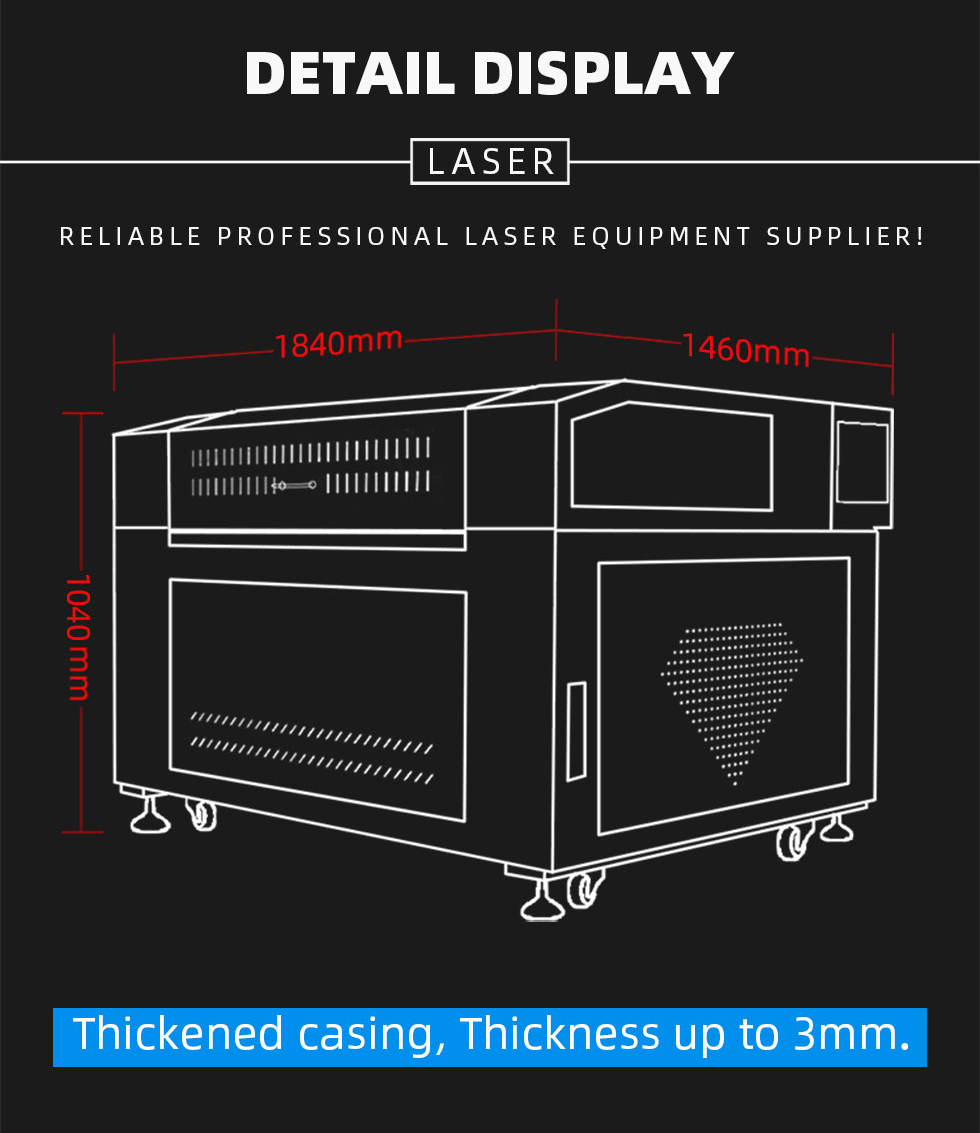

Machine Dimension 1840x1400x1030(mm)
Packing Dimension 2040x1600x1320mm
Gross Weight 410kg
