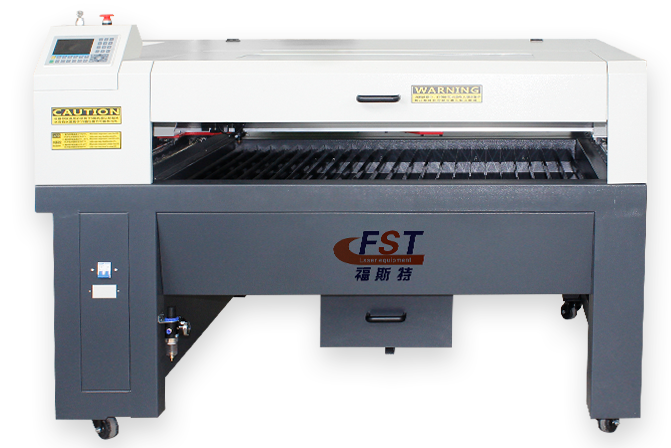

1390 ball screw laser engraving machine

Short Description:

Advantages of CO2 laser cutting machine with ball screw
1.High configuration , high precision，super stability.

2.Japanese Mitsubishi servo motors，drivers : Best precision.

3.High accuracy Taiwan TBI ball screw transmission & Taiwan TBL Linear guide promote smooth & precise laser movement.

4.Ball screws transmission—high transmission efficiency , Low friction loss , durable , long service life.

5.Strong machine frame—we adopt firm and strong machine frame to make sure machine working with high performance.

Send email to us Download as PDF

Product Detail

Product Tags

FUSELAGE

It is welded by square tubes and treated by vibration aging and natural aging

X AXIS

X-axis aluminum profile is high-strength aviation aluminum.

High strength , permanent non-deformation, finished by gantry milling.

Y AXIS

Y-axis is finished by gantry milling Compared with common ordinary models ( using aluminum profiles ), it is more stable, firm and high precision.

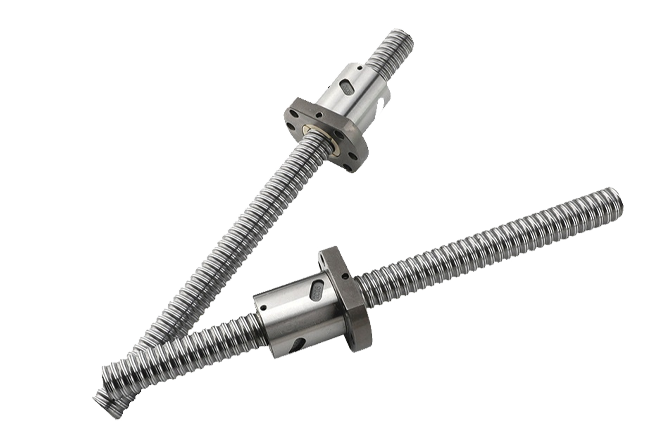

BALL SCREW

Taiwan TBI ball screw , high precision , high speed high stability.

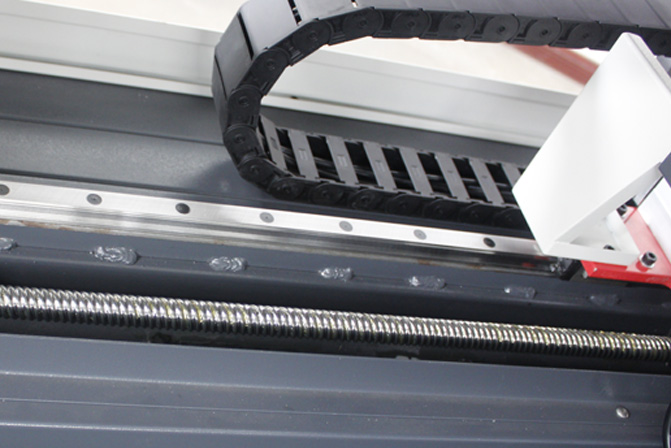

ELINEAR GUIDE RAIL

Taiwan TBI linear guide , high precision, high speed high stability

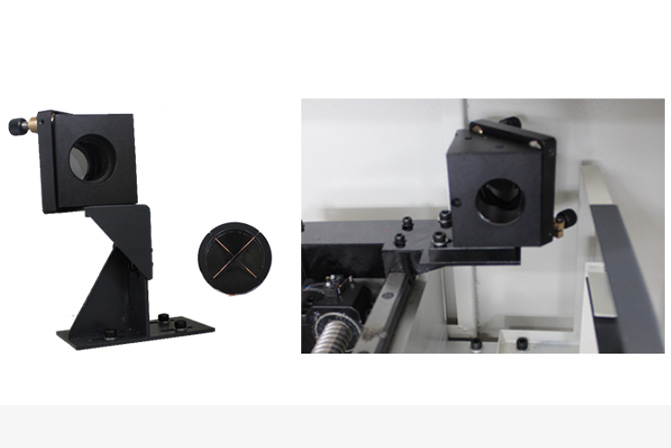

HIGH PRECISION MIRROR HOLDER

High precision mirror holder. Stable light path to ensure cutting quality and cutting speed.

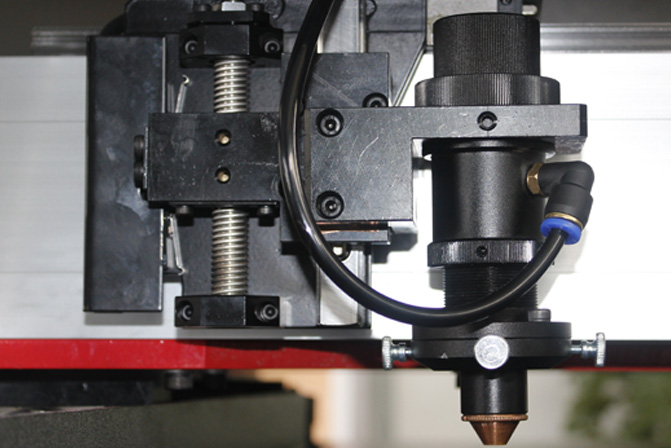

HIGH PRECISION LASER HEAD

Double focus laser head. No need to calibrate the light path and adjust the focal length, which is more convenient and quick.

CONTROL SYSTEMRUIDA 6445

Rdc6445a system is the latest generation of laser engraving cutting control system developed by Ruida technology . The control system has better hardware stability , better anti-high voltage and anti-static characteristics . The man-machine operation system based on 5 inch color screen has more friendly operation interface and more powerful functions.The controller includes more perfect and excellent motion control function , large capacity file memory , more compatible two-way independently adjustable laser power control interface , more compatible U disk driver , multi-channel general/ special lO control , communication with PC , support Ethernet communication and USB communication . automatic selection , etc . The controller can support fixed single / double laser head processing , double head mutual moving processing and super format cutting processing . Its extended model can also support mark point visual positioning cutting , large panoramic visual cutting , projection cutting , double asynchronous and other functions.

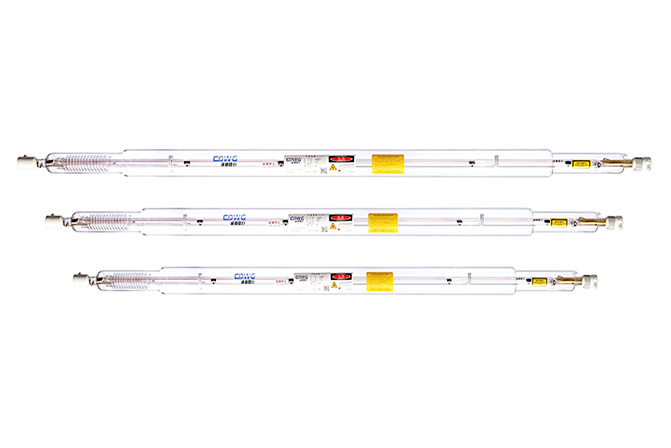

HIGH PRECISION LASER TUBE

Closed Co2 laser tube, long life, stable power Installation of reinforcement settings , the laser tube is not easy to collide and Cause damage when moving the machine. ( EFR, RECL, CDWG, YONGLI, JOY. Optional.)

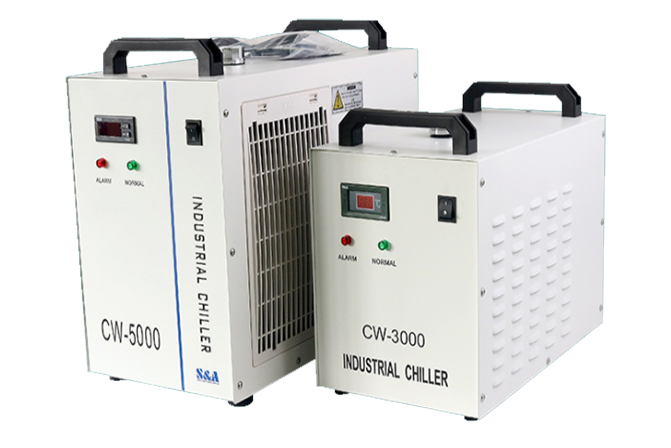

WATER CHILLER

Best in china, it is for cooling the laser tube after water fill in the pipe when machine is working

EXHAUST FAN

Removes smoke and dust caused during engraving and cutting.

SOFTWARE

Coreldraw and CAD control directly Advanced working software which can be embedded into Coredraw and CAD User can operate the machine buy Coredraw or CAD software directly.

Product Video

Specification

Technical Parameters

Machine model	co2 laser cutting machine with ball screw
Laser power	150w/180w/220w/300w
Beam quality	M2W11
Table size	1250mmX 900mm
Max load-bearing of platform	200KG
Max cutting thickness	Acrylic:25mm
Repetition accuracy	±0.005
X-axis	1250mm
Length Y-axis	900mm
Z-axis	30mm
Working vo tage	110V/220V50-60HZ
Machine size	1750mmxl600mmxl200mm (LxWxH)
Net weight	450 kg
