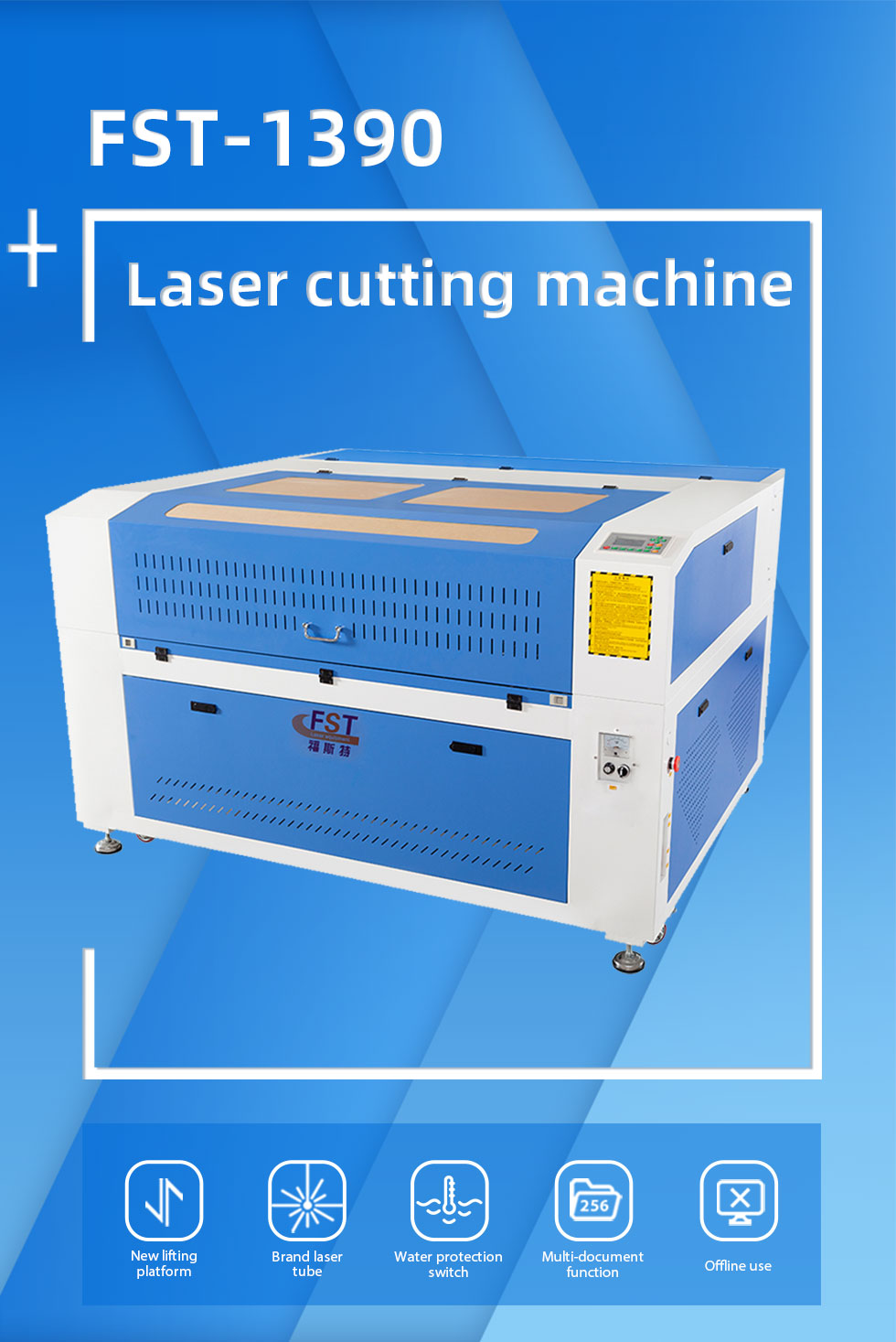

1390 60w 80w 100w 130w co2 acrylic leather MDF laser engraving cutting machine price

Short Description:

Foster laser CO2 Laser Engraving Cutting Machine with different working area,laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of non metal materials 1390 laser cutting machine are widely used in clothing, shoes, luggage, computer embroidery clipping,model, electronic appliances, toys, furniture, advertising decoration, packaging and printing paper products,handicrafts.Household appliances,laser processing and other industries

Send email to us Download as PDF

Product Detail

Product Tags

ALUMINUM KNIFE

To process hard materials like acrylic,wood and so on.

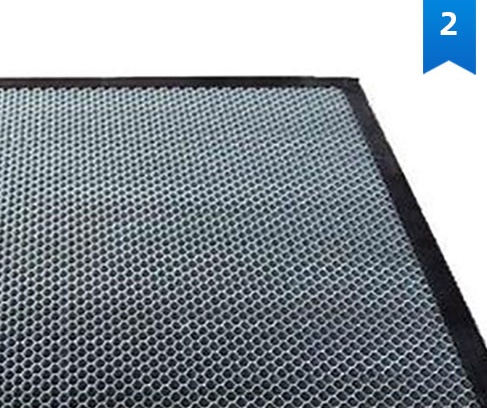

HONEYCOMB WORKTABLE

1 )small holes make sure good supporting performance which is suitable for leather. cloth and other thin soft materials.

2 ) The hole of honeycomb worktable is small , so the small workpiece can be placed on the table surface to be processed.

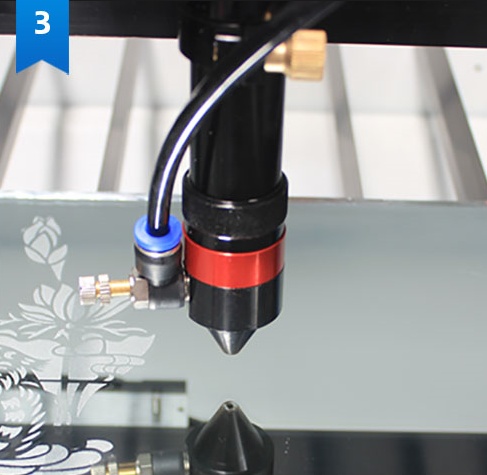

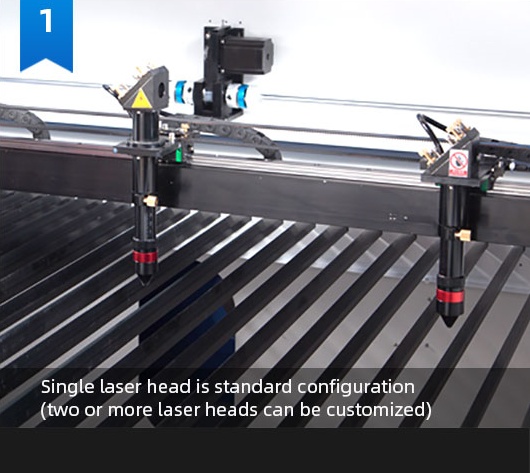

INDUSTRIAL LASER HEAD

High precision retractable laser heade easy to adjust focal length, equipped with red light positioning system, accurate positioning, reduce materialloss

Auto-blowing to protect laser head and prevent the laser burning

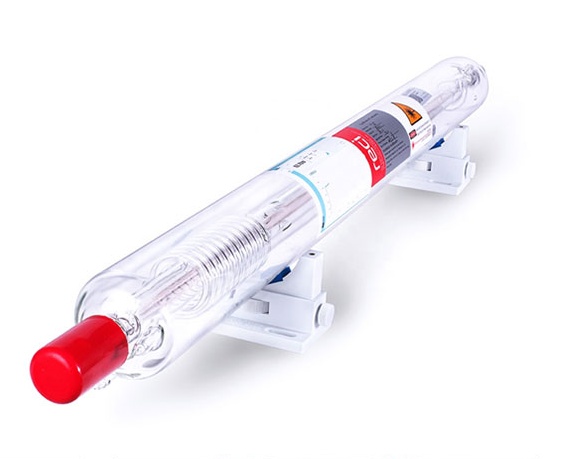

Laser Tube

Closed Co2 laser tube, long life,stable power.installation of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine.(EFR, RECI, CDW)YONGLl, JOY.optional)

Specification

PRODUCT DETAILS

Model	FST-1390
Worktable	honeycomb or blade
Engraving area	1300*900mm
Laser Power	60w/80w/ 100w/150w/ 300W
Engraving Speed	0-60000mm/min
Engraving Depth	5mm
Cutting Speed	0-5000mm/min
Cutting Depth (Acrylic)	0-30mm (acrylic)
Up and down worktable	Ec Up and down 550mm adjustable
Minimum Shaping Character	1 X 1mm
Resolution Rato	0.0254mm (1000dpi)
Power supply	220V(or110V)+/-10% 50HZ
Resetting Positioning	Accuracy less than or equal to 0.01mm
Water protecting sensor and alarm	Yes
Operating Temperature	0-45℃
Operating Humidity	35-70C
Graphic Format supported	PLT/DXF/BMP/JPG/GIF/PGN/TIF
Operation System	Windows 98/ME/2000/XP/VISTA/Windows 7/8
Software	RDWorks/LaserCAD
Engraving on curve Surfaces(Yes/No)	NO
Control Configuration	DSP
Water cooling(Yes/No)	Yes
Maximum Height Of Materials To Engrave(mm)	120mm
Laser Tube	Sealed C02 glass laser tube
Machine Dimension	1840x1400x1030(mm)
Packing Dimension	2040x1600x1320(mm)
Gross Weight	410kg
