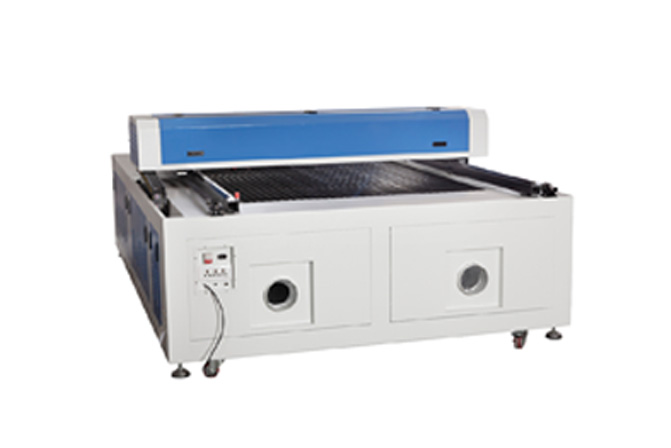

1325 Fabric Textile Cloth Laser Cutter Machine Co2 Cnc Laser Cutting Machine For Nonmetal

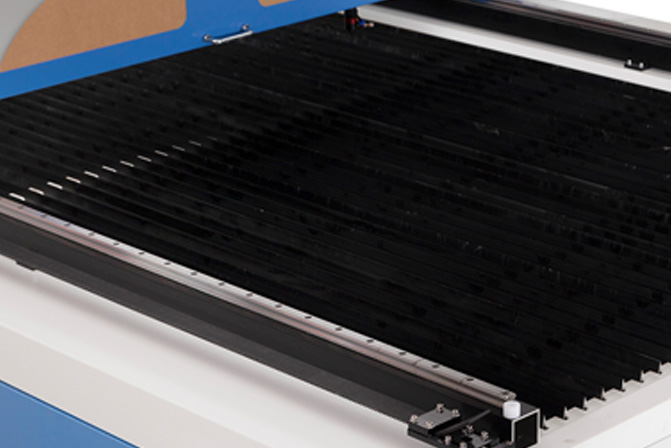

Aluminum knife
To process hard materials like acrylic, wood and so on
Honeycomb worktable
1. Small holes make sure good supporting performance which is suitable or leather . cloth and other thin softmaterials.
2. The hole of honeycomb worktable is small , so the small work piece can be placed on the table surface to be processed.

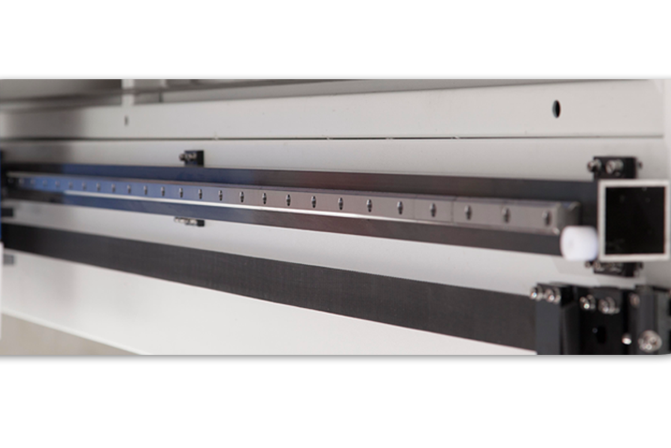

IMPORTED LINEAR GUIDE
Three imported linear guides to make the cutting precision and curve of the work piece more precise and smooth.

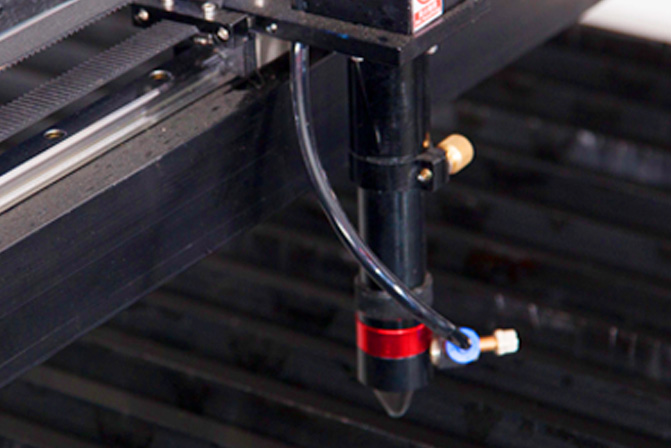

INDUSTRIAL LASER HEAD
High precision retractable laser head, easy to adjust focal length, equipped with red light positioning system, accurate positioning, reduce material loss Auto-blowing to protect laser head and prevent the laser burning.

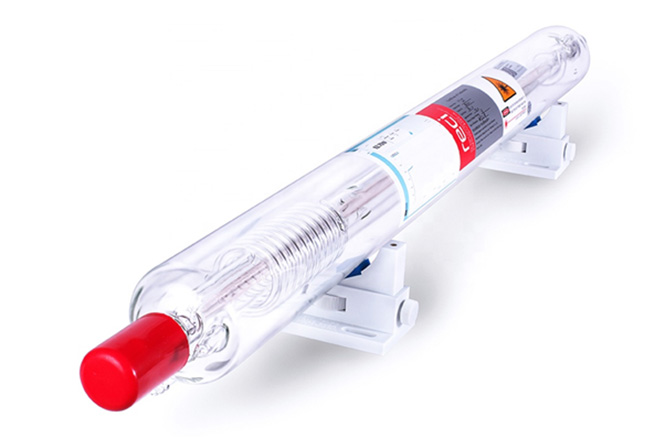

LASER TUBE
Closed Co2 laser tube, long life, stable power Installation of reinforcement settings , the laser tube is not easy to collide and cause damage when moving the machine( EFR, RECI, CDW. YONGLIJOY. Optional )

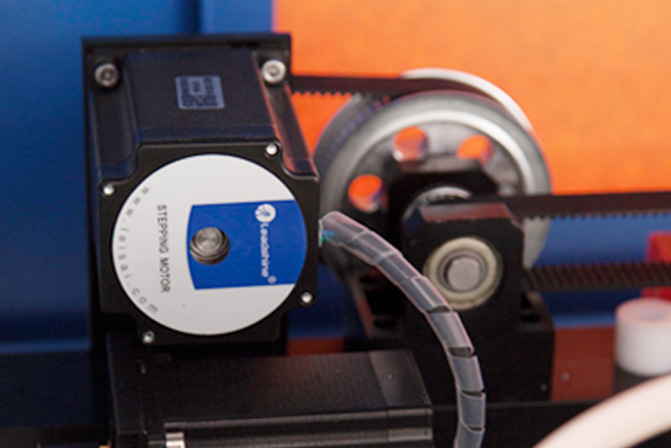

BRAND STEPPER MOTOR
High operating accuracy, high temperature resistance, can bear the high temperature generated by high-speed operation, and low noise.

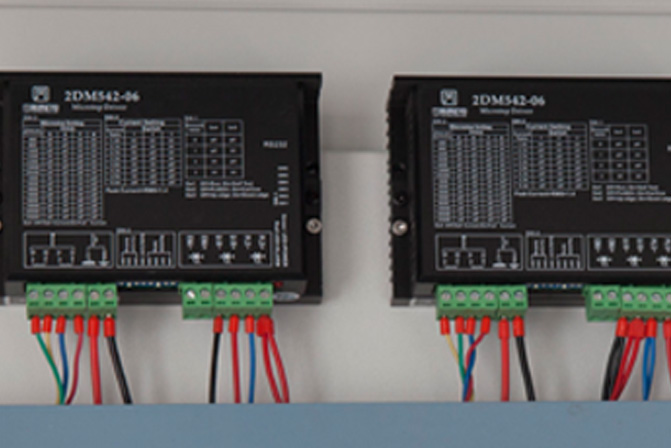

HIGH SPEED STEPPER SUBDIVISION DRIVER CONTROL SYSTEM
Adopt Chinese Top Brand “Leadshine” Step Motor and Driving System Numeral timing Simulation quantum control laser power. Little error, repetition high precision.

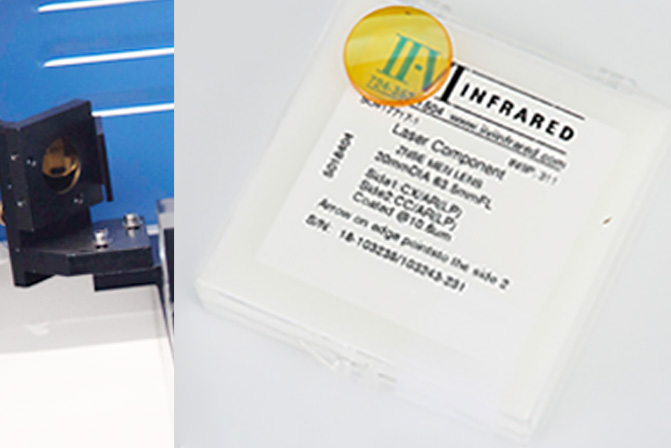

USA II-VI LENS
Imported USA II-VI Lens, suitable for vanous environments, and has high precision and high speed.

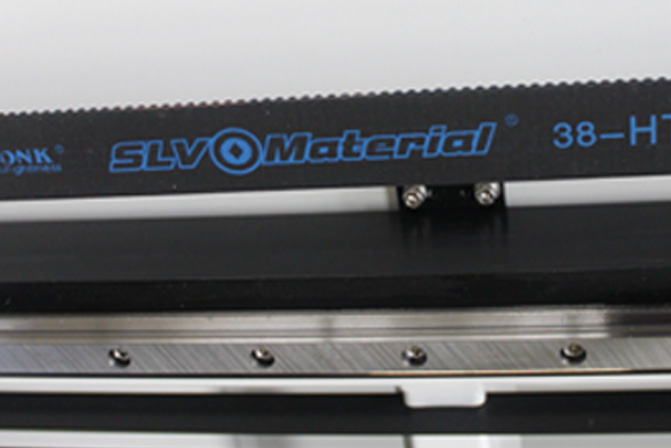

FAMOUS BRAND BELT
The ONK brand belt, wear resistance,good stability, compact structure and low noise

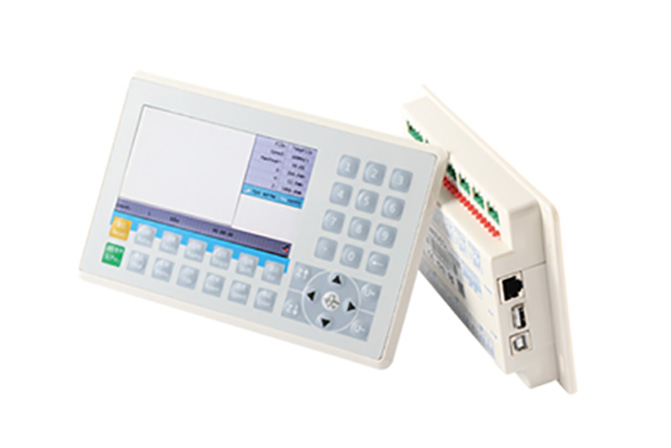

MAIN BOARD
Multl-language in LCD panel Ruida.The interface of the control panel Is simple ,easy to learn , easy to operate and the system is stable.

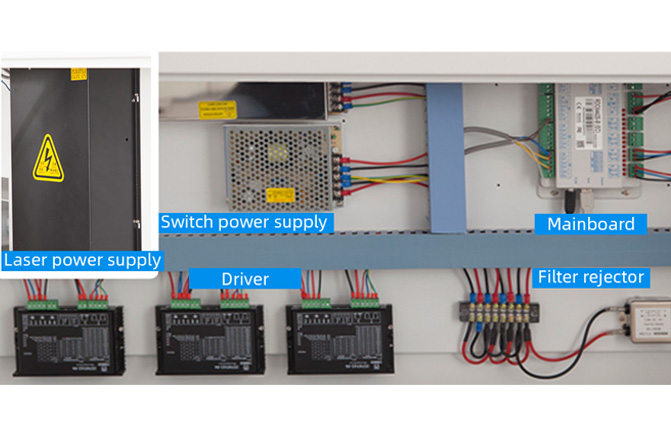

POWER DISTRIBUTION BOX
Machine detail Take every detail seriously to ensure that the machine is stable working during service to every customer.

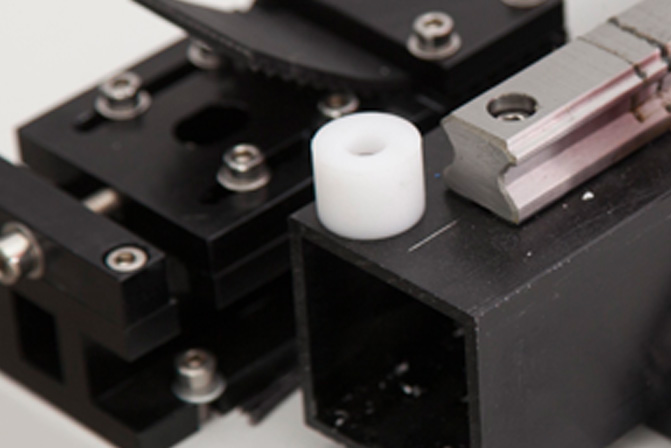

LIMIT SWITCH
Prevent hitting of moving system

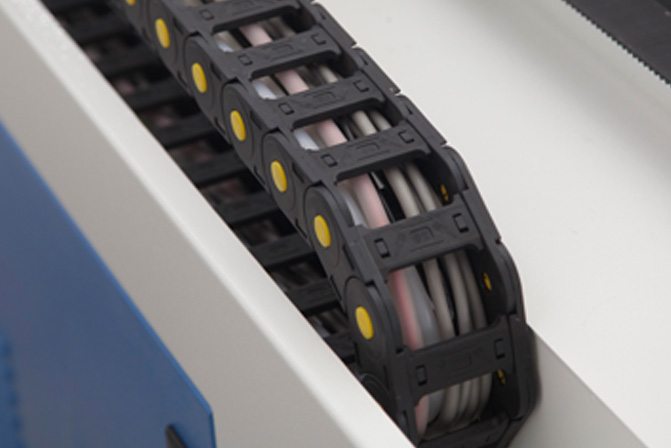

LEADING CHAIN
The current lead and breather pipe are included in it. Thicker ,more stable. Keep the laser head from shaking.

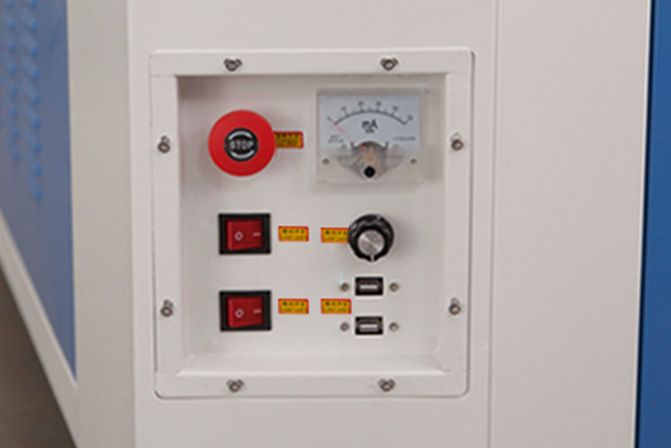

SWITCH
Key switch, emergency stop, LED light, Amperemeter. USB interface USB cable . Two kinds of transmission fies.
Features
1. Adopt advanced laser engraving and cutting control system : Ruida RDC6442control system, the control pannal support different language include Chinese, English, French, Pyccko, Portuguese, Tukish, German, Spanish, Vietnamese, Korean, Italian
2. Standard Rdworksv8 software : It support 15 different languages, clude : Chinese, English, Japanese, French, German, Portuguese, Polish, Spanish, Russian, Korean, Vietnamese, Indonesian, Italian, Turkrish, Arabic
It can compatible with many other software, like Coreldraw, Photoshop,AUTOCAD, TAJIMA, etc.
You can use these software to make designs, then import to Rdworks to cut or engrave
3. Rdworks software support files in different format : Al, DXF, PLT, DST, B -MP, DSB, EPS, DAT, NC, RDB, GIF, JPG, JPEG, JPE, JFIF, PNG, MNG, ICOCUR, TIF, TIFF, TGA, PCX, WBMP, WMF, EMF, JBG, J2C, JPC, PGX, RASPNM. PGM. . RAW
4. Storage : The main board has EMS Memory which enables the user to store more than 100 files
5. Laser output control : Can regulate the laser power from 1-100% according to different material .
6. Interface : USB2. 0 interface support connect to computer by USB cable, it also support offline work.
Coreldraw and CAD control directly
Advanced working software which can be embedded into Coredraw and CAD User can operate the machine buy Coredraw or CAD software directly
Smoke vent
A smoke exhaust system and a high-power centrifugal fan are installed behind the machine. Strong power, good smoke exhaust effect and long life.

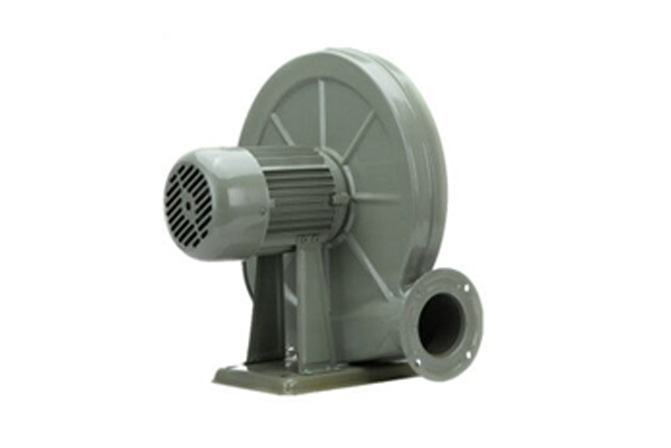

Smoke extractor
Removes smoke and dust caused during engraving and cutting.
Water chiller
Best in china, it is for cooling the laser tube after water fill in the pipe when machine is working.

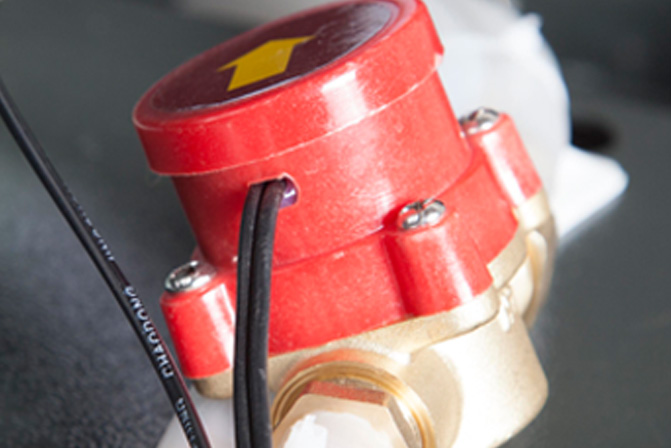

Water protection
Stop the laser and protect the laser tube when the water is cut off.

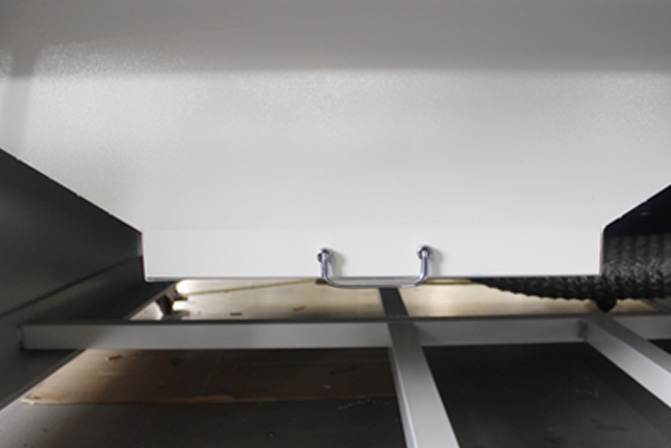

Waste disposal drawer
Drawer-type sample box, no sample is lost after cutting, convenient and easy to take out.

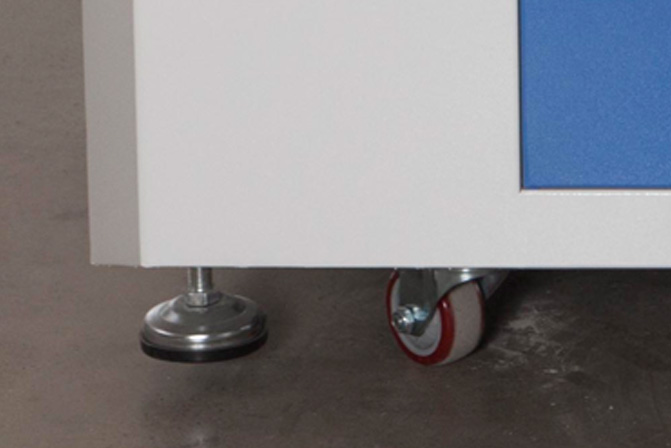

Universal wheelmachine holder feet
The universal wheel at the bottom allows you to easily move the position of the machine, And there are ground feet to increase the machine's balance Performance.

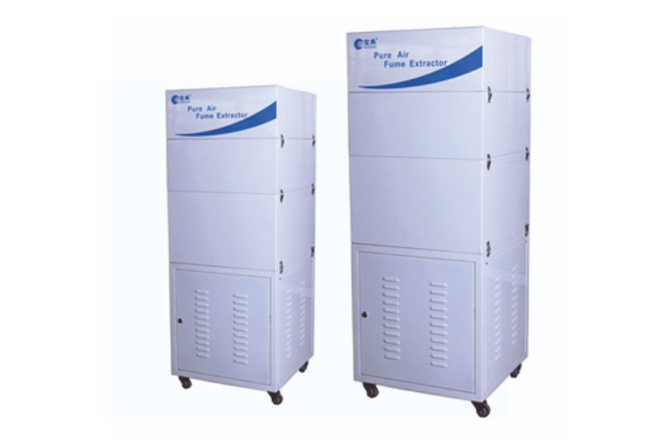

Smoke purifier ( optional )
Extract smoke dust, smell. oil and clean the air to avoid pollute theenvironment . It can be used in laser cutting, engraving, marking industries. We will equip depending on customer's demand.
