Laser cutter 1060 100x60cm laser engraving machine 80w 100w co2 laser cutting machine price

Short Description:

Advantages of FST- 1060 laser cutting machine

1. Aluminum knife or honeycomb table. Two kinds of of tablesare available for different material.

2. CO2 Glass sealed laser tube China famous brand ( EFR , Reci )good beam mode stability, long service time.

3. Imported lens and mirrors. High transmittance, good focusing, reflection effect.

4. Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.

5. High accuracy stepper motors and drivers. Belt transmission.

6. Tiwan Hiwin Linear square guide rails, higher precision.

7. Open style, the front and back of the machine is open which ispossible for longer material , break through the limit of the workpiece length.

8. Rotate cutting available.

Application Materials:

Acrylic, Plexiglas, double color board, ABS board, PVC board, bamboo, MDF, wood, paper, leather, fabric, wool, rubber, resin etc

Application Industry:

Advertisement, Garments sampling, Small width tailoring, leather industry, shoe making, decoration, furniture, packing and printing, model industry, craftwork and gift, etc

Send email to us Download as PDF

Product Detail

Product Tags

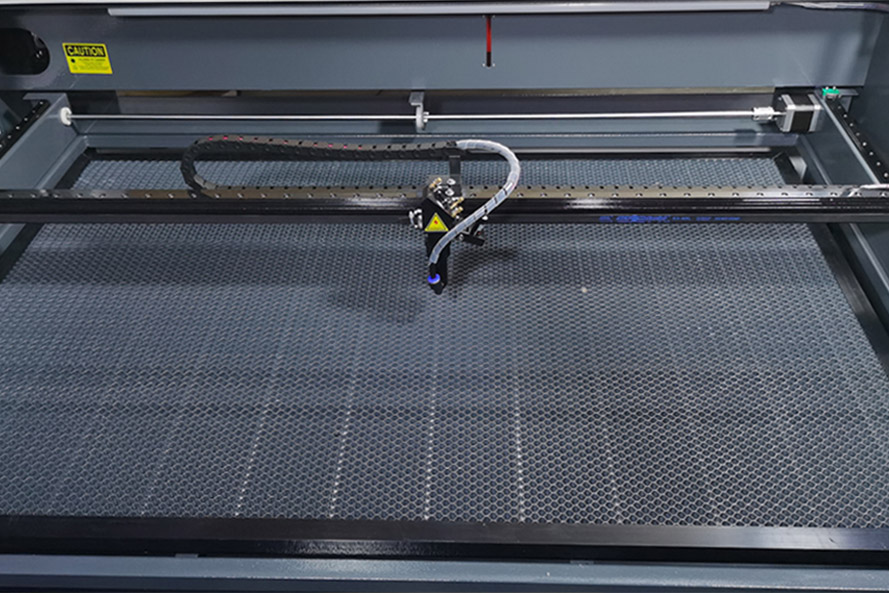

WORK AREA

1000x600mm work area

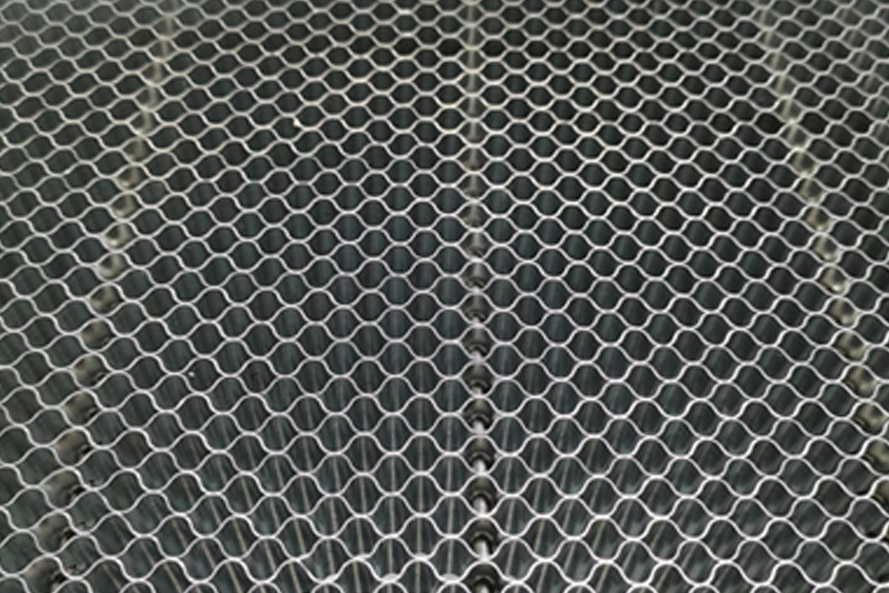

Honeycomb worktable*

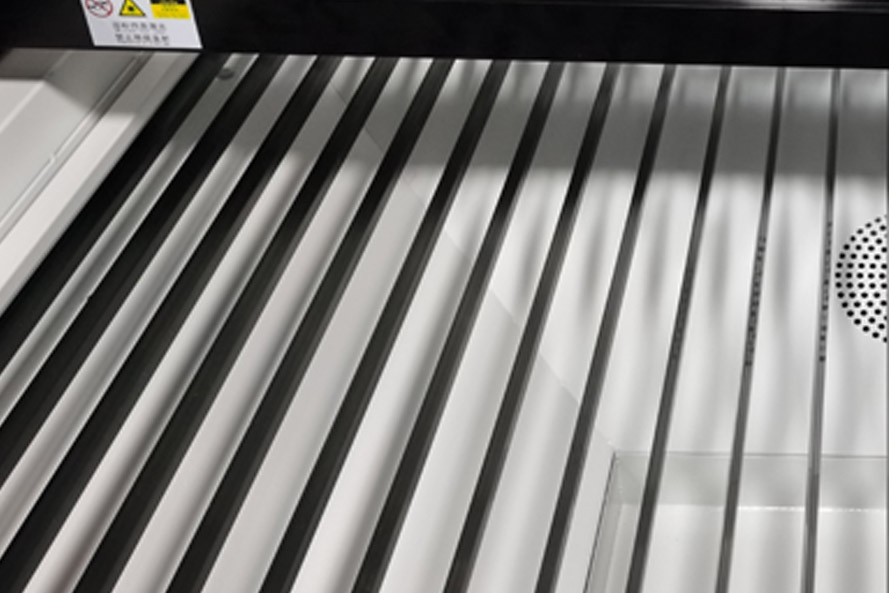

Aluminum knife*

*You can choose one or two. It depends on the needs of the customer.

INDUSTRIAL LASER HEAD

High precision retractable laser head, easy to adjust focal length , equipped with red light positioning system, accurate positioning, reduce material loss. Auto-blowing to protect laser head and prevent the laser burning.

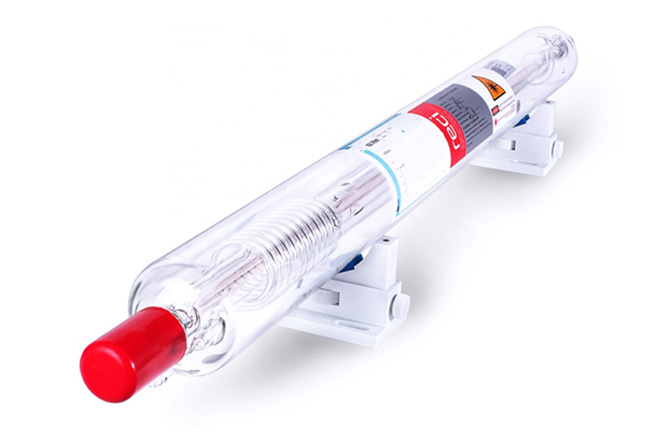

LASER TUBE

Closed Co2 laser tube, long life stable power Installation of reinforcement settings, the lase tube is not easy to collide and cause damage when moving the machine ( EFR, RECI, CDWJYONGLI, JOY. Optional

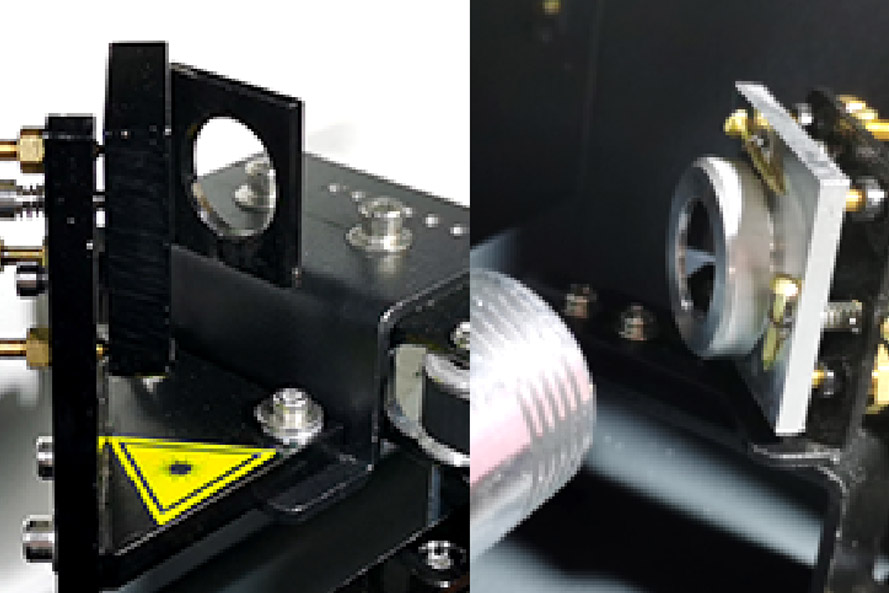

REFLECTOR

45°mirror adiustment set. Easy to adjust laser path.

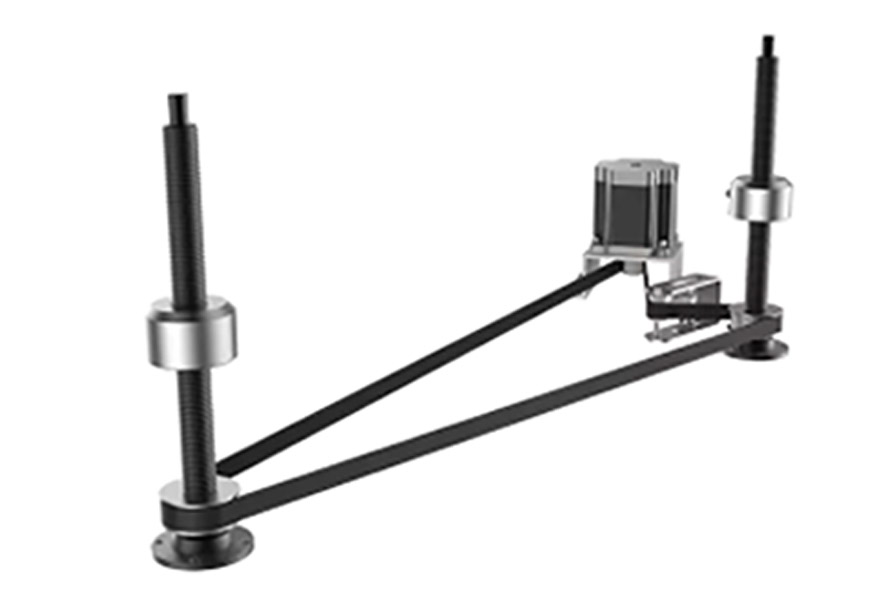

PLATFORM LIFTING

It allows you to process materials ofvarious sizes can be lifted in Z direction( up-and-down ) to get more workingspace.

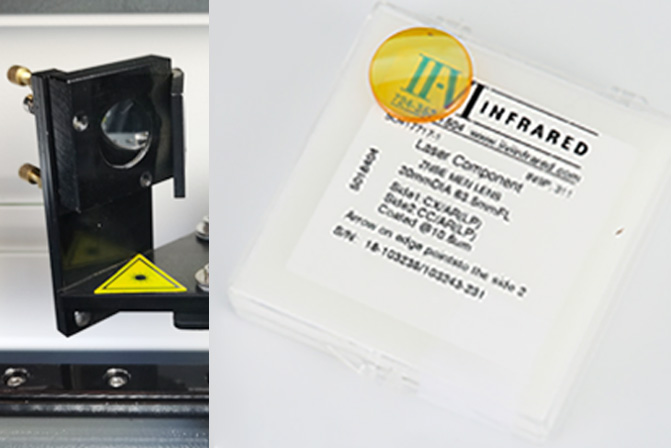

USA II-VI LENS

Imported USA II-VI Lens, suitable for various environments, and has high precision and high speed.

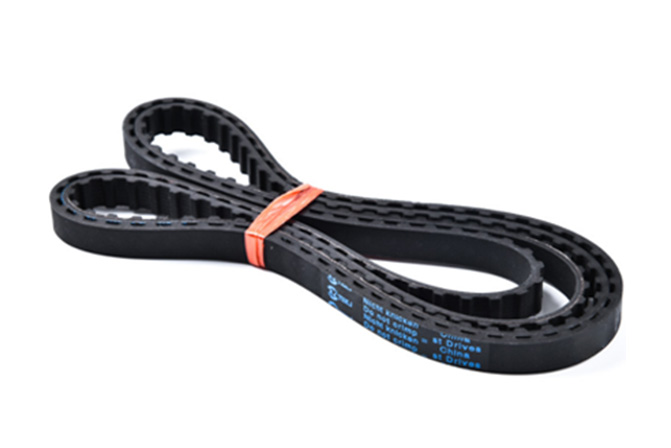

FAMOUS BRANID BELT

The ONK brand belt, wear resistance good stability, compact structure and low noise.

LEADING CHAIN

The current lead and breather pipe are included in it. Thicker. more stable. Keep the laser head from shaking.

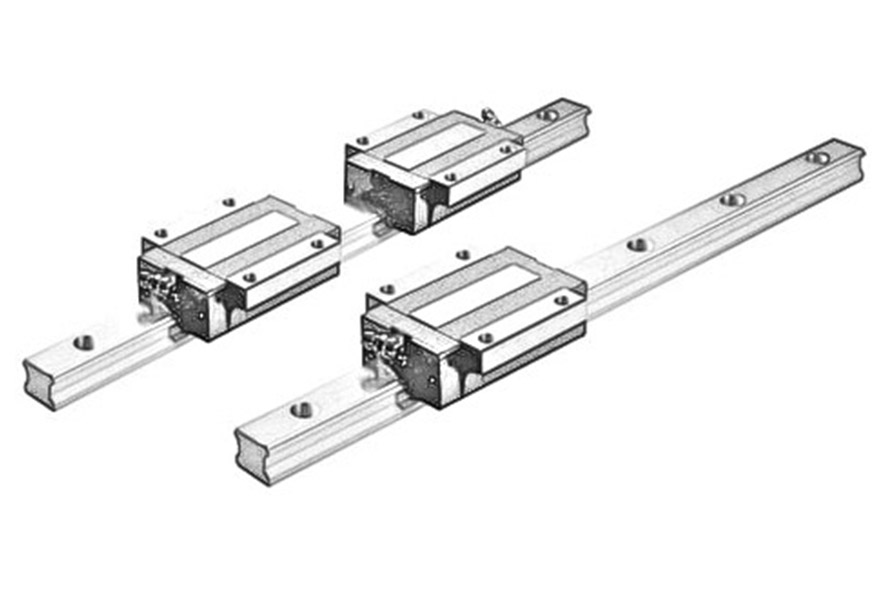

LINEAR GUIDE

XY axis apply imported square rails. Ensures stable operation, high precision and long life.

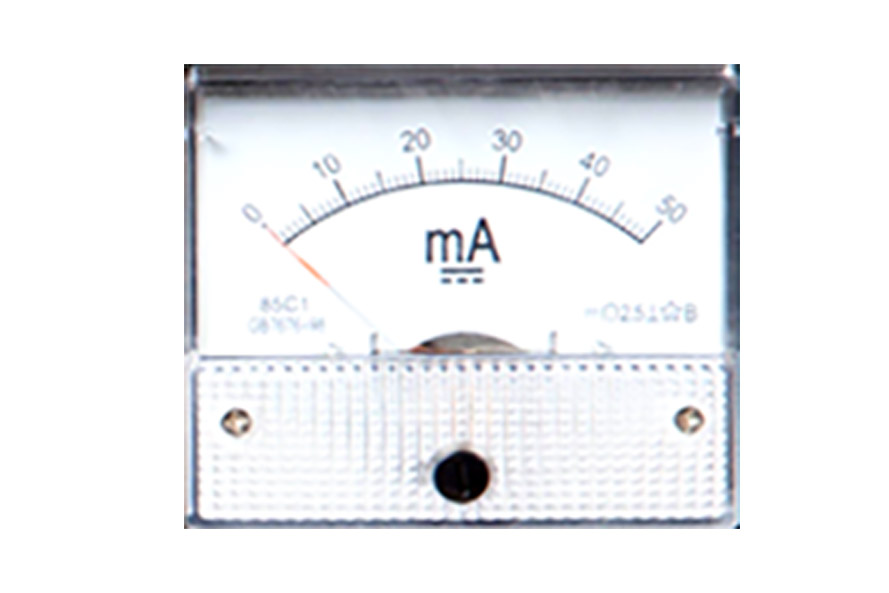

AMPEREMETER

The ammeter can detect whether the laser tube current is normal. ( Optional )

SUPPORTED SOFTWARE

Coreldraw and CAD control directly. Advanced working software which can be embedded into Coredraw and CAD. User can operate the machine buy Coredraw or CAD software directly.

CONTROL PANEL

1. Adopt advanced laser engraving and cutting control system : Ruida RDC6442control system, the control pannal support different language include Chinese, English, French, Pyccko, Portuguese, Tukish, German, Spanish, Vietnamese, Korean, Italian

2. Standard Rdworksv8 software : It support 15 different languages, clude : Chinese, English, Japanese, French, German, Portuguese, Polish, Spanish, Russian, Korean, Vietnamese, Indonesian, Italian, Turkrish, Arabic

It can compatible with many other software, like Coreldraw, Photoshop,AUTOCAD, TAJIMA, etc.

You can use these software to make designs, then import to Rdworks to cut or engrave

3. Rdworks software support files in different format : Al, DXF, PLT, DST, B -MP, DSB, EPS, DAT, NC, RDB, GIF, JPG, JPEG, JPE, JFIF, PNG, MNG, ICOCUR, TIF, TIFF, TGA, PCX, WBMP, WMF, EMF, JBG, J2C, JPC, PGX, RASPNM . PGM. RAW

4. Storage : The main board has EMS Memory which enables the user to store more than 100 files

5. Laser output control : Can regulate the laser power from 1-100% according to different material .

6. Interface : USB2 . 0 interface support connect to computer by USB cable, it also support offline work.

Security protection

Ensure the safe operation of the machine and the safe use of electricity

Product Video

Specification

Technical Parameters

Model	FST-1060 / 1040
Worktable	honeycomb or Aluminum knife
Eneravingarea	1000*600mm
Laser Power	50W/60W/80W/100W/130W/150W
Engraving Speed	500mm/s Max
Cutting Speed	60mm/s
Cutting Depth (Acrylic)	0-20mm (acrylic)
Up and down wak table	Upand dcwn adjustable
Minimum Shaping Character	English 1x1 mm (Chinese Characters 2*2mm)
Resolution Ratio	0.0254mm (1000dpi)
Power Supply	220V(orll0V)+/-10% 50Hz
Resetting Positioning	Accuracy less than or equal to 0.01mm
Water protecting sensor and alarm	Yes
Operating Temperature	0-45°C
Operating Humidity	35-70℃
Graphic Format Supported	PLT/DXF/BMP/JPG/GIF/PGN/TIF
Operation System	Windews XP/Windows 7/8/10
Software	Reworks/ CorelDRAW/ AutoCAD
Control Configuration	Ruida
Water Cooling(Yes/No)	Yes
Laser Tube	Sealed CO2 glass laser tube
