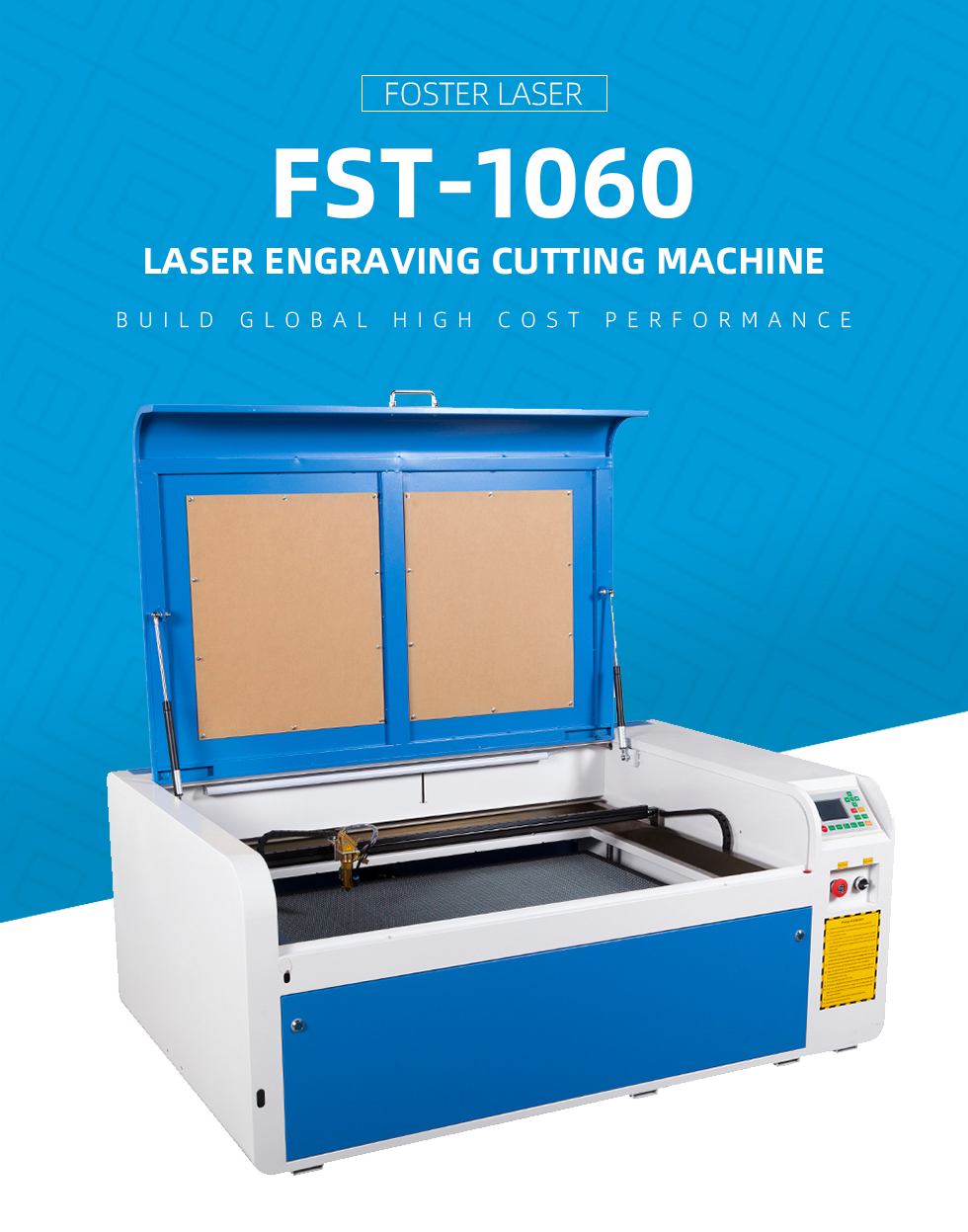

1060 Laser Cutting Machine Engraving Machine Co2 80w 100w Laser Acrylic Cutting Machine

Short Description:

Application Materials:Acrylic, Plexiglas,double color board, ABS board,PVC board,bamboo, MDF, wood,paper ,leather,fabric, wool,rubber, resin etc

Application Industry: Advertisement, Garments sampling, Small width tailoring, leather industry, shoe making, decoration, furniture, packing and printing, model industry, craft work and gift, etc.


Product Detail

Product Tags

1060 engraving
11

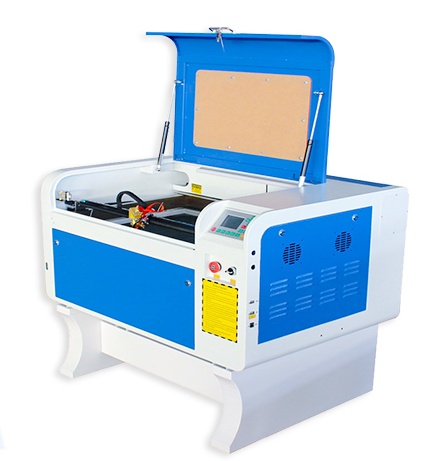

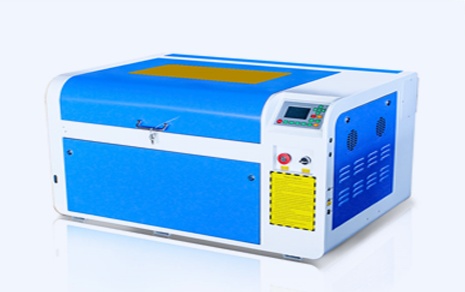

DESKTOP STYLE

WITH LEGS FOR EASYTO OPERATE (OPTIONAL)

12
1

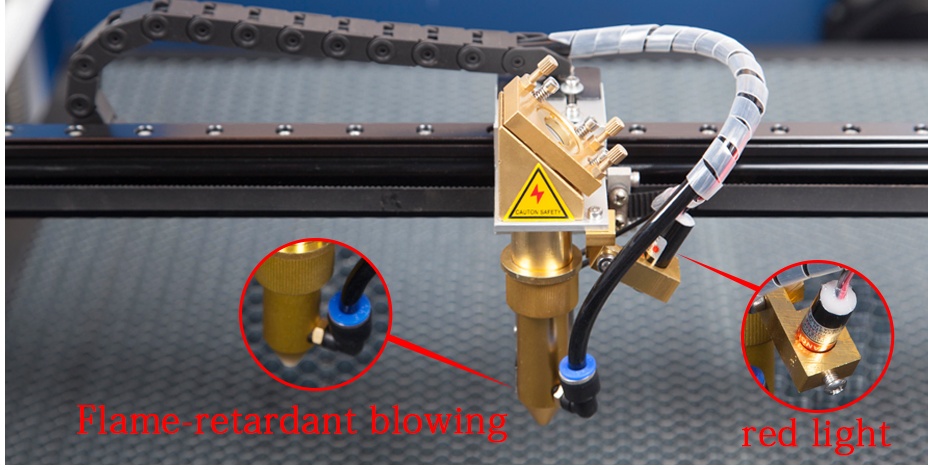

Laser head

The air pipe has been installed on it. So that dust will not contact the lens. The blown air can cool the lens and cool the material surface. Red light positioning function(Optional).

2

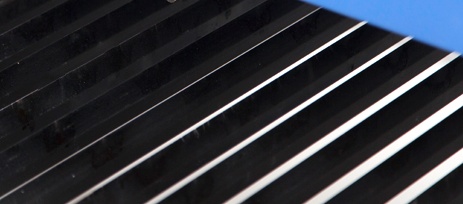

Aluminum knifeworktable (optional)

To process hard materials like acrylic, wood and so on.

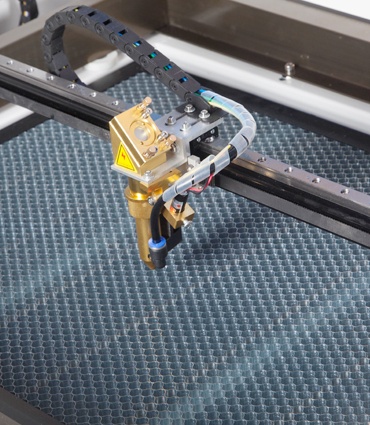

Honeycomb worktable

1 )Small holes make sure good supporting performance which is suitable for leather. cloth and other thin soft materials.

2 ) The hole of honeycomb worktable is small , so the small  workpiece can be placed on the table surface to be processed

3
4

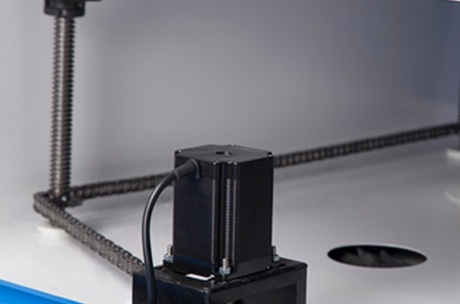

Electric Up downworktable

The height of the platform can be adjusted, freely to facilitate products of any thickness.

Features

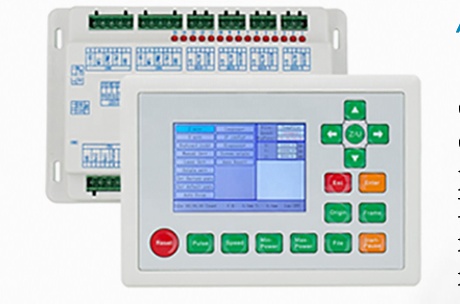

Adopt advanced laser engraving and cutting control system: Ruida RDC 6442 control system, the control pannal sup-port different language include Chinese,English, French, Pyccko,Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian.

5
PARAMENTERS
PARAMENTERS

Model

1060 laser engraving cutting machine

Working area

600*1000mm

Laser type

sealed co2 glass laser tube

Laser power

50W/60W80W1100W1150W

Engraving speed

0-30000mm/min

Cutting speed

0-3600mm/min

Cutting thickness

0-20mm ( depends on materials)

Resolution rate

±0.05mm

Data transfer interface

USB2.0

Working voltage

220v±10% 50hz  110 ±10% 60hz

Min shaping character

Character:2*2mm letter:1*1mm

Software

RdworksV8/ Core/Draw/Auto CAD

Supported graphic formats

BMP PCX TGA TIF PLT CDR

Working temperature

0-45°C

Working humidity

5%-90%

Rsolution ratio

<4500DPI

Optional parts

Rotary axis,water chiller 3000/5000/5200

Package

Packing in export wooden cases
